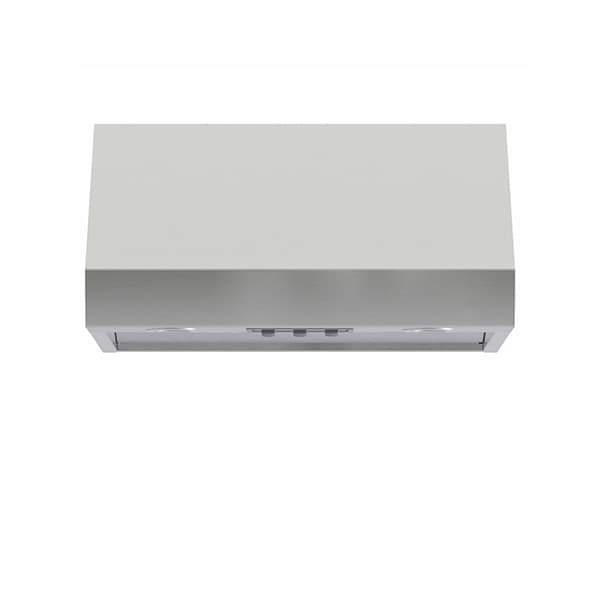

Wolf ICBPW362418I Designer Pro Chimney Hood

The Designer Pro Wall Hood is a 61 cm deep wall ventilation hood with a single internal motor, available in 762 mm, 914 mm and 1067 mm widths. It features heavy-duty stainless steel construction, a 200 mm round duct and a 1365 CMH motor with four speed settings. With a recessed LCD, dynamic temperature controlled lighting and remote control, it is designed for effective extraction and long-term use in demanding kitchen environments.

SKU:ICBPW362418I

EAN:

Category::Cooker Hoods

Quantity:

Key Features

Rigorously tested for decades of use for long-term durability.

200 mm (8”) duct with 200 mm round discharge dimensions.

Heavy-duty stainless steel construction for robust wall ventilation performance.

Handfinished with hemmed edges and welded seams for a refined and sturdy finish.

Recessed LCD for a sleeker look that integrates cleanly into the hood design.

Dynamic temperature controlled lighting that is dimmable and adjustable.

Remote control operation for convenient adjustment of hood functions.

1365 CMH single internal motor included with four speed settings.

Max 7 m straight duct run (5 m with up to three bends) for ducting layout planning.

5 year warranty on the product.

Models in three widths : 762 mm, 914 mm and 1067 mm wall ventilation hoods.

Exceptional support from Customer Care for assistance and service.

Technical Spec

Product typeDesigner Pro Wall Hood – 61 cm deep / single internal motor

Available widths762 mm, 914 mm, 1067 mm

ModelsICBPW302418I – 762 mm Wall Ventilation Hood; ICBPW362418I – 914 mm Wall Ventilation Hood; ICBPW422418I – 1067 mm Wall Ventilation Hood

Depth61 cm (stated as 61 cm deep)

MotorSingle internal motor, 1365 CMH, four speed settings

Duct size200 mm (8”) duct

Discharge dimensions200 mm round

Discharge locationVertical or horizontal

Maximum duct runMax 7 m straight duct run (5 m with up to 3 bends)

Electrical supply220–240 VAC; 50/60 Hz

Electrical service≤ 6 A

ConstructionHeavy-duty stainless steel, handfinished with hemmed edges and welded seams

Controls displayRecessed LCD

LightingDynamic temperature controlled lighting (dimmable and adjustable)

Control methodRemote control

Warranty5 year warranty

SupportExceptional support from Customer Care team

Specification noteSpecifications are subject to change without notice. Information generated on June 7th, 2021.

Downloads

Download product documentation, manuals, and specification sheets.

ICBPW362418I Spec

PDF

Frequently Asked Questions

What widths are available for the Designer Pro Wall Hood?

The hood is available in three widths: 762 mm (model ICBPW302418I), 914 mm (model ICBPW362418I) and 1067 mm (model ICBPW422418I).

What type of motor and airflow does this hood have?

It includes a single internal motor rated at 1365 CMH with four speed settings.

What duct size and discharge options does the hood support?

The hood uses a 200 mm (8”) round duct, with discharge dimensions of 200 mm round, and supports both vertical and horizontal discharge locations.

What is the maximum recommended duct run?

The maximum recommended duct run is 7 m for a straight duct, or 5 m when using up to three bends.

What are the electrical requirements in the UK?

The electrical supply is 220–240 VAC at 50/60 Hz, with electrical service of ≤ 6 A.

What warranty and support are provided?

The product comes with a 5 year warranty and exceptional support from the Customer Care team.
