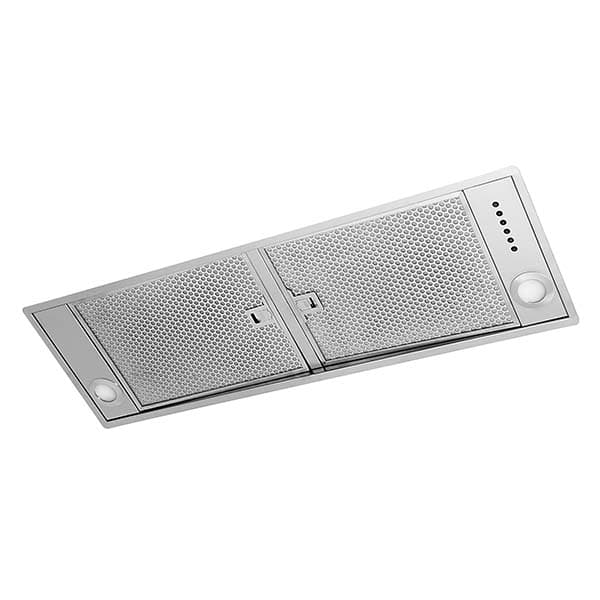

Westin Cache 800 Canopy Hood

The Westin Cache is a versatile, discreet cooker hood designed to fit unobtrusively into a chimney or kitchen furniture. Available in a wide range of sizes, it offers stainless steel construction, energy–efficient natural white LED lighting and flexible duct positioning. With options for internal, remote or recirculating motors and dishwasher–safe aluminium mesh filters, it is suited to kitchens requiring effective extraction with a streamlined, built–in appearance.

SKU:CACHE800

EAN:

Category::Cooker Hoods

Quantity:

Key Features

Discreet built–in design – designed to fit into a chimney or kitchen furniture for a subtle, integrated look.

Wide range of widths – available in 520mm, 700mm, 800mm, 900mm and 1100mm to suit different hob and cabinet sizes.

Stainless steel finish – durable stainless steel construction for a modern, professional appearance.

Flexible controls – 4–speed remote control and 4–speed push button control for easy operation.

LED lighting – 2 × 2.6W natural white (4000K) LED lights, with 3 lights on the 1100mm model.

Dishwasher–safe filters – aluminium mesh filters suitable for cleaning in a dishwasher.

Versatile duct positions – ducting can be configured to the left, right, rear or top for flexible installation.

Motor configuration options – choose from internal, remote or recirculating motor options.

Energy ratings shown – energy rating displayed for internal motor and remote motor configurations (exact class not stated in source).

Customisation suggestions – options to adapt lights, colour, width, length or hide the filters via Westin Plus suggestions.

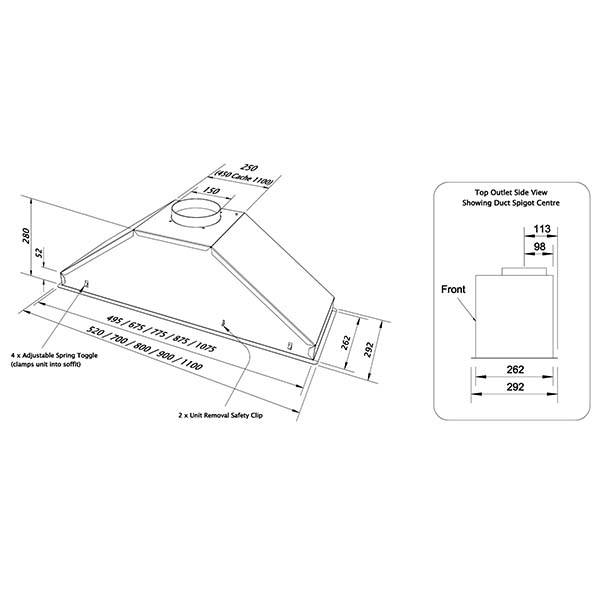

Technical Spec

Product nameWestin Cache

Available widths520mm, 700mm, 800mm, 900mm, 1100mm

Depth292mm

Height280mm

FinishStainless steel

Controls4–speed remote, 4–speed push button

Lighting2 × 2.6W natural white (4000K) LED (3 × on 1100 model)

FiltersAluminium mesh, suitable for dishwashers

Duct position optionsLeft, right, rear or top

Motor optionsInternal, remote, recirculating

Energy rating (internal motor)Not stated in source

Energy rating (remote motor)Not stated in source

Downloads

Download product documentation, manuals, and specification sheets.

CACHE800 Spec

PDF

Frequently Asked Questions

What widths is the Westin Cache available in?

The Westin Cache is available in widths of 520mm, 700mm, 800mm, 900mm and 1100mm.

Where is this cooker hood designed to be installed?

It is designed to fit into a chimney or kitchen furniture, providing a discreet and integrated installation.

What type of lighting does the hood use?

The hood uses 2 × 2.6W natural white (4000K) LED lights, with the 1100mm model using 3 LED lights.

Are the filters easy to clean?

Yes. The cooker hood uses aluminium mesh filters that are suitable for dishwashers.

What control options are provided?

It features a 4–speed remote control and 4–speed push button control.

Can the ducting be configured in different directions?

Yes. The duct position can be set to the left, right, rear or top, giving flexibility for different kitchen layouts.
