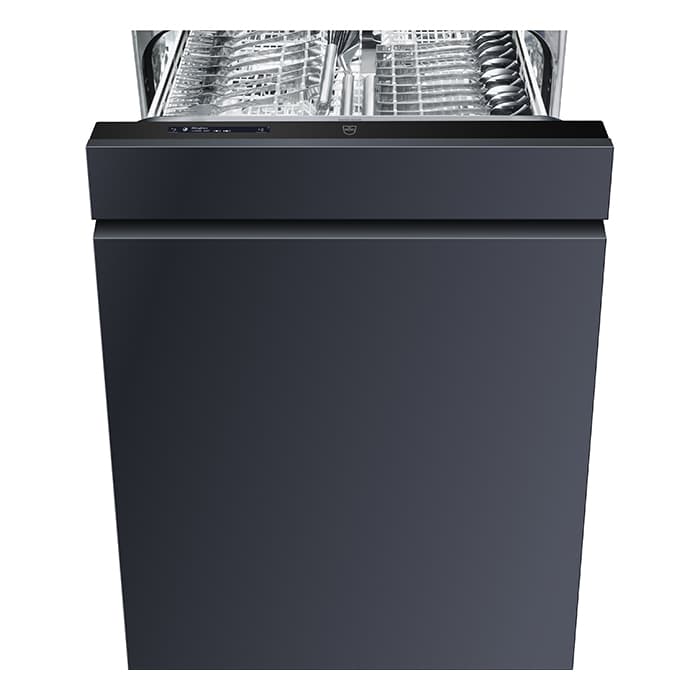

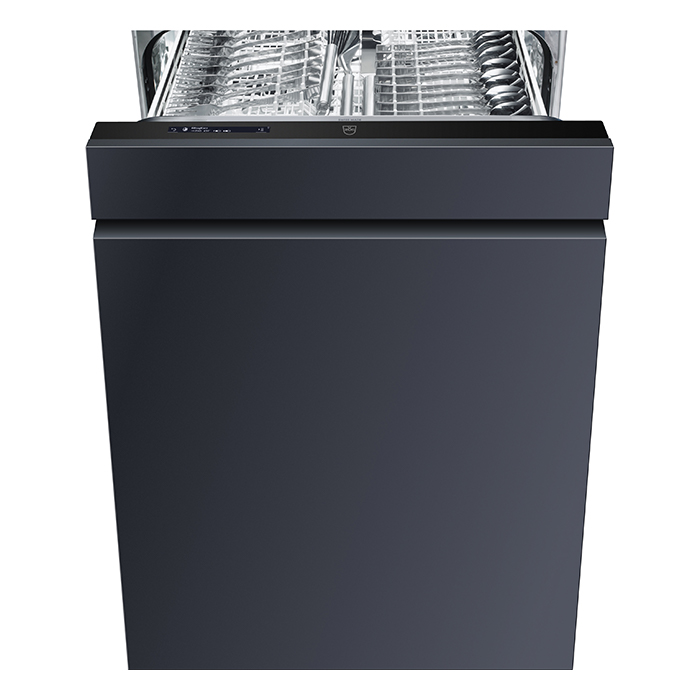

V-Zug DWV4XC AdoraDish V4000 Cutlery Dishwasher

The V-ZUG AdoraDish V4000 is a large-capacity, fully integratable 60 cm dishwasher designed for built-in installation without a handle. It offers space for 14 standard place settings and features 10 programmes, including Eco and Sprint, with a minimum noise output of 38.0 dB(A). With touch controls, LCD display, LED lighting and advanced options such as OptiStart, SteamFinish and V-ZUG-Home connectivity, it combines flexible loading with efficient performance.

SKU:DWV4XC

EAN:4111400009

Category::Dishwashers

Quantity:

Key Features

Product category: Dishwasher with standard width of 60 cm and large capacity.

Front design: Fully integratable design with no handle for seamless kitchen integration.

Capacity: Holds 14 standard place settings with an ergoPlus cutlery drawer and small cutlery basket.

Programmes: 10 programmes including Automatic, Eco, Sprint, SteamFinish, Hygiene, Glass, Intensive, Fondue/raclette, Pre-rinse and Energy saving.

Sprint programme: Quick wash with a duration of 20 min.

Noise performance: Noise output of 38.0 dB(A) and noise emission class A.

Energy efficiency: Energy efficiency class C with energy consumption of 0.73 kWh per standard cleaning cycle and 73 kWh per 100 cycles.

Water efficiency: Water consumption of 9.3 l per standard cycle and lowest water consumption for the automatic programme of 8.0 l.

Loading flexibility: Multiflex zone, additional row for glasses, multiple height adjustable upper basket and easy prong extension.

Additional settings: Automatic rinse agent dosage with salt / rinse aid refill indicator.

Special functions: Hot water connection, OptiStart, Part load, All-in-1 option and Energy saving function.

Display and control: LCD display with TouchControl operation and FunctionLight.

Lighting: Interior LED lighting with 4 lights.

Safety: Aquastop and childproof lock.

Connectivity: V-ZUG-Home with WLAN and Bluetooth interface (frequency range 2,4 GHz).

Standby management: EcoStandby with output of 0.1 W standby off and 1.4 W standby on.

Water and power connection: All connections (water and electric) 1.5 m, pressure hose G 3/4 1.55 m, water pressure 1–10 bar, 230 V~, 50 Hz, 2.2 kW, 10 A, plug type BS1363/13A.

Premium Swiss Quality: Described as Premium Swiss Quality with V-ZUG – Swiss perfection for your home.

Warranty: Warranty: 2 + 8 years.

Technical Spec

Article number4111400009

EAN code7630029451434

Product categoryDishwasher

Standard width60 cm

SizeLarge capacity

Front designFully integratable

HandleWithout

All connections (water and electric)1.5 m

Niche height851 mm

Max. niche height967 mm

Niche width600 mm

Max. niche width600 mm

Niche depth580 mm

Appliance height845 mm

Max. appliance height961 mm

Appliance width596 mm

Appliance depth550 mm

Depth with door open1222 mm

Appliance depth including distance to wall580 mm

Declared weight51 kg

DisplayLCD

ControlsTouchControl

Number of languages in display11

Languages in displayde-DE, fr-FR, it-IT, en-GB, es-ES, nl-NL, he_IL, ru-RU, tr-TR, uk-UA, zh-CN

FunctionLightYes

LightingLED, 4 lights

Ecopoints end of life (EP)2922820

Ecopoints device (EP)506485

Carbon footprint end of life1008 kg CO2e

Carbon footprint device181 kg CO2e

Monetary equivalent end of life1076 CHF

Monetary equivalent device308 CHF

Lowest water consumption – automatic programme8.0 l

Noise emission classA

Energy efficiency index42.9

Output – standby off0.1 W

Output – standby on1.4 W

Consumption when off0 W

Automatic shut-off consumption with network on0.9 W

Energy efficiency classC

Energy consumption of standard cleaning cycle (SPEC)1.7 kWh

Energy consumption per 100 cycles73 kWh

Energy consumption of standard cleaning cycle0.73 kWh

Water consumption per standard cycle9.3 l

Type of connection (1)230 V~

Frequency (1)50 Hz

Connected loads (1)2.2 kW

Fuse protection (1)10 A

Plug typeBS1363/13A

Connection cable1.5 m

Water pressure1–10 bar

Eco programmeYes

Adjustable height116.0 mm

SprintYes – 20 min programme duration

Cutlery drawerergoPlus cutlery drawer

Capacity standard place settings14

Premium Swiss QualityYes

EcoManagementYes

Additional row for glassesYes

Multiflex zoneYes

Multiple height adjustable upper basketYes

Special function hot water connectionYes

Salt / rinse aid refill indicatorYes

AquastopYes

EcoStandbyYes

Small cutlery basketYes

Programmes10

Turbidity sensorYes

TechnologyConventional

Salt consumption per wash7.5 g

Easy prong extensionYes

Installation in tall unitYes

OptiStartYes

AutomaticYes

SteamFinishYes

HygieneYes

GlassYes

IntensiveYes

Fondue/racletteYes

All-in-1 optionYes

Pre-rinseYes

Energy savingYes

Part loadYes

Delayed start24 h

Childproof lockYes

Programme duration of standard cleaning cycle6.5 h

Noise output38.0 dB(A)

Pressure hose G 3/41.55 m

Frequency range2,4 GHz

Warranty2 + 8 years

V-ZUG-HomeYes

InterfaceWLAN and Bluetooth

Compliance(EU) Nr. 2019/2017

Downloads

Download product documentation, manuals, and specification sheets.

DWV4XC Spec

PDF

Frequently Asked Questions

What is the capacity of the V-ZUG AdoraDish V4000?

The dishwasher has a large capacity and holds 14 standard place settings. It is equipped with an ergoPlus cutlery drawer, a small cutlery basket and flexible zones such as the Multiflex zone and an additional row for glasses.

How wide is the appliance and what niche size is required?

The standard width of the appliance is 60 cm, with an appliance width of 596 mm. It is designed for a niche width of 600 mm (maximum 600 mm), niche height from 851 mm up to a maximum of 967 mm, and a niche depth of 580 mm.

What are the energy and water consumption values?

The energy efficiency class is C. Energy consumption is 0.73 kWh per standard cleaning cycle and 73 kWh per 100 cycles. Water consumption per standard cycle is 9.3 l, and the lowest water consumption for the automatic programme is 8.0 l.

How loud is the dishwasher during operation?

The noise output is 38.0 dB(A) and the appliance has a noise emission class of A.

Which special programmes and functions are available?

Programmes include Eco, Automatic, Sprint, SteamFinish, Hygiene, Glass, Intensive, Fondue/raclette, Pre-rinse and Energy saving. Functions such as OptiStart, All-in-1 option, Part load, 24 h delayed start and a special function hot water connection are also available.

Does the appliance offer connectivity features?

Yes. The dishwasher supports V-ZUG-Home and provides WLAN and Bluetooth interfaces operating in the 2,4 GHz frequency range.
