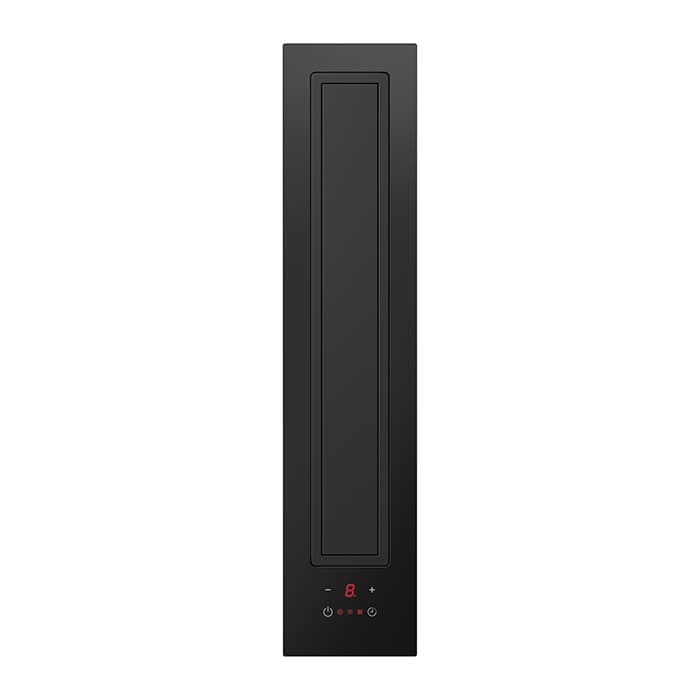

V-Zug DDEX11 DSMS Domino Downdraft

The V-ZUG DSMS is a hob hood range hood with a pullout glass front and side exhaust, designed for use with recirculation air via a standard activated charcoal filter. It provides three power levels plus an intensive setting, with automatic after-running time for added convenience. TouchControl operation and clear indicators for grease filter cleaning and charcoal filter saturation support straightforward use and maintenance, while an energy efficiency class A rating helps reduce annual energy consumption.

SKU:DDEX11

EAN:6400561005

Category::Cooker Hoods

Quantity:

Key Features

Product category: Range hood, type DSMS for hob hood installation.

Front design: Glass front with pullout glass for extended extraction area.

Recirculation air operation: Uses a standard activated charcoal filter for recirculation air.

TouchControl operation: Electronic TouchControl with fan power level display.

Power levels: 3 + i, including an intensive setting for higher extraction demand.

Energy efficiency class A: Annual energy consumption of 40.4 kWh.

Side exhaust: Side exhaust design with a 150 mm exhaust air connection.

Indicators: Grease filter cleaning indicator and activated charcoal filter saturation indicator.

Automatic after-running time: Continued operation after cooking for improved air extraction.

Performance: Extracted air output up to 590 m³/h (intensive) and recirculation air output up to 420 m³/h (intensive).

Single motor: 1 motor with 145 W motor output.

Compliance: Compliant with regulations (EU) Nr. 65/2014 and (EU) Nr. 66/2014.

UK connection: 220–240 V˜, 50 Hz, BS1363/13A plug and 1.8 m connection cable.

Environmental footprint: Ecopoints device 294692 and carbon footprint device 103 kg CO2e.

Technical Spec

Product categoryRange hood

TypeDSMS

Installation methodHob hood

Front designGlass, with pullout glass

Recirculation air filterStandard activated charcoal filter

Appliance height900 mm

Appliance width110 mm

Appliance depth / max. depth501 mm / 501 mm

Declared weight13.8 kg

ControlsTouchControl with fan power level display

Energy efficiency classA

Annual energy consumption40.4 kWh

Fluid dynamic efficiency31.6 (rating A)

Output – standby off0.85 W

Type of connection220–240 V˜

Frequency50 Hz

Connected load0.145 kW

Fuse protection10 A

Plug typeBS1363/13A

Connection cable length1.8 m

Power levels3 + i (including intensive setting)

Grease filter1 grease filter, cleaning indicator

Exhaust air connection diameter150 mm

Grease absorption capacity ratingC

Extracted air output – intensive590 m³/h

Extracted air output – max.500 m³/h

Extracted air output – min.370 m³/h

Recirculation air output – intensive420 m³/h

Recirculation air output – max.355 m³/h

Recirculation air output – min.265 m³/h

Extracted air noise – intensive70 dB(A)

Extracted air noise level – max.67 dB(A)

Extracted air noise – min.62 dB(A)

Motor(s)1

Motor output145 W

Ecopoints device (EP)294692

Ecopoints end of life (EP)626670

Carbon footprint device103 kg CO2e

Carbon footprint end of life220 kg CO2e

Monetary equivalent device155 CHF

Monetary equivalent end of life266 CHF

Compliance(EU) Nr. 65/2014; (EU) Nr. 66/2014

Downloads

Download product documentation, manuals, and specification sheets.

DDEX11 Spec

PDF

Frequently Asked Questions

What type of hood is the V-ZUG DSMS?

It is a range hood of type DSMS designed for hob hood installation, with a glass front and pullout glass.

Does the DSMS use recirculation air or extracted air?

The DSMS is specified with recirculation air and uses a standard activated charcoal filter. It also provides extracted air performance and a side exhaust with a 150 mm exhaust air connection.

How many power levels does the DSMS have?

It has 3 power levels plus an intensive setting, described as 3 + i.

What is the maximum extracted air output?

The maximum extracted air output is 500 m³/h, with an intensive setting output of 590 m³/h.

How will I know when to clean or replace the filters?

The hood has a grease filter cleaning indicator and an activated charcoal filter saturation indicator to signal when maintenance is required.

What is the energy efficiency rating of the DSMS?

The DSMS has an energy efficiency class A with an annual energy consumption of 40.4 kWh.
