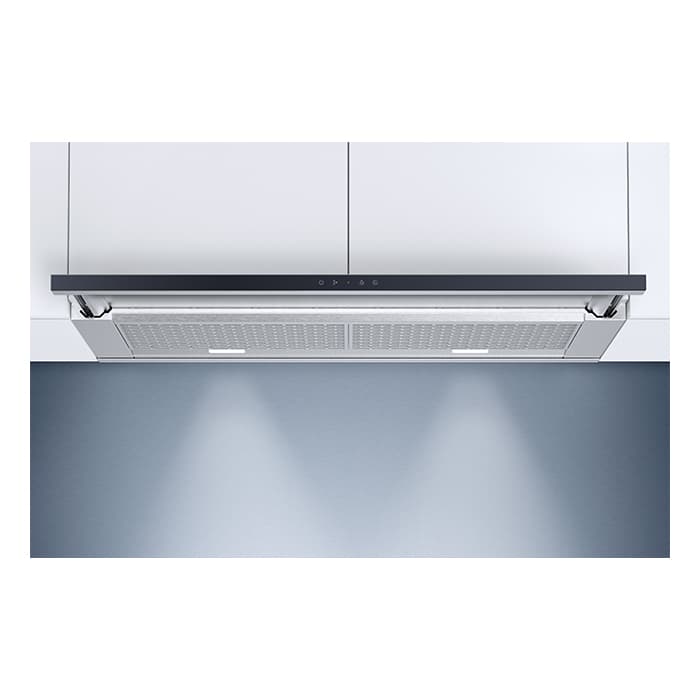

V-Zug EXV690T AiroClearCabinet V6000 90 Telescopic Hood

The V-ZUG AiroClearCabinet V6000 is a built-in range hood with a 90 cm standard width, designed for integration above the cooking area. It features a flat design with a black glass front, TouchControl operation and LED lighting. With an A+ energy efficiency class, SilentPlus and EcoStandby, it offers efficient extraction or recirculation using a long-life recirculation air filter plus, making it suitable for users seeking discreet performance and modern functions.

SKU:EXV690T

EAN:6106000006

Category::Cooker Hoods

Quantity:

Key Features

A+ energy efficiency class for low annual energy consumption of 31.2 kWh.

Built-in flat design with standard 90 cm width and black glass front for integrated installation.

TouchControl operation with fan power level display for straightforward control of power levels.

LED lighting with FlexLED providing illumination on the cooking surface of 113 lux and adjustable light colour from 2700–4000 K.

SilentPlus technology for reduced noise output across extraction and recirculation modes.

Long-life recirculation air filter plus with activated charcoal filter saturation indicator for recirculation air operation.

Multiple power levels with 3 + i settings, including intensive and automatic after-running time.

Grease filter management with 3 grease filters, grease filter cleaning indicator and ComfortFix.

OptiLink function and Bluetooth interface for enhanced control options.

EcoStandby and low standby output of 0.48 W, with 0 W consumption when off.

High extracted air output up to 653 m³/h in intensive setting and 452 m³/h at maximum setting.

Recirculation air output capability up to 566 m³/h in intensive setting and 392 m³/h at maximum setting.

Integrated non-return flap and exhaust air connection diameter of 150 mm.

2-year warranty provided by the manufacturer.

Technical Spec

Product categoryRange hood

TypeAE6T9FTLG

Article no.6106000006 + 1046970

EAN code7630029439494 + 7630029428986

Installation methodBuilt-in range hood

Hood designFlatdesign

Front designBlack glass

Standard width90 cm

Telescopic casingStandard

Recirculation air filterLong-life recirculation air filter plus

Depth with pull-out507.0 mm

Niche width / max. niche width900 mm / 900 mm

Niche depth330 mm

Appliance height470 mm

Front height25 mm

Appliance width898 mm

Appliance depth / max. depth303 mm / 325 mm

Declared weight27.1 kg

Energy efficiency classA+

Annual energy consumption31.2 kWh

Lighting efficiency ratingA

Fluid dynamic efficiency34.7 (rating A)

Output – standby off0.48 W

Consumption when off0 W

Type of connection220–240 V~

Frequency50–60 Hz

Connected loads0.134 kW

Fuse protection10 A

Plug typeSchuko 16A

Connection cable length1.2 m

Nominal lighting output2 x 2 W

Light sources replacementLight sources must be replaced by a professional

Extracted air output (intensive / max / min)653 m³/h / 452 m³/h / 247 m³/h

Recirculation air output (intensive / max / min)566 m³/h / 392 m³/h / 215 m³/h

Extracted air noise (intensive / max / min)64 dB(A) / 53 dB(A) / 38 dB(A)

Recirculation air noise (intensive / max / min)68 dB(A) / 57 dB(A) / 42 dB(A)

Light colour range2700 K to 4000 K

Lighting efficiency28

Illumination on cooking surface113 lux

Grease absorption capacity ratingC

Grease filters3

Exhaust air connection diameter150 mm

Motor(s) / motor output1 motor / 130 W

Ecopoints device (EP)197358

Ecopoints end of life (EP)438460

Carbon footprint device63 kg CO2e

Carbon footprint end of life145 kg CO2e

Monetary equivalent device126 CHF

Monetary equivalent end of life207 CHF

Compliance(EU) Nr. 65/2014; (EU) Nr. 66/2014

Non-return flapIntegrated/attached, included

Connection for fresh air/exhaust air flapYes

Warranty2 years

InterfaceBluetooth

Downloads

Download product documentation, manuals, and specification sheets.

EXV690T Spec

PDF

Frequently Asked Questions

What is the energy efficiency class of the AiroClearCabinet V6000?

The AiroClearCabinet V6000 has an energy efficiency class of A+ with an annual energy consumption of 31.2 kWh.

What installation type and width does this range hood have?

It is a built-in range hood with a flat design and a standard width of 90 cm. The niche width and maximum niche width are both 900 mm.

Does it support recirculation as well as extraction?

Yes, it supports recirculation air operation using a long-life recirculation air filter plus and also offers extracted air operation with an exhaust air connection of 150 mm.

What lighting is provided above the hob?

The hood uses LED lighting (2 x 2 W) with FlexLED and provides illumination on the cooking surface of 113 lux. The light colour can be set between 2700 K and 4000 K.

How many power levels does the fan have?

The fan offers 3 standard power levels plus an intensive setting (3 + i), along with an automatic after-running time function.

What is the warranty period?

The range hood comes with a 2-year warranty.
