V-Zug EXV490 AiroClearCabinet V4000 90 Canopy Hood

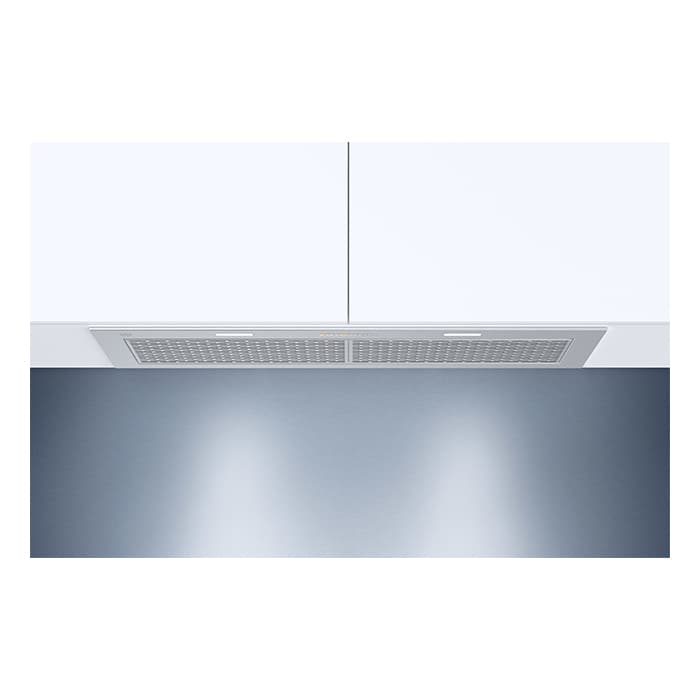

The V-ZUG AiroClearCabinet V4000 is a 90 cm integrated range hood in a ChromeClass front design, suitable for built-in kitchen installations. It features touch key controls, LED lighting and a long-life activated carbon filter plus for recirculation air operation. With energy efficiency class A, SilentPlus, OptiLink and multiple power levels including an intensive setting, it combines efficient extraction performance with convenient functions and EcoStandby operation.

SKU:EXV490

EAN:6401000002

Category::Cooker Hoods

Quantity:

Key Features

Integrated 90 cm range hood with ChromeClass front design for built-in installation.

Energy efficiency class A with annual energy consumption of 43.8 kWh.

Long-life activated carbon filter plus for recirculation air operation.

Touch key controls with fan power level display for simple operation.

LED lighting with FlexLED and two lights (2 × 2 W) for illuminated cooking surfaces.

SilentPlus technology to support quieter range hood operation characteristics (noise values stated in specifications).

Power levels: 3 + i including intensive setting and automatic after-running time.

OptiLink function listed among range hood functions.

Grease filter cleaning indicator and activated charcoal filter saturation indicator for maintenance guidance.

EcoStandby with output in standby off of 0.4 W.

High extraction performance with extracted air output up to 598 m³/h (intensive setting).

Bluetooth interface listed under service and interfaces.

Non-return flap included (integrated/attached) and connection for fresh air/exhaust air flap.

Grease filters: 2 with ComfortFix feature.

Technical Spec

BrandV-ZUG

Product nameAiroClearCabinet V4000

TypeAE4T-64010

Product categoryRange hood

Article number6401000002 + 1046970

EAN code7630029446782 + 7630029428986

Standard width90 cm

Front designChromeClass

Installation methodIntegrated range hood

Recirculation air filterLong-life activated carbon filter plus

Appliance height485 mm

Front height6.5 mm

Appliance width860 mm

Appliance depth320 mm

Max. appliance depth320 mm

Declared weight22.9 kg

ControlsTouch keys

Fan power level displayYes

Lighting typeLED

Number of lights2

Ecopoints end of life (EP)536601

Ecopoints device (EP)197358

Carbon footprint end of life178 kg CO2e

Carbon footprint device63 kg CO2e

Monetary equivalent end of life240 CHF

Monetary equivalent device126 CHF

Output – standby off0.4 W

Light source replacementLight sources must be replaced by a professional

Energy efficiency classA

Annual energy consumption43.8 kWh

Lighting efficiency ratingA

Fluid dynamic efficiency33.1

Fluid dynamic efficiency ratingA

Type of connection (1)220–240 V~

Nominal lighting output2 × 2 W

Frequency (1)50 Hz

Connected loads (1)0.269 kW

Fuse protection (1)10 A

Plug typeBS1363/10A

Connection cable length1.5 m

Grease filter cleaning indicatorYes

FlexLEDYes

SilentPlusYes

Activated charcoal filter saturation indicatorYes

Power levels3 + i

Remote controlOptional, available as accessory

Number of grease filters2

ComfortFixYes

EcoStandbyYes

Non-return flapIntegrated/attached, included

OptiLinkYes

Recirculation air functionYes

Intensive settingYes

Automatic after-running timeYes

Light colour2700 K

Light colour top value4000 K

Exhaust air connection diameter150 mm

Lighting efficiency42

Illumination on cooking surface169 lux

Grease absorption capacity ratingC

Extracted air output – intensive598 m³/h

Extracted air output – max.427 m³/h

Extracted air output – min.309 m³/h

Recirculation air output – intensive587 m³/h

Recirculation air output – max.538 m³/h

Recirculation air output – min.290 m³/h

Extracted air noise output – intensive67 dB(A)

Extracted air noise level – max.64 dB(A)

Extracted air noise output – min.49 dB(A)

Recirculation air noise output – intensive68 dB(A)

Recirculation air noise output – max.66 dB(A)

Recirculation air noise output – min.55 dB(A)

Connection for fresh air/exhaust air flapYes

Number of motors1

Motor output265 W

InterfaceBluetooth

Manufacturer detailsV-ZUG Ltd, Industriestrasse 66, P.O.Box, 6302 Zug/Switzerland; Phone +41 58 767 67 67; info@vzug.com

Downloads

Download product documentation, manuals, and specification sheets.

EXV490 Spec

PDF

Frequently Asked Questions

What is the width of the AiroClearCabinet V4000 range hood?

The standard width of the AiroClearCabinet V4000 is 90 cm, with an appliance width of 860 mm specified in the technical data.

Which energy efficiency class does this range hood have?

The range hood has an energy efficiency class of A, with an annual energy consumption of 43.8 kWh.

What types of filters are included?

The appliance uses a long-life activated carbon filter plus for recirculation air and has two grease filters. It features a grease filter cleaning indicator and an activated charcoal filter saturation indicator.

How many power levels does the hood offer?

The range hood provides 3 power levels plus an intensive level (3 + i) and includes an automatic after-running time.

What is the maximum extracted air output?

The extracted air output is stated as up to 598 m³/h on the intensive setting and 427 m³/h on the maximum standard setting.

How is the lighting configured on this range hood?

The hood is equipped with LED lighting using FlexLED, with two lights rated at 2 × 2 W. The light colour is specified as 2700 K with a top value of 4000 K, and illumination on the cooking surface is 169 lux.
