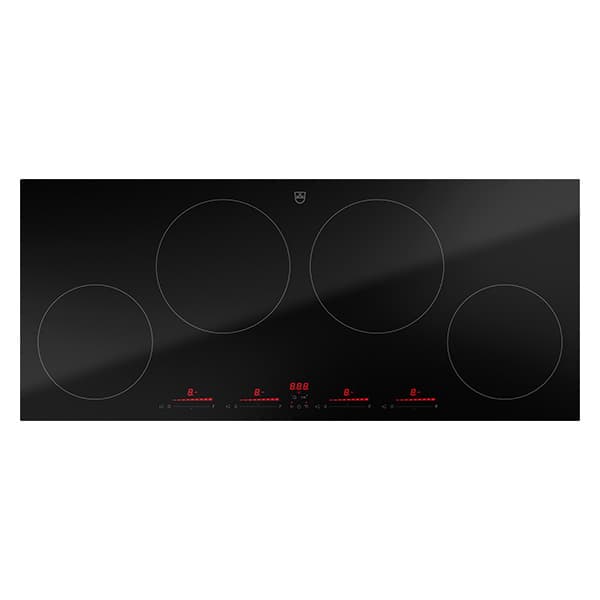

V-Zug IHV490P CookTop V4000 i904 Panoramic Induction Hob

The V-ZUG CookTop V4000 I904 is a 90 cm built-in induction hob with a BlackDesign front and DualDesign frame in a panorama layout. It offers four round induction cooking zones with digital display and Multi-Slider/direct selection controls. Features such as timer, Powerplus, warming, melt and simmer functions, plus a safety package and childproof lock, make it suitable for users seeking precise induction cooking with practical safety and convenience functions.

SKU:IHV490P

EAN:3114200003

Category::Hobs

Quantity:

Key Features

Built-in 90 cm induction hob in a panorama layout with BlackDesign front and DualDesign frame.

Four induction cooking zones with round induction coils and induction cooking technology.

Digital display and Multi-Slider/direct selection controls for slider control and straightforward operation.

Convenient cooking functions including warming function, automatic warm-up function, melt function and simmer function.

Powerplus function for increased maximum power on selected cooking zones.

Timer and operating time with shut-down function to support controlled cooking and automatic switch-off.

Safety package with residual heat indicator, pan detection (11–22 cm), cleaning lock and childproof lock.

Pause button and restore function to interrupt and resume the cooking process.

Energy-conscious design with specified energy consumption per cooking zone and 0 W consumption when off.

Warranty: 2 + 8 years as stated under service and interfaces.

Compliance with regulation (EU) Nr. 66/2014 for the product category hob.

Technical Spec

Product categoryHob

TypeCTI4T-31142

Appliance typeBuilt-in hob

Standard width90 cm

Front designBlackDesign

FrameDualDesign

LayoutPanorama

Appliance height51 mm

Appliance width880 mm

Appliance depth380 mm

Appliance corner radius2 mm

Cut-out height8.5 mm

Cut-out radius5 mm

Installation height when flush-fitted51 mm

Installation height when surface-mounted47 mm

Cut-out width when flush-mounted886 mm

Cut-out width when surface-mounted869 mm

Max. cut-out width when surface-mounted869 mm

Cut-out depth when flush-mounted386 mm

Cut-out depth when surface-mounted369 mm

Max. cut-out depth when surface-mounted369 mm

Support size width869 mm (max. 869 mm)

Support size depth369 mm (max. 369 mm)

Declared weight10.5 kg

Cooking zones4

Cooking zone 1 positionFront left

Cooking zone 1 dimensions18 cm

Cooking zone 2 positionCentral, left-aligned

Cooking zone 2 dimensions21 cm

Cooking zone 3 positionCentre, right

Cooking zone 3 dimensions21 cm

Cooking zone 4 positionFront right

Cooking zone 4 dimensions18 cm

DisplayDigital display

ControlsMulti-Slider/direct selection; slider control; button sound (on/off)

Energy consumption of entire hob183.8 Wh/kg

Output – standby off0.5 W

Consumption when off0 W

Operating voltage230 V

Type of connection (1)220–240 V~

Frequency (1)50–60 Hz

Connected loads (1)7.4 kW

Fuse protection (1)32 A

Plug typeCable

Cooking zone 1 max. power3700 W

Cooking zone 2 max. power3700 W

Cooking zone 3 max. power3000 W

Cooking zone 4 max. power3000 W

Cooking zone 1 energy consumption173.8 Wh/kg

Cooking zone 2 energy consumption192.8 Wh/kg

Cooking zone 3 energy consumption191.7 Wh/kg

Cooking zone 4 energy consumption177.1 Wh/kg

Hob categoryInduction

Induction coil typeRound

Heating technologyInduction cooking zones

Ecopoints device (EP)276300

Ecopoints end of life (EP)4021234

Carbon footprint device91 kg CO2e

Carbon footprint end of life1291 kg CO2e

Monetary equivalent device182 CHF

Monetary equivalent end of life1369 CHF

Regulation compliance(EU) Nr. 66/2014

GB 21456-2008No

Warranty2 + 8 years

Downloads

Download product documentation, manuals, and specification sheets.

IHV490P Spec

PDF

Frequently Asked Questions

How wide is the V-ZUG CookTop V4000 I904?

The standard width of the CookTop V4000 I904 is 90 cm. The appliance width is specified as 880 mm, with cut-out and support dimensions detailed for both flush-mounted and surface-mounted installation.

How many cooking zones does this hob have and what are their sizes?

The hob has four induction cooking zones. The front left and front right zones are 18 cm in diameter. The central left-aligned and centre right zones each have a diameter of 21 cm.

What type of controls does the CookTop V4000 I904 use?

The hob is operated via a digital display with Multi-Slider/direct selection controls. It features slider control and a button sound that can be switched on or off.

What safety features are included with this induction hob?

Safety features include a safety package, residual heat indicator, operating time with shut-down function, pan detection for 11–22 cm pans, cleaning lock and a childproof lock.

What is the maximum connected load and required fuse protection?

The connected load is 7.4 kW for connection type 220–240 V~ at 50–60 Hz. The specified fuse protection is 32 A.

What warranty is provided with the CookTop V4000 I904?

The service and interfaces information states a warranty of 2 + 8 years.
