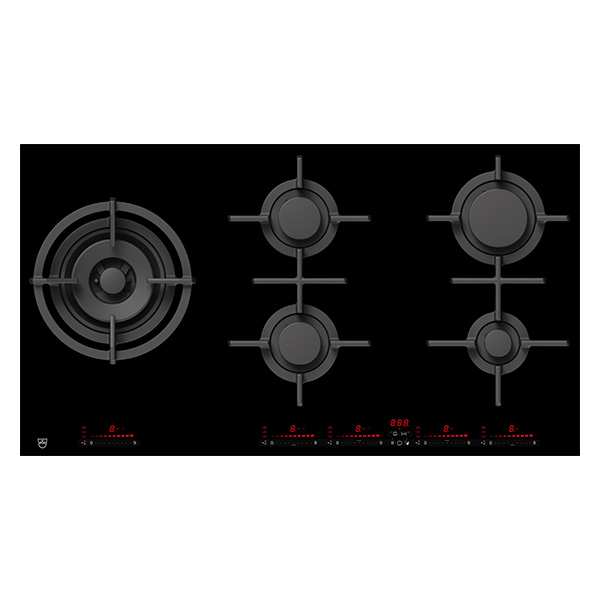

V-Zug GH905B Gas Hob

The V-ZUG GAS951GSAZ is a 90 cm gas hob featuring a BlackDesign front and DualDesign frame, designed for users who want five cooking zones including a powerful wok burner. Digital multi-slider controls with direct selection and a range of functions such as timer, warming and safety features provide convenient operation. EcoStandby, residual heat indicators and childproof lock support efficient, safer everyday cooking on natural gas H 20 mbar.

SKU:GH905B

EAN:3107260515

Category::Hobs

Quantity:

Key Features

90 cm standard width gas hob with five cooking zones for flexible meal preparation.

BlackDesign front with DualDesign frame for a coordinated, modern hob appearance.

Five gas burners including wok burner, rapid burner, standard burners and economy burner.

Digital display with Multi-Slider/direct selection and slider control for intuitive operation.

Operating time with shut-down function to switch off the hob after the set time.

Residual heat indicator to show when cooking zones are still hot.

Timer and pause button to support precise and flexible cooking control.

Warming, melt and simmer functions for gentle heating and maintaining temperature.

Automatic warm-up function to reach cooking temperature efficiently before reducing power.

Cleaning lock and childproof lock to prevent unintended operation during cleaning or by children.

EcoStandby feature to support reduced standby consumption.

Natural gas H 20 mbar technology for operation on this gas type.

Safety package offering additional safety-related functions.

Compliant with (EU) Nr. 66/2014 ; GB 21456-2008: No.

Technical Spec

Product categoryHob

TypeGAS951GSAZ

Standard width90 cm

Front designBlackDesign

FrameDualDesign

Appliance height171 mm

Appliance width897 mm

Appliance depth501 mm

Appliance corner radius1.5 mm

Support size width886 mm (max. 886 mm)

Support size depth490 mm (max. 490 mm)

Installation height flush-fitted98 mm

Installation height surface-mounted94 mm

Cut-out width flush-mounted903 mm

Cut-out width surface-mounted886 mm (max. 886 mm)

Cut-out depth flush-mounted507 mm

Cut-out depth surface-mounted490 mm (max. 490 mm)

Declared weight21.8 kg

Cooking zones5

Cooking zone positionsZone 1: central, left-aligned; Zone 2: front, centre; Zone 3: rear, centre; Zone 4: rear right; Zone 5: front right

DisplayDigital display

ControlsMulti-Slider/direct selection; slider control; button sound (on/off)

Hob categoryGas

Gas technologyNatural gas H 20 mbar

Burner type 1Wok burner

Burner type 2Standard burners

Burner type 3Standard burners

Burner type 4Rapid burner

Burner type 5Economy burner

Cooking zone 1 max. power6000 W

Cooking zone 2 max. power1750 W

Cooking zone 3 max. power1750 W

Cooking zone 4 max. power3000 W

Cooking zone 5 max. power1000 W

Type of connection (1)220–240 V~

Frequency (1)50–60 Hz

Connected loads (1)0.02 kW

Fuse protection (1)3 A

Energy efficiency of entire hob58 %

Gas burner 1 energy efficiency56.6 %

Gas burner 2 energy efficiency60 %

Gas burner 3 energy efficiency60 %

Gas burner 4 energy efficiency57.6 %

Gas burner 5 energy efficiency55 %

Plug typeCable

Connection cable length1.7 m

Ecopoints device (EP)251182

Ecopoints end of life (EP)251182

Carbon footprint device83 kg CO2e

Carbon footprint end of life83 kg CO2e

Monetary equivalent device166 CHF

Monetary equivalent end of life166 CHF

Downloads

Download product documentation, manuals, and specification sheets.

GH905B Spec

PDF

Frequently Asked Questions

How many cooking zones does the GAS951GSAZ have?

The hob has 5 cooking zones, with positions specified as central left-aligned, front centre, rear centre, rear right and front right.

What type of gas does this hob use?

The hob uses gas technology for natural gas H 20 mbar.

Which burner types are included?

It includes a wok burner (burner type 1), standard burners (burner types 2 and 3), a rapid burner (burner type 4) and an economy burner (burner type 5).

What are the maximum power levels of the burners?

Maximum power is 6000 W for cooking zone 1, 1750 W for zones 2 and 3, 3000 W for zone 4 and 1000 W for zone 5.

Does the hob have child safety features?

Yes. It includes a childproof lock, a cleaning lock and a safety package, as well as an operating time with shut-down function and residual heat indicator.

What kind of controls does the hob use?

The hob features a digital display with Multi-Slider/direct selection, slider control and an adjustable button sound (on/off).
