V-Zug DDEX90 DSTS Downdraft

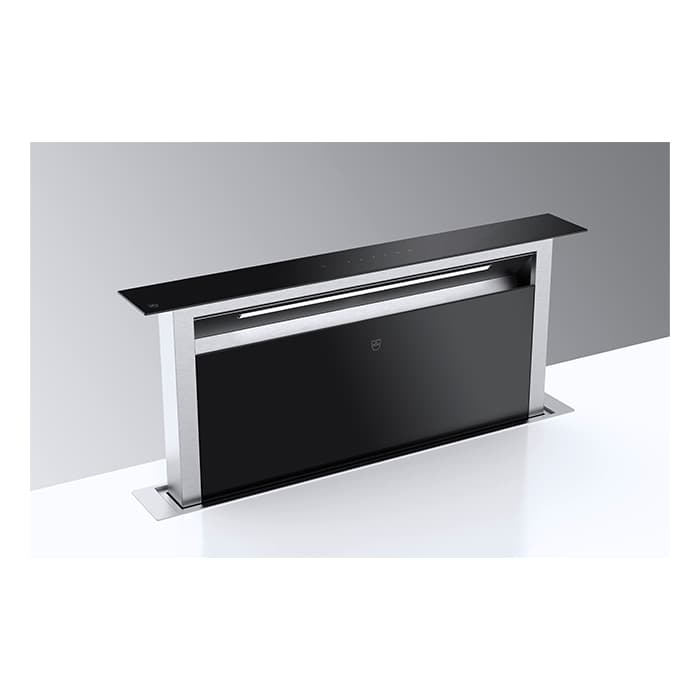

The V-ZUG DSTS9g is a 90 cm downdraft range hood with a glass front, designed for kitchens using extraction or recirculation air with a standard activated charcoal filter. It offers TouchControl operation, LED lighting and multiple power levels including an intensive setting. With energy efficiency class B, lighting efficiency rating A and an automatic after-running time, it combines effective odour removal with practical features for everyday cooking.

SKU:DDEX90

EAN:6400460005

Category::Cooker Hoods

Quantity:

Key Features

Downdraft installation method for a range hood that rises from the worktop while cooking.

90 cm standard width with an 880 mm appliance width and sleek glass front design.

TouchControl operation with fan power level display for straightforward control.

Energy efficiency class B with annual energy consumption of 62.1 kWh.

LED lighting (1 × 6 W) with lighting efficiency rating A and 4000 K light colour.

Multiple power levels with 3 + i settings, including intensive mode for higher extraction.

Clean air function and automatic after-running time for continued air cleaning.

Recirculation air capability with standard activated charcoal filter for odour reduction.

Grease filter cleaning indicator and activated charcoal filter saturation indicator for maintenance support.

Side exhaust with non-return flap included for extracted air installations.

Dimming lights, 2-stage to adjust LED lighting above the cooking surface.

Extracted air output up to 670 m³/h on intensive setting for powerful ventilation.

Recirculation air output up to 615 m³/h on intensive setting for filter-based operation.

Compliant with EU regulations (EU) Nr. 65/2014 and (EU) Nr. 66/2014.

Technical Spec

Product categoryRange hood

TypeDSTS9g

Standard width90 cm

Front designGlass

Installation methodDowndraft

Recirculation air filterStandard activated charcoal filter

Appliance height650 mm

Appliance width880 mm

Appliance depth120 mm (max. 120 mm)

Declared weight35 kg

ControlsTouchControl with fan power level display

Lighting typeLED

Number of lights1

Light colour4000 K

Nominal lighting output1 × 6 W

Illumination on cooking surface170 lux

Dimming lights2-stage

Power levels3 + i (intensive)

Grease filters2, with cleaning indicator

Activated charcoal filter indicatorSaturation indicator included

Side exhaustYes, with non-return flap included

Exhaust air connection diameter150 mm

Motor(s)1

Motor output270 W

Energy efficiency classB

Annual energy consumption62.1 kWh

Output – standby off0.49 W

Lighting efficiency ratingA

Lighting efficiency28.1

Fluid dynamic efficiency27.1 (rating B)

Grease absorption capacity ratingD

Extracted air output – intensive670 m³/h

Extracted air output – max.420 m³/h

Extracted air output – min.280 m³/h

Recirculation air output – intensive615 m³/h

Recirculation air output – max.330 m³/h

Recirculation air output – min.155 m³/h

Extracted air noise – intensive69 dB(A)

Extracted air noise – max.57 dB(A)

Extracted air noise – min.49 dB(A)

Recirculation air noise – intensive76 dB(A)

Recirculation air noise – max.60 dB(A) (Schallleistung Umluft max. Stufe)

Recirculation air noise – min.43 dB(A)

Type of connection220–240 V~

Frequency50 Hz

Connected load0.276 kW

Fuse protection10 A

Plug typeSchuko 16A

Connection cable length1.5 m

Light source replacementLight sources must be replaced by a professional

Ecopoints end of life (EP)804985

Ecopoints device (EP)294692

Carbon footprint end of life282 kg CO2e

Carbon footprint device103 kg CO2e

Monetary equivalent end of life326 CHF

Monetary equivalent device155 CHF

Clean air functionYes

Automatic after-running timeYes

Compliance(EU) Nr. 65/2014, (EU) Nr. 66/2014

Downloads

Download product documentation, manuals, and specification sheets.

DSTS9 - Bulletin.pdf

PDF

DDEX90 Spec

PDF

Frequently Asked Questions

What is the width of the V-ZUG DSTS9g range hood?

The DSTS9g has a standard width of 90 cm and an appliance width of 880 mm.

Can this range hood be used with recirculation air?

Yes. It supports recirculation air operation and is equipped with a standard activated charcoal filter and an activated charcoal filter saturation indicator.

How many power levels does the DSTS9g offer?

The range hood has 3 power levels plus an intensive setting (3 + i) for higher extraction when needed.

What type of lighting does this hood use?

It uses LED lighting with one 6 W light, a lighting efficiency rating of A, light colour of 4000 K and 2-stage dimming. Light sources must be replaced by a professional.

What is the maximum extracted air output?

The extracted air output is up to 670 m³/h on the intensive setting and 420 m³/h at maximum normal setting.

What is the energy efficiency class of the DSTS9g?

The DSTS9g has an energy efficiency class of B, with an annual energy consumption of 62.1 kWh.
