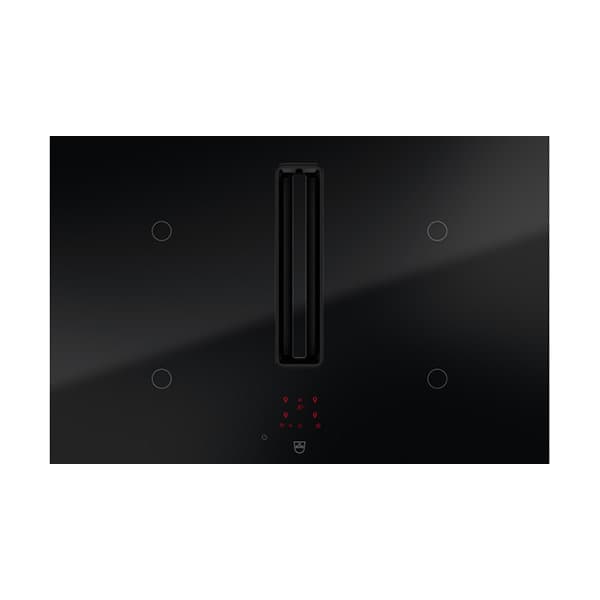

V-Zug IHV280IE CombiCookTop V2000 i804 Venting Induction Hob

The V-ZUG CombiCookTop V2000 I804 is an 80 cm induction hob with an integrated range hood, designed for efficient cooking and extraction. It provides four round induction cooking zones with up to 3700 W power, clear slider controls and a graphic touch display with 18 languages including en-GB. Features such as TemperatureControl, Powerplus, EcoStandby and a comprehensive safety package support precise cooking and convenient everyday use.

SKU:IHV280IE

EAN:3109500002

Category::Hobs

Quantity:

Key Features

Induction hob with integrated range hood for combined cooking and extraction.

Standard width 80 cm with BlackDesign front and DualDesign frame.

Four induction cooking zones with round coils and dimensions of 18 cm and 21 cm.

High power output up to 3700 W on a single cooking zone and 7.4 kW connected load.

Energy efficiency class A with annual energy consumption of 34.1 kWh.

Integrated extraction system for extracted air and recirculation air operation.

Multiple power levels with 9 + i settings on hob and range hood.

Graphic touch display with single slider control and button sound on/off.

18 display languages including en-GB, de-DE, fr-FR, it-IT, es-ES, nl-NL and others.

Wide range of functions including Warming, Heating, Melt, Simmer, Powerplus and CookingControl.

TemperatureControl for controlled cooking performance.

OptiLink function listed among available functions.

Metal grease filter cartridge with dishwasher-safe design.

Good grease absorption performance with rating B and total liquid absorption 0.525 l.

EcoStandby mode for both hob and range hood.

Safety package including residual heat indicator, childproof lock and cleaning lock.

Timer and automatic warm-up with operating time and shut-down function.

Pause button and restore function to interrupt and resume cooking.

Pan detection for pans sized 11–22 cm.

Integrated ventilation performance with intensive extracted air output up to 595.6 m³/h.

Noise levels detailed for both extracted air and recirculation air modes.

Compliant to EU regulation (EU) Nr. 66/2014 for the product category.

Warranty 2 + 8 years stated for the appliance.

Technical Spec

BrandV-ZUG

Product nameCombiCookTop V2000 I804

Article no.3109500002

EAN code7630029457696

Product categoryHob

TypeCCT2T-31095

Hob categoryInduction with integrated range hood

Standard width80 cm

Front designBlackDesign

FrameDualDesign

Compliance(EU) Nr. 66/2014; GB 21456-2008: No

Cut-out height8.5 mm

Cut-out radius5 mm

Appliance height206 mm

Appliance width761 mm

Appliance depth501 mm

Appliance corner radius2 mm

Support size (width)750 mm (max. 750 mm)

Support size (depth)490 mm (max. 490 mm)

Installation height flush-fitted206 mm

Installation height surface-mounted202 mm

Cut-out width flush-mounted767 mm

Cut-out width surface-mounted750 mm (max. 750 mm)

Cut-out depth flush-mounted507 mm

Cut-out depth surface-mounted490 mm (max. 490 mm)

Declared weight17.56 kg

Cooking zones4

Cooking zone 1 positionFront left

Cooking zone 1 dimensions18 cm

Cooking zone 2 dimensions21 cm

Cooking zone 3 dimensions21 cm

Cooking zone 4 dimensions18 cm

Display typeGraphic touch display

ControlsSingle slider; slider control; button sound on/off

Number of display languages18

Display languagesde-DE, fr-FR, it-IT, rm-CH, en-GB, es-ES, nl-NL, ru-RU, uk-UA, zh-CN, he_IL, tr-TR, ca-ES, da-DK, no-NO, sv-SV, th_TH, vi_VN

Energy consumption entire hob176.6 Wh/kg

Standby output (off)0.5 W

Consumption when off0 W

Energy efficiency classA

Annual energy consumption34.1 kWh

Fluid dynamic efficiency31.7 (rating A)

Cooking zone 1 max. power3000 W

Cooking zone 2 max. power3500 W

Cooking zone 3 max. power3700 W

Cooking zone 4 max. power3000 W

Type of connection (1)220–240 V~

Frequency (1)50–60 Hz

Connected loads (1)7.4 kW

Fuse protection (1)32 A

Plug typeCable

Cooking zone 1 energy consumption178.7 Wh/kg

Cooking zone 2 energy consumption176 Wh/kg

Cooking zone 3 energy consumption175.7 Wh/kg

Cooking zone 4 energy consumption176.1 Wh/kg

Induction coil typeRound

Power levels (hob)9 + i

Power levels (range hood)9 + i

Metal grease filter cartridge – liquid absorption0.175 l

Collection tray liquid absorption0.35 l

Total liquid absorption0.525 l

Grease absorption capacity ratingB

Extracted air output (intensive)595.6 m³/h

Extracted air output (max)520.9 m³/h

Extracted air output (min)130.8 m³/h

Recirculation air output (intensive)551.6 m³/h

Recirculation air output (max)454.8 m³/h

Recirculation air output (min)82.4 m³/h

Extracted air noise output (intensive)70 dB(A)

Extracted air noise level (max)67 dB(A)

Extracted air noise output (min)34 dB(A)

Recirculation air noise output (intensive)66 dB(A)

Recirculation air noise output (max)61 dB(A)

Recirculation air noise output (min)32 dB(A)

Ecopoints device (EP)656773

Ecopoints end of life (EP)4677653

Carbon footprint device178 kg CO2e

Carbon footprint end of life1465 kg CO2e

Monetary equivalent device496 CHF

Monetary equivalent end of life1770 CHF

Warranty2 + 8 years

Downloads

Download product documentation, manuals, and specification sheets.

IHV280IE Spec

PDF

Frequently Asked Questions

What type of hob is the CombiCookTop V2000 I804?

It is an induction hob with integrated range hood in the product category “Hob”, using induction cooking zones and round induction coils.

How wide is the hob and how many cooking zones does it have?

The standard width is 80 cm and the appliance provides four cooking zones with dimensions of 18 cm and 21 cm.

What is the energy efficiency class?

The CombiCookTop V2000 I804 has energy efficiency class A with an annual energy consumption of 34.1 kWh.

Which ventilation modes are supported?

The integrated range hood supports extracted air and recirculation air operation, with intensive extracted air output up to 595.6 m³/h and intensive recirculation air output up to 551.6 m³/h.

Is the grease filter dishwasher-safe?

Yes, the hob features a metal grease filter cartridge that is described as dishwasher-safe.

What warranty is provided with this appliance?

The stated warranty for this appliance is 2 + 8 years.
