Home /V-Zug / Hobs / V-Zug GH703B Gas Hob
GAS731GK - Main Image.jpg

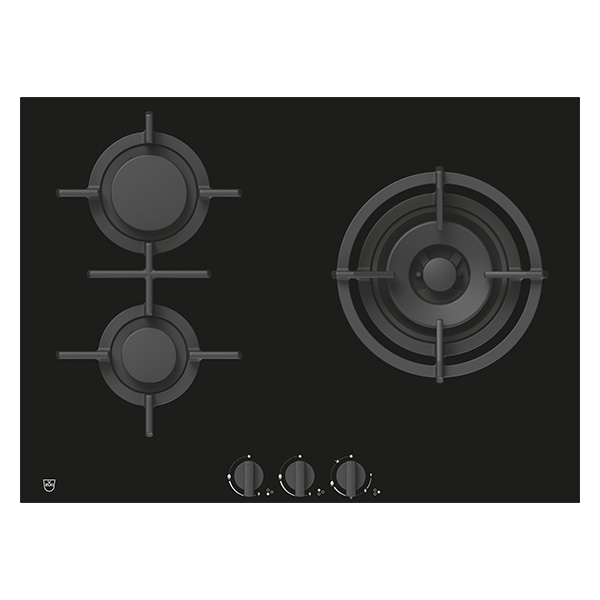

V-Zug GH703B Gas Hob

V-Zug GH703B Gas Hob

The V-ZUG GAS731GKBZ is a 70 cm gas hob with three cooking zones, designed for use with natural gas H 20 mbar. It features a BlackDesign front and DualDesign frame for an integrated look, and is operated via external dials. With standard, rapid and wok burners and compliance with regulation (EU) Nr. 66/2014, it is suited to households seeking a gas hob with dedicated burner types and UK BS1363 plug connection.

SKU:GH703B
EAN:3107560305
Category::Hobs
2 Year Warranty

Key Features

70 cm standard width hob for installations requiring a 70 cm gas cooking solution.
BlackDesign front with DualDesign frame for a coordinated hob appearance.
Three gas cooking zones positioned front left, rear left and centre right.
Dedicated burner types including standard burners, a rapid burner and a wok burner.
Gas hob category designed for natural gas H 20 mbar operation.
External dial controls with operation via cooker / external dial.
Energy efficiency of entire hob 58 % with individual burner efficiencies listed.
Compliant with (EU) Nr. 66/2014 for regulation conformity.
UK BS1363/13A plug type with 1.7 m connection cable.
Flexible installation heights for flush-fitted or surface-mounted configurations.

Technical Spec

Article number3107560305
EAN code7630029451625
Product categoryHob
Hob categoryGas
Standard width70 cm
Front designBlackDesign
FrameDualDesign
Appliance height161 mm
Appliance width691 mm
Appliance depth501 mm
Appliance corner radius1.5 mm
Cut-out height8.5 mm
Cut-out radius5 mm
Installation height when flush-fitted84 mm
Installation height when surface-mounted88 mm
Cut-out width when flush-mounted697 mm
Cut-out width when surface-mounted680 mm
Max. cut-out width when surface-mounted680 mm
Cut-out depth when flush-mounted507 mm
Cut-out depth when surface-mounted490 mm
Max. cut-out depth when surface-mounted490 mm
Support size width680 mm
Max. support size width680 mm
Support size depth490 mm
Max. support size depth490 mm
Declared weight16 kg
Cooking zones3
Cooking zone 1 positionFront left
Cooking zone 2 positionRear left
Cooking zone 3 positionCentre, right
Display and operationOperation via cooker / external dial
ControlsDial
Cooking zone 1 max. power1750 W
Cooking zone 2 max. power3000 W
Cooking zone 3 max. power6000 W
Energy efficiency of entire hob58 %
Gas burner 1 energy efficiency60 %
Gas burner 2 energy efficiency57.6 %
Gas burner 3 energy efficiency56.6 %
Type of connection (1)220-240 V~
Frequency (1)50-60 Hz
Connected loads (1)0.001 kW
Fuse protection (1)3 A
Plug typeBS1363/13A
Connection cable length1.7 m
Gas technologyNatural gas H 20 mbar
Burner type 1Standard burners
Burner type 2Rapid burner
Burner type 3Wok burner
Regulation compliance(EU) Nr. 66/2014

Downloads

Download product documentation, manuals, and specification sheets.

GH703B Spec

PDF

Frequently Asked Questions

What is the standard width of the V-ZUG GAS731GKBZ hob?

The standard width of this hob is 70 cm.

How many cooking zones does this gas hob have?

The hob has three cooking zones, positioned at the front left, rear left and centre right.

Which gas type is this hob designed for?

It is designed for natural gas H 20 mbar.

What burner types are included on the hob?

The hob includes standard burners, a rapid burner and a wok burner.

Does the hob have a UK-compatible plug?

Yes, it has a BS1363/13A plug type and a 1.7 m connection cable.

Is the GAS731GKBZ compliant with EU regulations?

Yes, it is compliant with regulation (EU) Nr. 66/2014.
