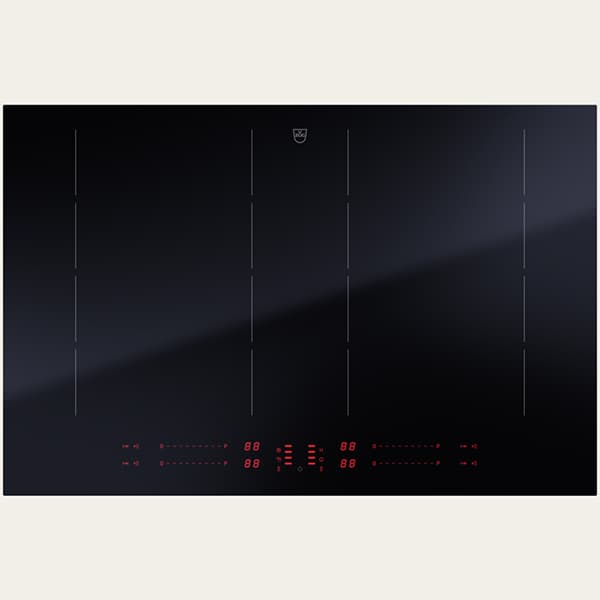

V-Zug IHV470 CookTop V4000 i804 Induction Hob

The V-ZUG CookTop V4000 I804 is an 80 cm built-in induction hob with four ZoneFlex cooking zones and OptiGlass surface. Designed as a BlackDesign DualDesign appliance, it offers precise control via Multi-Slider direct selection and digital display. Features such as timer, automatic pan detection, Powerplus and an integrated safety package make it suitable for users seeking flexible induction cooking with modern functions and clear operating feedback.

SKU:IHV470

EAN:3115800002

Category::Hobs

Quantity:

Key Features

Induction hob with 4 cooking zones using induction cooking zone technology for the entire cooking surface.

ZoneFlex induction coils providing flexible cooking zone usage.

80 cm standard width built-in design for generous cooking space.

OptiGlass surface with BlackDesign front and DualDesign frame.

Multi-Slider/direct selection controls with digital display and slider control.

Timer and operating time with shut-down function to support controlled cooking.

Automatic pan detection with pan detection from 11 cm.

Powerplus function for increased power on suitable cooking zones.

Warming, melt and simmer functions for gentle temperature control.

Bridging and automatic bridging functions to combine cooking zones.

OptiLink interface and device connection capability.

Comprehensive safety package including childproof lock, cleaning lock, pause button and residual heat indicator.

Button sound on/off for acoustic feedback that can be muted.

Energy consumption of entire hob specified as 191.5 Wh/kg.

Compliance with (EU) Nr. 66/2014 regulation.

Warranty of 2 + 8 years as stated for the appliance.

Technical Spec

Product categoryHob

Hob categoryInduction

TypeCTI4T-31158 (CookTop V4000 I804)

Appliance typeBuilt-in hob

Standard width80 cm

Front designBlackDesign

FrameDualDesign

Appliance height52 mm

Appliance width761 mm

Appliance depth501 mm

Appliance corner radius2 mm

Cut-out height8.5 mm

Cut-out radius5 mm

Installation height (flush-fitted)52 mm

Installation height (surface-mounted)48 mm

Cut-out width (flush-mounted)767 mm

Cut-out width (surface-mounted)750 mm (max. 750 mm)

Cut-out depth (flush-mounted)507 mm

Cut-out depth (surface-mounted)490 mm (max. 490 mm)

Support size width750 mm (max. 750 mm)

Support size depth490 mm (max. 490 mm)

Declared weight12.5 kg

Number of cooking zones4

Cooking zone 1 positionLeft

Cooking zone 1 dimensions17.8 x 22.5 cm

Cooking zone 2 positionRight

Cooking zone 2 dimensions17.8 x 22.5 cm

Cooking zone 3 dimensions17.8 x 22.5 cm

Cooking zone 4 dimensions17.8 x 22.5 cm

DisplayDigital display

ControlsMulti-Slider/direct selection, slider control

Button soundOn/off

Energy consumption (entire hob)191.5 Wh/kg

Cooking zone 1 energy consumption191.3 Wh/kg

Cooking zone 2 energy consumption191.7 Wh/kg

Cooking zone 1 max. power3700 W

Cooking zone 2 max. power3700 W

Type of connection (1)220–240 V~

Frequency (1)50–60 Hz

Connected loads (1)7.4 kW

Fuse protection (1)32 A

Plug typeCable

Output – standby off0.5 W

Consumption when off0 W

Ecopoints device (EP)263741

Ecopoints end of life (EP)4021234

Carbon footprint device87 kg CO2e

Carbon footprint end of life1291 kg CO2e

Monetary equivalent device174 CHF

Monetary equivalent end of life1369 CHF

Warranty2 + 8 years

InterfaceDevice connection (OptiLink etc.)

Downloads

Download product documentation, manuals, and specification sheets.

IHV470 Spec

PDF

Frequently Asked Questions

How wide is the V-ZUG CookTop V4000 I804?

The standard width of the CookTop V4000 I804 built-in hob is 80 cm, with an appliance width of 761 mm.

How many cooking zones does this induction hob have?

The hob has 4 induction cooking zones, each with dimensions of 17.8 x 22.5 cm.

What type of controls are used on this hob?

The hob is operated via Multi-Slider/direct selection controls with slider control and a digital display, and includes a button sound that can be switched on or off.

What safety features are included?

The hob includes a safety package with childproof lock, cleaning lock, pause button, operating time with shut-down function and a residual heat indicator.

What electrical connection does the hob require?

The hob is designed for 220–240 V~ at 50–60 Hz, with a connected load of 7.4 kW and 32 A fuse protection. The plug type is specified as cable.

Is this hob compliant with EU regulations?

Yes, the CookTop V4000 I804 is compliant with regulation (EU) Nr. 66/2014.
