V-Zug WCUC60B Winecooler UCSL 60

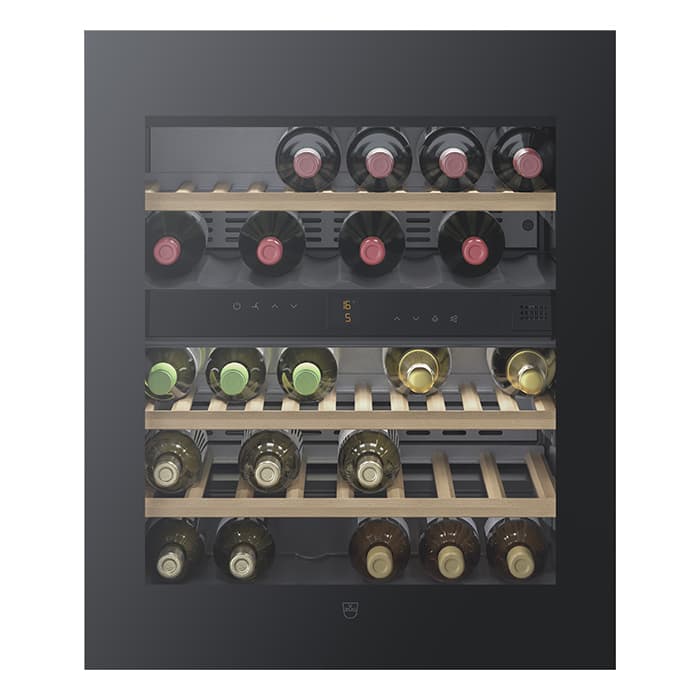

The V-ZUG WineCooler UCSL 60 is a built-in refrigerator/freezer category appliance designed for storing wine in a 60 cm niche. It offers 94 l usable capacity, space for 34 wine bottles and two separate temperature zones, with digital TouchControl and LED lighting. Its black mirror glass, handle-free front with right-hinged door suits modern kitchens, while SoftClose runners and telescopic fully extending shelves support convenient access and storage.

SKU:WCUC60B

EAN:5109300005

Category::Wine Cellars

Quantity:

Key Features

Total capacity 94 l with usable fridge compartment volume of 94 l for wine storage.

Holds up to 34 wine bottles with dedicated bottle rack, beverage drawer and storage compartments.

Two separate temperature zones with separate temperature control for flexible wine storage.

Elegant black mirror glass front with handle-free design and right-hand door hinge.

Stable telescopic fully extending runner for convenient access to stored bottles.

SoftClose function for gentle closing of the door.

LED lighting with 2-stage dimming and permanent indoor illumination, using two lights.

Digital display and TouchControl operation for easy adjustment of settings.

Activated charcoal filter to support air quality inside the appliance.

Reversible door hinge for flexible installation options.

Low noise emission of 35 dB(A) with noise emission class B.

Energy efficiency class G with annual energy consumption of 146 kWh.

Two + eight year warranty stated for service and interfaces.

Technical Spec

Product categoryRefrigerator/freezer

Standard width60 cm

Standard height82 cm

Front designBlack mirror glass

HandleHandle-free

Door hingeRight (reversible door hinge: Yes)

Niche height820 mm (max. niche height 870 mm)

Niche width600 mm (max. niche width 600 mm)

Niche depth580 mm

Appliance height820 mm (max. appliance height 866 mm)

Appliance width597 mm

Appliance depth577 mm

Depth with door open1128 mm

Appliance depth incl. distance to wall580 mm

Declared weight48 kg

DisplayDigital display

ControlsTouchControl

LightingLED, 2 lights, permanent indoor illumination, 2-stage dimming

Energy efficiency classG

Annual energy consumption146 kWh

Energy class of light sourceF (light sources must be replaced by a professional)

Rated output heating systems40.0 W

Connection voltage220–240 V~

Frequency50 Hz

Rated current1.5 A

Fuse protection10 A

Plug typeBS1363/13A

Connection cable length2.1 m

Total capacity94 l

Usable fridge compartment capacity94 l

Wine bottle capacity34

Storage compartments in fridge compartment5

Bottle rack / beverage drawerBottle rack, beverage drawer

Activated charcoal filterYes

Two separate temperature zonesYes

Separate temperature controlYes

Lowest storage temperature5 °C in wine storage compartment

Noise emission35 dB(A), noise emission class B

RefrigerantR600a

Climate classSN-ST

Ecopoints device (EP)506958

Ecopoints end of life (EP)1555634

Carbon footprint device184 kg CO2e

Carbon footprint end of life520 kg CO2e

Monetary equivalent device321 CHF

Monetary equivalent end of life645 CHF

FunctionsSeparate temperature control, 2-stage dimming lights, TouchOpen

Warranty2 + 8 years

Compliance(EU) Nr. 2019/2016, (EU) Nr. 2017/1369

Downloads

Download product documentation, manuals, and specification sheets.

WCUC60B Spec

PDF

Frequently Asked Questions

What is the bottle capacity of the WineCooler UCSL 60?

The appliance has a wine bottle capacity of 34, with a total usable fridge compartment capacity of 94 l.

Does this wine cooler have more than one temperature zone?

Yes. It features two separate temperature zones with separate temperature control, and the lowest storage temperature in the wine storage compartment is 5 °C.

What are the installation niche dimensions required?

The niche height is 820 mm with a maximum of 870 mm. The niche width is 600 mm with a maximum of 600 mm, and the niche depth is 580 mm.

How noisy is the WineCooler UCSL 60 in operation?

The stated noise emission is 35 dB(A), and it is classified in noise emission class B.

What kind of plug and power supply does it use?

The appliance uses a BS1363/13A plug, with a connection of 220–240 V~ at 50 Hz, rated current 1.5 A and fuse protection of 10 A. The connection cable length is 2.1 m.

What warranty is stated for this model?

A warranty of 2 + 8 years is stated under service and interfaces.
