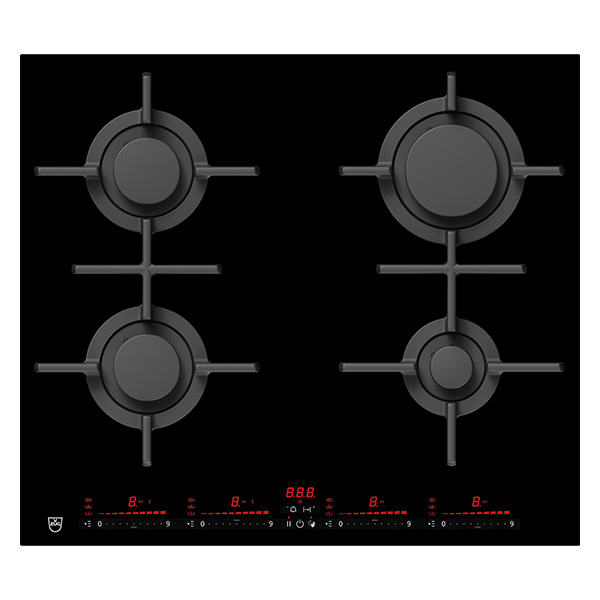

V-Zug GH604B Gas Hob

V-Zug GH604B Gas Hob

The V-ZUG GAS641GSAZ is a 60 cm gas hob in the BlackDesign front design with a DualDesign frame and four cooking zones. It features a digital display with multi-slider and slider control, plus functions such as timer, residual heat indicator and EcoStandby. Designed for natural gas H 20 mbar, it offers a range of warming, melting and simmering functions, along with a comprehensive safety package and childproof lock.

SKU:GH604B
EAN:3107160415
Category::Hobs
2 Year Warranty

Key Features

60 cm gas hob with four cooking zones positioned front left, rear left, rear right and front right.
BlackDesign front with DualDesign frame for a coordinated hob appearance.
Digital display with multi-slider/direct selection and slider control for operating the hob.
Operating time with shut-down function to switch off the hob after a set operating period.
Residual heat indicator to show remaining heat on the hob.
Timer and restore function to assist with timed cooking and restoring previous settings.
EcoStandby feature for reduced energy use in standby mode.
Four gas burner types including standard burners, a rapid burner and an economy burner.
Natural gas H 20 mbar technology as the gas technology specification.
Warming, melt and simmer functions to support controlled low-temperature cooking.
Pause button and automatic warm-up function for flexible cooking operation.
Cleaning lock and childproof lock to help prevent unintended operation during cleaning and by children.
Safety package providing integrated safety-related features.
Energy efficiency of entire hob: 58 % , with individual burner efficiencies stated for each gas burner.
Compliant to regulation (EU) Nr. 66/2014 as noted for the product.

Technical Spec

Product categoryHob
TypeGAS641GSAZ
Standard width60 cm
Front designBlackDesign
FrameDualDesign
Appliance height145 mm
Appliance width571 mm
Appliance depth501 mm
Appliance corner radius1.5 mm
Support size width560 mm (max. 560 mm)
Support size depth490 mm (max. 490 mm)
Installation height when flush-fitted98 mm
Installation height when surface-mounted94 mm
Cut-out width when flush-mounted577 mm
Cut-out width when surface-mounted560 mm (max. 560 mm)
Cut-out depth when flush-mounted507 mm
Cut-out depth when surface-mounted490 mm (max. 490 mm)
Declared weight14.2 kg
Cooking zones4 cooking zones (front left, rear left, rear right, front right)
DisplayDigital display
ControlsMulti-Slider/direct selection, slider control, button sound (on/off)
Ecopoints device (EP)200946
Ecopoints end of life (EP)251182
Carbon footprint device66 kg CO2e
Carbon footprint end of life83 kg CO2e
Monetary equivalent device132 CHF
Monetary equivalent end of life166 CHF
Cooking zone 1 max. power3000 W
Cooking zone 2 max. power1750 W
Cooking zone 3 max. power1750 W
Cooking zone 4 max. power1000 W
Type of connection (1)220–240 V~
Frequency (1)50–60 Hz
Connected loads (1)0.02 kW
Fuse protection (1)3 A
Plug typeCable
Connection cable length1.7 m
Energy efficiency of entire hob58 %
Gas burner 1 energy efficiency60 %
Gas burner 2 energy efficiency60 %
Gas burner 3 energy efficiency57.6 %
Gas burner 4 energy efficiency55 %
Regulation compliance(EU) Nr. 66/2014; GB 21456-2008: No
Burner type 1Standard burners
Burner type 2Standard burners
Burner type 3Rapid burner
Burner type 4Economy burner
Hob categoryGas
Gas technologyNatural gas H 20 mbar

Downloads

Download product documentation, manuals, and specification sheets.

GH604B Spec

PDF

Frequently Asked Questions

How wide is the V-ZUG GAS641GSAZ hob?

The standard width of the V-ZUG GAS641GSAZ hob is 60 cm. The appliance width is specified as 571 mm.

How many cooking zones does this gas hob have?

The hob has four cooking zones, positioned front left, rear left, rear right and front right.

What type of gas is the hob designed for?

The hob uses gas technology specified as natural gas H 20 mbar.

What safety features are included?

The hob includes a safety package, operating time with shut-down function, residual heat indicator, cleaning lock and childproof lock.

What is the maximum power of the most powerful burner?

Cooking zone 1 has a maximum power of 3000 W.

What kind of controls does the hob have?

The hob has a digital display with multi-slider/direct selection and slider control, plus a button sound that can be turned on or off.
