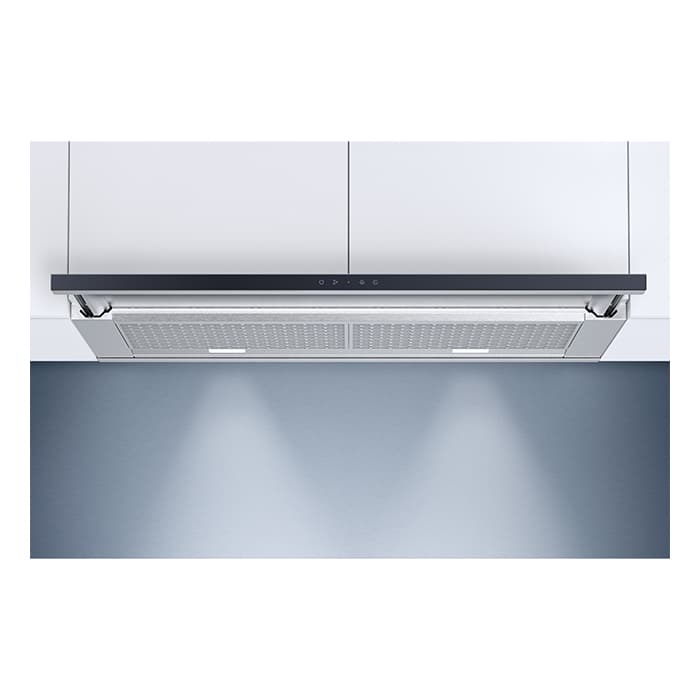

V-Zug EXV660T AiroClearCabinet V6000 60 Telescopic Hood

The V–ZUG AiroClearCabinet V6000 is a built–in 60 cm range hood with a black glass front and standard telescopic casing, designed for effective extracted air or recirculation air operation. It offers A+ energy efficiency, LED FlexLED lighting and SilentPlus for quieter operation. With three power levels plus an intensive setting, OptiLink, EcoStandby and convenient indicators for grease and activated charcoal filter status, it is suited to users seeking efficient, integrated kitchen ventilation.

SKU:EXV660T

EAN:6105800006

Category::Cooker Hoods

Quantity:

Key Features

Built–in 60 cm design with standard telescopic casing and black glass front for integration in kitchen cabinetry.

A+ energy efficiency class with annual energy consumption of 31.2 kWh.

TouchControl operation with fan power level display for straightforward control.

FlexLED lighting with 2 × 2 W LED lights and adjustable light colour between 2700 K and 4000 K.

SilentPlus feature to support quieter ventilation during operation.

Powerful extraction with extracted air output up to 653 m³/h (intensive setting).

Recirculation air capability with long–life recirculation air filter plus and activated charcoal filter saturation indicator.

Grease filter cleaning indicator and one grease filter for easier maintenance.

Power levels 3 + i offering three standard levels plus an intensive setting and automatic after–running time.

OptiLink function for enhanced functional control of the hood.

EcoStandby with standby output of 0.48 W and 0 W consumption when off.

Bluetooth interface for connectivity, with optional remote control available as an accessory.

Flatdesign hood with integrated non–return flap included.

Warranty: 2 + 8 years as stated by the manufacturer.

Compliant to regulation (EU) Nr. 65/2014 and (EU) Nr. 66/2014.

Technical Spec

BrandV–ZUG Ltd

Product nameAiroClearCabinet V6000

Product categoryRange hood

TypeAE6T6FTLG

Article no.6105800006 + 1046970

EAN code7630029439449 + 7630029428986

Installation methodBuilt–in range hood

Hood designFlatdesign

Front designBlack glass

Standard width60 cm

Telescopic casingStandard

Appliance width598 mm

Appliance height470 mm

Appliance depth303 mm

Max. appliance depth325 mm

Depth with pull–out507.0 mm

Front height25 mm

Niche width600 mm

Max. niche width600 mm

Niche depth330 mm

Declared weight21.8 kg

Energy efficiency classA+

Annual energy consumption31.2 kWh

Output – standby off0.48 W

Consumption when off0 W

Lighting efficiency ratingA

Fluid dynamic efficiency34.7

Fluid dynamic efficiency ratingA

Type of connection (1)220–240 V~

Frequency (1)50–60 Hz

Connected loads (1)0.134 kW

Fuse protection (1)10 A

Plug typeSchuko 16A

Connection cable length1.2 m

Lighting typeLED (FlexLED)

Number of lights2

Nominal lighting output2 × 2 W

Light colour2700 K

Light colour top value4000 K

Lighting efficiency28

Illumination on cooking surface113 lux

Light source replacementLight sources must be replaced by a professional

Extracted air output, intensive653 m³/h

Extracted air output, max.452 m³/h

Extracted air output, min.247 m³/h

Recirculation air output, intensive566 m³/h

Recirculation air output, max.392 m³/h

Recirculation air output, min.215 m³/h

Extracted air noise, intensive64 dB(A)

Extracted air noise, max.53 dB(A)

Extracted air noise, min.38 dB(A)

Recirculation air noise, intensive68 dB(A)

Recirculation air noise, max.57 dB(A)

Recirculation air noise, min.42 dB(A)

Grease filter1

Grease absorption capacity ratingC

Recirculation air filterLong–life recirculation air filter plus

Exhaust air connection diameter150 mm

Connection for fresh air/exhaust air flapYes

Non–return flapIntegrated/attached, included

ControlsTouchControl

Fan power level displayYes

Power levels3 + i

Selectable fan settingAbove steam filter

Ecopoints device (EP)197358

Ecopoints end of life (EP)438460

Carbon footprint device63 kg CO2e

Carbon footprint end of life145 kg CO2e

Monetary equivalent device (CHF)126

Monetary equivalent end of life (CHF)207

Motor(s)1

Motor output130 W

Warranty2 + 8 years

InterfaceBluetooth

EU regulation compliance(EU) Nr. 65/2014; (EU) Nr. 66/2014

Downloads

Download product documentation, manuals, and specification sheets.

EXV660T Spec

PDF

Frequently Asked Questions

What is the width of the V–ZUG AiroClearCabinet V6000?

The standard width of the AiroClearCabinet V6000 is 60 cm, with an appliance width of 598 mm and a niche width of 600 mm.

What energy efficiency class does this range hood have?

The hood has an energy efficiency class of A+ with an annual energy consumption of 31.2 kWh.

Does the hood support recirculation air operation?

Yes. It offers a recirculation air function and includes a long–life recirculation air filter plus, with an activated charcoal filter saturation indicator.

How many power levels are available?

The AiroClearCabinet V6000 provides three standard power levels plus an intensive setting (3 + i), along with an automatic after–running time.

What is the maximum extracted air output?

The extracted air output reaches up to 653 m³/h on the intensive setting and 452 m³/h on the maximum standard setting.

Is a remote control included?

A remote control is not stated as included; it is listed as optional and available as an accessory.
