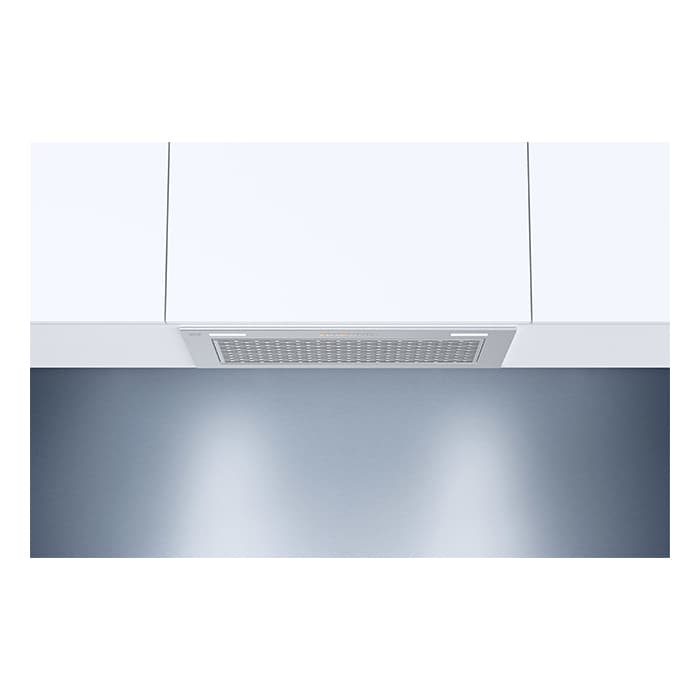

V-Zug EXV460 AiroClearCabinet V4000 60 Canopy Hood

The V-ZUG AiroClearCabinet V4000 is an integrated range hood with a 60 cm ChromeClass front design, suitable for built–in installation. It offers recirculation air operation with a long–life activated carbon filter plus, touch key controls and LED lighting. With energy efficiency class A, SilentPlus and multiple power levels including an intensive setting, it combines efficient extraction performance with convenient features such as grease filter cleaning and activated charcoal filter saturation indicators.

SKU:ACCV40SS60

EAN:6400900002

Category::Cooker Hoods

Quantity:

Key Features

Integrated 60 cm range hood with ChromeClass front design for built–in installation.

Energy efficiency class A with annual energy consumption of 43.9 kWh.

Long–life activated carbon filter plus for recirculation air operation.

Touch key controls with fan power level display for straightforward operation.

LED lighting (FlexLED) with two lights and adjustable light colour from 2700 K to 4000 K.

SilentPlus function aimed at quieter extraction performance.

Four power levels (3 + i) including an intensive setting and automatic after–running time.

Grease filter cleaning indicator and activated charcoal filter saturation indicator for maintenance guidance.

High extraction performance with up to 598 m³/h extracted air and 587 m³/h recirculation air on intensive setting.

EcoStandby and low standby output of 0.4 W to reduce energy use when not in operation.

Bluetooth interface for connectivity with compatible services or controls (specific uses not stated in source).

ComfortFix feature mentioned for convenience in handling or installation (exact function not stated in source).

Non–return flap included for the exhaust air connection.

Optional remote control available as an accessory.

Technical Spec

BrandV-ZUG

Product nameAiroClearCabinet V4000

TypeAE4T–64009

Product categoryRange hood

Article numbers6400900002 + 1046970

EAN codes7630029446775 + 7630029428986

Standard width60 cm

Front designChromeClass

Installation methodIntegrated range hood

Recirculation air filterLong–life activated carbon filter plus

Appliance height485 mm

Front height6.5 mm

Appliance width560 mm

Appliance depth320 mm

Max. appliance depth320 mm

Declared weight19.6 kg

ControlsTouch keys

Fan power level displayYes

Lighting typeLED

Number of lights2

Ecopoints end of life (EP)536601

Ecopoints device (EP)197358

Carbon footprint end of life178 kg CO2e

Carbon footprint device63 kg CO2e

Monetary equivalent end of life240 CHF

Monetary equivalent device126 CHF

Energy efficiency classA

Annual energy consumption43.9 kWh

Output – standby off0.4 W

Lighting efficiency ratingA

Fluid dynamic efficiency33.1

Fluid dynamic efficiency ratingA

Type of connection220–240 V~

Nominal lighting output2 x 2 W

Frequency50 Hz

Connected loads0.269 kW

Fuse protection10 A

Plug typeBS1363/10A

Connection cable length1.5 m

Light source replacementLight sources must be replaced by a professional

Light colour (min.)2700 K

Light colour (max.)4000 K

Exhaust air connection diameter150 mm

Lighting efficiency42.2

Illumination on cooking surface169 lux

Grease absorption capacity ratingC

Extracted air output – intensive598 m³/h

Extracted air output – max.427 m³/h

Extracted air output – min.309 m³/h

Recirculation air output – intensive587 m³/h

Recirculation air output – max.538 m³/h

Recirculation air output – min.290 m³/h

Extracted air noise output – intensive67 dB(A)

Extracted air noise level – max.64 dB(A)

Extracted air noise output – min.49 dB(A)

Recirculation air noise output – intensive68 dB(A)

Recirculation air noise output – max.66 dB(A)

Recirculation air noise output – min.55 dB(A)

Connection for fresh air/exhaust air flapYes

Number of motors1

Motor output265 W

Power levels3 + i (intensive)

Grease filter1, with cleaning indicator

EcoStandbyYes

Non–return flapIncluded (integrated/attached)

InterfaceBluetooth

Downloads

Download product documentation, manuals, and specification sheets.

ACCV40SS60 Spec

PDF

Frequently Asked Questions

What type of range hood is the AiroClearCabinet V4000?

It is an integrated range hood with a standard width of 60 cm and a ChromeClass front design, designed for recirculation air operation using a long–life activated carbon filter plus.

What is the energy efficiency class and annual energy consumption?

The appliance has energy efficiency class A and an annual energy consumption of 43.9 kWh.

How many power levels does this range hood have?

It offers three standard power levels plus an intensive setting, described as power levels 3 + i, and includes an automatic after–running time function.

What are the maximum extraction and recirculation air outputs?

The extracted air output reaches up to 598 m³/h on the intensive setting and 427 m³/h on the maximum standard setting. For recirculation air, the output is up to 587 m³/h on intensive and 538 m³/h on the maximum standard setting.

How is the lighting configured on the AiroClearCabinet V4000?

The hood uses LED lighting (FlexLED) with two lights rated at 2 x 2 W. The light colour is adjustable between 2700 K and 4000 K, with illumination on the cooking surface of 169 lux. Light sources must be replaced by a professional.

What indicators are provided for filter maintenance?

The appliance includes a grease filter cleaning indicator and an activated charcoal filter saturation indicator to signal when maintenance is required.
