V-Zug IHV460ZF CookTop V4000 i604 ZoneFlex Induction Hob

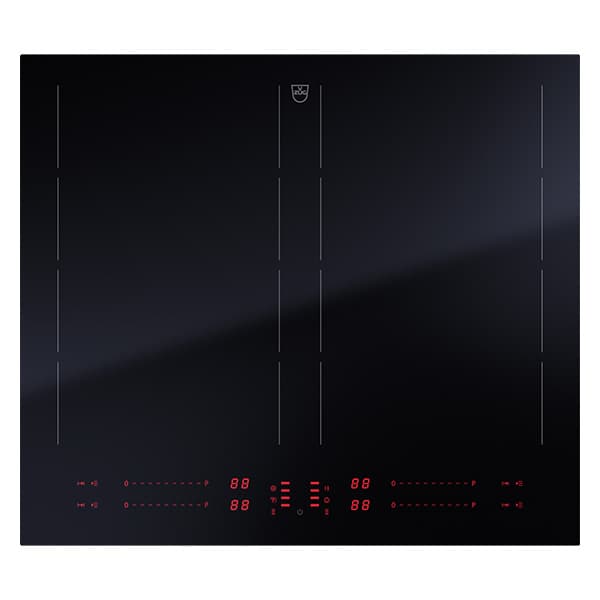

The V-ZUG CookTop V4000 I604 is a 60 cm built-in induction hob with OptiGlass, BlackDesign front and DualDesign frame. It offers four ZoneFlex induction cooking zones with digital display and Multi-Slider direct selection controls. Functions such as Powerplus, warming, melt and simmer settings, automatic pan detection and advanced safety features support flexible everyday cooking. The hob is suitable for users seeking precise induction performance with modern control and safety options.

SKU:IHV460ZF
EAN:3115700002
Category::Hobs
2 Year Warranty

Key Features

Built-in 60 cm induction hob with appliance width 571 mm and standard width 60 cm.
Four induction cooking zones using ZoneFlex induction coil technology and induction cooking zones.
OptiGlass surface with BlackDesign front and DualDesign frame for a coordinated hob appearance.
Digital display and Multi-Slider direct selection for precise slider control of each cooking zone.
Powerplus function providing up to 3700 W max. power on cooking zones 1 and 2.
Convenient cooking functions including warming, melt, simmer, timer and operating time with shut-down function.
Automatic pan detection from 11 cm with automatic bridging function for flexible pan placement.
OptiLink interface capability with device connection (OptiLink etc.).
Practical restore and pause functions to temporarily stop and then resume cooking settings.
Cleaning lock and button sound on/off to support easy cleaning and discrete operation.
Residual heat indicator and safety package plus childproof lock for enhanced safety.
Energy-conscious design with energy consumption of entire hob 191.5 Wh/kg and 0 W consumption when off.
Warranty stated as 2 + 8 years.

Technical Spec

Product categoryHob
TypeCTI4T-31157
Appliance typeBuilt-in hob
Standard width60 cm
Front designBlackDesign
FrameDualDesign
Hob categoryInduction
Heating technologyInduction cooking zones
Induction coil typeZoneFlex
Number of cooking zones4
Compliance(EU) Nr. 66/2014
Appliance height52 mm
Appliance width571 mm
Appliance depth501 mm
Appliance corner radius2 mm
Cut-out height8.5 mm
Cut-out radius5 mm
Support size width560 mm (max. 560 mm)
Support size depth490 mm (max. 490 mm)
Installation height flush-fitted52 mm
Installation height surface-mounted48 mm
Cut-out width flush-mounted577 mm
Cut-out width surface-mounted560 mm (max. 560 mm)
Cut-out depth flush-mounted507 mm
Cut-out depth surface-mounted490 mm (max. 490 mm)
Declared weight12.5 kg
Cooking zone 1 positionLeft
Cooking zone 1 dimensions17.8 x 22.5 cm
Cooking zone 1 max. power3700 W
Cooking zone 1 energy consumption191.3 Wh/kg
Cooking zone 2 positionRight
Cooking zone 2 dimensions17.8 x 22.5 cm
Cooking zone 2 max. power3700 W
Cooking zone 2 energy consumption191.7 Wh/kg
Cooking zone 3 dimensions17.8 x 22.5 cm
Cooking zone 4 dimensions17.8 x 22.5 cm
Energy consumption entire hob191.5 Wh/kg
Output – standby off0.5 W
Consumption when off0 W
Type of connection (1)220–240 V~
Frequency (1)50–60 Hz
Connected loads (1)7.4 kW
Fuse protection (1)32 A
Plug typeCable
Ecopoints end of life (EP)4021234
Ecopoints device (EP)251182
Carbon footprint end of life1291 kg CO2e
Carbon footprint device83 kg CO2e
Monetary equivalent end of life1369 CHF
Monetary equivalent device166 CHF
Warranty2 + 8 years
InterfaceDevice connection (OptiLink etc.)

Downloads

Download product documentation, manuals, and specification sheets.

IHV460ZF Spec

PDF

Frequently Asked Questions

What type of hob is the CookTop V4000 I604?

It is a built-in induction hob in the hob product category, using induction cooking zones and ZoneFlex induction coil technology.

How many cooking zones does this hob have?

The hob has four cooking zones. Cooking zones 1 to 4 each have dimensions of 17.8 x 22.5 cm, with zones 1 and 2 positioned left and right respectively.

What is the maximum power output of the cooking zones?

Cooking zones 1 and 2 each have a maximum power of 3700 W. Maximum power for zones 3 and 4 is Not stated in source.

Which safety features are available?

The hob includes a safety package, residual heat indicator, childproof lock, cleaning lock and operating time with shut-down function.

What electrical connection does the hob require?

The specified connection is 220–240 V~, 50–60 Hz, with connected load of 7.4 kW, fuse protection of 32 A and plug type cable.

What warranty is provided?

The stated warranty is 2 + 8 years.
