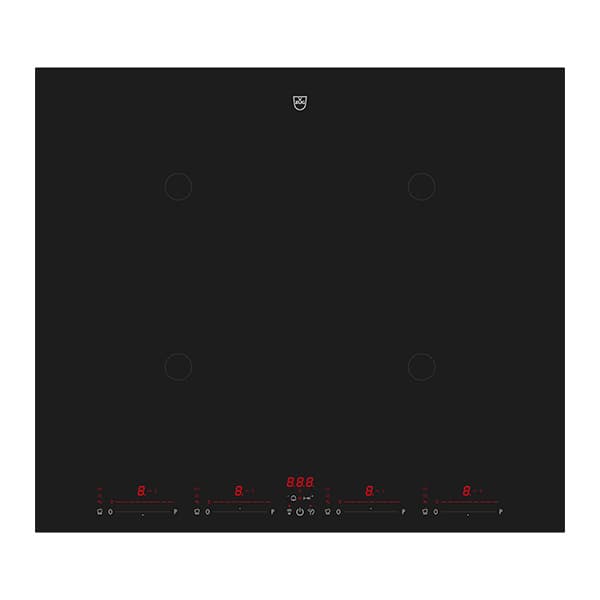

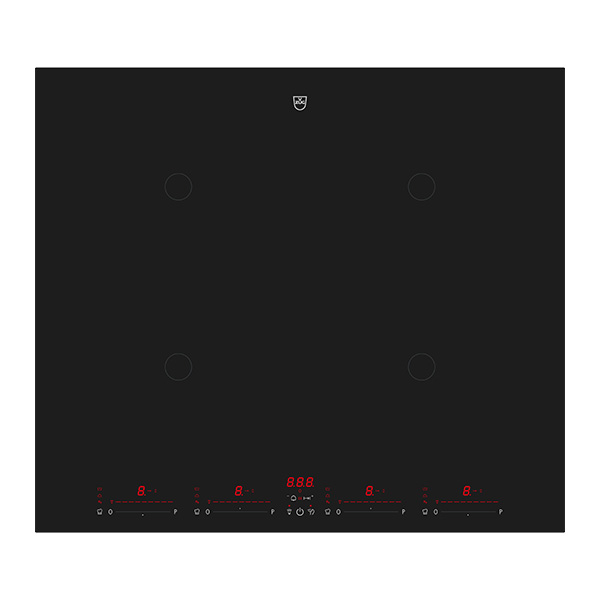

V-Zug IHV460 CookTop V4000 i604 Induction Hob

The V-ZUG CookTop V4000 I604 is a 60 cm built-in induction hob featuring four MaxiFlex cooking zones and OptiGlass with BlackDesign front and DualDesign frame. Designed for convenient, precise control via Multi-Slider direct selection, it offers functions such as bridging, Powerplus, warming, melt and simmer. With comprehensive safety features including a safety package, childproof lock and cleaning lock, it is suited to users wanting an advanced induction hob with modern control and connectivity.

SKU:IHV460

EAN:3111500011

Category::Hobs

Quantity:

Key Features

Induction hob with four cooking zones – Hob category: Induction with 4 induction cooking zones using MaxiFlex coils.

60 cm built-in design – Appliance type: Built-in hob with a standard width of 60 cm.

OptiGlass and BlackDesign front – OptiGlass surface with BlackDesign front and DualDesign frame.

Multi-Slider direct selection controls – Digital display with slider control and button sound on/off.

MaxiFlex induction coils – Induction coil type: MaxiFlex for flexible cooking zones.

Bridging function – Bridging function for combining suitable zones.

Powerplus function – Powerplus for increased power on the cooking zones.

Automatic pan detection – Automatic pan detection with pan detection 11_22 cm.

Warming, melt and simmer functions – Warming function, melt function and simmer function to support gentle or low-heat cooking.

Timer and operating time with shut-down – Timer and operating time with shut-down function for added control.

Restore and pause functions – Restore function and pause button for convenient interruption and continuation of cooking.

Residual heat indicator – Residual heat indicator to show remaining heat on the zones.

Comprehensive safety package – Safety package, childproof lock and cleaning lock to support safe operation.

OptiLink connectivity – OptiLink function and Bluetooth interface.

Energy-conscious performance – Energy consumption of the entire hob: 184.3 Wh/kg, with 0 W consumption when off and 0.5 W in standby off.

Four high-power cooking zones – Each cooking zone with max. power of 3700 W.

Extended warranty – Warranty: 2 + 8 years.

Technical Spec

Product categoryHob

TypeCTI4T64MMSOLD

Appliance typeBuilt-in hob

Standard width60 cm

Front designBlackDesign

FrameDualDesign

Appliance height51.7 mm

Appliance width571 mm

Appliance depth501 mm

Appliance corner radius2 mm

Cut-out height8.5 mm

Cut-out radius5 mm

Installation height when flush-fitted51.7 mm

Installation height when surface-mounted47.7 mm

Cut-out width when flush-mounted577 mm

Cut-out width when surface-mounted560 mm

Max. cut-out width when surface-mounted560 mm

Cut-out depth when flush-mounted507 mm

Cut-out depth when surface-mounted490 mm

Max. cut-out depth when surface-mounted490 mm

Support size width560 mm

Max. support size width560 mm

Support size depth490 mm

Max. support size depth490 mm

Declared weight10.5 kg

Cooking zones4

Cooking zone 1 positionfront left

Cooking zone 1 dimensions18 x 20 cm

Cooking zone 2 positionrear left

Cooking zone 2 dimensions18 x 20 cm

Cooking zone 3 positionrear right

Cooking zone 3 dimensions18 x 20 cm

Cooking zone 4 positionfront right

Cooking zone 4 dimensions18 x 20 cm

DisplayDigital display

ControlsMulti-Slider/direct selection, slider control, operating time, button sound (on/off)

Energy consumption of entire hob184.3 Wh/kg

Output – standby off0.5 W

Consumption when off0 W

Cooking zone 1 max. power3700 W

Cooking zone 2 max. power3700 W

Cooking zone 3 max. power3700 W

Cooking zone 4 max. power3700 W

Type of connection (1)220–240 V~

Type of connection (2)380–415 V 2N~

Frequency (1)50–60 Hz

Frequency (2)50–60 Hz

Connected loads (1)7.4 kW

Connected loads (2)7.4 kW

Fuse protection (1)32 A

Fuse protection (2)16 A

Plug typeCable

Cooking zone 1 energy consumption181.8 Wh/kg

Cooking zone 2 energy consumption185.5 Wh/kg

Cooking zone 3 energy consumption182.8 Wh/kg

Cooking zone 4 energy consumption187.1 Wh/kg

Ecopoints end of life (EP)4021234

Ecopoints device (EP)251182

Carbon footprint end of life1291 kg CO2e

Carbon footprint device83 kg CO2e

Monetary equivalent end of life1369 CHF

Monetary equivalent device166 CHF

Hob categoryInduction

Heating technologyInduction cooking zones

Induction coil typeMaxiFlex

Operating time with shut-down functionYes

Residual heat indicatorYes

TimerYes

Restore functionYes

Warming functionYes

Automatic pan detectionYes

Bridging functionYes

OptiLinkYes

PowerplusYes

Safety packageYes

Pan detection range11_22 cm

Pause buttonYes

Automatic warm-up functionYes

Cleaning lockYes

Melt functionYes

Simmer functionYes

Childproof lockYes

Warranty2 + 8 years

InterfaceBluetooth

Compliance – GB 21456-2008No

Downloads

Download product documentation, manuals, and specification sheets.

IHV460 Spec

PDF

Frequently Asked Questions

How many cooking zones does the CookTop V4000 I604 have?

The CookTop V4000 I604 has 4 induction cooking zones, each with dimensions of 18 x 20 cm and a maximum power of 3700 W per zone.

What are the installation dimensions for this hob?

The appliance width is 571 mm and depth 501 mm. For flush mounting, the cut-out width is 577 mm and depth 507 mm. For surface mounting, the cut-out width is 560 mm and depth 490 mm. The installation height is 51.7 mm when flush-fitted and 47.7 mm when surface-mounted.

What type of power supply does the hob require?

The hob can be connected to 220–240 V~ or 380–415 V 2N~, both at 50–60 Hz, with connected load of 7.4 kW. Fuse protection is 32 A for connection (1) and 16 A for connection (2), and the plug type is cable.

Which safety features are included?

The hob includes a safety package, childproof lock, cleaning lock, operating time with shut-down function, residual heat indicator and pause button.

Does the hob have any special cooking functions?

Yes. It offers a warming function, automatic pan detection, bridging function, Powerplus, automatic warm-up function, melt function, simmer function, timer and restore function.

What warranty is provided with the CookTop V4000 I604?

The warranty stated for the CookTop V4000 I604 is 2 + 8 years.
