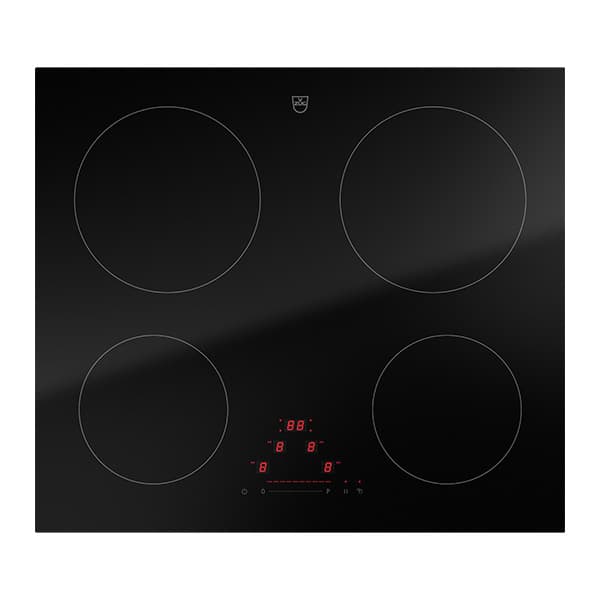

V-Zug IHV260 CookTop V2000 i604 Induction Hob

The V-ZUG CookTop V2000 I604 is a 60 cm built-in induction hob with four round cooking zones and a BlackDesign front with DualDesign frame. It features digital display and single slider control, with functions such as Powerplus, timer, melt function and automatic warm-up. Safety features include a safety package, childproof lock, cleaning lock, pause button and residual heat indicator, providing controlled and efficient cooking performance.

SKU:IHV260

EAN:3115900002

Category::Hobs

Quantity:

Key Features

Built-in 60 cm hob – Standard-width built-in hob designed for a 60 cm installation.

Induction cooking zones – Hob category induction with four round induction cooking zones.

Four cooking zones – Front left 16 cm, rear left 20 cm, rear right 20 cm, front right 16 cm.

Modern BlackDesign front – BlackDesign front with DualDesign frame for a coordinated appearance.

Digital display with single slider – Digital display and slider control with operating time and optional button sound (on/off).

Powerplus function – Powerplus supports powerful cooking performance when required.

Comprehensive safety package – Includes safety package, childproof lock, cleaning lock, pause button and residual heat indicator.

Convenient cooking functions – Timer, restore function, automatic warm-up function and melt function.

Pan detection 11–22 cm – Pan detection specified for diameters from 11 cm to 22 cm.

Energy-conscious design – Energy consumption of entire hob 170.2 Wh/kg and 0 W consumption when off.

Low standby output – Output in standby off mode of 0.5 W.

Extended warranty – Warranty: 2 + 8 years.

Regulation compliant – Compliant to regulation (EU) Nr. 66/2014.

Technical Spec

Product categoryHob

Appliance typeBuilt-in hob

Standard width60 cm

Front designBlackDesign

FrameDualDesign

Cut-out height8.5 mm

Cut-out radius5 mm

Appliance height53 mm

Appliance width571 mm

Appliance depth501 mm

Appliance corner radius2 mm

Support size width560 mm (max. 560 mm)

Support size depth490 mm (max. 490 mm)

Installation height flush-fitted53 mm

Installation height surface-mounted49 mm

Cut-out width flush-mounted577 mm

Cut-out width surface-mounted560 mm (max. 560 mm)

Cut-out depth flush-mounted507 mm

Cut-out depth surface-mounted490 mm (max. 490 mm)

Declared weight10.5 kg

Cooking zones4

Cooking zone 1 positionFront left

Cooking zone 1 dimensions16 cm

Cooking zone 2 positionRear left

Cooking zone 2 dimensions20 cm

Cooking zone 3 positionRear right

Cooking zone 3 dimensions20 cm

Cooking zone 4 positionFront right

Cooking zone 4 dimensions16 cm

DisplayDigital display

ControlsSingle slider; slider control; operating time; button sound (on/off)

Induction coil typeRound

Heating technologyInduction cooking zones

Operating time with shut-downOperating time with shut-down function

Residual heat indicatorYes

TimerYes

Restore functionYes

PowerplusYes

Safety packageYes

Pan detection11–22 cm

Pause buttonYes

Automatic warm-up functionYes

Cleaning lockYes

Melt functionYes

Childproof lockYes

Energy consumption entire hob170.2 Wh/kg

Output – standby off0.5 W

Consumption when off0 W

Cooking zone 1 max. power2100 W

Cooking zone 2 max. power3000 W

Cooking zone 3 max. power3000 W

Cooking zone 4 max. power2100 W

Type of connection (1)220–240 V~

Frequency (1)50–60 Hz

Connected loads (1)7.4 kW

Fuse protection (1)32 A

Plug typeCable

Cooking zone 1 energy consumption174.5 Wh/kg

Cooking zone 2 energy consumption167.7 Wh/kg

Cooking zone 3 energy consumption163.5 Wh/kg

Cooking zone 4 energy consumption175.3 Wh/kg

Ecopoints end of life (EP)4021234

Ecopoints device (EP)251182

Carbon footprint end of life1291 kg CO2e

Carbon footprint device83 kg CO2e

Monetary equivalent end of life1369 CHF

Monetary equivalent device166 CHF

Warranty2 + 8 years

Downloads

Download product documentation, manuals, and specification sheets.

IHV260 Spec

PDF

Frequently Asked Questions

What type of hob is the CookTop V2000 I604?

It is a built-in induction hob in the hob product category, with induction cooking zones and round induction coils.

How many cooking zones does it have and what are their sizes?

The hob has four cooking zones: front left 16 cm, rear left 20 cm, rear right 20 cm and front right 16 cm.

What safety features are included?

Safety features include a safety package, childproof lock, cleaning lock, pause button, operating time with shut-down function and a residual heat indicator.

What kind of controls does the hob use?

The hob uses a digital display with single slider control, slider control operation, operating time and an optional button sound that can be switched on or off.

What is the connected load and required fuse protection?

The connected load is 7.4 kW with a type of connection of 220–240 V~ and a frequency of 50–60 Hz. Fuse protection (1) is 32 A.

What warranty is provided with this hob?

The hob is specified with a warranty of 2 + 8 years.
