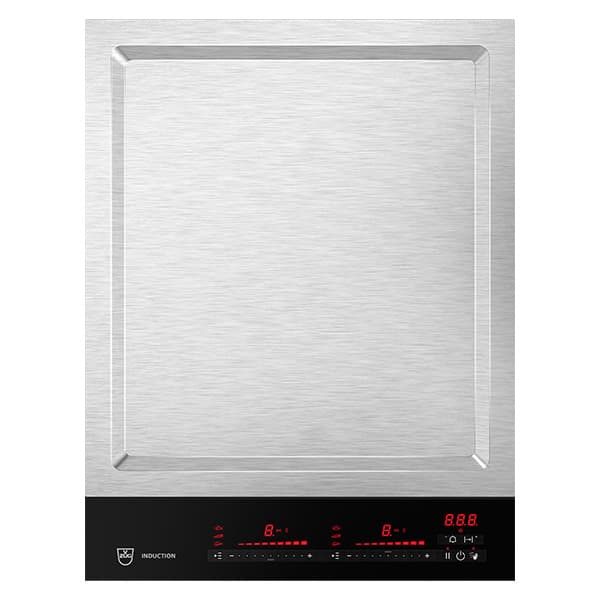

V-Zug TYV440 CookTop i40 Domino Teppanyaki

The V-ZUG CookTop Teppan Yaki I40 is a 40 cm built-in induction hob designed for precise cooking on a Teppan Yaki surface. It offers two front and rear cooking zones with digital display and Multi-Slider direct selection controls. Features such as TemperatureControl, bridging function, timer and safety package make it suitable for users seeking controlled preparation of meat, fish and vegetables with modern induction technology.

SKU:TYV440

EAN:3114000001

Category::Hobs

Quantity:

Key Features

Built-in induction hob with Teppan Yaki design in the hob product category and appliance type built-in hob.

Standard width 40 cm with front design BlackDesign and DualDesign frame for coordinated installation.

Two induction cooking zones with front and rear positions, each measuring 31 × 17.7 cm and using round induction coils.

Digital display and Multi-Slider control providing direct selection, slider control and operating time indication.

TemperatureControl function to support controlled cooking performance on the induction cooking zones.

Bridging function allowing combined use of cooking zones for flexible cooking area use.

Safety package including cleaning lock, childproof lock, residual heat indicator and operating time with shut-down function.

Convenient timer and pause button plus restore function for managing and resuming cooking processes.

Optimised for different foods with specific functions indicated as perfect for meat, fish and vegetables.

OptiClean feature and cleaning lock supporting easier cleaning and handling of the hob surface.

Induction energy performance with each cooking zone providing up to 1400 W and a total connected load of 2.8 kW.

Environmental footprint data stated including Ecopoints and carbon footprint for device and end of life.

Warranty 2 + 8 years indicated under service and interfaces.

Technical Spec

BrandV-ZUG

Product categoryHob

TypeCTI6T-31140 (CookTop Teppan Yaki I40)

Article number3114000001

EAN code7630029454817

Appliance typeBuilt-in hob

Standard width40 cm

Front designBlackDesign

FrameDualDesign

Appliance height64 mm

Appliance width384 mm

Appliance depth501 mm

Appliance corner radius2 mm

Declared weight8 kg

Cut-out height8.5 mm

Cut-out radius5 mm

Support size width / max.373 mm / 373 mm

Support size depth / max.490 mm / 490 mm

Installation height when flush-fitted64 mm

Installation height when surface-mounted60 mm

Cut-out width when flush-mounted390 mm

Cut-out depth when flush-mounted507 mm

Cut-out width when surface-mounted / max.373 mm / 373 mm

Cut-out depth when surface-mounted / max.490 mm / 490 mm

Cooking zones2

Cooking zone 1 positionFront

Cooking zone 1 dimensions31 × 17.7 cm

Cooking zone 2 positionRear

Cooking zone 2 dimensions31 × 17.7 cm

Hob categoryInduction

Heating technologyInduction cooking zones

Induction coil typeRound

DisplayDigital display

ControlsMulti-Slider/direct selection, slider control

Operating timeYes

Button soundOn/off

Cooking zone 1 max. power1400 W

Cooking zone 2 max. power1400 W

Connected loads (1)2.8 kW

Type of connection (1)220–240 V~

Frequency (1)50–60 Hz

Fuse protection (1)16 A

Plug typeCable

Output – standby off0.5 W

Consumption when off0 W

Ecopoints device (EP)150709

Ecopoints end of life (EP)489168

Carbon footprint device50 kg CO2e

Carbon footprint end of life159 kg CO2e

Monetary equivalent device99 CHF

Monetary equivalent end of life242 CHF

GB 21456-2008No

Warranty2 + 8 years

Downloads

Download product documentation, manuals, and specification sheets.

TYV440 Spec

PDF

Frequently Asked Questions

How wide is the V-ZUG CookTop Teppan Yaki I40?

The standard width is 40 cm, with an appliance width of 384 mm. For flush mounting, the cut-out width is 390 mm, and for surface mounting the cut-out width is 373 mm.

How many cooking zones does this hob have?

The hob has 2 induction cooking zones. Cooking zone 1 is positioned at the front and cooking zone 2 at the rear, each measuring 31 × 17.7 cm.

What is the maximum power of each cooking zone?

Each cooking zone has a maximum power of 1400 W, giving a total connected load of 2.8 kW.

What safety functions are included?

The hob includes a safety package featuring an operating time with shut-down function, residual heat indicator, cleaning lock and childproof lock. A pause button and restore function are also provided to support safe operation.

Which foods is the CookTop Teppan Yaki I40 designed for?

Functions are specified as perfect for meat, perfect for fish and perfect for vegetables, indicating support for cooking these food types on the Teppan Yaki hob.

What warranty is offered on this hob?

The warranty is listed as 2 + 8 years under service and interfaces.
