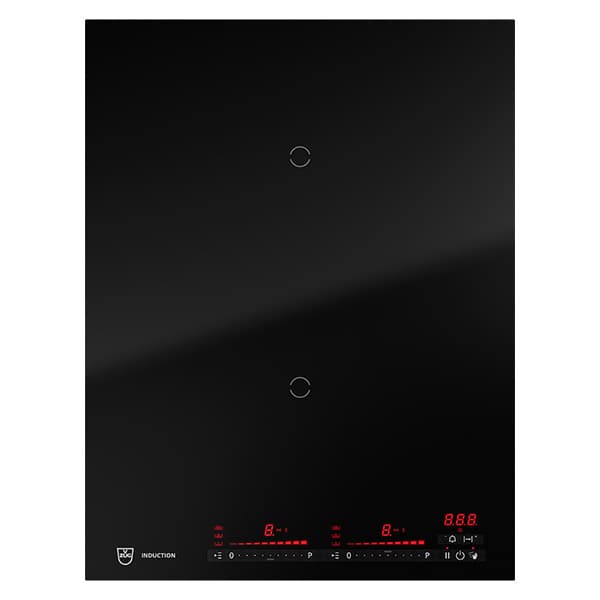

V-Zug IHV440 CookTop V4000 i402 Domino Induction Hob

The V-ZUG CookTop V4000 I402 is a 40 cm built-in induction hob with BlackDesign front and DualDesign frame. It offers two MaxiFlex induction cooking zones with digital display and Multi-Slider direct selection controls. Features such as Powerplus, bridging, warming, melt and simmer functions provide flexible cooking options. Safety-focused functions include a safety package, childproof lock, residual heat indicator and cleaning lock, making this hob suitable for modern fitted kitchens.

SKU:IHV440

EAN:3114400001

Category::Hobs

Quantity:

Key Features

Built-in 40 cm hob with BlackDesign front and DualDesign frame for integrated installation.

Induction cooking technology with MaxiFlex induction coils and two induction cooking zones.

Two cooking zones (front and rear) each sized 18 × 20 cm, both with max. power of 3700 W.

Multi-Slider/direct selection controls with slider control and digital display for precise operation.

Powerplus function for increased power on the induction zones when required.

Bridging function to combine zones for flexible use of larger cookware.

Warming, melt and simmer functions to support gentle heating and low-temperature cooking.

Timer and operating time with shut-down to help manage cooking durations safely.

Safety package and childproof lock to enhance safety during and after cooking.

Residual heat indicator to show when cooking zones remain hot after use.

Pause button and restore function allowing temporary interruption and resumption of cooking settings.

Cleaning lock to lock controls temporarily during surface cleaning.

Pan detection 11–22 cm for compatible cookware sizing on the induction zones.

Low standby output with output in standby off mode at 0.5 W and 0 W consumption when off.

Warranty: 2 + 8 years service and interfaces coverage.

Compliant to regulation (EU) Nr. 66/2014 for appliance standards.

Technical Spec

Product categoryHob

TypeCTI4T-31144

Appliance typeBuilt-in hob

Standard width40 cm

Front designBlackDesign

FrameDualDesign

Compliance(EU) Nr. 66/2014; GB 21456-2008: No

Cut-out height8.5 mm

Cut-out radius5 mm

Appliance height51.7 mm

Appliance width384 mm

Appliance depth501 mm

Appliance corner radius2 mm

Support size width373 mm (max. 373 mm)

Support size depth490 mm (max. 490 mm)

Installation height (flush-fitted)51.7 mm

Installation height (surface-mounted)47.7 mm

Cut-out width (flush-mounted)390 mm

Cut-out width (surface-mounted)373 mm (max. 373 mm)

Cut-out depth (flush-mounted)507 mm

Cut-out depth (surface-mounted)490 mm (max. 490 mm)

Declared weight6.5 kg

Cooking zone 1 positionfront

Cooking zone 1 dimensions18 × 20 cm

Cooking zone 2 positionrear

Cooking zone 2 dimensions18 × 20 cm

DisplayDigital display

ControlsMulti-Slider/direct selection; Slider control; Button sound (on/off)

Operating timeOperating time with shut-down function

Ecopoints end of life (EP)2827190

Ecopoints device (EP)150709

Carbon footprint end of life908 kg CO2e

Carbon footprint device50 kg CO2e

Monetary equivalent end of life988 CHF

Monetary equivalent device99 CHF

Energy consumption of entire hob184.2 Wh/kg

Output – standby off0.5 W

Consumption when off0 W

Cooking zone 1 max. power3700 W

Cooking zone 2 max. power3700 W

Type of connection (1)220-240 V~

Frequency (1)50-60 Hz

Connected loads (1)3.7 kW

Fuse protection (1)16 A

Plug typeCable

Cooking zone 1 energy consumption183.3 Wh/kg

Cooking zone 2 energy consumption185.2 Wh/kg

Induction coil typeMaxiFlex

Hob categoryInduction

Cooking zones2

Heating technologyInduction cooking zones

Warranty2 + 8 years

Downloads

Download product documentation, manuals, and specification sheets.

IHV440 Spec

PDF

Frequently Asked Questions

What type of hob is the CookTop V4000 I402?

It is a built-in induction hob in the hob product category, using induction cooking zones with MaxiFlex induction coils.

How many cooking zones does this hob have?

The hob has 2 induction cooking zones: one front zone and one rear zone, each measuring 18 × 20 cm.

What is the maximum power of each cooking zone?

Each cooking zone has a maximum power of 3700 W.

Which control system is used on this hob?

The hob features a digital display with Multi-Slider/direct selection controls, including slider control and optional button sound on or off.

What safety features are included?

Safety features include a safety package, childproof lock, residual heat indicator, cleaning lock, operating time with shut-down function and pause button.

What electrical connection does the hob require?

The hob uses a 220-240 V~ connection at 50-60 Hz, with connected load of 3.7 kW, fuse protection of 16 A and cable plug type.
