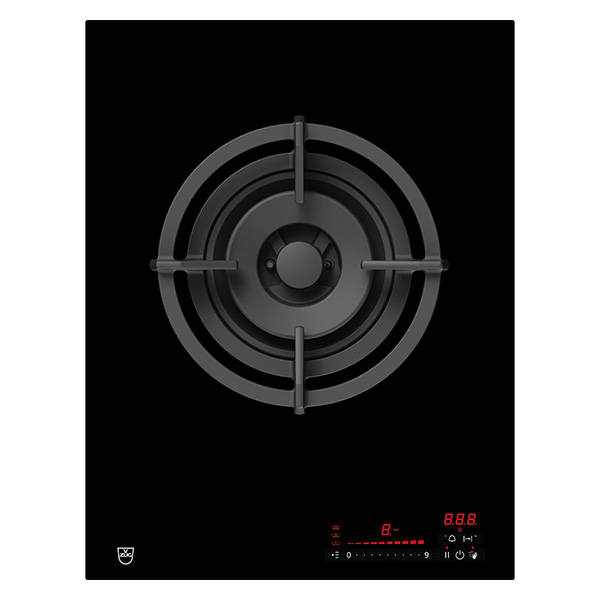

V-Zug GH401B Domino Gas Wok

The V-ZUG GAS411GSAZ is a 40 cm gas hob with a central wok burner, designed with a BlackDesign front and DualDesign frame. It offers a single high-power cooking zone with natural gas H 20 mbar technology, digital display and Multi-Slider direct selection. Practical features such as timer, residual heat indicator, pause button, childproof lock and cleaning lock support controlled and convenient cooking on a compact gas hob.

SKU:GH401B

EAN:3106360115

Category::Hobs

Quantity:

Key Features

Compact 40 cm hob width for installations requiring a standard width of 40 cm.

BlackDesign front with DualDesign frame for a coordinated, modern hob appearance.

Single central cooking zone with cooking zone 1 position specified as central.

High-power cooking zone with cooking zone 1 maximum power of 6000 W.

Wok burner configuration specified as burner type 1: wok burner.

Gas hob category with Gas-Technology noted as natural gas H 20 mbar.

Digital display with Multi-Slider/direct selection and slider control operation.

Timer and operating time with shut-down function to support time-controlled cooking.

Residual heat indicator to show when the hob remains hot after use.

Safety package with childproof lock for added protection during operation.

Pause button and restore function to interrupt and resume cooking settings.

Cleaning lock function to prevent unintended operation during cleaning.

Warming, melt and simmer functions to support gentle and low-heat cooking tasks.

Automatic warm-up function to assist in reaching cooking temperature.

Energy efficiency of entire hob 57 % with gas burner 1 energy efficiency of 56.6 %.

Cable connection with plug type indicated as cable and 1.7 m connection cable.

Compliance information including (EU) Nr. 66/2014 and GB 21456-2008: No.

Declared weight 9.4 kg for planning and installation considerations.

Technical Spec

Article number3106360115

EAN code7630029415535

Product categoryHob

TypeGAS411GSAZ

Standard width40 cm

Front designBlackDesign

FrameDualDesign

Hob categoryGas

Gas-TechnologyNatural gas H 20 mbar

Burner typeBurner type 1: wok burner

Cooking zones1 (cooking zone 1 position: central)

Cooking zone 1 max. power6000 W

Appliance height171 mm

Appliance width384 mm

Appliance depth501 mm

Appliance corner radius1.5 mm

Support size width373 mm (max. 373 mm)

Support size depth490 mm (max. 490 mm)

Installation height flush-fitted98 mm

Installation height surface-mounted94 mm

Cut-out width flush-mounted390 mm

Cut-out width surface-mounted373 mm (max. 373 mm)

Cut-out depth flush-mounted507 mm

Cut-out depth surface-mounted490 mm (max. 490 mm)

Declared weight9.4 kg

DisplayDigital display

ControlsMulti-Slider/direct selection, slider control, button sound (on/off)

Type of connection (1)220–240 V~

Frequency (1)50–60 Hz

Connected loads (1)0.02 kW

Fuse protection (1)3 A

Plug typeCable

Connection cable length1.7 m

Energy efficiency of entire hob57 %

Gas burner 1 energy efficiency56.6 %

Ecopoints device (EP)394064

Ecopoints end of life (EP)656773

Carbon footprint device107 kg CO2e

Carbon footprint end of life178 kg CO2e

Monetary equivalent device297 CHF

Monetary equivalent end of life496 CHF

Compliance(EU) Nr. 66/2014; GB 21456-2008: No

Downloads

Download product documentation, manuals, and specification sheets.

GH401B Spec

PDF

Frequently Asked Questions

What type of gas does the GAS411GSAZ hob use?

The hob uses Gas-Technology specified as natural gas H 20 mbar.

How many cooking zones does this hob have?

The hob has 1 cooking zone, with cooking zone 1 positioned centrally and configured as a wok burner.

What is the maximum power of the burner?

Cooking zone 1 has a maximum power of 6000 W.

What safety features are available on this hob?

The hob includes a safety package with childproof lock, an operating time with shut-down function, residual heat indicator, pause button and cleaning lock.

What are the main installation dimensions?

The appliance width is 384 mm, depth 501 mm and height 171 mm. Installation heights are 98 mm when flush-fitted and 94 mm when surface-mounted. Cut-out width is 390 mm (flush-mounted) or 373 mm (surface-mounted), and cut-out depth is 507 mm (flush-mounted) or 490 mm (surface-mounted).

What kind of controls does the hob have?

The hob is operated via a digital display with Multi-Slider/direct selection and slider control, and it offers a button sound that can be turned on or off.
