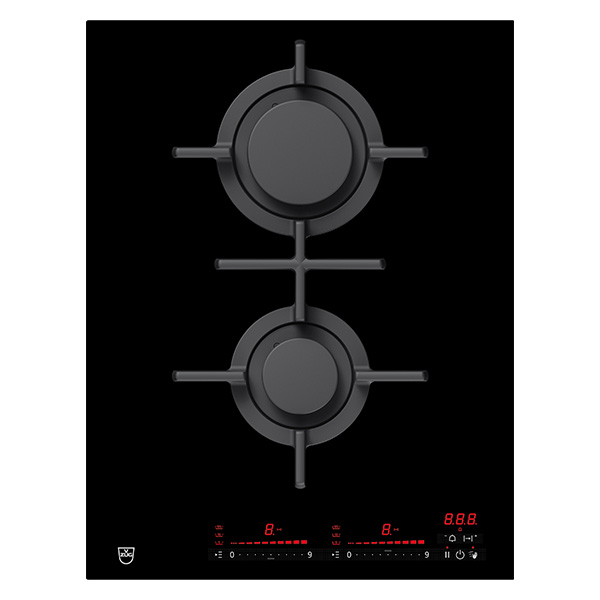

V-Zug GH402B Domino Gas Hob

The V-ZUG GAS421GSAZ is a compact 40 cm gas hob with a BlackDesign front and DualDesign frame, offering two cooking zones with natural gas technology. It features a digital display with Multi-Slider direct selection, timer and EcoStandby for efficient operation. With dedicated functions such as warming, melting, simmering and automatic warm-up, plus a comprehensive safety package and childproof lock, it is designed for precise and secure gas cooking.

SKU:GH402B

EAN:3106460215

Category::Hobs

Quantity:

Key Features

Compact 40 cm hob width for installations where space-saving gas cooking is required.

BlackDesign front with DualDesign frame for a coordinated, modern hob appearance.

Two gas cooking zones with front and rear burner positions for flexible pan placement.

Rapid and standard burners (rapid burner and standard burners) to suit different cooking tasks.

Digital display with Multi-Slider control and direct selection for intuitive operation.

Dedicated cooking functions including warming, melt, simmer and automatic warm-up.

Safety package with childproof lock plus cleaning lock, pause button and operating time with shut-down function.

Residual heat indicator and timer to support controlled and safer cooking.

EcoStandby and energy-efficient gas burners with hob energy efficiency of 59 %.

Natural gas H 20 mbar technology specified for the gas hob category.

Compliant with regulation (EU) Nr. 66/2014 for relevant product standards.

Cable connection with 1.7 m cable and plug type specified as cable.

Technical Spec

Product categoryHob

TypeGAS421GSAZ

Standard width40 cm

Front designBlackDesign

FrameDualDesign

Appliance height145 mm

Appliance width384 mm

Appliance depth501 mm

Appliance corner radius1.5 mm

Support size width373 mm (max. 373 mm)

Support size depth490 mm (max. 490 mm)

Installation height (flush-fitted)98 mm

Installation height (surface-mounted)94 mm

Cut-out width (flush-mounted)390 mm

Cut-out width (surface-mounted)373 mm (max. 373 mm)

Cut-out depth (flush-mounted)507 mm

Cut-out depth (surface-mounted)490 mm (max. 490 mm)

Declared weight9 kg

Cooking zone 1 positionFront

Cooking zone 2 positionRear

DisplayDigital display

ControlsMulti-Slider/direct selection, Slider control, Button sound (on/off)

Hob categoryGas

Cooking zones2

Burner type 1Standard burners

Burner type 2Rapid burner

Cooking zone 1 max. power3000 W

Cooking zone 2 max. power1750 W

Energy efficiency of entire hob59 %

Gas burner 1 energy efficiency60 %

Gas burner 2 energy efficiency57.6 %

Type of connection (1)220–240 V~

Frequency (1)50–60 Hz

Connected loads (1)0.02 kW

Fuse protection (1)3 A

Plug typeCable

Connection cable length1.7 m

Gas technologyNatural gas H 20 mbar

Regulation compliance(EU) Nr. 66/2014

GB 21456-2008No

Ecopoints end of life (EP)656773

Ecopoints device (EP)394064

Carbon footprint end of life178 kg CO2e

Carbon footprint device107 kg CO2e

Monetary equivalent end of life496 CHF

Monetary equivalent device297 CHF

Downloads

Download product documentation, manuals, and specification sheets.

GH402B Spec

PDF

Frequently Asked Questions

How wide is the V-ZUG GAS421GSAZ hob?

The standard width of the GAS421GSAZ hob is 40 cm, with an appliance width of 384 mm.

How many cooking zones does this gas hob have?

The hob has 2 cooking zones, with one burner positioned at the front and the other at the rear.

What gas type is specified for this hob?

The hob uses gas technology specified as natural gas H 20 mbar.

What safety features are included?

The hob includes a safety package, childproof lock, cleaning lock, pause button, residual heat indicator and an operating time with shut-down function.

What are the maximum power ratings of the burners?

Cooking zone 1 has a maximum power of 3000 W and cooking zone 2 has a maximum power of 1750 W.

Is the hob energy efficient?

The energy efficiency of the entire hob is stated as 59 %, with gas burner 1 at 60 % and gas burner 2 at 57.6 %.
