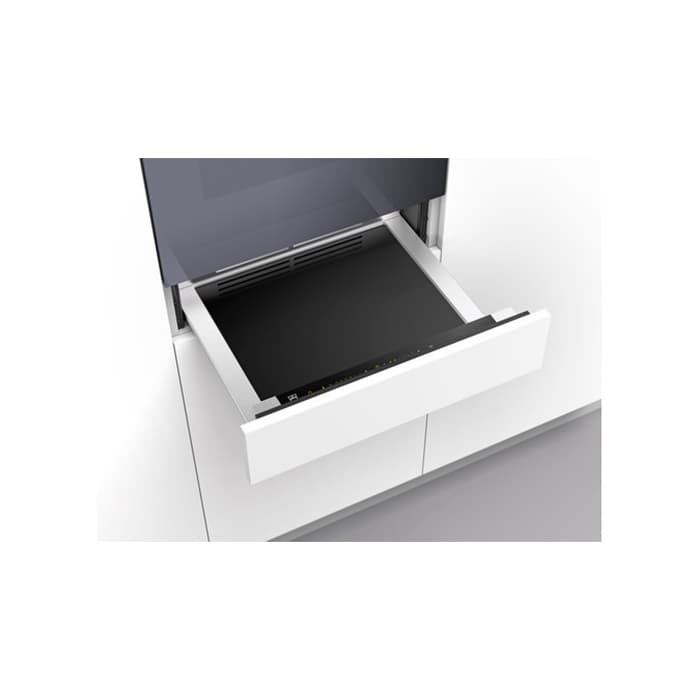

V-Zug WDV414I WarmingDrawer V4000 14

The V-ZUG WarmingDrawer V4000 14 is a 60 cm fully integratable warming drawer with a push/pull handle and TouchControl operation. Designed as a warming drawer for crockery and food, it offers six temperature levels with electronic temperature control, a glass heating plate and stainless steel interior. With functions such as plate, cup and food warming, low temperature cooking, yoghurt preparation and dough proving, it provides versatile support in modern kitchens.

SKU:WDV414I

EAN:3402700001

Category::Warming Drawers

Quantity:

Key Features

Warming drawer design – Drawer type: warming drawer with fully integratable front design.

Standard 60 cm width – Standard width 60 cm and standard height 14.4 cm for common kitchen niches.

TouchControl operation – Controls via TouchControl for straightforward operation.

Six temperature levels – Number of temperature levels: 6 with electronic temperature control.

Glass heating plate – Glass heating plate with stainless steel interior for the drawer cavity.

Generous capacity – Capacity for crockery: 6; capacity for plates: 14; volume: 20 l.

Stable telescopic runner – Stable telescopic fully extending runner for convenient access.

Multiple warming functions – Plate warming, food warming, cup warming and yoghurt preparation.

Low temperature cooking – Low tempurature cooking and proof dough functions for food preparation.

Sabbath mode – Sabbath mode function is available.

Indoor light – Indoor light for better visibility inside the drawer.

Safety switch-off – Safety switch-off function for added safety.

Warranty – Warranty: 2 + 8 years.

Low standby output – Output – standby off: 0.44 W; consumption when off: 0 W.

Technical Spec

Product categoryDrawer

TypeWDEA6V4C

Article number3402700001

EAN code7630029445983

Standard width60 cm

Standard height14.4 cm

Front designFully integratable

HandlePush/pull

Niche height144 mm

Niche width600 mm

Niche depth550 mm

Appliance height142 mm

Appliance width596 mm

Appliance depth547 mm

Capacity for crockery6

Capacity for plates14

Volume20 l

Declared weight18 kg

ControlsTouchControl

Ecopoints end of life (EP)362168

Ecopoints device (EP)192998

Carbon footprint end of life (kg CO2e)114

Carbon footprint device (kg CO2e)58

Monetary equivalent end of life (CHF)149

Monetary equivalent device (CHF)96

Output – standby off0.44 W

Consumption when off0 W

Type of connection (1)220-240 V~

Frequency (1)50-60 Hz

Connected loads (1)0.81 kW

Fuse protection (1)10 A

Plug typeAS/NZS 3112

Plug type B1363/13A

Plug type CCH1-10P

Connection cable1.7 m

Warranty2 + 8 years

Downloads

Download product documentation, manuals, and specification sheets.

WDV414I Spec

PDF

Frequently Asked Questions

What type of appliance is the V-ZUG WarmingDrawer V4000 14?

It is a drawer type warming drawer in the product category “Drawer” with a fully integratable front design and push/pull handle.

What are the dimensions and niche requirements?

The standard width is 60 cm and standard height is 14.4 cm. Niche dimensions are 144 mm height, 600 mm width and 550 mm depth. Appliance dimensions are 142 mm height, 596 mm width and 547 mm depth.

How much can the warming drawer hold?

The capacity is specified as 6 for crockery and 14 for plates, with a total volume of 20 l.

Which functions are available?

Available functions are favourites, plate warming, food warming, cup warming, yoghurt preparation, indoor light, proof dough, low tempurature cooking and safety switch-off. Sabbath mode is also listed as a feature.

What kind of controls and interior features does it have?

The drawer is operated using TouchControl. It has electronic temperature control, a glass heating plate, stainless steel interior and a stable telescopic fully extending runner.

What are the power and connection details?

The type of connection (1) is 220-240 V~, frequency (1) 50-60 Hz, connected loads (1) 0.81 kW and fuse protection (1) 10 A. Plug types listed are AS/NZS 3112, 1363/13A and CH1-10P, with a 1.7 m connection cable. Output – standby off is 0.44 W and consumption when off is 0 W.
