Smeg CVI638RN3 Dolce Stil Novo Winecellar

The Smeg CVI638RN3 is a built–in wine cooler designed for a 82–87 cm niche, offering fan assisted cooling and automatic defrost. It provides two adjustable temperature zones with independent cooling systems to store up to 38 bottles of 0,75 l wine. With touch controls, LED display, LED interior lighting and a low vibration compressor, this appliance is suited to users wanting controlled wine storage with activated charcoal air filtration.

SKU:CVI638RN3

EAN:8017709318611

Category::Wine Cellars

Quantity:

Key Features

Built–in wine cooler for a built–in niche of 82–87 cm.

Max capacity 38 bottles (0,75 l) with a total volume of 114 l.

Two adjustable temperature zones with 2 independent cooling systems.

Fan assisted cooling with ventilated cold air distribution.

Automatic defrost system eliminating the need to defrost manually.

Temperature range 5–20 °C with electronic temperature control.

Touch control interface with internal controls in the compartment.

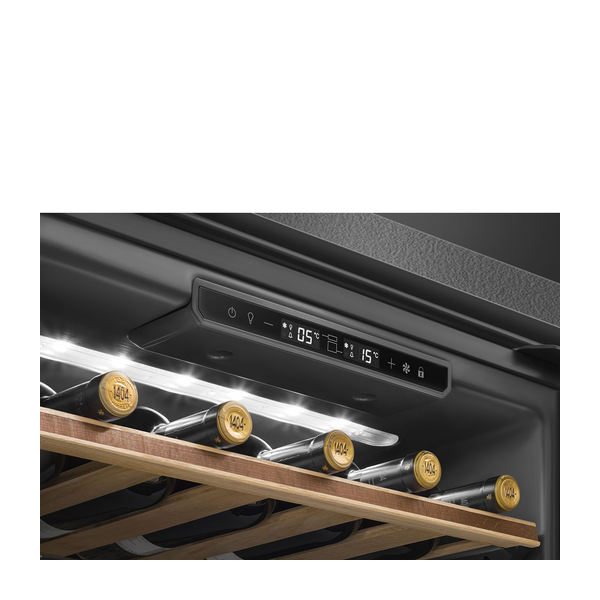

LED display showing temperature value and temperature alarm.

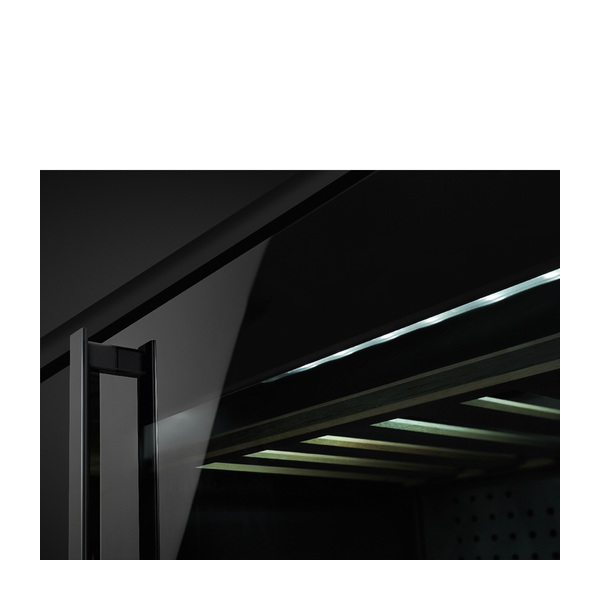

LED interior lighting for energy efficient, long lasting illumination.

Wooden shelves with 2 fixed shelves and 3 removable shelves.

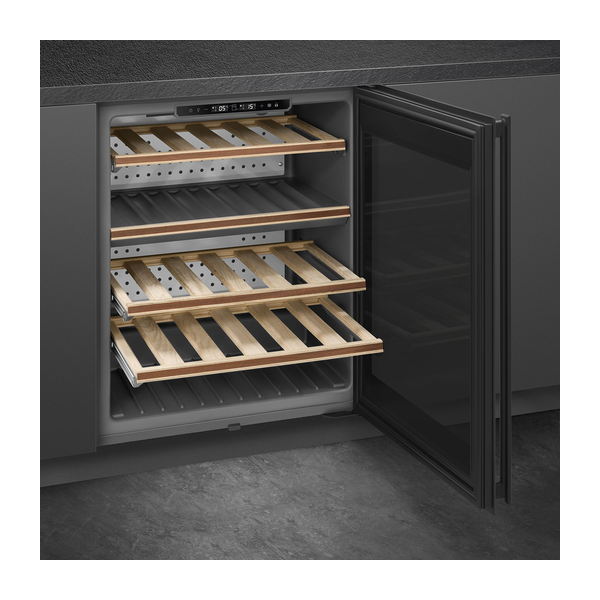

Removable shelves on telescopic guide rails for easier access.

Activated charcoal air filter in the wine cooler compartment.

Low vibration compressor with 1 compressor and Foam agent HFO.

Anti–UV door glass and integrated heating element.

Control lock plus power on lamp for clear operation status.

Temperature and door open alarms for added protection.

Lighting forced ON and fan forced ON options.

Standard right–hand hinge door opening type with handle.

Adjustable feet with 2 front and 2 rear feet for levelling.

Annual energy consumption of 140 kWh/year, class G, EEI 165 %.

Noise level of 38 dB(A) re 1 pW, airborne noise emission class C.

Electrical connection 220–240 V, 50 Hz, nominal power 40 W, Schuko plug.

Technical Spec

Product familyWine cooler

ModelCVI638RN3

InstallationBuilt–in

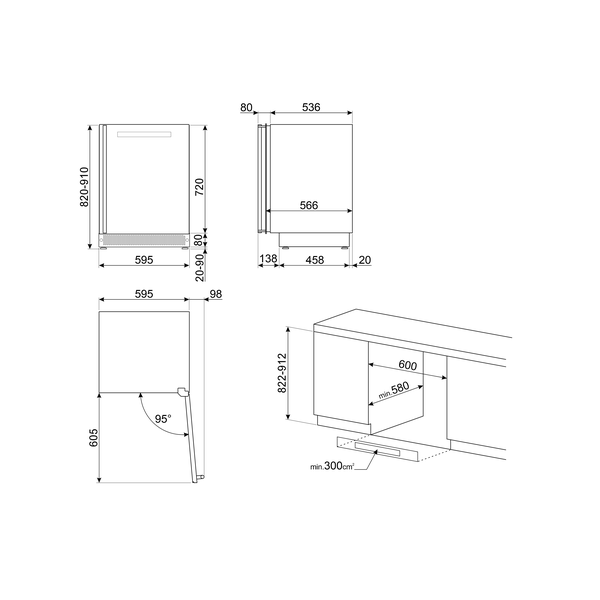

Built–in niche82–87 cm

DefrostAutomatic

Cooling typeFan assisted

Hinge type / positionStandard, right

Number of fixed shelves2

Number of removable shelves3

Shelves materialWood

Removable shelves on telescopic railsYes

Internal light typeLED

Air filterActivated charcoal filter

Control settingTouch control

Control positionInternal, in the compartment

DisplayLED, shows temperature value and temperature alarm

Power on lampYes

Control lockYes

Lighting forced ONIn a maximum period

Fan forced ONYes

Temperature alarmYes

Door open alarmYes

Adjustable temperature zones2

Independent cooling systems2

Number of door glasses2

Compressor typeLow vibration compressor

Refrigerant gas typeR600a

Refrigerant quantity20 g

Temperature range5–20 °C

Type of temperature controlElectronic

Anti–UV door glassYes

Integrated heating elementYes

Number of compressors1

Foam agentHFO

Back panel materialMetal panel on the back of the fridge: Metal

Adjustable feet2 Front + 2 Rear

Door opening typeWith handle

Max capacity (bottles 0,75 l)38

Annual energy consumption140 kWh/year

Energy efficiency classG

Airborne acoustical noise emission classC

Total volume114 l

Sum of chill and unfrozen compartments114 l

Climatic classSN, N, ST

EEI165 %

Noise level38 dB(A) re 1 pW

Nominal power40 W

Current0.4 A

Voltage220–240 V

Frequency50 Hz

Power supply cable length180 cm

Plug(F;E) Schuko

Downloads

Download product documentation, manuals, and specification sheets.

CVI638RN3 Spec

PDF

Frequently Asked Questions

What is the bottle capacity of the Smeg CVI638RN3?

The maximum capacity is 38 bottles of 0,75 l, with a total internal volume of 114 l.

Can this wine cooler be built into a standard kitchen unit?

It is designed for built–in installation in a niche of 82–87 cm and includes adjustable front and rear feet for levelling.

Does the appliance have more than one temperature zone?

Yes. It has 2 adjustable temperature zones supported by 2 independent cooling systems, with a temperature range of 5–20 °C.

How is the temperature controlled and displayed?

Temperature is managed by electronic temperature control using touch controls. An LED display shows the temperature value and temperature alarm.

What type of lighting is used inside the wine cooler?

The interior uses LED lighting, which is described as a more energy efficient and long lasting way of illuminating the appliance.

Does the wine cooler include safety or alert features?

Yes. It includes a temperature alarm, door open alarm, power on lamp and a control lock to help manage access to the controls.
