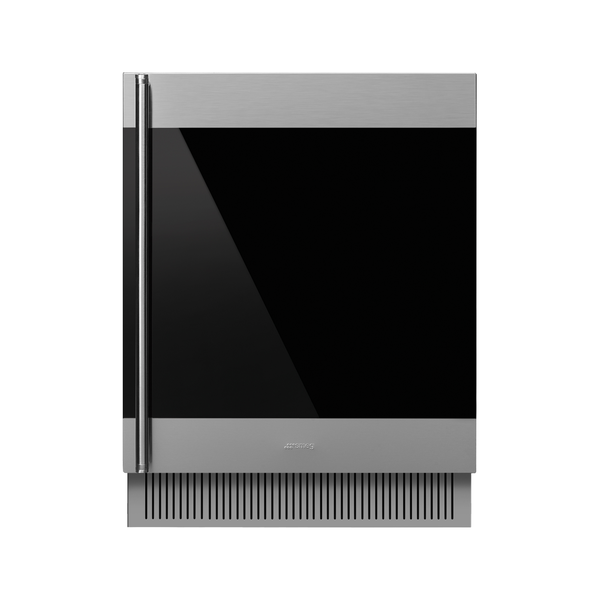

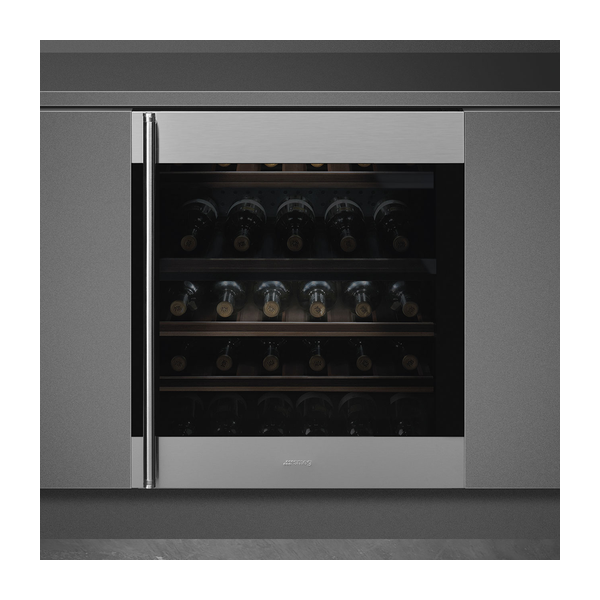

Smeg CVI338RX3 Classic Winecellar

The SMEG CVI338RX3 is a built–in wine cooler designed for an 82–87 cm niche, ideal for storing up to 38 standard 0,75 litre bottles. It features fan assisted cooling, automatic defrost and dual adjustable temperature zones with independent cooling systems. Touch controls, an internal LED display and LED lighting make operation straightforward, while a low vibration compressor, activated charcoal air filter and anti–UV door glass help create a stable environment for wine storage.

SKU:CVI338RX3

EAN:8017709293949

Category::Wine Cellars

Quantity:

Key Features

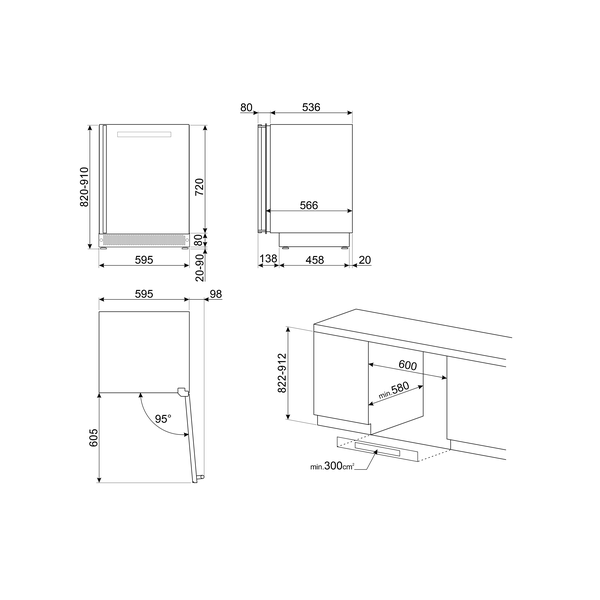

Built–in wine cooler designed for a built–in niche of 82–87 cm.

Capacity up to 38 bottles (Max capacity 0,75 lt bottles: 38).

Dual adjustable temperature zones with 2 independent cooling systems.

Temperature range from 5–20 °C with electronic temperature control.

Fan assisted cooling for forced distribution of cold air in the compartment.

Automatic defrost eliminating the need to manually defrost.

Low vibration compressor to help maintain a stable storage environment.

Wooden shelving with 2 fixed shelves and 3 removable shelves on telescopic guide rails.

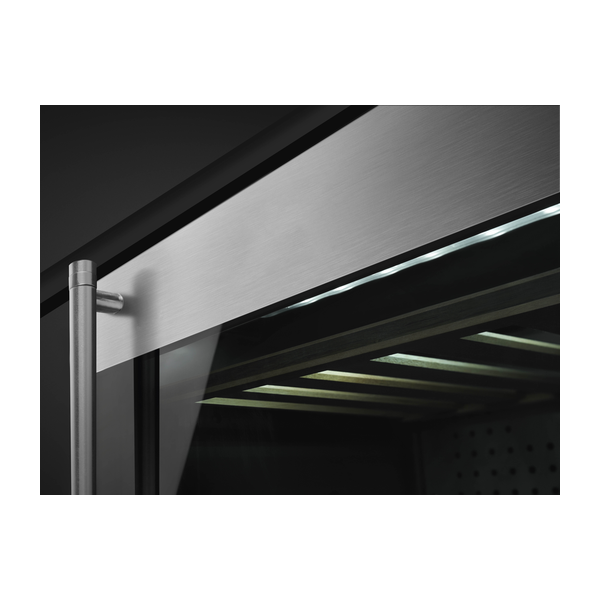

LED interior lighting with LED type internal light and lighting forced ON for a maximum period.

Touch controls with internal control setting and LED display.

Temperature and door alarms including temperature alarm and door open alarm.

Control lock to prevent unintentional changes to settings.

Activated charcoal air filter in the compartment.

Anti–UV door glass to help protect contents from light.

Integrated heating element and metal panel on the back of the fridge.

Energy efficiency class G with annual energy consumption of 140 kWh/year.

Quiet operation with noise level of 38 dB(A) re 1 pW and airborne acoustical noise emission class C.

Technical Spec

Product familyWine Cooler

ModelCVI338RX3

InstallationBuilt–in

Built–in niche82–87 cm

DefrostAutomatic

Cooling typeFan assisted

Hinge type / positionStandard – Right

Door opening typeWith handle

Number of fixed shelves2

Number of removable shelves3

Shelves materialWood

Removable shelves on telescopic guide railsYes

Type of internal lightLED

Air filterActivated charcoal filter

Control settingTouch control

ControlsInternal, in the compartment

DisplayLED – functions display: Temperature alarm, Temperature value

Power on lampYes

Control lockYes

Lighting forced ONIn a maximum period

Fan forced ONYes

Temperature alarmYes

Door open alarmYes

Adjustable temperature zones2

Independent cooling systems2

Number of door glasses2

Compressor typeLow vibration compressor

Refrigerant gas typeR600a

Refrigerant quantity20 g

Temperature range5–20 °C

Type of temperature controlElectronic

Anti–UV door glassYes

Integrated heating elementYes

Number of compressors1

Foam agentHFO

Metal panel on the back of the fridgeMetal

Adjustable feet2 Front + 2 Rear

Max capacity (bottles 0,75 lt)38

Annual energy consumption140 kWh/year

Energy efficiency classG

Airborne acoustical noise emission classC

Total volume114 l

Sum of the volumes of the chill and unfrozen compartments114 l

Climatic classSN, N, ST

EEI165 %

Noise level38 dB(A) re 1 pW

Nominal power40 W

Current0,4 A

Voltage220–240 V

Frequency50 Hz

Power supply cable length180 cm

Plug type(F;E) Schuko

Downloads

Download product documentation, manuals, and specification sheets.

CVI338RX3 Spec

PDF

Frequently Asked Questions

What is the bottle capacity of the SMEG CVI338RX3 wine cooler?

The maximum capacity is 38 bottles of 0,75 litre each.

What temperature range does this wine cooler offer?

The temperature range is from 5–20 °C, with electronic temperature control.

Does the appliance have more than one temperature zone?

Yes. It has 2 adjustable temperature zones supported by 2 independent cooling systems.

Is defrosting required manually?

No. The appliance has an automatic defrost system that defrosts at regular intervals, eliminating the need to defrost altogether.

What type of lighting is used inside the wine cooler?

It uses LED interior lighting, which is described as a more energy efficient and long lasting way of illuminating the interior.

What is the energy efficiency class and annual energy consumption?

The energy efficiency class is G, and the annual energy consumption is 140 kWh/year.
