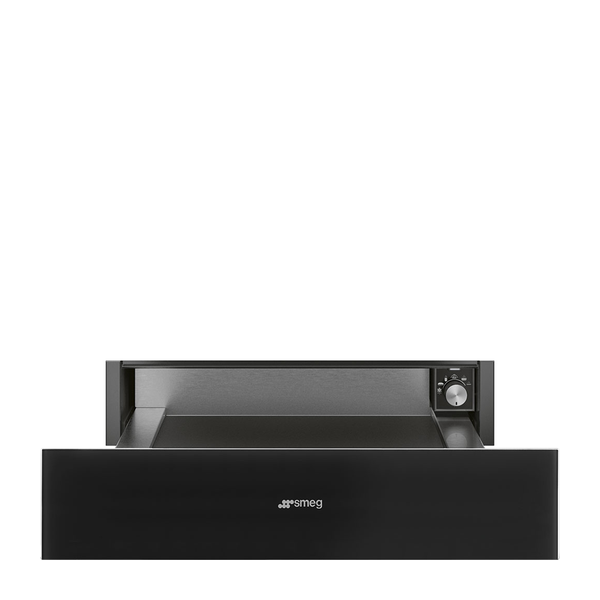

Smeg CPR115 Linea Warming Drawer

The SMEG CPR115B3 is a 14 cm high Linea warming and reheat drawer designed for built-in use beneath compatible appliances. Finished in gloss black full glass with a stainless steel base, it offers fan-assisted heating and multiple functions, including dish warming, proofing and reheating. With a 21 l capacity, push-pull opening and a maximum drawer loading weight of 85 kg, it suits users needing versatile warming options in a sleek black glass design.

SKU:CPR115B3

EAN:8017709328078

Category::Warming Drawers

Quantity:

Key Features

Product family: Drawer with commercial height of 14 cm.

Type: Warming/reheat drawer with fan assisted type of heating.

Aesthetics Linea: Gloss black colour with full glass front panel.

Material: Glass front with stainless steel base material.

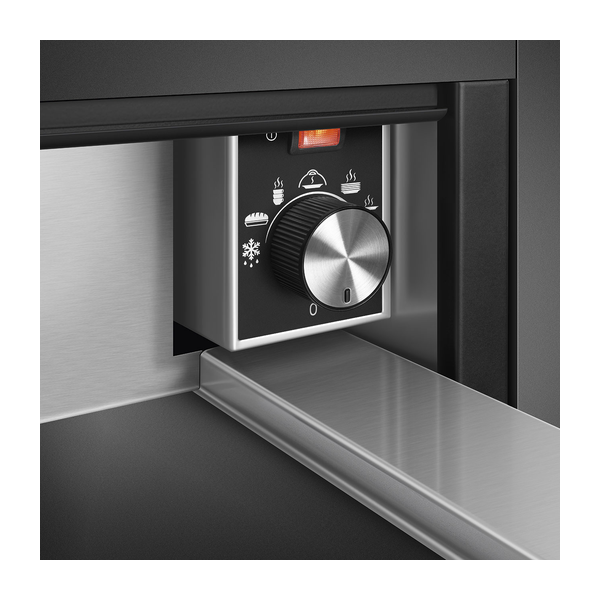

Control system: Electro–mechanic temperature control with 1 standard control knob.

Control knobs: Steel effect colour for a coordinated appearance.

Front logo: Silk screen logo in an external position.

Opening mechanism: Push–pull drawer for easy access.

Capacity: 21 l internal capacity.

Maximum drawer loading weight: 85 kg maximum drawer loading weight.

Max weight allowance: 15 kg max weight allowance (as specified).

Functions included: Defrost, proofing, mug warmer, keep warm, dish warmer and reheating.

Accessories included: Silicon antislip mat.

Electrical performance: Nominal power 400 W, current 2 A.

Power supply: Voltage 220–240 V, frequency 50–60 Hz.

Plug type: (F;E) Schuko plug fitted.

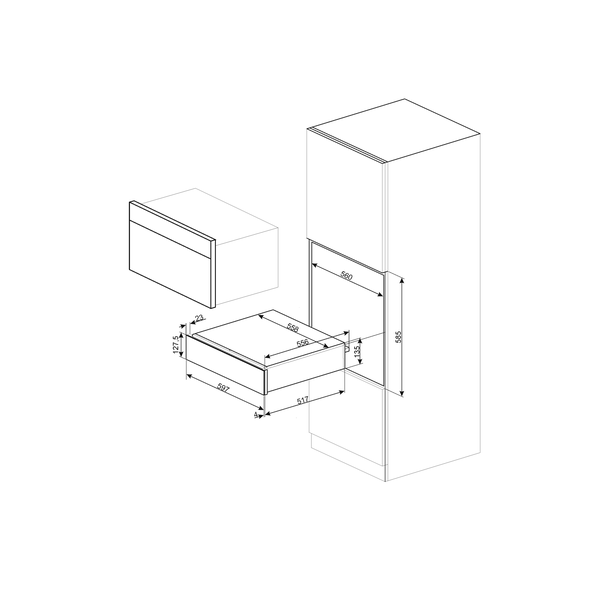

Dimensions: Width 597 mm, depth 538 mm, product height 135 mm.

Compatible accessory: KITCABLE90UK cable with IEC connector and UK plug.

Technical Spec

Product familyDrawer

Commercial height14 cm

TypeWarming/reheat

Aesthetics lineLinea

ColourBlack

FinishingGloss Black

MaterialGlass

Front panelFull glass

LogoSilk screen

Logo positionExternal

Type of control settingControl knobs

Type of temperature controlElectro-mechanic

Number of controls1

Control knobsStandard

Controls colourSteel effect

Opening mechanismPush-pull

Base materialStainless steel

Capacity21 l

Type of heatingFan assisted

Max weight allowance15 kg

Maximum drawer loading weight85 kg

Accessories includedSilicon antislip mat

Plug(F;E) Schuko

Nominal power400 W

Current2 A

Voltage220-240 V

Frequency50-60 Hz

Width597 mm

Depth538 mm

Product height135 mm

Downloads

Download product documentation, manuals, and specification sheets.

CPR115B3 Spec

PDF

Frequently Asked Questions

What is the capacity of the SMEG CPR115B3 warming drawer?

The capacity of the drawer is 21 l.

What is the commercial height of this drawer?

The commercial height of the drawer is 14 cm, with a product height of 135 mm.

Which functions are available on this warming and reheat drawer?

Available functions are defrost, proofing, mug warmer, keep warm, dish warmer and reheating.

What is the maximum drawer loading weight?

The maximum drawer loading weight is specified as 85 kg.

Which accessory is supplied with the drawer?

A silicon antislip mat is included as an accessory.

Is there a compatible UK plug accessory?

A compatible accessory listed is KITCABLE90UK, a cable with IEC connector and UK plug.
