Smeg FAB28RRD5UK 50's Style Fridge inc Ice Box

The SMEG FAB28RRD5UK is a red, freestanding, one door refrigerator in iconic 50’s Style with a gloss, rounded design. It offers fan assisted refrigeration with a static freezer, automatic defrost for the fridge and a manual freezer defrost. With 270 l total volume, LED internal lighting and an electronic temperature control, it suits users seeking a stylish heat-moulded appliance with practical storage, low temperature and fruit and vegetable compartments.

SKU:FAB28RRD5UK

EAN:8017709299323

Category::Fridges

Quantity:

Key Features

Product family & type: Refrigerator, freestanding, one door design.

Reference size: Width until 60 cm; height 100–160 cm.

Cooling system: Fan assisted refrigerator with static freezer.

Defrost functions: Automatic defrost for refrigerator; manual defrost for freezer.

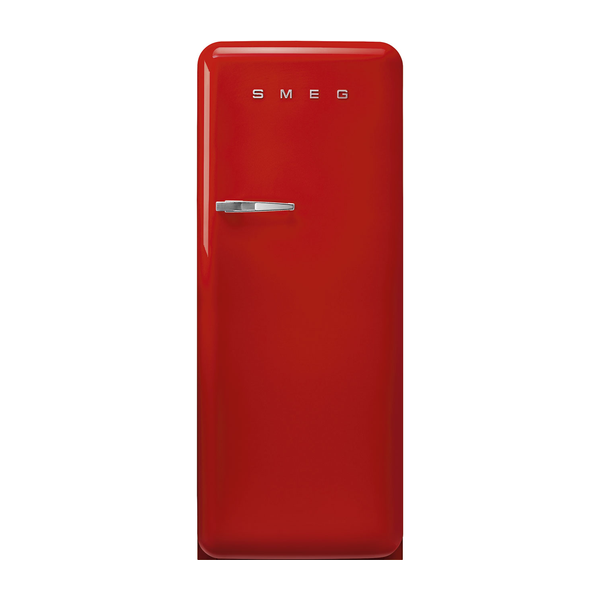

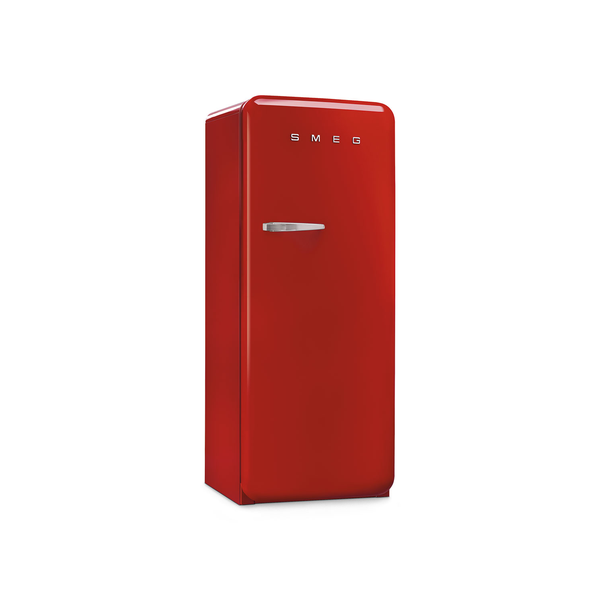

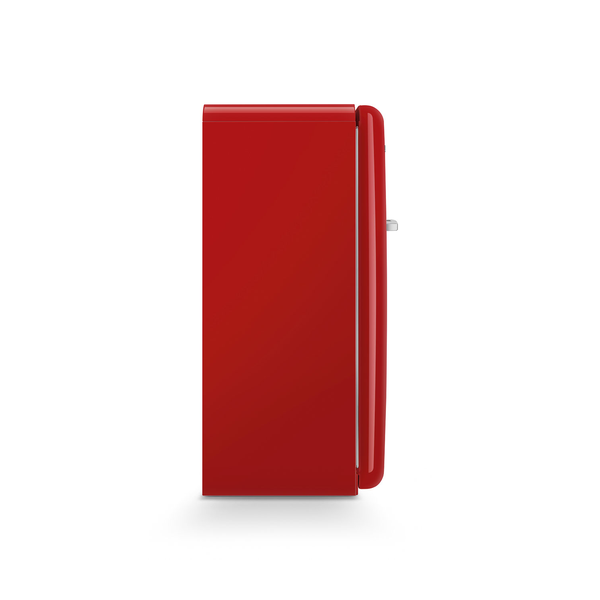

Aesthetic style: 50’s Style, red colour, rounded gloss design.

Construction: Heat-moulded material with steel sides.

Handles & details: External fixed handle, chrome finish; chrome logo and profiles.

Door configuration: Right hinge, standard hinge type, applied logo.

Colour options: Also available in pastel blue, white, black, cream, pink, silver, pastel green and decorated / special.

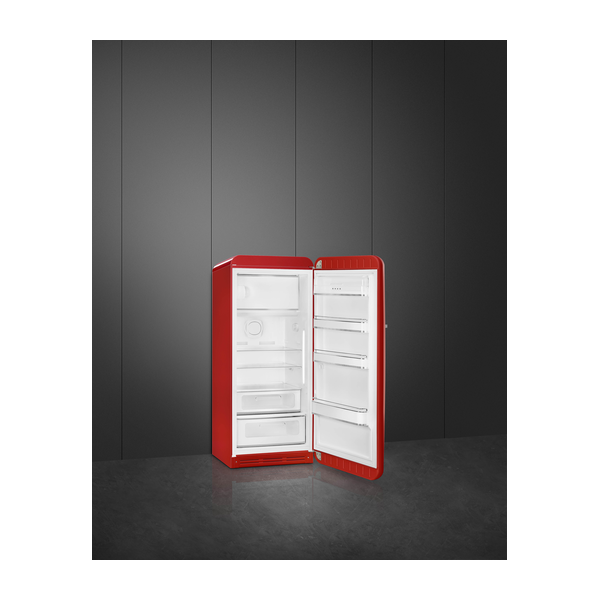

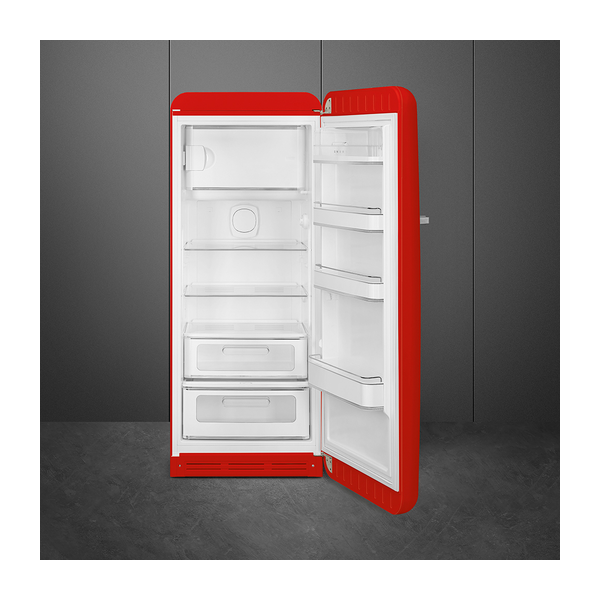

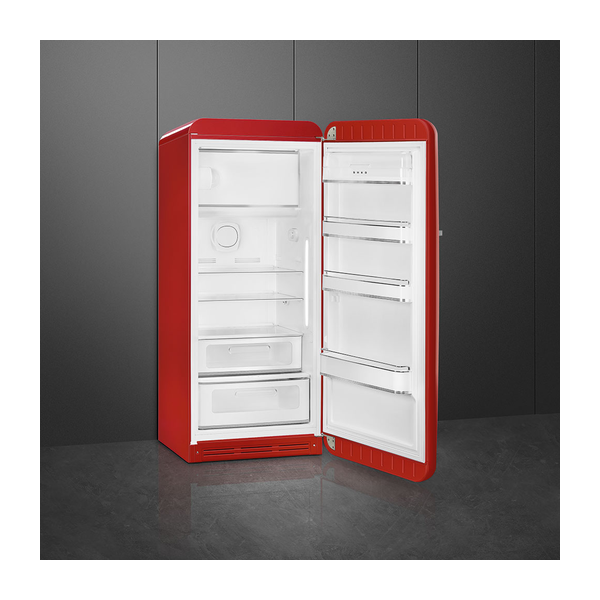

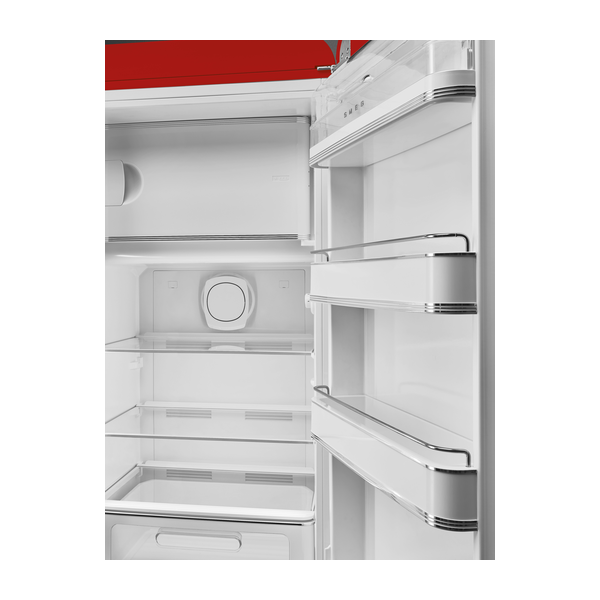

Fridge storage: 3 adjustable glass shelves, 1 fruit and vegetable drawer with glass cover.

Compartments: 2 compartments including low temperature and fruit and vegetable compartments.

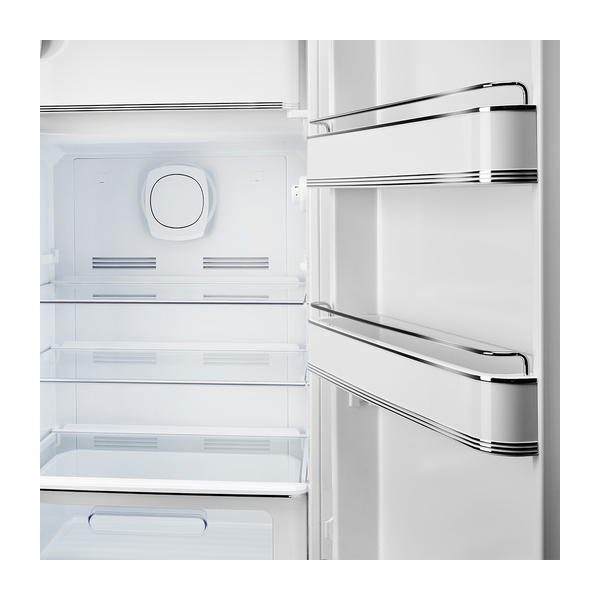

Door storage: 1 door shelf with transparent cover, 1 adjustable door shelf with wire support, 1 bottle shelf with wire support.

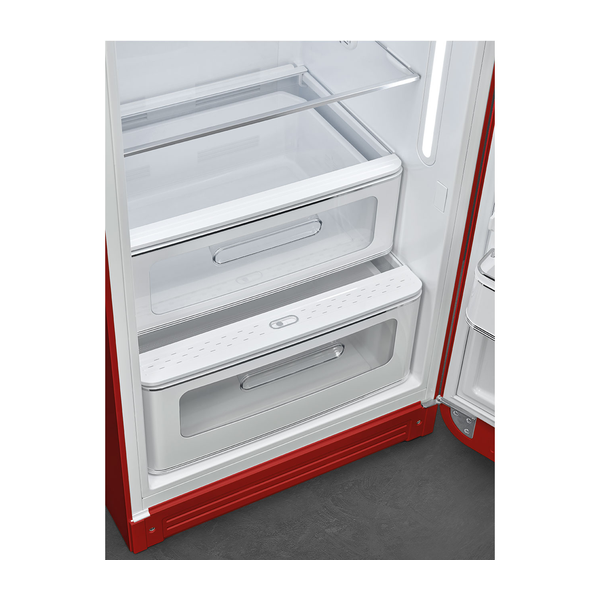

Crisper design: Crisper cover with glass, on sliding rails.

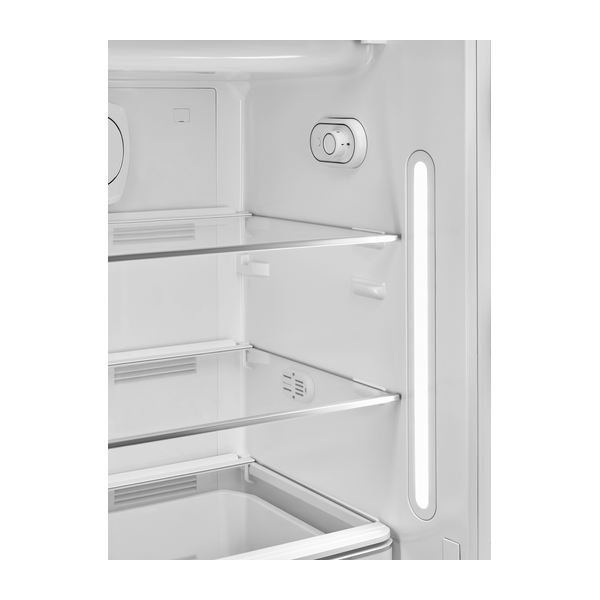

Lighting: LED internal fridge light for efficient, long lasting illumination.

Air circulation: MultiFlow system and fan for ventilated cold air distribution.

Freezer compartment: Internal freezer compartment with 4 stars freezing capability.

Controls & alarms: Electronic temperature control with acoustic and visual door open alarm.

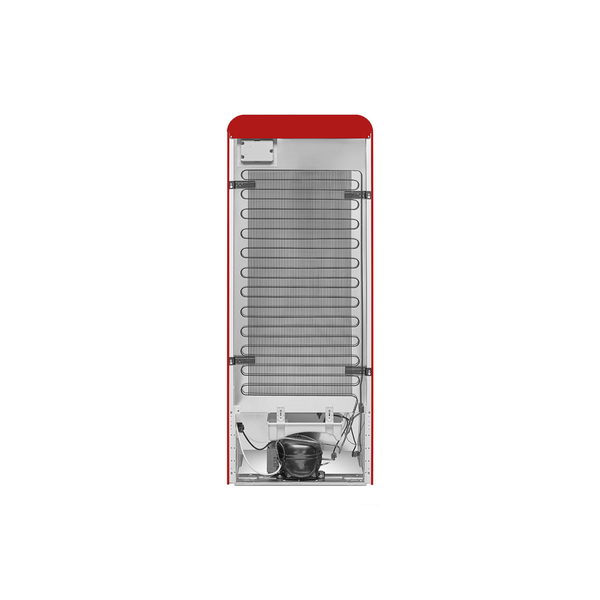

Compressor: Variable Speed Compressor using R600a refrigerant gas.

Energy use: Annual energy consumption 130 kWh/year; energy efficiency class D; EEI 79 percent.

Capacity: Total volume 270 l; 244 l chill and unfrozen; 26 l frozen compartment volume.

Noise performance: Noise level 35 dB(A) re 1 pW; airborne acoustical noise emission class B.

Freezer performance: Thaw time 9 h; freezing capacity 2,6 kg/24 h (4 star compartment).

Climate classes: Suitable for climatic class SN, N, ST, T.

Electrical rating: Nominal power 90 W; current 1 A; voltage 220–240 V; frequency 50/60 Hz.

Power connection: 180 cm power supply cable with plug (G) UK e Singapore.

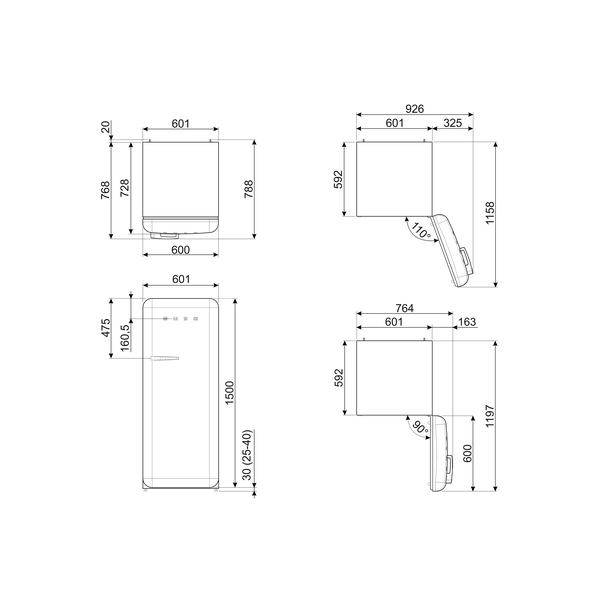

Main dimensions: Width 601 mm; depth without handle 728 mm; product height with feet 1530 mm.

Door clearance: Product width with maximum doors opening 926 mm; depth with doors open at 90° 1148 mm.

Overall depth: Product depth with handle 732 mm.

Insulation & refrigerant: Refrigerant quantity 32 g; foam agent cyclopentane.

Air Plus feature: Helps keep food fresher for longer.

Technical Spec

Product familyRefrigerator

InstallationFree Standing

CategoryOne Door

Reference widthUntil 60 cm

Reference height100 - 160 cm

Cooling typeFan assisted refrigerator, static freezer

DefrostAutomatic for refrigerator, manual for freezer

Hinge typeStandard

Hinge positionRight

EAN code8017709299323

Aesthetics family50's Style

ColourRed

DesignRounded

FinishingGloss

Main materialHeat-moulded

HandleExternal, fixed, chrome colour

Logo colourChrome, applied

Side materialSteel

Side colourRed

Door shelves profile colourChrome

Drawers profile colourChrome

Glass shelf profile colourChrome

Available coloursPastel blue, White, Black, Cream, Pink, Silver, Pastel green, Decorated / Special

Number of compartments2

Compartment typesLow temperature compartment, Fruit and vegetable compartment

Adjustable shelves (fridge)3

Shelf typeGlass

Fruit and vegetable drawers1

Crisper coverYes, glass, on sliding rails

Low temperature compartmentYes

Internal fridge lightYes, LED

Door shelves with transparent cover1

Adjustable door shelves1, with wire support

Bottle shelves1, with wire support

MultiFlowYes

FanYes

Internal freezer compartmentYes

Door open alarmAcoustic and visual

Temperature controlElectronic

Number of compressors1

Compressor typeVariable Speed Compressor

Refrigerant gasR600a, 32 g

Foam agentCyclopentane

Annual energy consumption130 kWh/year

Energy efficiency classD

Airborne acoustical noise emission classB

Noise level35 dB(A) re 1 pW

Total volume270 l

Frozen compartment volume26 l

Chill and unfrozen compartment volume244 l

Thaw time9 h

Freezing capacity2,6 kg/24h (4 star)

Climatic classSN, N, ST, T

EEI79 %

Nominal power90 W

Current1 A

Voltage220-240 V

Frequency50/60 Hz

Power supply cable length180 cm

Plug(G) UK e Singapore

Width601 mm

Depth without handle728 mm

Product height with feet1530 mm

Product width with maximum doors opening926 mm

Product depth with handle732 mm

Product depth with doors open at 90°1148 mm

Downloads

Download product documentation, manuals, and specification sheets.

FAB28RRD5UK Spec

PDF

Frequently Asked Questions

What is the total capacity of the SMEG FAB28RRD5UK?

The total volume is 270 l, with 244 l for the chill and unfrozen compartments and 26 l for the frozen compartment.

What type of cooling and defrost systems does it use?

It has a fan assisted refrigerator with a static freezer. The refrigerator defrosts automatically, while the freezer requires manual defrosting.

What are the main dimensions of this refrigerator?

The product width is 601 mm, depth without handle 728 mm, depth with handle 732 mm and height with feet 1530 mm. With the doors open at 90°, the depth is 1148 mm and the width with maximum doors opening is 926 mm.

What is the energy efficiency class and annual energy consumption?

The refrigerator has an energy efficiency class D and an annual energy consumption of 130 kWh/year, with an EEI of 79 percent.

How noisy is the SMEG FAB28RRD5UK in operation?

It has a noise level of 35 dB(A) re 1 pW and an airborne acoustical noise emission class of B.

Which plug type and power supply does it use?

It is supplied with a plug (G) UK e Singapore, operates at 220–240 V and 50/60 Hz, and has a 180 cm power supply cable.
