Smeg FAB28RDBB5 50's Style Fridge

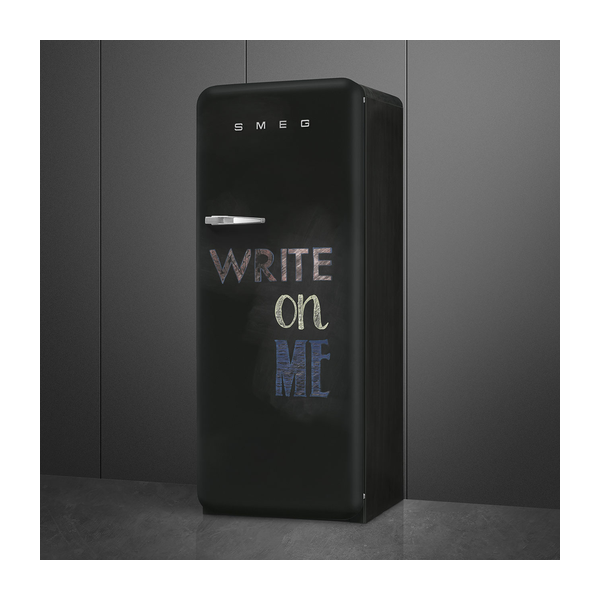

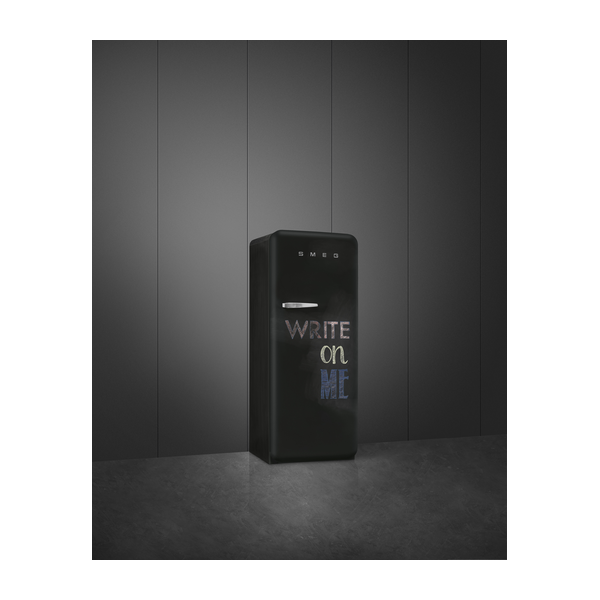

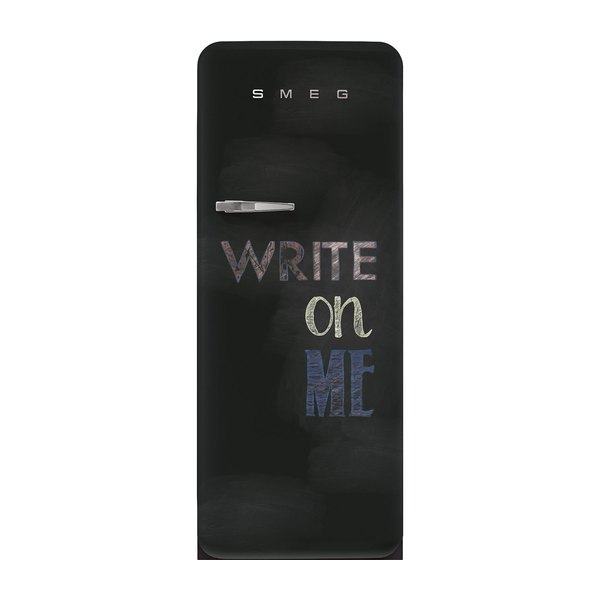

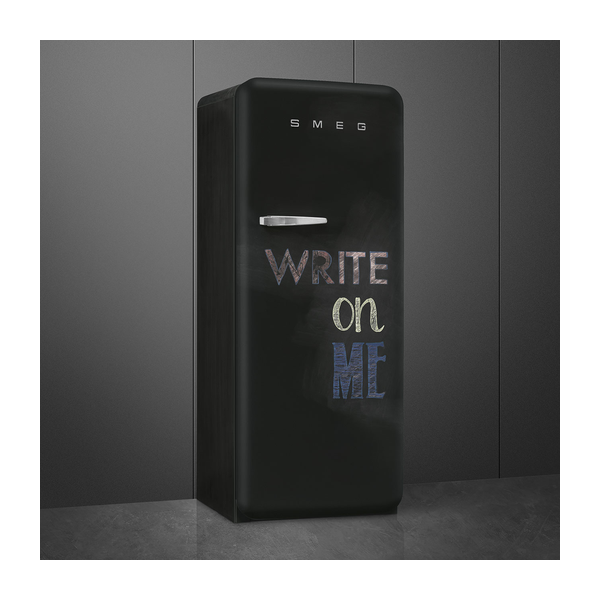

The SMEG FAB28RDBB5 is a free standing, one door refrigerator from the 50’s Style family, featuring a decorated/special blackboard finish with gloss, rounded design and chrome details. With a total volume of 270 l, it combines a fan assisted refrigerator and static freezer, electronic temperature control and LED internal lighting. It is suitable for users seeking a stylish appliance with low temperature and fruit and vegetable compartments plus an internal freezer compartment.

SKU:FAB28RDBB5

EAN:8017709299118

Category::Fridges

Quantity:

Key Features

Product family & installation: Refrigerator, free standing, one door design.

Distinctive aesthetics: 50’s Style, decorated/special blackboard colour with gloss, rounded, heat–moulded design.

Chrome details: External fixed chrome handle, chrome logo, chrome door shelves, drawer profiles and glass shelf profiles.

Cooling system: Fan assisted refrigerator with static freezer and MultiFlow with fan.

Defrost functions: Automatic defrost for the refrigerator and manual defrost for the freezer.

Storage layout: Two main compartments including low temperature and fruit and vegetable compartments.

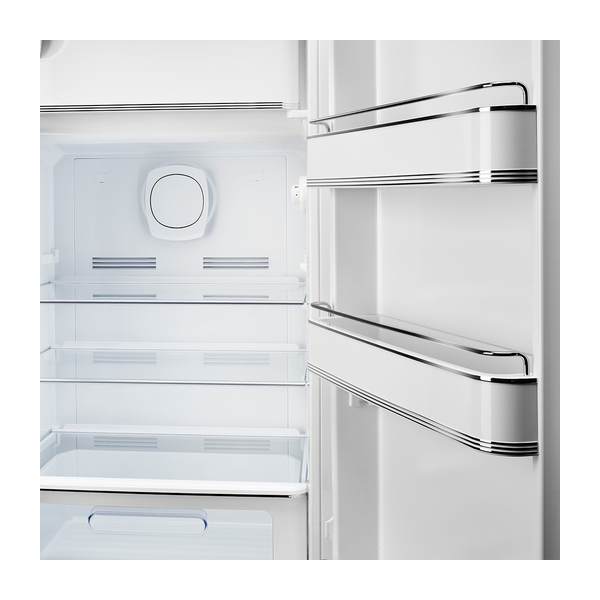

Adjustable glass shelves: Two adjustable glass shelves plus a glass crisper/vegetable drawer cover on sliding rails.

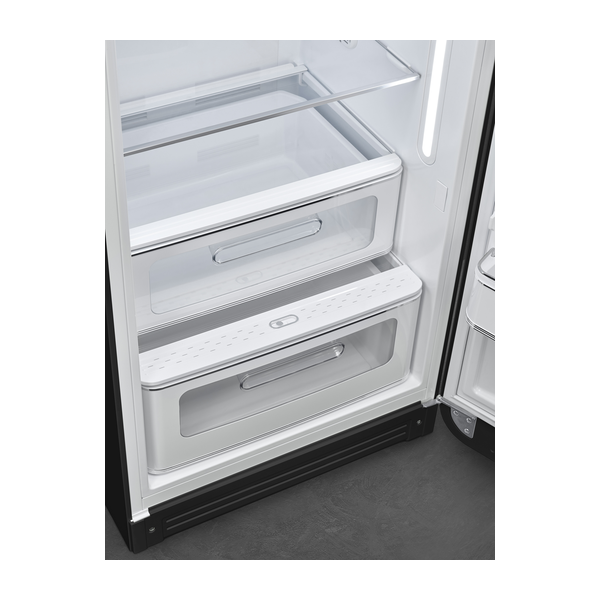

Dedicated fruit and vegetable storage: One fruit and vegetables drawer with crisper cover.

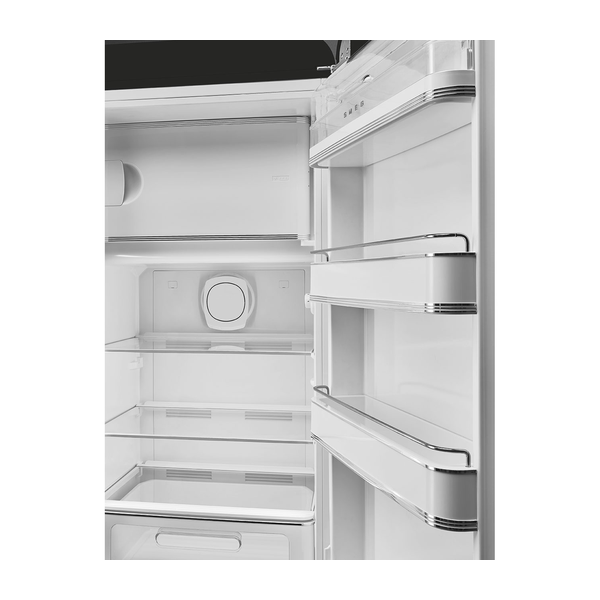

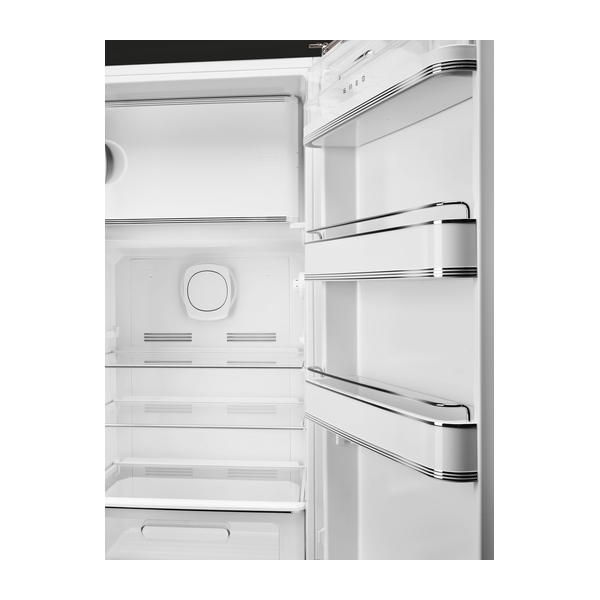

Door storage: One door shelf with transparent cover, one adjustable door shelf with wire support and one bottle shelf with wire support.

Internal freezer compartment: Integrated freezer with 4 star freezing capacity.

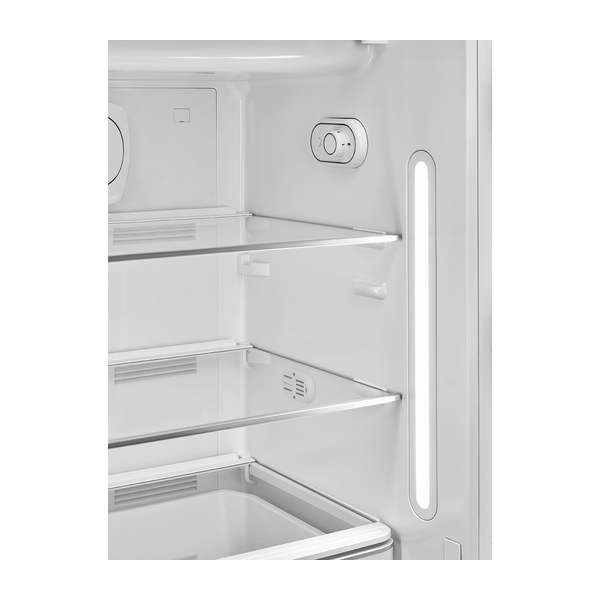

LED internal lighting: LED light in the fridge compartment.

Capacity: Total volume 270 l with 244 l chill/unfrozen and 26 l frozen compartments.

Energy performance: Annual energy consumption 130 kWh/year, energy efficiency class D, EEI 79 %.

Noise level: 35 dB(A) re 1 pW, airborne acoustical noise emission class B.

Temperature control: Electronic temperature control with variable speed compressor.

Door open safety: Acoustic and visual door open alarm.

Climatic class: SN, N, ST, T.

Hinge type and position: Standard hinge, right–hand hinged door.

Refrigerant and insulation: R600a refrigerant gas, 32 g, with cyclopentane foam agent.

Construction materials: Heat–moulded main body with steel sides in decorated/special colour.

Electrical connection: Nominal power 90 W, 220–240 V, 50/60 Hz, Schuko plug, 180 cm power supply cable.

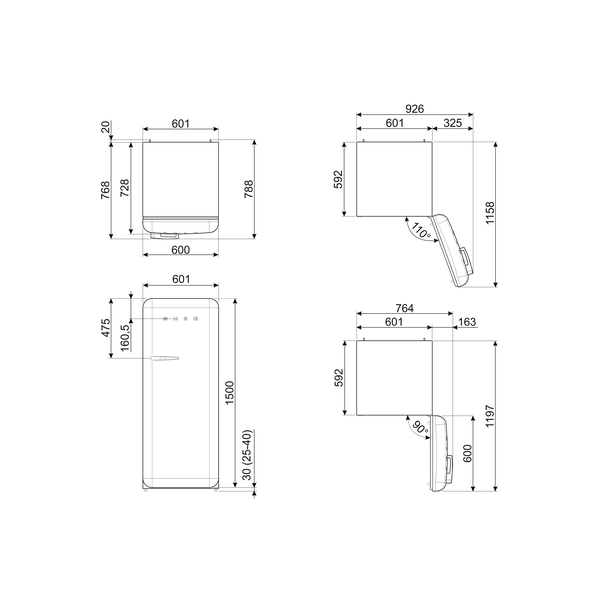

Dimensions: Width 601 mm, depth without handle 728 mm, product depth with handle 768 mm, height with feet 1530 mm.

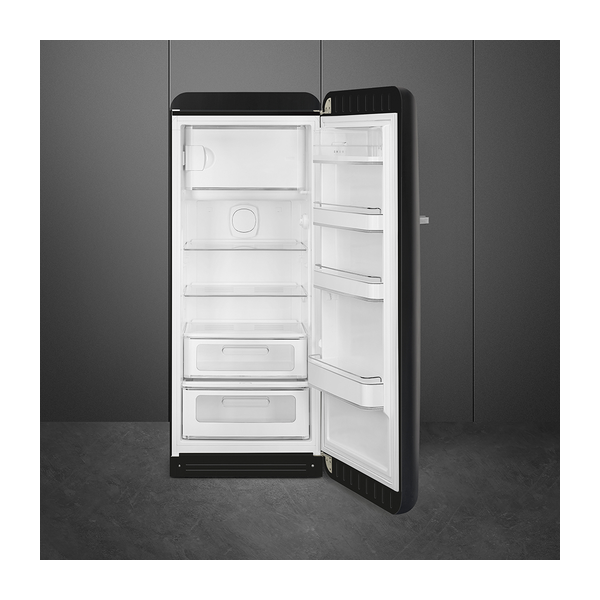

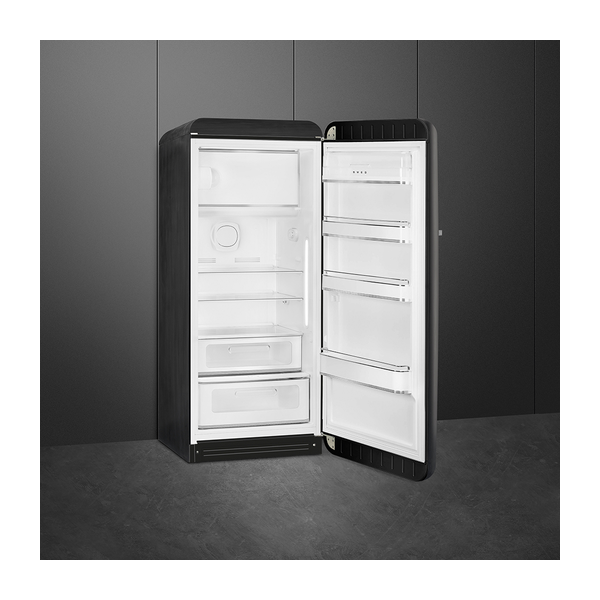

Door opening allowance: Product width with maximum doors opening 926 mm and product depth with doors open at 90° 1197 mm.

Technical Spec

Product familyRefrigerator

InstallationFree Standing

CategoryOne Door

Reference widthUntil 60 cm

Reference height100 – 160 cm

Cooling typeFan assisted refrigerator, static freezer

DefrostAutomatic for refrigerator, manual for freezer

Hinge typeStandard

Hinge positionRight

EAN code8017709299118

Aesthetic style50’s Style

ColourDecorated / Special – Blackboard

DesignRounded, gloss, heat–moulded

HandleExternal, fixed, chrome colour

Logo colourChrome, applied logo

Side material & colourSteel, decorated / special colour

Door shelves profile colourChrome

Drawers profile colourChrome

Glass shelf profile colourChrome

Number of compartments2 (low temperature compartment, fruit and vegetable compartment)

Number of adjustable shelves2 (glass)

Fruit and vegetable drawers1 drawer with glass crisper cover on sliding rails (crisper cover: Yes)

Low temperature compartmentYes

Internal light (fridge)Yes, LED type

Door shelves with transparent cover1

Adjustable door shelves1, with wire support

Bottle shelves1, with wire support

MultiFlow / FanMultiFlow: Yes, Fan: Yes

Internal freezer compartmentYes

Door open alarmAcoustic and visual

Type of temperature controlElectronic

Number of compressors1, variable speed compressor

Refrigerant gas type / quantityR600a, 32 g

Foam agentCyclopentane

Annual energy consumption130 kWh/year

Energy efficiency classD

Airborne acoustical noise emission classB

Total volume270 l

Frozen compartment volume26 l (sum of the volumes of the frozen compartment(s))

Chill and unfrozen volume244 l (sum of the volumes of the chill and unfrozen compartment(s))

Noise level35 dB(A) re 1 pW

Thaw time9 h

4 star – Freezing capacity2,6 kg/24h

Climatic classSN, N, ST, T

EEI79 %

Nominal power90 W

Current1 A

Voltage220–240 V

Frequency50/60 Hz

Power supply cable length180 cm

Plug type(F;E) Schuko

Width601 mm

Depth without handle728 mm

Product height with feet1530 mm

Product width with maximum doors opening926 mm

Product depth with handle768 mm

Product depth with doors open at 90°1197 mm

Downloads

Download product documentation, manuals, and specification sheets.

FAB28RDBB5 - Bulletin.pdf

PDF

FAB28RDBB5 Spec

PDF

Frequently Asked Questions

What is the total capacity of the SMEG FAB28RDBB5 refrigerator?

The total volume is 270 l, with 244 l for the chill and unfrozen compartments and 26 l for the frozen compartment(s).

What type of cooling and defrost system does it use?

It has a fan assisted refrigerator with static freezer. Defrosting is automatic for the refrigerator and manual for the freezer. MultiFlow and a fan provide forced distribution of cold air in the refrigerator compartment, allowing even temperature distribution within the fridge.

What is the energy efficiency class and annual energy consumption?

The energy efficiency class is D, with an annual energy consumption of 130 kWh/year and an EEI of 79 %.

How noisy is the FAB28RDBB5 during operation?

The noise level is 35 dB(A) re 1 pW, and the airborne acoustical noise emission class is B.

What are the main internal storage features?

It includes two main compartments (low temperature and fruit and vegetable), two adjustable glass shelves, one fruit and vegetables drawer with glass crisper cover on sliding rails, an internal freezer compartment, one covered door shelf, one adjustable door shelf with wire support and one bottle shelf with wire support.

What are the overall dimensions including the handle and door opening?

The width is 601 mm and depth without handle is 728 mm. Product depth with handle is 768 mm. Product width with maximum doors opening is 926 mm and product depth with doors open at 90° is 1197 mm. The product height with feet is 1530 mm.
