Smeg FAB28LCR5UK 50's Style Fridge inc Ice Box

The SMEG FAB28LCR5UK is a free standing, one door refrigerator in a cream 50's Style design with a gloss, rounded heat-moulded finish and chrome details. It offers fan assisted refrigeration with a static freezer, automatic defrost in the fridge and a low temperature compartment. With LED internal lighting, electronic temperature control and a total volume of 270 l, it suits users seeking stylish cooling performance in a compact width up to 60 cm.

SKU:FAB28LCR5UK

EAN:8017709298937

Category::Fridges

Quantity:

Key Features

Free standing one door refrigerator with fan assisted refrigerator and static freezer cooling.

50's Style aesthetics in cream with rounded gloss design, heat-moulded material and chrome handle, logo and profiles.

Total volume 270 l including 244 l chill/unfrozen and 26 l frozen compartment capacity.

Automatic defrost for refrigerator with manual defrost for the internal freezer compartment.

Flexible storage with 2 adjustable glass shelves, 1 fruit and vegetable drawer and 2 main compartments.

Dedicated low temperature compartment plus fruit and vegetable compartment with glass crisper cover on sliding rails.

Door storage options including 1 door shelf with transparent cover, 1 adjustable door shelf with wire support and 1 bottle shelf with wire support.

LED internal fridge lighting for energy-efficient, long lasting illumination of the refrigerator interior.

MultiFlow and fan system for ventilated cold air distribution within the refrigerator compartment.

Electronic temperature control with variable speed compressor and R600a refrigerant gas.

Door open alarm with acoustic and visual alerts for added convenience.

Energy efficiency class D with annual energy consumption of 130 kWh/year and EEI of 79 %.

Quiet operation with 35 dB(A) re 1 pW airborne acoustical noise emission (class B).

4 star freezer performance with 2.6 kg/24h freezing capacity and 9 h thaw time.

Wide climatic class range suitable for SN, N, ST, T climatic classes.

Standard left hinge configuration with external fixed chrome handle.

UK-compatible electrical connection with 220–240 V, 50/60 Hz supply and (G) UK e Singapore plug.

Compact reference size designed for reference width up to 60 cm and reference height 100–160 cm.

Internal freezer compartment integrated within the appliance.

Technical Spec

Product familyRefrigerator

InstallationFree Standing

CategoryOne Door

ModelFAB28LCR5UK

Reference widthUntil 60 cm

Reference height100 - 160 cm

Cooling typeFan assisted refrigerator, static freezer

DefrostAutomatic for refrigerator, manual for freezer

Hinge typeStandard

Hinge positionLeft

EAN code8017709298937

Aesthetic style50's Style, rounded design, gloss finishing

ColourCream

MaterialHeat-moulded

Side material and colourSteel sides, cream colour

HandleExternal, fixed, chrome colour

Logo colourChrome, applied logo

Door shelves profile colourChrome

Drawers profile colourChrome

Glass shelf profile colourChrome

Number of compartments2 (Low temperature compartment, Fruit and vegetable compartment)

Number of adjustable shelves2

Type of adjustable shelvesGlass

Number of fruit and vegetable drawers1

Crisper coverYes, glass, on sliding rails

Low temperature compartmentYes

Internal fridge lightYes, LED type

Door shelves with transparent cover1

Adjustable door shelves1, with wire support

Bottle shelves1, with wire support

MultiFlowYes

FanYes

Internal freezer compartmentYes (4 stars freezing compartment for better food preservation.)

Door open alarmAcoustic and visual

Type of temperature controlElectronic

Number of compressors1

Refrigerant gas typeR600a

Type of compressorVariable Speed Compressor

Refrigerant quantity32 g

Foam agentCyclopentane

Annual energy consumption130 kWh/year

Energy efficiency classD

EEI79 %

Airborne acoustical noise emission35 dB(A) re 1 pW

Noise emission classB

Total volume270 l

Frozen compartment volume26 l (sum of the volumes of the frozen compartment(s))

Chill/unfrozen volume244 l (sum of the volumes of the chill compartment(s) and the unfrozen compartment(s))

Thaw time9 h

4 star freezing capacity2.6 kg/24h

Climatic classSN, N, ST, T

Nominal power90 W

Current1 A

Voltage220-240 V

Frequency50/60 Hz

Power supply cable length180 cm

Plug type(G) UK e Singapore

Width601 mm

Depth without handle728 mm

Product height with feet1530 mm

Product width with maximum doors opening926 mm

Product depth with handle732 mm

Product depth with doors open at 90°1148 mm

Downloads

Download product documentation, manuals, and specification sheets.

FAB28LCR5UK - Bulletin.pdf

PDF

FAB28LCR5UK Spec

PDF

Frequently Asked Questions

What is the total capacity of the SMEG FAB28LCR5UK?

The appliance has a total volume of 270 l. This is made up of 244 l for the chill and unfrozen compartments and 26 l for the frozen compartment(s).

What type of cooling and defrost systems does it use?

The refrigerator is fan assisted, while the freezer is static. The fridge section has automatic defrost, which operates at regular intervals, and the freezer compartment has manual defrost.

How energy efficient and quiet is this model?

The FAB28LCR5UK has an energy efficiency class of D and an annual energy consumption of 130 kWh/year, with an EEI of 79 %. Its airborne acoustical noise emission is 35 dB(A) re 1 pW, which corresponds to noise emission class B.

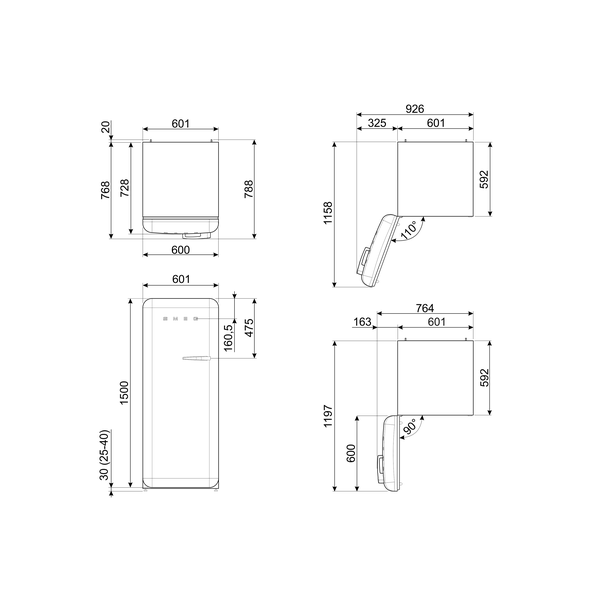

What are the key dimensions for installation and space planning?

The width is 601 mm and the product height with feet is 1530 mm. Depth without handle is 728 mm, depth with handle is 732 mm and depth with doors open at 90° is 1148 mm. The product width with maximum doors opening is 926 mm.

What electrical connection does it require in the UK?

The refrigerator operates at 220–240 V with a frequency of 50/60 Hz, has a nominal power of 90 W and a current of 1 A. It is supplied with a 180 cm power cable and a (G) UK e Singapore plug.
