Smeg FAB38RWH5 50's Style Frost Free Fridge Freezer

The SMEG FAB38RWH5 is a free-standing bottom-mount refrigerator in a 50’s Style design with a gloss white, rounded finish. It offers a Total No Frost – Double Cooling system with automatic defrost and electronic temperature control. With a total volume of 481 l, LED interior lighting and an internal LED display, it is designed for practical food storage. Features include a low temperature compartment, fruit and vegetable drawer, fast freezing and acoustic and visual door open alarms.

SKU:FAB38RWH5

EAN:8017709297923

Category::Fridge Freezers

Quantity:

Key Features

Free-standing bottom-mount design with reference width 60–70 cm and product height with feet of 2050 mm.

Total No Frost – Double Cooling system with automatic defrost, removing the need to defrost.

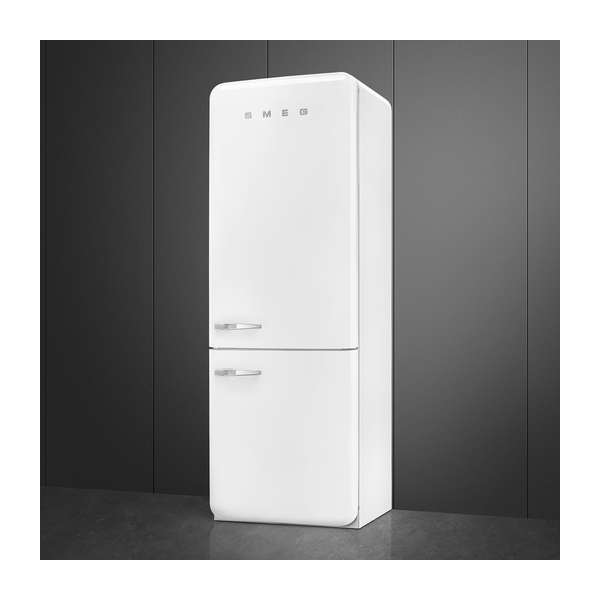

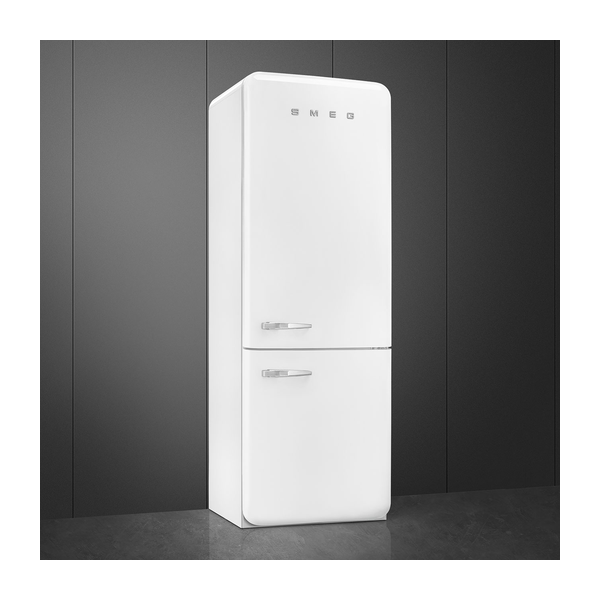

50’s Style white aesthetics featuring rounded design, gloss heat-moulded material and chrome handle and logo.

Generous total volume of 481 l including 344 l chill/unfrozen and 137 l frozen compartments.

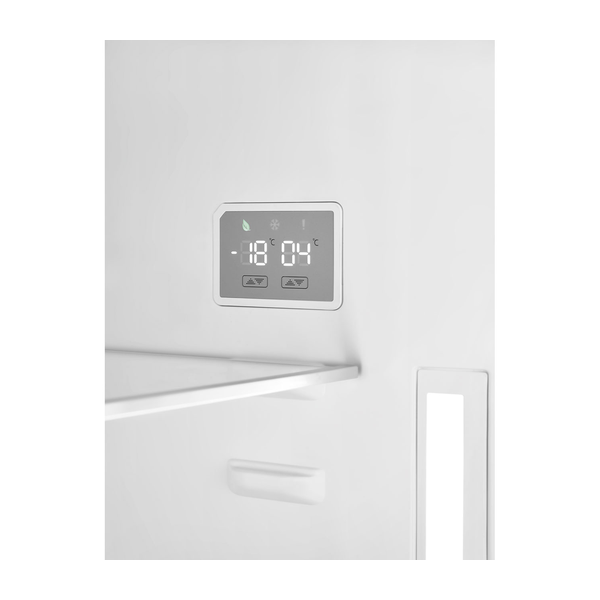

LED interior lighting and internal LED display to show programmes, functions and options selected.

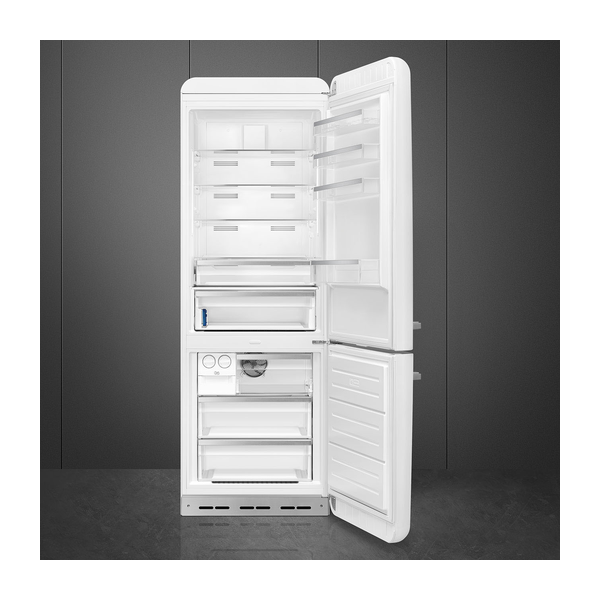

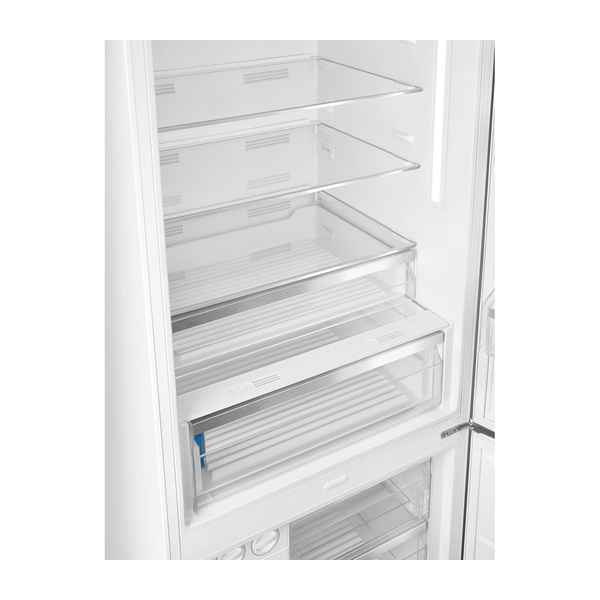

Flexible fridge storage with 3 adjustable glass shelves, crisper cover, low temperature compartment and fruit and vegetable compartment.

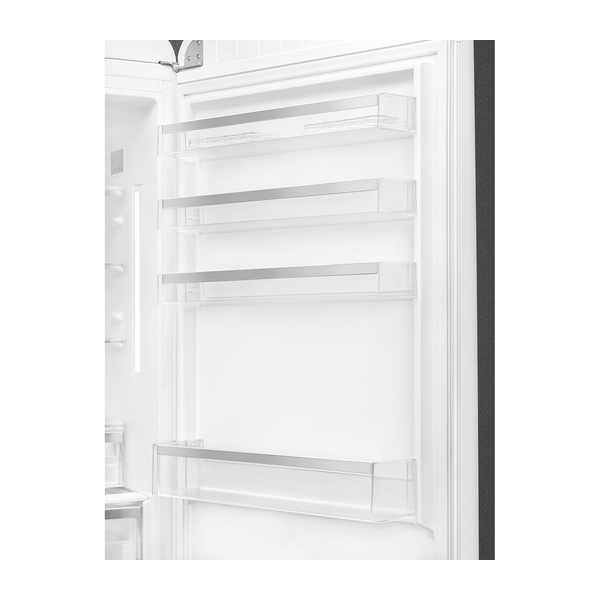

Door storage versatility with 3 adjustable door shelves and 1 bottle shelf.

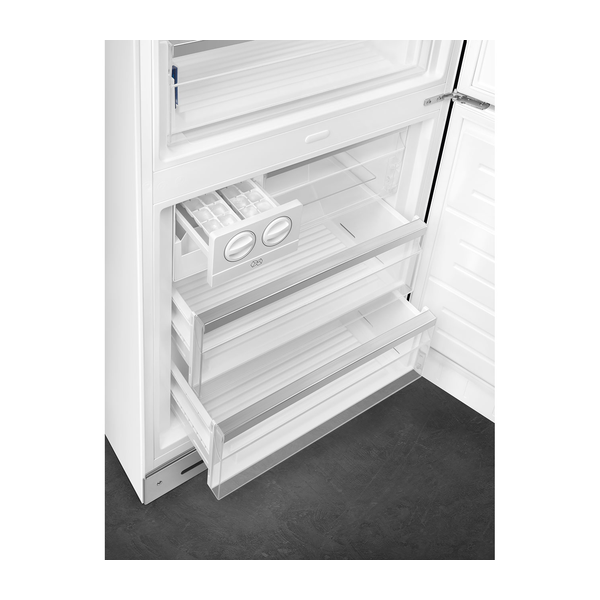

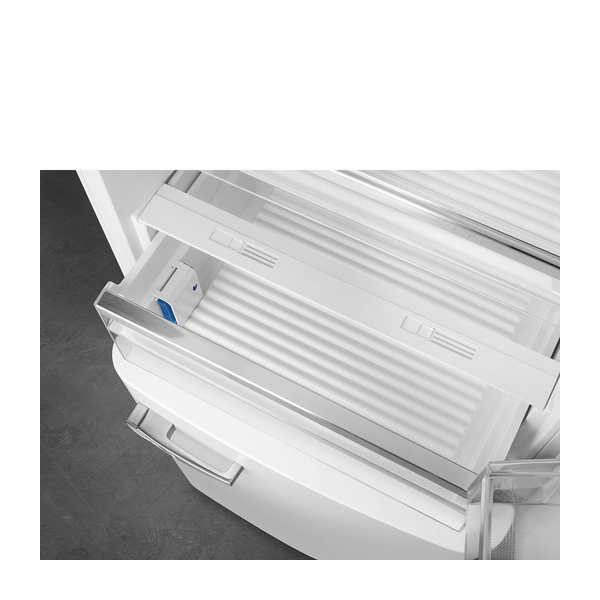

Freezer organisation provided by 2 drawers, 2 shelves and 1 compartment with flap plus a manual ice maker.

Fast freezing function and dedicated fast freezing compartment to quickly lower the temperature before use.

Electronic controls with ECO function, temperature alarm, temperature alarm lamp and acoustic and visual door open alarm.

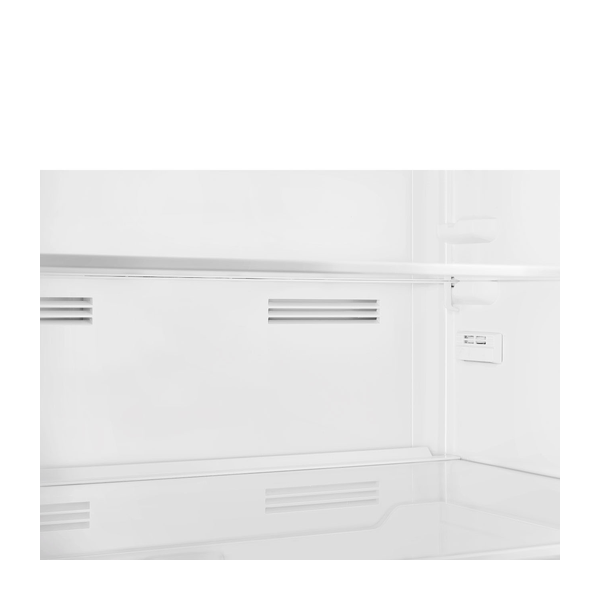

MultiFlow and fan-assisted cooling for forced distribution of cold air and even temperature in the refrigerator compartment.

Energy efficiency class E with annual energy consumption of 282 kWh/year and airborne acoustical noise emission class C.

Quiet operation with a noise level of 41 dB(A) re 1 pW.

4-star freezing performance with 8 kg/24 h freezing capacity and 14 h thaw time.

SN, N, ST, T climatic class for operation in a wide range of ambient temperature conditions.

Variable Speed Compressor using R600a refrigerant and cyclopentane foam agent.

Right-hand standard hinge with external fixed handle in chrome finish.

Interior detailing with silver profiles on door shelves, drawers and glass shelf edges.

Alternative colour options available including Pastel Green, Pastel Blue, Cream, Black and Red models with right-hand hinge.

Technical Spec

Product familyRefrigerator

ModelFAB38RWH5

InstallationFree Standing

CategoryBottom Mount

Reference width60 – 70 cm

Reference heightHigher than 200 cm

No-Frost systemTotal

Cooling typeTotal No Frost – Double Cooling system

DefrostAutomatic

Hinge type / positionStandard / Right

EAN code8017709297923

Aesthetics50’s Style

ColourWhite

DesignRounded

FinishingGloss

MaterialHeat-moulded

HandleExternal, fixed, chrome colour

LogoApplied, chrome colour

Side material / colourSteel / White

Door shelves profile colourSilver

Drawers profile colourSilver

Glass shelf profile colourSilver

DisplayLED, interior position

Number of compartments2 (low temperature compartment; fruit and vegetable compartment)

Adjustable shelves (fridge)3, glass

Fruit and vegetable drawers1

Crisper coverYes, glass, on sliding rails

Low temperature compartmentYes

Fridge internal light2 LED lights

Number of adjustable door shelves3

Number of bottle shelves1

MultiFlowYes

FanYes

Freezer drawers2

Freezer shelves2, glass

Compartments with flap1

Ice makerManual

Fast freezing compartmentYes

Functions on displayFast freezing, ECO, Temperature alarm

Fast freezing buttonYes

Temperature alarm lampYes

Door open alarmAcoustic and visual

Temperature alarmYes

Temperature controlElectronic

Number of compressors1

Compressor typeVariable Speed Compressor

Refrigerant gas typeR600a

Refrigerant quantity45 g

Foam agentCyclopentane

Energy efficiency classE

Annual energy consumption282 kWh/year

Airborne acoustical noise emission classC

Noise level41 dB(A) re 1 pW

Total volume481 l

Frozen compartment volume137 l

Chill and unfrozen compartment volume344 l

Freezing capacity8 kg/24h (4 star – Freezing compartment)

Thaw time14 h

Climatic classSN, N, ST, T

EEI98 %

Nominal power127 W

Current1.1 A

Voltage220–240 V

Frequency50/60 Hz

Power supply cable length180 cm

Plug(F;E) Schuko

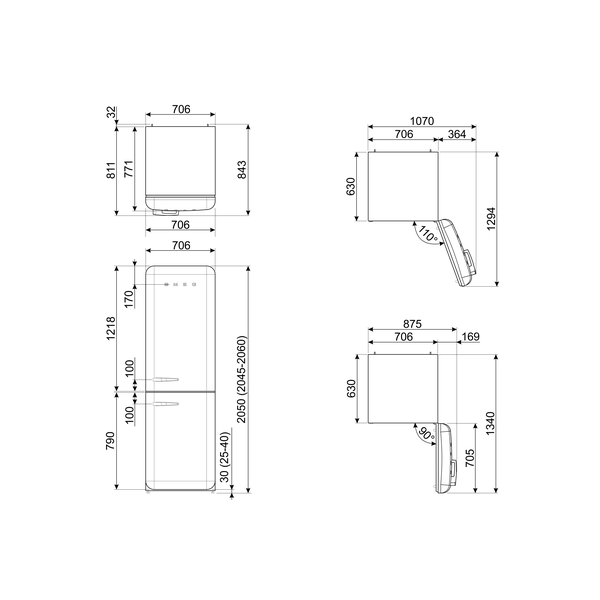

Width706 mm

Depth without handle771 mm

Product height with feet2050 mm

Product width with maximum doors opening1070 mm

Product depth with handle811 mm

Product depth with doors open at 90°1340 mm

Spacer depth32 mm

Downloads

Download product documentation, manuals, and specification sheets.

FAB38RWH - Bulletin.pdf

PDF

FAB38RWH5 Spec

PDF

Frequently Asked Questions

What is the total capacity of the SMEG FAB38RWH5?

The total volume is 481 l, with 344 l for the chill and unfrozen compartments and 137 l for the frozen compartment(s).

Does this fridge freezer require manual defrosting?

No. It has a Total No Frost system with automatic defrost. The automatic defrost system works by defrosting at regular intervals, eliminating the need to defrost altogether.

What energy efficiency class and noise level does it have?

The appliance is rated energy efficiency class E, with annual energy consumption of 282 kWh/year. The airborne acoustical noise emission class is C, with a noise level of 41 dB(A) re 1 pW.

How many shelves and drawers are in the fridge and freezer?

The refrigerator section has 3 adjustable glass shelves and 1 fruit and vegetable drawer with a glass crisper cover on sliding rails, plus a low temperature compartment. The freezer section has 2 drawers, 2 glass shelves and 1 compartment with flap, along with a manual ice maker.

What special functions are available on the display?

The LED display shows programmes, functions and options selected. Available functions include Fast freezing, ECO mode and a temperature alarm. There is also a fast freezing button, a temperature alarm lamp and acoustic and visual door open alarms.

Are there alternative colour options in this range?

Yes. Alternative right-hinge models include FAB38RPG5 (Pastel Green), FAB38RPB5 (Pastel Blue), FAB38RCR5 (Cream), FAB38RBL5 (Black) and FAB38RRD5 (Red).
