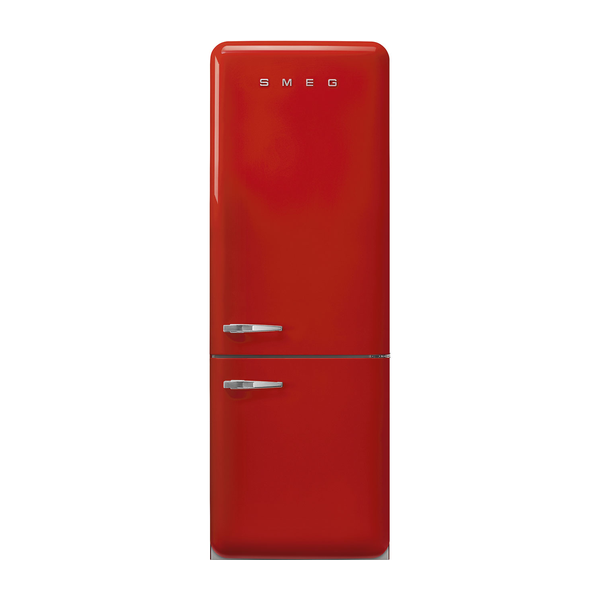

Smeg FAB38RRD5 50's Style Frost Free Fridge Freezer

The SMEG FAB38RRD5 is a free standing bottom mount refrigerator in a 50’s Style design with a gloss red finish and chrome details. It offers Total No Frost with a double cooling system, automatic defrost and electronic temperature control. With a 481 l total volume, LED interior lighting, fast freezing and humidity control, it is suited to users seeking generous storage, easy maintenance and distinctive aesthetics in a 60–70 cm width appliance taller than 200 cm.

SKU:FAB38RRD5

EAN:8017709297916

Category::Fridge Freezers

Quantity:

Key Features

Free standing bottom mount design with refrigerator above and freezer compartment below for convenient everyday access.

Total No Frost – Double Cooling system with automatic defrost to eliminate manual defrosting.

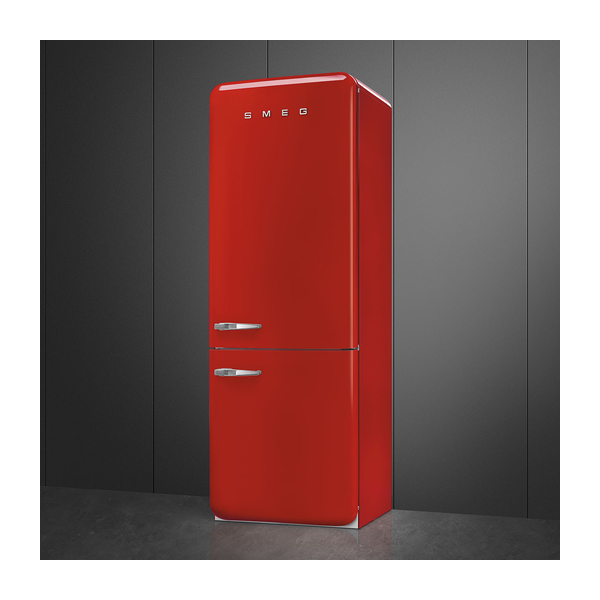

50’s Style aesthetics featuring rounded design, gloss red colour and chrome handle and logo.

Generous 481 l total volume including 344 l chill and unfrozen space and 137 l frozen compartment capacity.

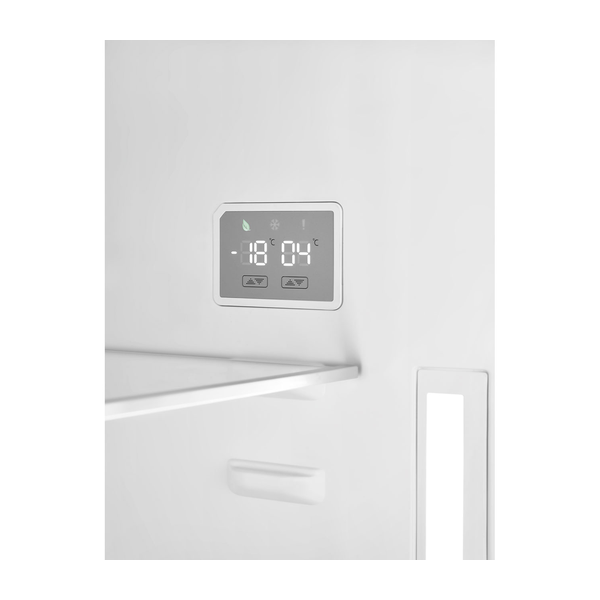

LED display and interior LED lighting for clear visibility of settings and excellent internal illumination.

Electronic temperature control with functions display for fast freezing, ECO mode and temperature alarm.

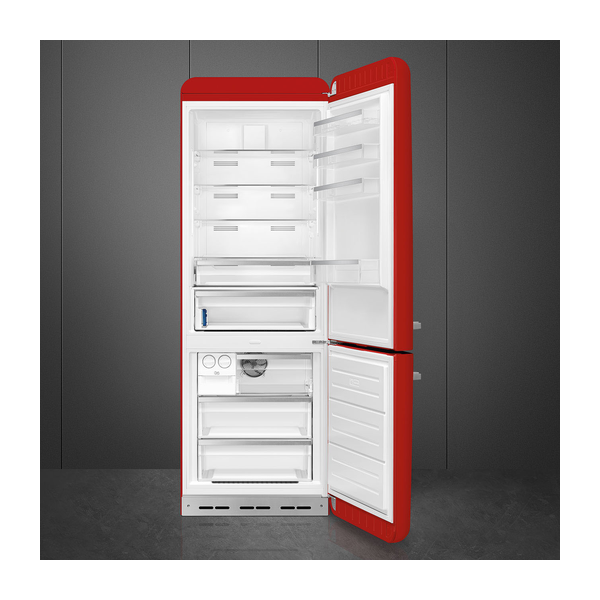

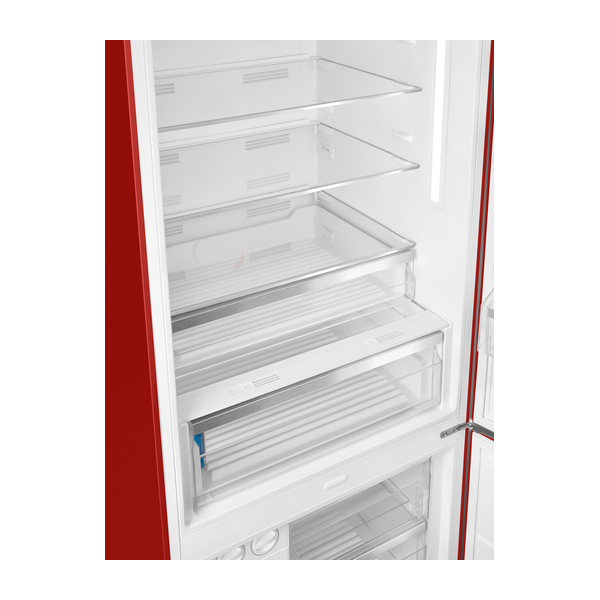

Flexible refrigerator storage with 3 adjustable glass shelves, 1 fruit and vegetable drawer and low temperature compartment.

Humidity Control and MultiFlow with fan to support even cold air distribution in the fridge compartment.

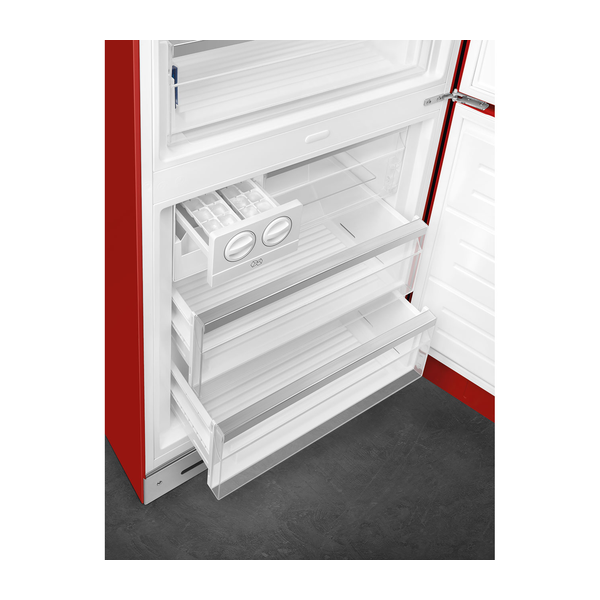

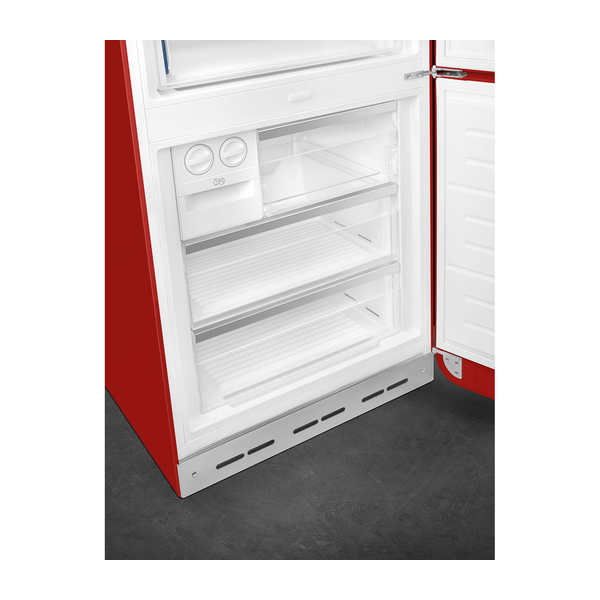

Freezer with 2 drawers and manual ice maker plus fast freezing compartment and 4 star freezing performance.

Door open and temperature alarms with acoustic and visual alerts for added convenience.

Energy efficiency class E with annual energy consumption of 282 kWh/year.

Quiet operation with a noise level of 41 dB(A) re 1 pW and airborne acoustical noise emission class C.

Variable Speed Compressor using R600a refrigerant and cyclopentane foam agent.

Reversible alternatives in the same family available in white, pastel green, pastel blue, cream and black (all right hinge).

Technical Spec

Product familyRefrigerator

ModelFAB38RRD5

InstallationFree Standing

CategoryBottom Mount

Reference width60 – 70 cm

Reference heightHigher than 200 cm

No-Frost systemTotal

Cooling typeTotal No Frost – Double Cooling system

DefrostAutomatic

Hinge type / positionStandard – Right

EAN code8017709297916

Aesthetic style50’s Style

Colour / finishRed, Gloss

DesignRounded

Main materialHeat-moulded

HandleExternal, fixed, chrome colour

Side material / colourSteel, Red

LogoApplied, chrome colour

Door shelves profile colourSilver

Drawers profile colourSilver

Glass shelf profile colourSilver

DisplayLED, interior position

Refrigerator compartments2 – low temperature compartment, fruit and vegetable compartment

Adjustable fridge shelves3, glass

Fruit and vegetable drawers1 with glass cover on sliding rails

Crisper coverYes, glass

Fridge internal lights2 LED lights

Humidity ControlYes

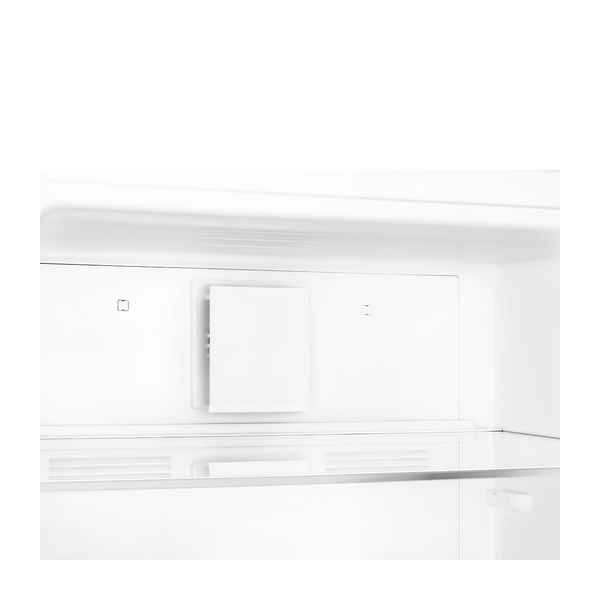

MultiFlow / FanMultiFlow, Fan: Yes

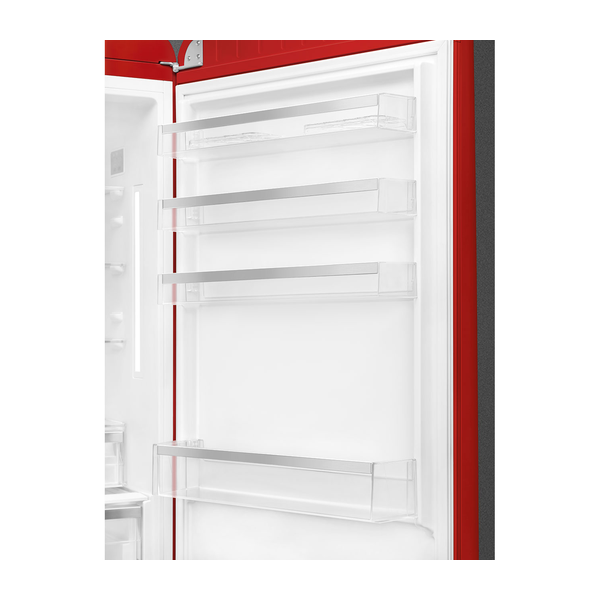

Adjustable door shelves3

Bottle shelves1

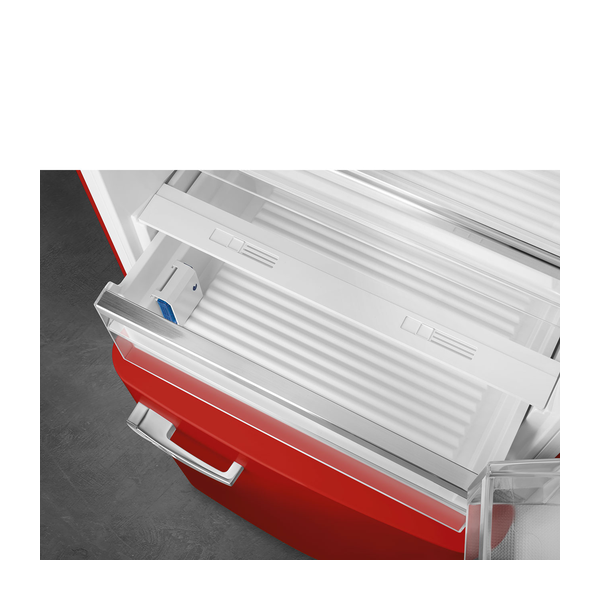

Freezer drawers2

Freezer shelves2, glass

Freezer compartments with flap1

Ice makerManual

Fast freezing compartmentYes

Functions displayFast freezing, ECO, Temperature alarm

Fast freezing buttonYes

Temperature alarm lampYes

Door open alarmAcoustic and visual

Temperature controlElectronic

Compressors1 – Variable Speed Compressor

Refrigerant gas / quantityR600a, 45 g

Foam agentCyclopentane

Annual energy consumption282 kWh/year

Energy efficiency classE (EEI 98 %)

Airborne acoustical noise emission classC

Noise level41 dB(A) re 1 pW

Total volume481 l

Frozen compartment volume137 l

Chill and unfrozen compartments volume344 l

Thaw time14 h

Freezing capacity8 kg/24h (4 star – freezing compartment)

Climatic classSN, N, ST, T

Nominal power127 W

Current1,1 A

Voltage220–240 V

Frequency50/60 Hz

Power supply cable length180 cm

Plug type(F;E) Schuko

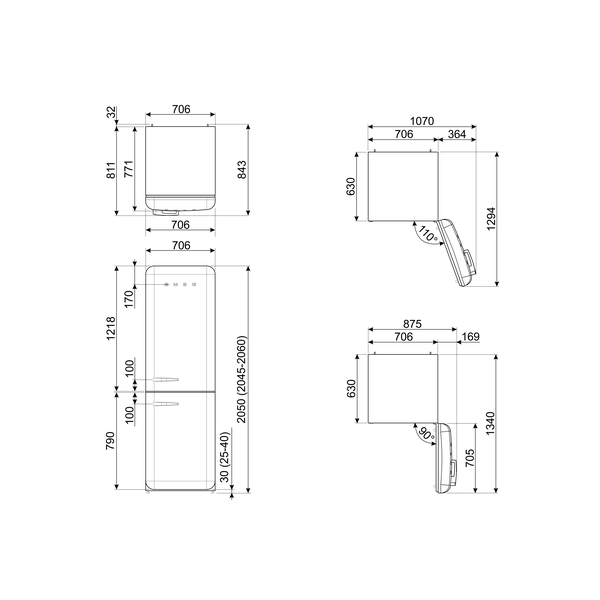

Width706 mm

Depth without handle771 mm

Product height with feet2050 mm

Product width with maximum doors opening1070 mm

Product depth with handle811 mm

Product depth with doors open at 90°1340 mm

Spacer depth32 mm

Downloads

Download product documentation, manuals, and specification sheets.

FAB38RRD - Bulletin.pdf

PDF

FAB38RRD5 Spec

PDF

Frequently Asked Questions

Does this fridge freezer require manual defrosting?

No. It features a Total No Frost system with automatic defrost, which works by automatically defrosting at regular intervals, eliminating the need to defrost altogether.

What is the total capacity of the SMEG FAB38RRD5?

The total volume is 481 l, with 344 l allocated to the chill and unfrozen compartments and 137 l to the frozen compartment.

What is the energy efficiency rating and annual consumption?

The appliance has an energy efficiency class E with an EEI of 98 % and an annual energy consumption of 282 kWh/year.

How noisy is the appliance during operation?

The noise level is 41 dB(A) re 1 pW and it is classified in airborne acoustical noise emission class C.

What special functions are available on the display?

The LED display shows programmes, functions and options. Functions include fast freezing, ECO (economical) mode and a temperature alarm.

What are the main dimensions of this model?

The width is 706 mm, depth without handle 771 mm, product depth with handle 811 mm and product height with feet 2050 mm. With doors open at 90°, the depth is 1340 mm.
