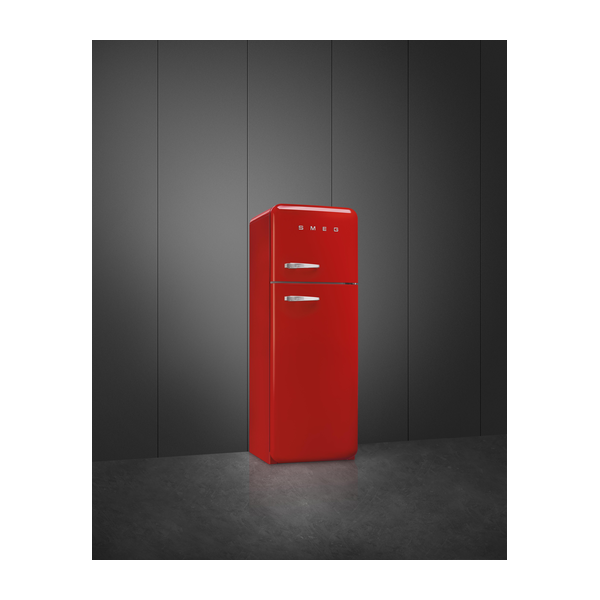

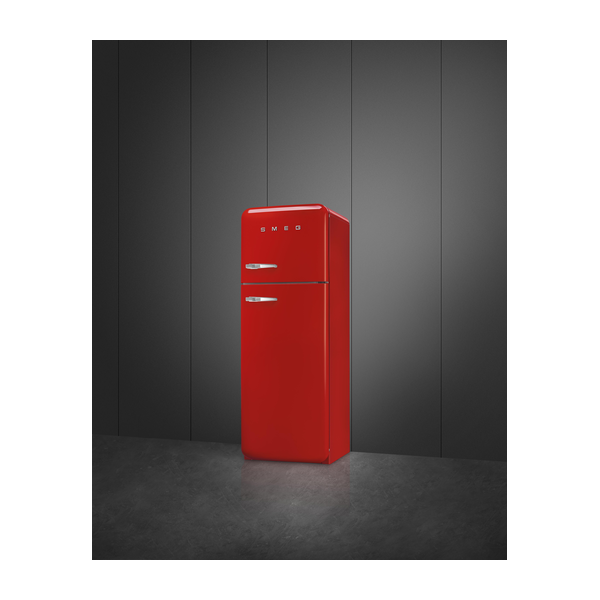

Smeg FAB30RRD5UK 50's Style Fridge Freezer

The SMEG FAB30RRD5UK is a freestanding top mount refrigerator with a fan assisted fridge and static freezer, designed in a rounded 50’s Style aesthetic. Finished in gloss red with chrome details, it offers 294 l total volume, including low temperature and fruit and vegetable compartments. Featuring LED interior lighting, electronic temperature control and an energy efficiency class D rating, it suits users seeking retro styling with modern refrigeration performance.

SKU:FAB30RRD5UK

EAN:8017709298388

Category::Fridge Freezers

Quantity:

Key Features

Freestanding top mount design – Refrigerator with fan assisted fridge and static freezer.

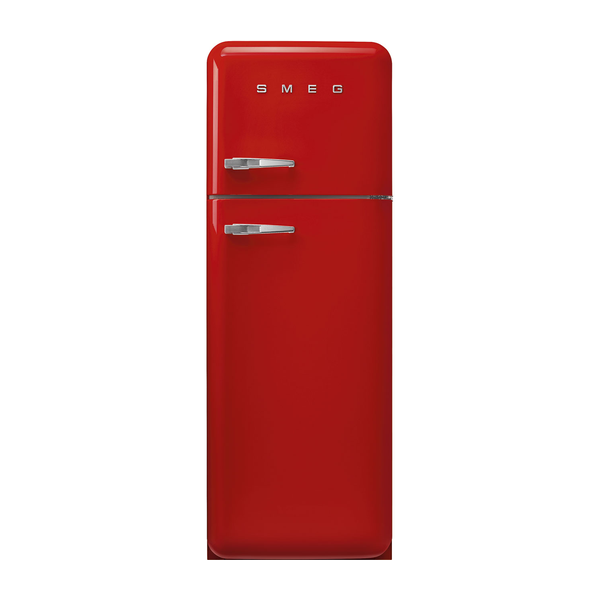

50’s Style aesthetics – Rounded gloss red cabinet with chrome handle, logo and profiles.

Generous 294 l total volume – 222 l chill and unfrozen compartments plus 72 l frozen compartment.

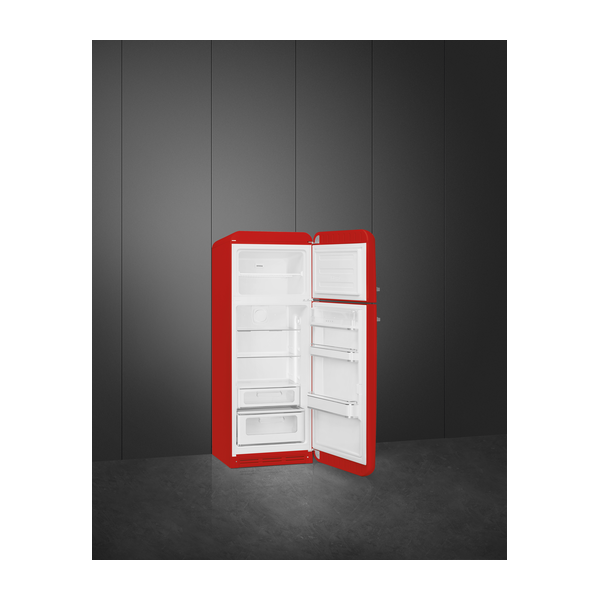

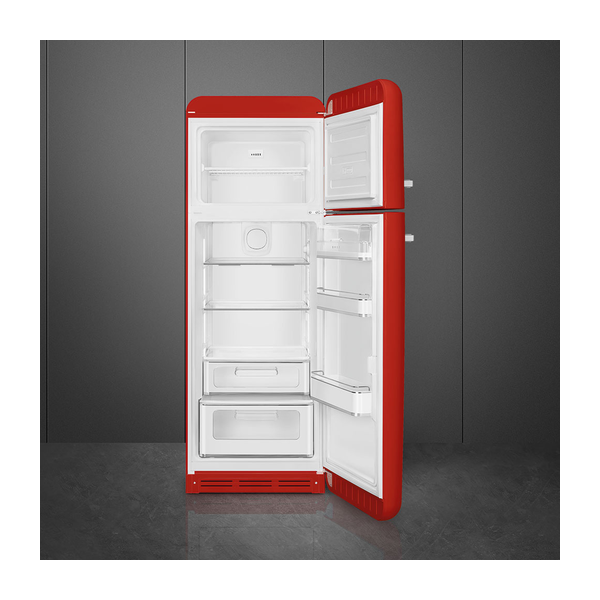

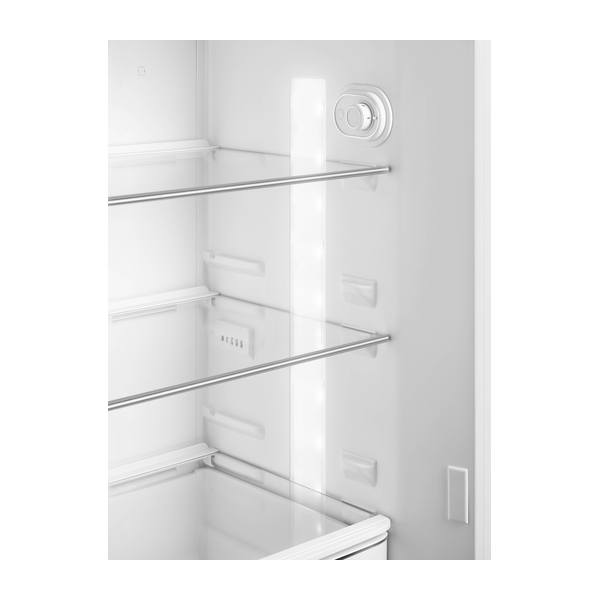

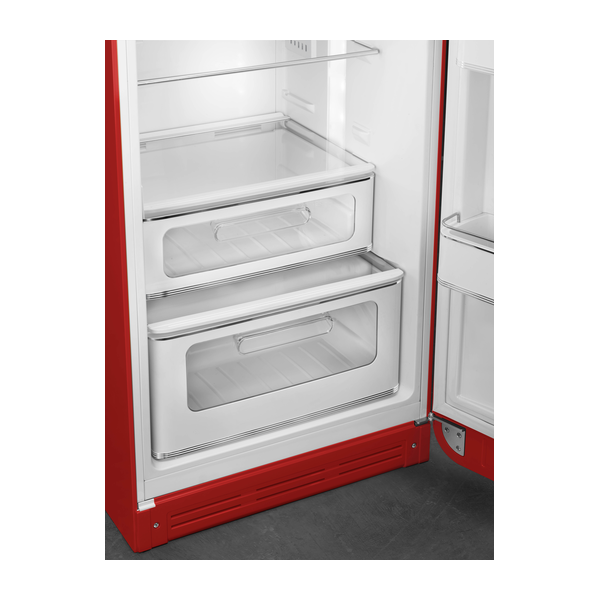

Flexible storage – Two adjustable glass shelves, one fruit and vegetable drawer and a low temperature compartment.

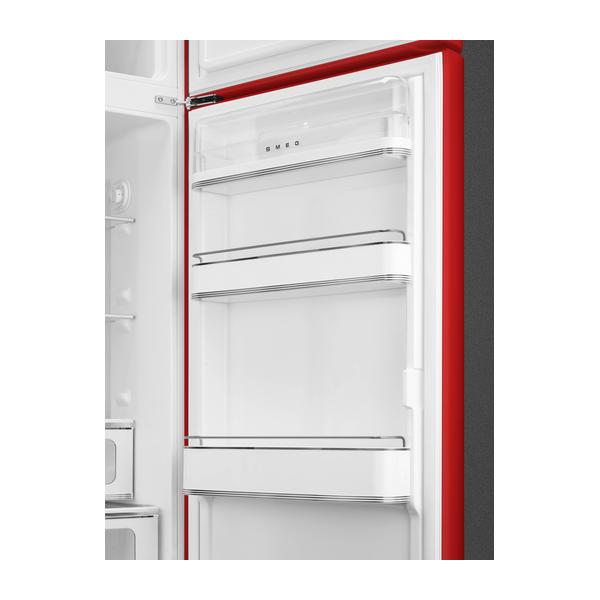

Organised door storage – Two adjustable door shelves, one covered door shelf and one bottle shelf with wire support.

LED internal lighting – Energy efficient illumination inside the fridge.

MultiFlow with fan – Forced distribution of cold air for even temperature in the refrigerator compartment.

Electronic temperature control – Acoustic and visual door open alarm for added convenience.

Energy efficiency class D – Annual energy consumption of 168 kWh/year and EEI 80 %.

Quiet operation – Noise level of 37 dB(A) re 1 pW, airborne acoustical noise emission class C.

Four star freezer compartment – Freezing capacity of 4 kg/24 h with 30 h thaw time.

Wide climatic class range – Suitable for SN, N, ST and T climate classes.

Variable Speed Compressor – Uses R600a refrigerant and cyclopentane foam agent.

Right hand hinged door – Standard hinge type with external fixed handle.

Available colour variants – Orange, Pastel blue, White, Blue, Black, Cream, Pink, Red, Silver, Pastel green, Lime green.

Technical Spec

Product familyRefrigerator

InstallationFree Standing

CategoryTop Mount

Reference widthUntil 60 cm

Cooling typeFan assisted refrigerator, static freezer

DefrostManual

Hinge type / positionStandard, Right

Aesthetics50’s Style

Colour / finishingRed, gloss

DesignRounded

MaterialHeat-moulded

HandleExternal, fixed, chrome colour

Logo colourChrome, applied logo

Side material / colourSteel, Red

Door shelf profilesChrome

Drawer and glass shelf profilesChrome

Number of compartments2 (Low temperature compartment, Fruit and vegetable compartment)

Adjustable fridge shelves2, glass

Fruit and vegetable drawers1, with glass crisper cover

Low temperature compartmentYes

Fridge internal lightYes, LED

Door shelves with transparent cover1

Adjustable door shelves2, with wire support

Bottle shelves1, with wire support

Freezer shelves1, wire

MultiFlow / fanMultiFlow Yes, Fan Yes

Door open alarmAcoustic and visual

Temperature controlElectronic

Number of compressors1

Compressor typeVariable Speed Compressor

Refrigerant gas / quantityR600a, 70 g

Foam agentCyclopentane

Annual energy consumption168 kWh/year

Energy efficiency classD

EEI80 %

Total volume294 l

Volume – chilled and unfrozen222 l (sum of chill and unfrozen compartments)

Volume – frozen compartment72 l (sum of frozen compartments)

Noise level37 dB(A) re 1 pW, noise emission class C

Thaw time30 h

Freezing capacity4 star, 4 kg/24 h

Climatic classSN, N, ST, T

Nominal power100 W

Current0,8 A

Voltage220–240 V

Frequency50/60 Hz

Power supply cable length180 cm

Plug type(G) UK e Singapore

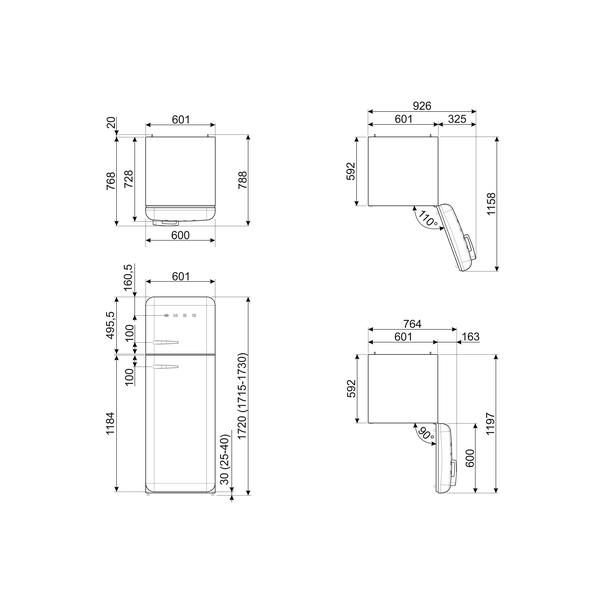

Width600 mm

Depth without handle728 mm

Product height with feet1720 mm

Product width with doors open926 mm (maximum doors opening)

Product depth with handle768 mm

Depth with doors open at 90°1197 mm

Spacer depth20 mm

Downloads

Download product documentation, manuals, and specification sheets.

FAB30RRD5UK - Bulletin.pdf

PDF

FAB30RRD5UK Spec

PDF

Frequently Asked Questions

What is the total capacity of the SMEG FAB30RRD5UK?

The appliance has a total volume of 294 l. This includes 222 l for the chill and unfrozen compartments and 72 l for the frozen compartment.

What type of cooling and defrost system does it use?

The refrigerator uses fan assisted cooling with MultiFlow and a fan in the fridge compartment, while the freezer is static. Defrost is manual.

What is the energy rating and annual energy consumption?

The energy efficiency class is D, with an annual energy consumption of 168 kWh/year and an EEI of 80 %.

How noisy is the fridge freezer during operation?

The stated noise level is 37 dB(A) re 1 pW. The airborne acoustical noise emission class is C.

Does it include a door open alarm?

Yes, the appliance is equipped with an acoustic and visual door open alarm linked to the electronic temperature control.

What plug type and electrical connection does it require?

It uses a (G) UK e Singapore plug, with a voltage of 220–240 V, frequency of 50/60 Hz, nominal power of 100 W and current of 0,8 A.
