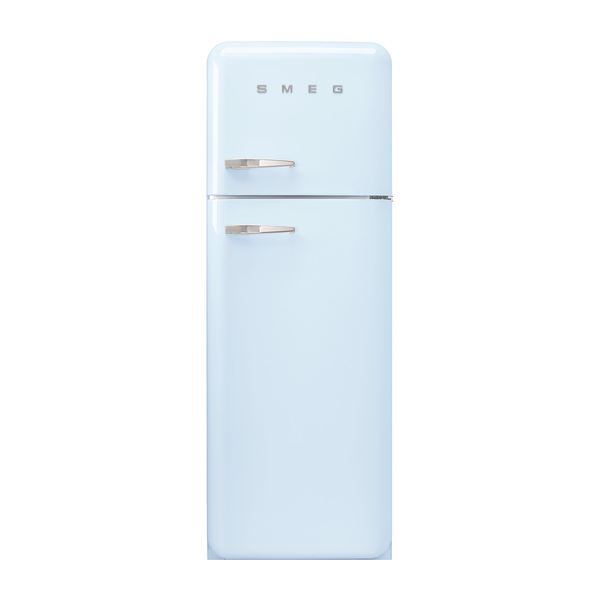

Smeg FAB30RPB5UK 50's Style Fridge Freezer

The SMEG FAB30RPB5UK is a free standing top mount refrigerator in a 50’s Style design with a pastel blue gloss finish and rounded lines. It offers a fan assisted refrigerator with a static freezer, glass shelves and a dedicated fruit and vegetable compartment. With LED internal lighting, electronic temperature control and a total volume of 294 l, it suits users seeking stylish aesthetics combined with practical storage and an energy efficiency class D rating.

SKU:FAB30RPB5UK

EAN:8017709298401

Category::Fridge Freezers

Quantity:

Key Features

Product family & category: Refrigerator, free standing, top mount design.

50’s Style aesthetics: Pastel blue colour, rounded design, gloss heat-moulded material.

Chrome details: External fixed handle, logo, door shelf profiles, drawer profiles and glass shelf profiles in chrome.

Cooling system: Fan assisted refrigerator with static freezer and MultiFlow air distribution.

Refrigerator layout: 2 adjustable glass shelves, 1 fruit and vegetable drawer with glass crisper cover, low temperature compartment.

Door storage: 1 door shelf with transparent cover, 2 adjustable door shelves with wire support, 1 bottle shelf with wire support.

Freezer features: 1 wire shelf and ice tray shelf.

Internal lighting: LED internal light in the fridge for energy efficient illumination.

Controls & alarms: Electronic temperature control with acoustic and visual door open alarm.

Compressor: Variable Speed Compressor with R600a refrigerant gas.

Energy performance: Annual energy consumption 168 kWh/year, energy efficiency class D, EEI 80 %.

Capacity: Total volume 294 l (222 l chill/unfrozen, 72 l frozen compartments).

Freezer rating: 4 star – freezing capacity 4 kg/24h, thaw time 30 h.

Noise level: 37 dB(A) re 1 pW, airborne acoustical noise emission class C.

Climatic class: SN, N, ST, T.

Dimensions: Width 600 mm, depth without handle 728 mm, product height with feet 1720 mm.

Door hinge: Standard right-hand hinge position.

Side finish: Steel sides in pastel blue colour.

Power connection: Voltage 220–240 V, frequency 50/60 Hz, current 0.8 A, UK & Singapore (G) plug, 180 cm cable.

Insulation: Foam agent Cyclopentane, refrigerant quantity 70 g.

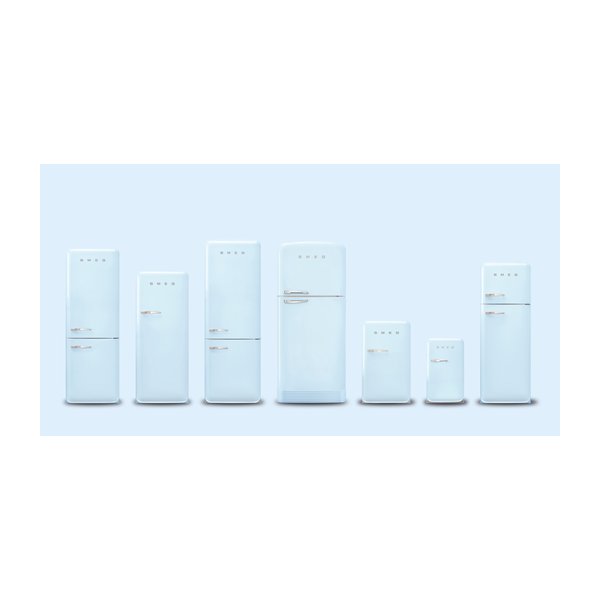

Available colours in family: Orange, pastel blue, white, blue, black, cream, pink, red, silver, pastel green, lime green.

EAN code: 8017709298401 for this model.

Technical Spec

Product familyRefrigerator

InstallationFree Standing

CategoryTop Mount

Reference widthUntil 60 cm

Cooling typeFan assisted refrigerator, static freezer

DefrostManual

Hinge type / positionStandard hinge, right position

Model codeFAB30RPB5UK

Aesthetics50’s Style

Colour & finishPastel blue, gloss

DesignRounded

MaterialHeat-moulded; side material steel

HandleExternal, fixed, chrome colour

LogoApplied logo, chrome colour

Number of compartments (fridge)2

Compartment typesLow temperature compartment; fruit and vegetable compartment

Adjustable shelves (fridge)2 adjustable glass shelves

Fruit & vegetable drawers1 drawer, glass crisper/vegetable drawers cover

Crisper coverYes, glass, standard type

Low temperature compartmentYes

Internal fridge lightYes, LED type

Door shelves with transparent cover1

Adjustable door shelves2, with wire support

Bottle shelves1, with wire support

Door shelves profile colourChrome

Drawers profile colourChrome

Glass shelf profile colourChrome

Freezer shelves1 wire shelf; ice tray shelf yes

MultiFlow / FanMultiFlow Yes; Fan Yes

Door open alarmAcoustic and visual

Temperature controlElectronic

Number of compressors1, variable speed compressor

Refrigerant gasR600a, 70 g

Foam agentCyclopentane

Annual energy consumption168 kWh/year

Energy efficiency classD

EEI80 %

Total volume294 l

Volume – frozen compartments72 l (sum of the volumes of the frozen compartment(s))

Volume – chill & unfrozen222 l (sum of the volumes of the chill and unfrozen compartment(s))

Noise level37 dB(A) re 1 pW, noise emission class C

Thaw time30 h

Freezing capacity4 star – 4 kg/24h

Climatic classSN, N, ST, T

Current0,8 A

Voltage220–240 V

Frequency50/60 Hz

Power supply cable length180 cm

Plug type(G) UK e Singapore

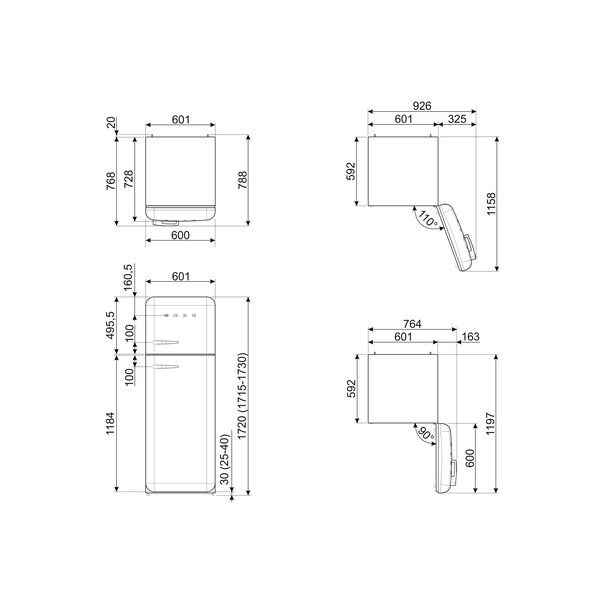

Width600 mm

Depth without handle728 mm

Product depth with handle768 mm

Product depth with doors open at 90°1197 mm

Product height with feet1720 mm

Product width with maximum doors opening926 mm

Spacer depth20 mm

EAN code8017709298401

Downloads

Download product documentation, manuals, and specification sheets.

FAB30RPB5UK - Bulletin.pdf

PDF

FAB30RPB5UK Spec

PDF

Frequently Asked Questions

What is the total capacity of the SMEG FAB30RPB5UK?

The total volume is 294 l, with 222 l for the chill and unfrozen compartments and 72 l for the frozen compartment(s).

What type of cooling system does this fridge freezer use?

It has a fan assisted refrigerator with MultiFlow ventilated cooling and a static freezer. Ventilated cooling provides forced distribution of cold air in the refrigerator compartment for even temperature distribution.

What is the energy efficiency class and annual energy consumption?

The energy efficiency class is D, with an annual energy consumption of 168 kWh/year and an EEI of 80 %.

How noisy is the FAB30RPB5UK in operation?

The declared noise level is 37 dB(A) re 1 pW, and it has an airborne acoustical noise emission class C.

What are the main dimensions for installation space?

The appliance is 600 mm wide and 1720 mm high with feet. Depth is 728 mm without the handle and 768 mm with the handle. With doors open at 90°, depth is 1197 mm and width with maximum doors opening is 926 mm.

What is the freezing capacity and thaw time of the freezer?

The freezer has a 4 star rating with a freezing capacity of 4 kg/24h and a thaw time of 30 h.
