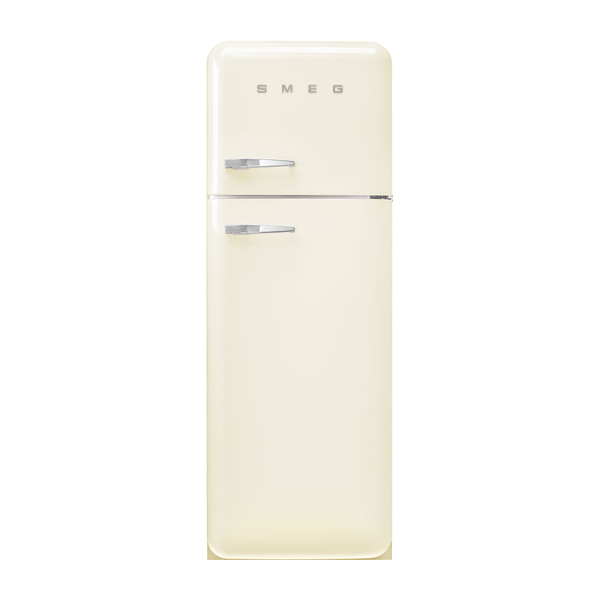

Smeg FAB30RCR5UK 50's Style Fridge Freezer

The FAB30RCR5UK is a free standing, top mount refrigerator freezer in a cream 50’s Style design with a glossy, rounded finish. It offers a fan assisted refrigerator with a static freezer, manual defrost and electronic temperature control. With a total volume of 294 l, LED internal lighting and dedicated low temperature and fruit and vegetable compartments, it is suited to users seeking a stylish, practical fridge freezer with modern cooling features.

SKU:FAB30RCR5UK

EAN:8017709298340

Category::Fridge Freezers

Quantity:

Key Features

Product family: Refrigerator with top mount freezer configuration.

Installation: Free standing for flexible placement.

Cooling type: Fan assisted refrigerator with static freezer.

Defrost: Manual defrost system.

Aesthetics: 50’s Style, cream colour, rounded, glossy design.

Materials and finish: Heat-moulded cabinet with steel sides in cream.

Handles and logo: External fixed handle and logo in chrome.

Door and shelf details: Chrome profiles on door shelves, drawers and glass shelf edges.

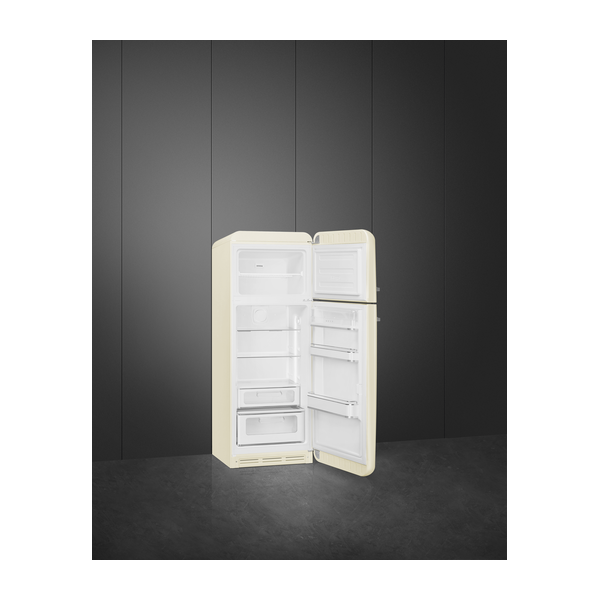

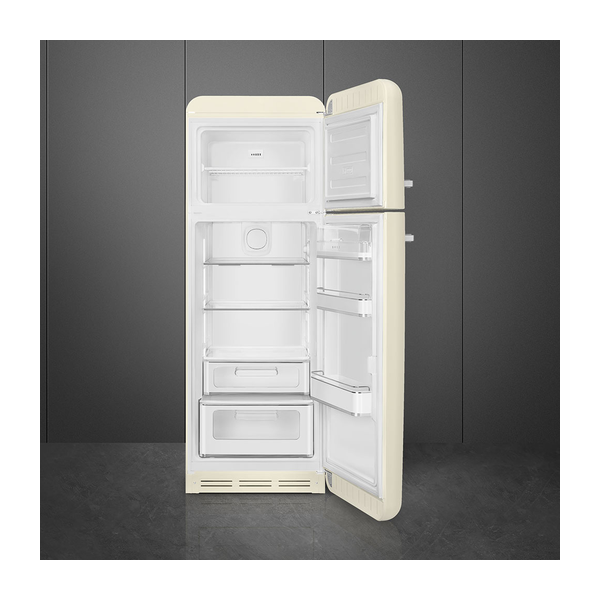

Compartments: 2 main compartments including low temperature and fruit and vegetable sections.

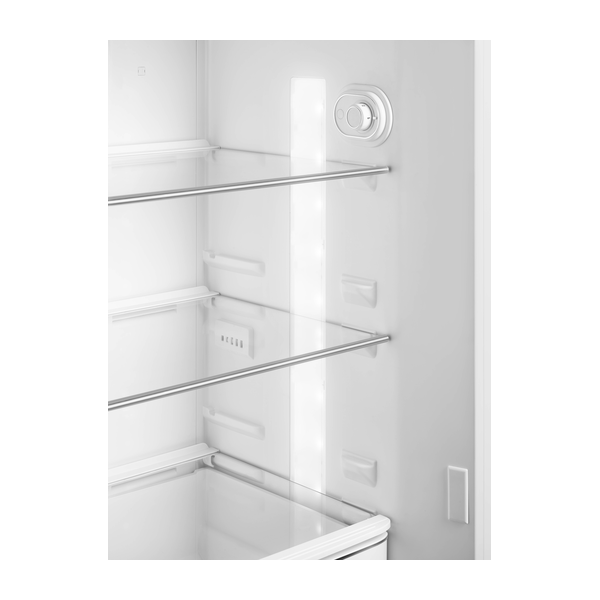

Adjustable shelves: 2 adjustable glass shelves with glass crisper cover.

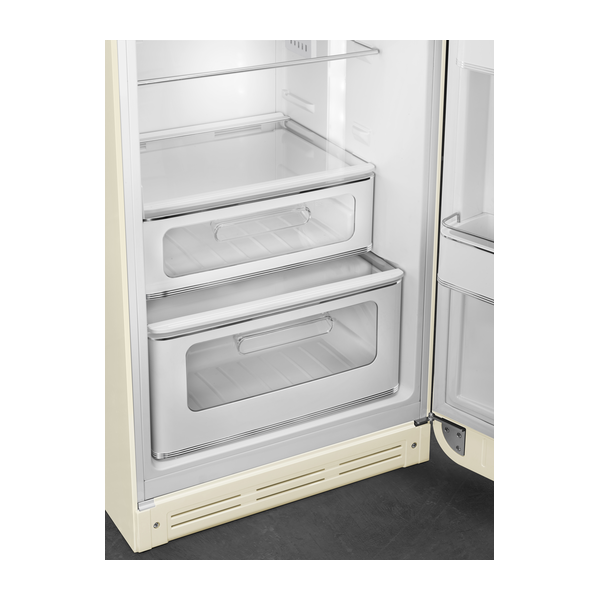

Fruit and vegetable storage: 1 drawer with glass cover.

Low temperature compartment: Dedicated low temperature compartment in the fridge.

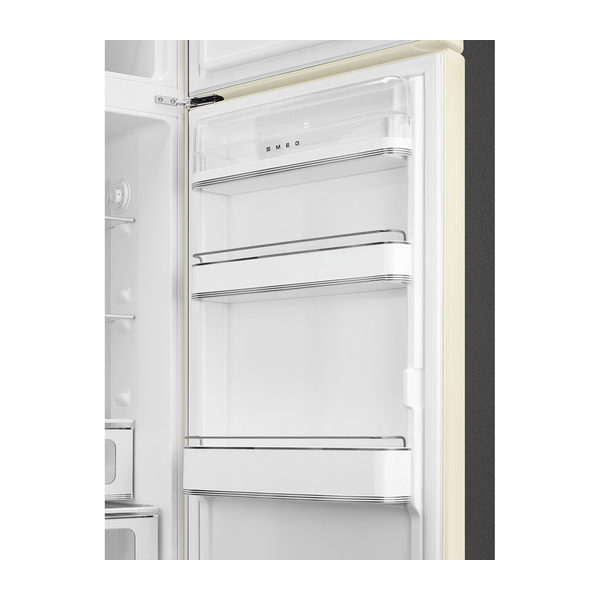

Door storage: 1 door shelf with transparent cover, 2 adjustable door shelves with wire support.

Bottle storage: 1 bottle shelf with wire support.

Internal lighting: LED internal light in the refrigerator compartment.

Air circulation: MultiFlow and fan in the refrigerator.

Door open alarm: Acoustic and visual alarm.

Temperature control: Electronic temperature control.

Compressor: 1 variable speed compressor.

Refrigerant: R600a, 70 g, with cyclopentane foam agent.

Energy efficiency class: D with annual energy consumption of 168 kWh/year.

Noise performance: Noise level 37 dB(A) re 1 pW, airborne acoustical noise emission class C.

Total volume: 294 l, with 222 l chill and unfrozen compartments and 72 l frozen compartment volume.

Freezer performance: 4 star freezing capacity of 4 kg/24 h and 30 h thaw time.

Climatic class: SN, N, ST, T.

Electrical connection: 220–240 V, 50/60 Hz, nominal power 100 W, current 0.8 A.

Power cable: 180 cm length with plug type (G) UK e Singapore.

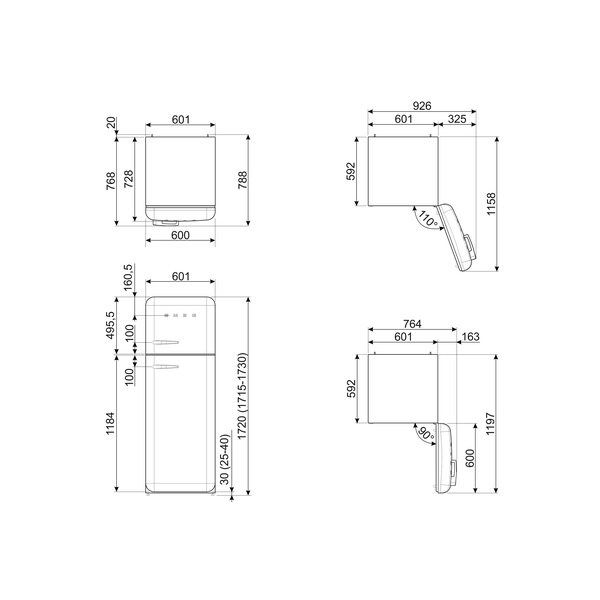

Dimensions: Width 600 mm, depth without handle 728 mm, depth with handle 768 mm, height with feet 1720 mm.

Door clearance: Product width with maximum doors opening 926 mm; depth with doors open at 90° is 1197 mm.

Spacer depth: 20 mm.

Available colours in this family: Orange, Pastel blue, White, Blue, Black, Cream, Pink, Red, Silver, Pastel green, Lime green.

Alternative right-hinge variants: FAB30RWH5UK (White), FAB30RPK5UK (Pink), FAB30RSV5UK (Silver), FAB30RPB5UK (Pastel Blue), FAB30RPG5UK (Pastel Green), FAB30RRD5UK (Red), FAB30RBL5UK (Black), FAB30ROR5UK (Orange).

Technical Spec

Product familyRefrigerator

InstallationFree Standing

CategoryTop Mount

Reference widthUntil 60 cm

Cooling typeFan assisted refrigerator, static freezer

DefrostManual

Hinge typeStandard

Hinge positionRight

EAN code8017709298340

Aesthetic style50’s Style

ColourCream

DesignRounded

FinishingGloss

MaterialHeat-moulded

HandleExternal, fixed, chrome colour

Logo colourChrome, applied logo

Side materialSteel

Side colourCream

Door shelves profile colourChrome

Drawers profile colourChrome

Colour of glass shelf profileChrome

Number of compartments2

Compartment typesLow temperature compartment, Fruit and vegetable compartment

Number of adjustable shelves2

Type of adjustable shelvesGlass

Number of fruit and vegetable drawers1

Crisper coverYes

Type of crisper/vegetable drawers coverGlass / Standard

Low temperature compartmentYes

Internal light (fridge)Yes, LED

Refrigerator inner door – door shelves with transparent cover1

Number of adjustable door shelves2

Adjustable door shelves with wire supportYes

Number of bottle shelves1

Bottle shelves with wire supportYes

Freezer shelves – number1

Freezer shelves – typeWire

MultiFlowYes

FanYes

Door open alarmAcoustic and visual

Type of temperature controlElectronic

Number of compressors1

Refrigerant gas typeR600a

Refrigerant quantity70 g

Foam agentCyclopentane

Annual energy consumption168 kWh/year

Energy efficiency classD

Airborne acoustical noise emission classC

Noise level37 dB(A) re 1 pW

Total volume294 l

Sum of volumes of chill and unfrozen compartments222 l

Sum of volumes of frozen compartment(s)72 l

Thaw time30 h

4 star – Freezing capacity4 kg/24 h

Climatic classSN, N, ST, T

EEI80 %

Nominal power100 W

Current0,8 A

Voltage220–240 V

Frequency50/60 Hz

Power supply cable length180 cm

Plug(G) UK e Singapore

Width600 mm

Depth without handle728 mm

Product depth with handle768 mm

Product height with feet1720 mm

Product width with maximum doors opening926 mm

Product depth with doors open at 90°1197 mm

Spacer depth20 mm

Downloads

Download product documentation, manuals, and specification sheets.

FAB30RCR5UK - Bulletin.pdf

PDF

FAB30RCR5UK Spec

PDF

Frequently Asked Questions

What is the total capacity of the FAB30RCR5UK?

The total volume is 294 l, with 222 l for the chill and unfrozen compartments and 72 l for the frozen compartment.

What type of cooling system does this fridge freezer use?

It has a fan assisted refrigerator with MultiFlow and a fan, combined with a static freezer.

What is the energy efficiency class and annual energy consumption?

The energy efficiency class is D, with an annual energy consumption of 168 kWh/year and an EEI of 80 %.

How noisy is the FAB30RCR5UK in operation?

The noise level is 37 dB(A) re 1 pW, and it is rated airborne acoustical noise emission class C.

What are the main dimensions I should allow for installation?

The appliance is 600 mm wide, 728 mm deep without the handle (768 mm with handle) and 1720 mm high. With the doors open at 90°, the depth is 1197 mm and the width with maximum doors opening is 926 mm.

Does the freezer have a specific star rating and freezing capacity?

Yes, the freezer compartment is 4 stars and has a freezing capacity of 4 kg/24 h with a thaw time of 30 h.
