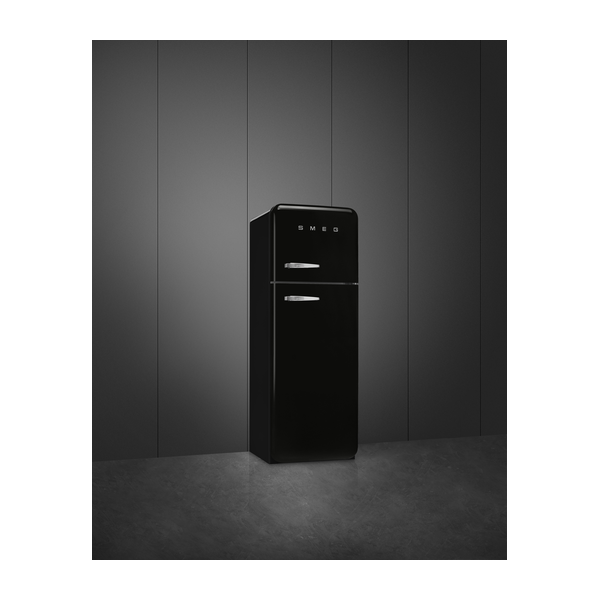

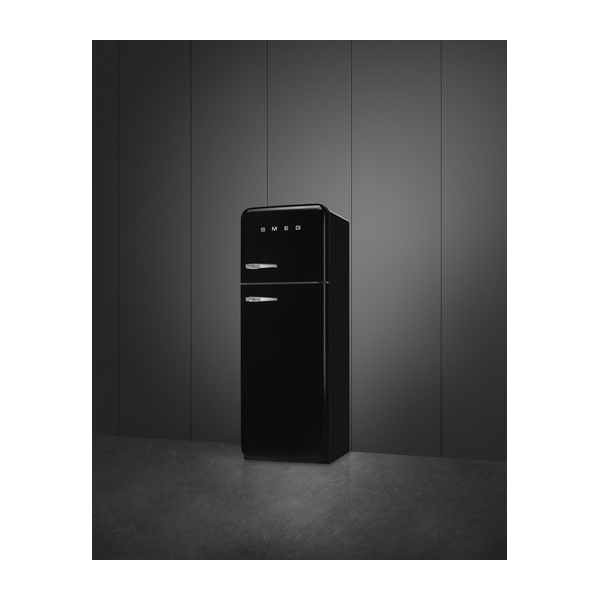

Smeg FAB30RBL5UK 50's Style Fridge Freezer

The SMEG FAB30RBL5UK is a 50’s Style black freestanding top mount refrigerator with a fan assisted refrigerator and static freezer. It provides a total volume of 294 l, with low temperature and fruit and vegetable compartments, glass adjustable shelves and LED internal lighting. Designed with a gloss heat-moulded rounded aesthetic, chrome details and right-hand standard hinge, it suits users seeking distinctive style, efficient storage and electronic temperature control.

SKU:FAB30RBL5UK

EAN:8017709298364

Category::Fridge Freezers

Quantity:

Key Features

Product family: Refrigerator, top mount, freestanding design.

Cooling type: Fan assisted refrigerator with static freezer.

50’s Style aesthetics: Black gloss finish, rounded design, heat-moulded material.

Chrome details: External fixed handle, logo, door shelf profiles, drawer profiles and glass shelf profiles in chrome.

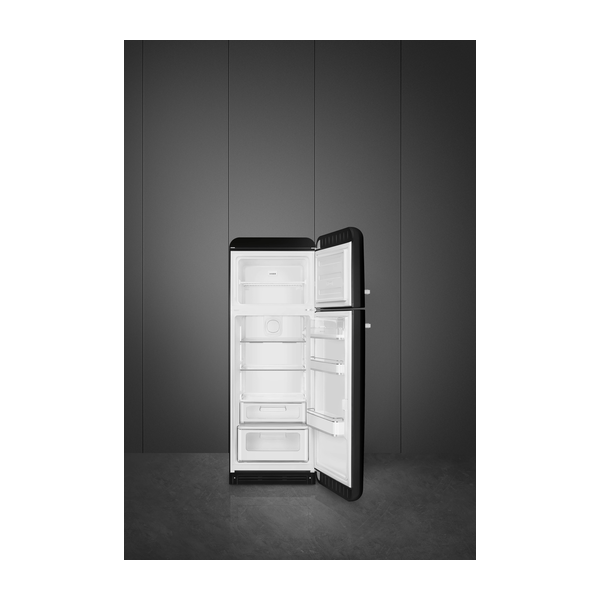

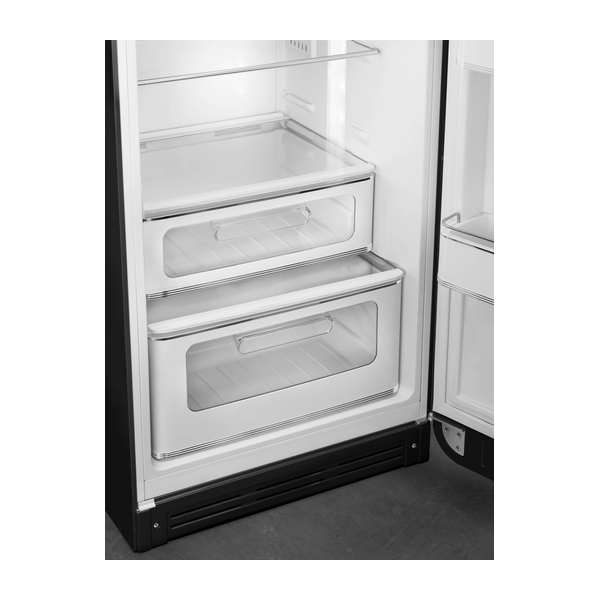

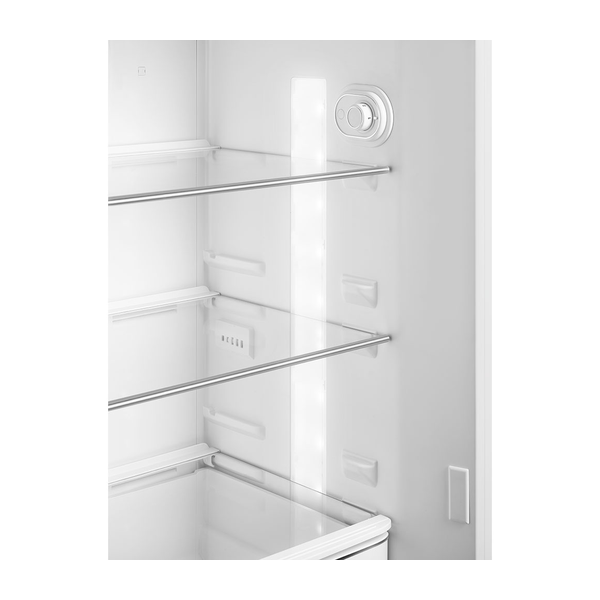

Refrigerator storage: 2 adjustable glass shelves, 1 fruit and vegetable drawer with glass cover and crisper cover.

Compartments: Low temperature compartment plus dedicated fruit and vegetable compartment.

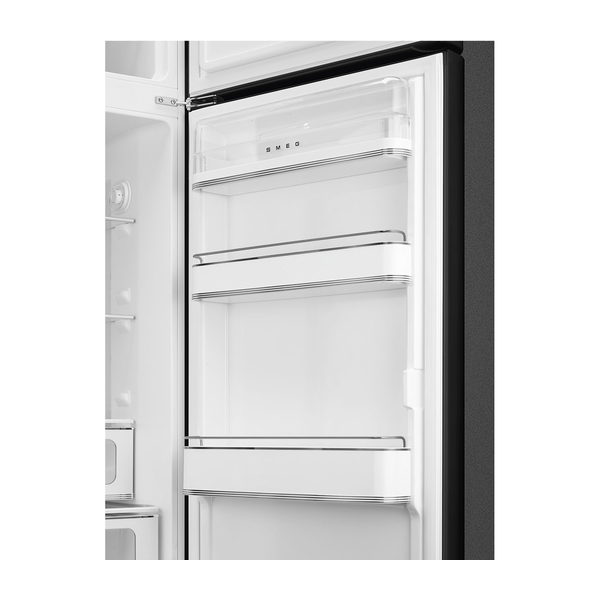

Door storage: 1 door shelf with transparent cover, 2 adjustable door shelves with wire support and 1 bottle shelf with wire support.

Lighting: LED internal light in fridge.

MultiFlow and fan: MultiFlow and fan functions in the refrigerator compartment.

Door open alarm: Acoustic and visual alert.

Temperature control: Electronic temperature control.

Compressor: Variable Speed Compressor with R600a refrigerant gas.

Energy efficiency class: D, with annual energy consumption of 168 kWh/year.

Noise level: 37 dB(A) re 1 pW, airborne acoustical noise emission class C.

Total volume: 294 l (222 l chill and unfrozen compartments, 72 l frozen compartments).

Freezer performance: 4 star freezing capacity of 4 kg/24h and thaw time of 30 h.

Climatic class: SN, N, ST, T.

Electrical connection: 220–240 V, 50/60 Hz, nominal power 100 W, current 0.8 A.

Plug: (G) UK e Singapore, power supply cable length 180 cm.

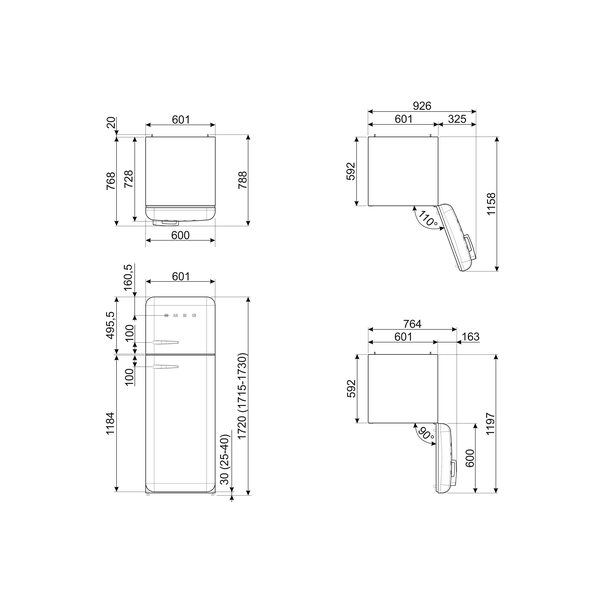

Dimensions: Width 600 mm, depth without handle 728 mm, product height with feet 1720 mm.

Depth with doors open: Product depth with handle 768 mm, with doors open at 90° 1197 mm.

Maximum width: Product width with maximum doors opening 926 mm; spacer depth 20 mm.

Hinge: Standard right-hand hinge position.

Side design: Steel sides in black colour.

Logo: Applied logo in chrome colour.

Available colours in range: Orange, Pastel blue, White, Blue, Black, Cream, Pink, Red, Silver, Pastel green, Lime green.

Technical Spec

Product familyRefrigerator

InstallationFree Standing

CategoryTop Mount

Reference widthUntil 60 cm

Cooling typeFan assisted refrigerator, static freezer

DefrostManual

Hinge typeStandard

Hinge positionRight

EAN code8017709298364

Aesthetics50’s Style

ColourBlack

DesignRounded

FinishingGloss

MaterialHeat-moulded

HandleExternal, fixed, chrome colour

Logo colourChrome

Side materialSteel

Side colourBlack

LogoApplied

Door shelves profile colourChrome

Drawers profile colourChrome

Colour of glass shelf profileChrome

Number of compartments2

Compartment typesLow temperature compartment, Fruit and vegetable compartment

No. of adjustable shelves (fridge)2

Type of adjustable shelvesGlass

Number of fruit and vegetables drawers1

Crisper CoverYes

Type of crisper/vegetable drawers coverGlass / Standard

Low temperature compartmentYes

Internal light in fridgeYes, LED

No. of door shelves with transparent cover1

Number of adjustable door shelves2

Adjustable door shelves with wire supportYes

No. of bottle shelves1

Bottle shelves with wire supportYes

MultiFlowYes

FanYes

Freezer shelves – numberNo. of shelves 1

Freezer shelves – typeWire

Door open alarmAcoustic and visual

Type of temperature controlElectronic

No. of compressors1

Refrigerant gas typeR600a

Type of compressorVariable Speed Compressor

Refrigerant Quantity70 g

Foam agentCyclopentane

Annual energy consumption168 kWh/year

Energy efficiency classD

Airborne acoustical noise emission classC

Total volume294 l

Sum of the volumes of the frozen compartment(s)72 l

Sum of the volumes of the chill and unfrozen compartments222 l

Noise level37 dB(A) re 1 pW

Thaw time30 h

4 star – Freezing capacity4 kg/24h

Climatic classSN, N, ST, T

EEI80 %

Nominal power100 W

Current0.8 A

Voltage (V)220-240 V

Frequency (Hz)50/60 Hz

Power supply cable length180 cm

Plug(G) UK e Singapore

Width (mm)600 mm

Depth without handle728 mm

Product height with feet1720 mm

Product width with maximum doors opening926 mm

Product depth with handle768 mm

Product depth with doors open at 90°1197 mm

Spacer depth20 mm

Downloads

Download product documentation, manuals, and specification sheets.

FAB30RBL5UK Spec

PDF

Frequently Asked Questions

What is the total storage volume of the FAB30RBL5UK?

The total volume is 294 l, with 222 l for the chill and unfrozen compartments and 72 l for the frozen compartments.

What type of cooling system does this fridge freezer use?

It has a fan assisted refrigerator and a static freezer. The refrigerator compartment also features MultiFlow and a fan.

What is the energy efficiency class and annual consumption?

The energy efficiency class is D, with an annual energy consumption of 168 kWh/year and an EEI of 80 %.

How noisy is the FAB30RBL5UK during operation?

The noise level is 37 dB(A) re 1 pW, and the airborne acoustical noise emission class is C.

What are the main dimensions I need to allow for?

The width is 600 mm and the depth without handle is 728 mm. The product height with feet is 1720 mm. With maximum doors opening, width is 926 mm; depth with handle is 768 mm and depth with doors open at 90° is 1197 mm.

Is this model suitable for UK electrical supplies?

Yes. It operates at 220–240 V, 50/60 Hz with a nominal power of 100 W and current of 0.8 A. It is supplied with a (G) UK e Singapore plug and a 180 cm power supply cable.
