Smeg FAB30LRD5UK 50's Style Fridge Freezer

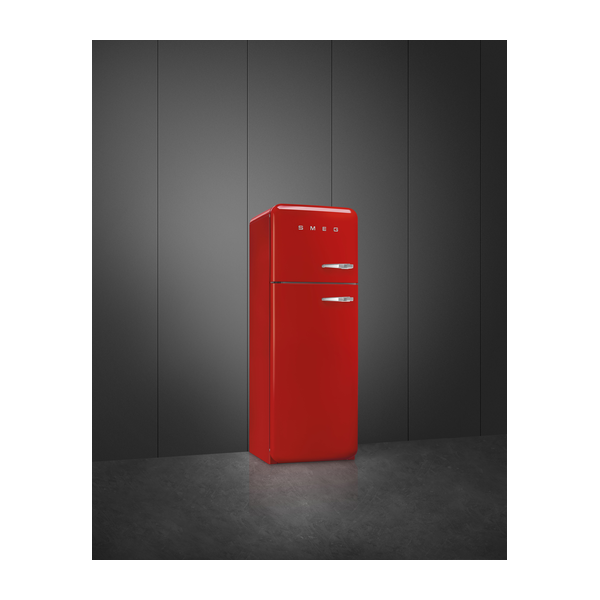

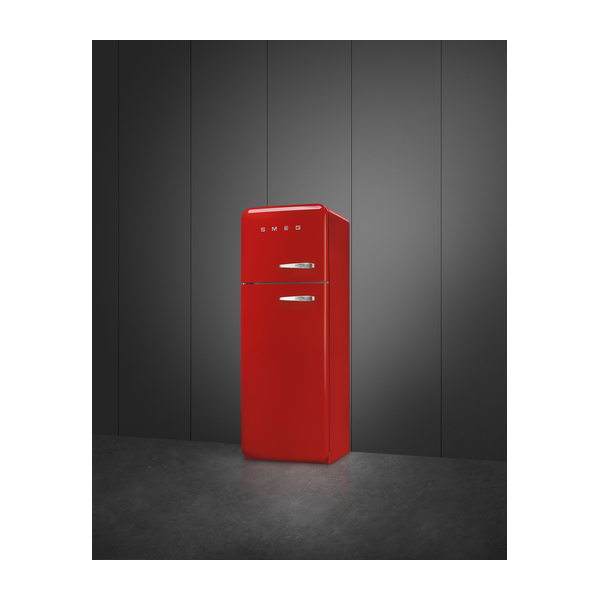

The SMEG FAB30LRD5UK is a free standing, top mount refrigerator in a distinctive 50’s Style design with a gloss red finish and chrome details. It offers a total volume of 294 l, combining a fan assisted fridge and static freezer with manual defrost. Featuring LED internal lighting, electronic temperature control and a variable speed compressor, it is designed for users wanting retro aesthetics with modern performance and a D energy efficiency class.

SKU:FAB30LRD5UK

EAN:8017709298395

Category::Fridge Freezers

Quantity:

Key Features

Free standing top mount design with fan assisted refrigerator and static freezer.

50’s Style aesthetics with rounded design, gloss red finish and chrome handle and details.

Total volume 294 l with 222 l chill and unfrozen compartments and 72 l frozen compartment.

Energy efficiency class D with annual energy consumption of 168 kWh/year and EEI 80 %.

Quiet operation with a noise level of 37 dB(A) re 1 pW and airborne acoustical noise emission class C.

LED internal fridge lighting for energy efficient, long lasting illumination of the interior.

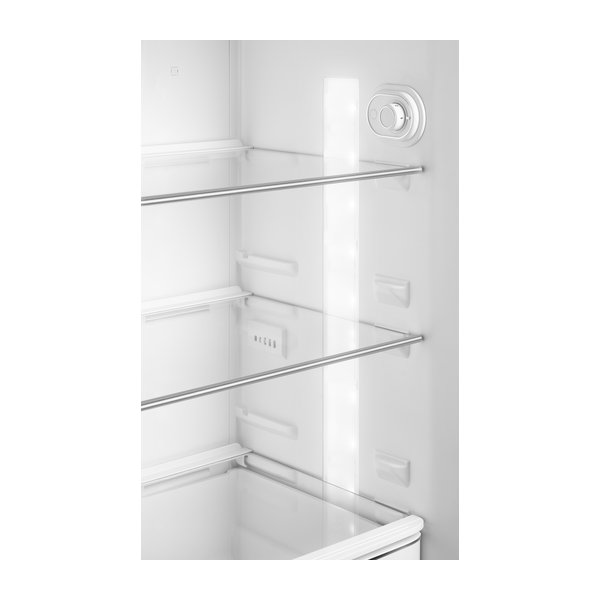

Glass adjustable shelves and glass crisper cover for flexible, easy to clean storage.

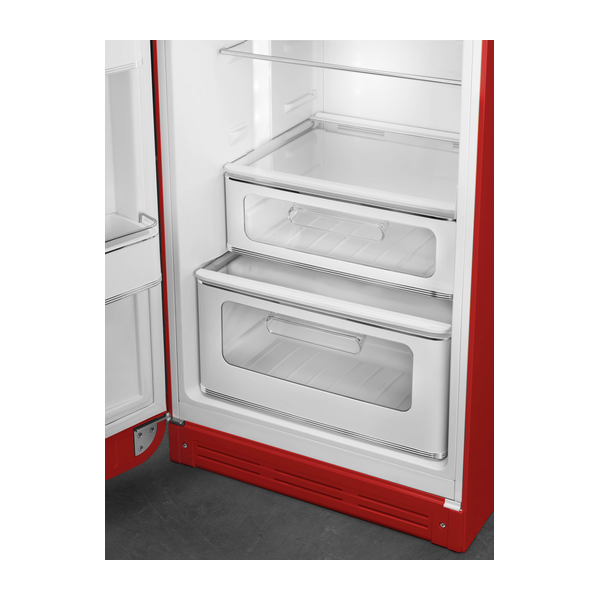

Low temperature compartment plus dedicated fruit and vegetable compartment with 1 drawer.

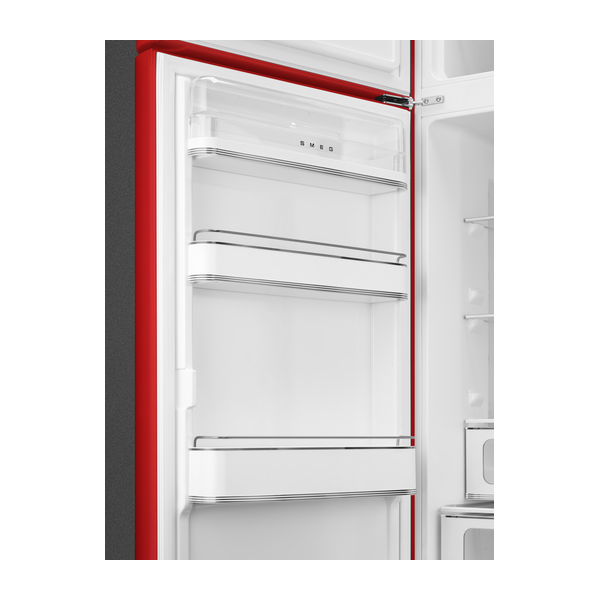

Door storage flexibility with 1 covered door shelf, 2 adjustable door shelves and 1 bottle shelf, all with wire support where stated.

MultiFlow and fan system for forced distribution of cold air and even temperature in the refrigerator compartment.

Variable speed compressor using R600a refrigerant and cyclopentane foam agent.

4 star freezer compartment with 4 kg/24h freezing capacity and 30 h thaw time.

Electronic temperature control and acoustic and visual door open alarm.

Climate class SN, N, ST, T for suitability across a range of ambient conditions (exact temperature ranges not stated in source).

Left hinge standard door with external fixed chrome handle and applied chrome logo.

Steel sides in red with chrome profiles for door shelves, drawers and glass shelves.

Alternative colour options available in Orange, Pastel blue, White, Blue, Black, Cream, Pink, Red, Silver, Pastel green and Lime green (specific models listed for some colours).

UK suitable plug with (G) UK e Singapore plug type and 180 cm power supply cable.

Technical Spec

Product familyRefrigerator

ModelFAB30LRD5UK

InstallationFree Standing

CategoryTop Mount

Reference widthUntil 60 cm

Cooling typeFan assisted refrigerator, static freezer

DefrostManual

Hinge type / positionStandard, Left

EAN code8017709298395

Aesthetics / Style50’s Style, rounded design

ColourRed

FinishingGloss

MaterialHeat-moulded

HandleExternal, fixed, chrome colour

LogoApplied, chrome colour

Side material / colourSteel, Red

Door shelves profile colourChrome

Drawers profile colourChrome

Glass shelf profile colourChrome

Available coloursOrange, Pastel blue, White, Blue, Black, Cream, Pink, Red, Silver, Pastel green, Lime green

Number of compartments2

Compartment typesLow temperature compartment, Fruit and vegetable compartment

No. of adjustable shelves (fridge)2

Type of adjustable shelvesGlass

Number of fruit and vegetable drawers1

Crisper coverYes

Type of crisper/vegetable drawers coverGlass / Standard (both stated)

Low temperature compartmentYes

Internal light in fridgeYes, LED

No. of door shelves with transparent cover1

Number of adjustable door shelves2

Adjustable door shelves with wire supportYes

No. of bottle shelves1

Bottle shelves with wire supportYes

MultiFlowYes

FanYes

No. of freezer shelves1

Type of freezer shelvesWire

Door open alarmAcoustic and visual

Type of temperature controlElectronic

No. of compressors1

Refrigerant gas typeR600a

Type of compressorVariable Speed Compressor

Refrigerant quantity70 g

Foam agentCyclopentane

Annual energy consumption168 kWh/year

Energy efficiency classD

EEI80 %

Airborne acoustical noise emission classC

Noise level37 dB(A) re 1 pW

Total volume294 l

Sum of volumes – frozen compartment(s)72 l

Sum of volumes – chill and unfrozen compartments222 l

Thaw time30 h

4 star freezing capacity4 kg/24h

Climatic classSN, N, ST, T

Nominal power100 W

Current0,8 A

Voltage220–240 V

Frequency50/60 Hz

Power supply cable length180 cm

Plug(G) UK e Singapore

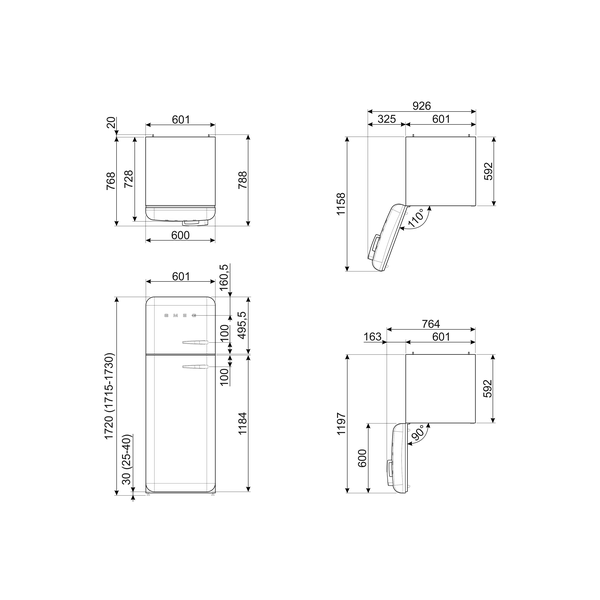

Width600 mm

Depth without handle728 mm

Product height with feet1720 mm

Product width with maximum doors opening926 mm

Product depth with handle768 mm

Product depth with doors open at 90°1197 mm

Spacer depth20 mm

Downloads

Download product documentation, manuals, and specification sheets.

FAB30LRD5UK - Bulletin.pdf

PDF

FAB30LRD5UK Spec

PDF

Frequently Asked Questions

What is the total capacity of the SMEG FAB30LRD5UK?

The total volume is 294 l, with 222 l for the chill and unfrozen compartments and 72 l for the frozen compartment.

What type of cooling system does this fridge freezer use?

It has a fan assisted refrigerator and a static freezer. MultiFlow and a fan provide ventilated cooling in the fridge compartment for even temperature distribution.

Is the freezer compartment rated for 4 star freezing?

Yes, it has a 4 stars freezing compartment with a freezing capacity of 4 kg/24h and a thaw time of 30 h.

What is the energy efficiency class and annual energy use?

The energy efficiency class is D, with an annual energy consumption of 168 kWh/year and an EEI of 80 %.

Does this model have a door open alarm?

Yes, it is equipped with an acoustic and visual door open alarm.

Which plug type and electrical connection does it use?

It uses a (G) UK e Singapore plug, with a nominal power of 100 W, 220–240 V, 50/60 Hz frequency, current of 0,8 A and a 180 cm power supply cable.
