Smeg FAB30 50's Style Fridge Freezer

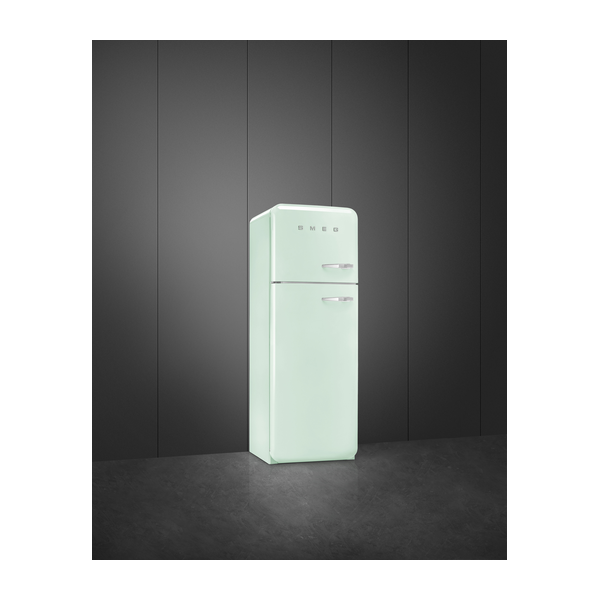

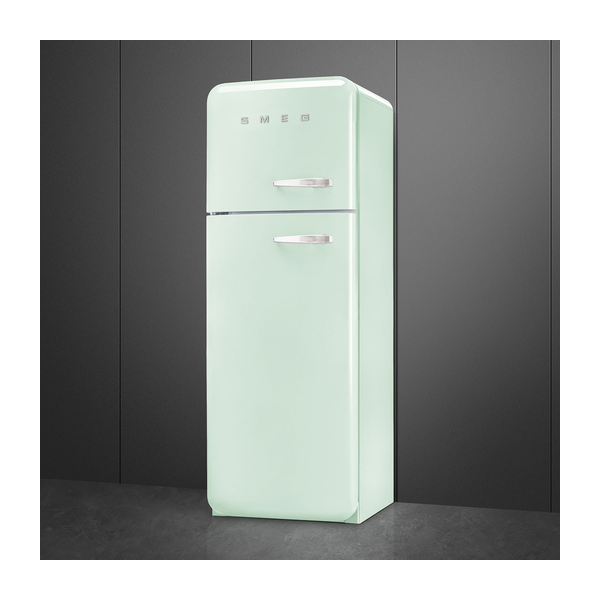

The SMEG FAB30LPG5UK is a free standing, top mount refrigerator in a 50’s Style pastel green design with a gloss heat-moulded finish and chrome details. It offers a total volume of 294 l, combining a fan assisted refrigerator with a static freezer and manual defrost. With LED internal lighting, electronic temperature control and a left-hand hinge, it is designed for everyday food storage in a stylish, rounded aesthetic.

SKU:FAB30LPG5UK

EAN:8017709298432

Category::Fridge Freezers

Quantity:

Key Features

Product family: Refrigerator, free standing, top mount category.

Design & colour: 50’s Style aesthetics in pastel green with rounded design and gloss heat-moulded finish.

Total volume: 294 l combined capacity for chilled and frozen storage.

Refrigerator cooling: Fan assisted refrigerator with MultiFlow and fan.

Freezer type: Static freezer with 4 star – freezing capacity of 4 kg/24h.

Energy performance: Annual energy consumption 168 kWh/year, energy efficiency class D, EEI 80 %.

Noise level: 37 dB(A) re 1 pW, airborne acoustical noise emission class C.

Lighting: LED internal light in the fridge compartment.

Controls: Electronic type temperature control.

Compressor: Variable Speed Compressor with refrigerant gas R600a, quantity 70 g.

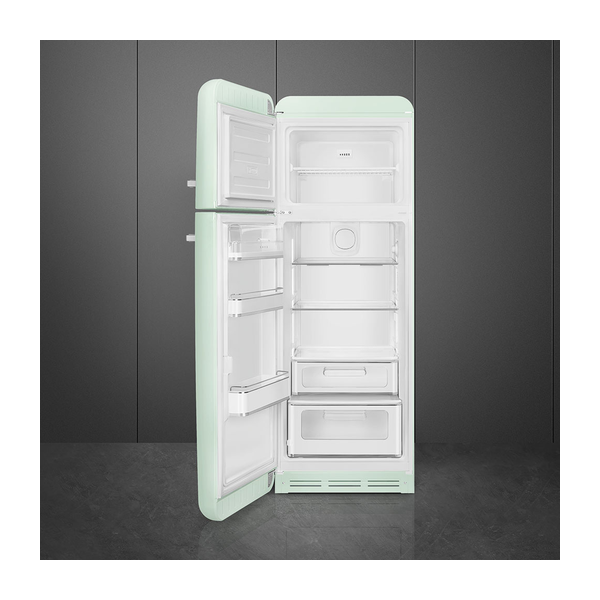

Storage layout: 2 compartments including a low temperature compartment and fruit and vegetable compartment.

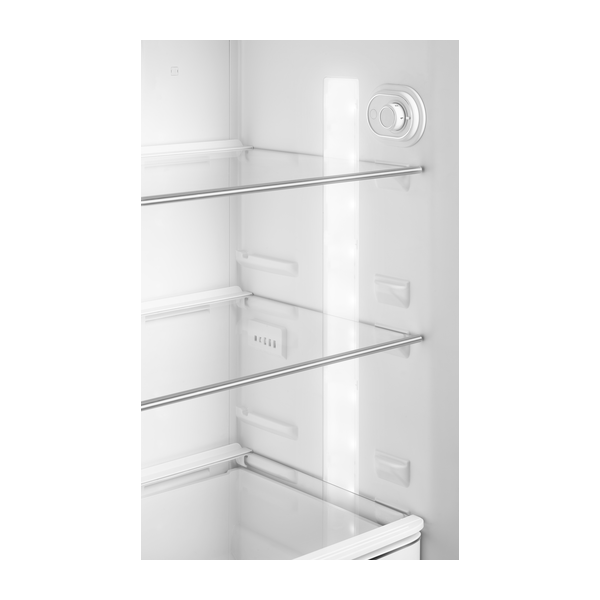

Shelving: 2 adjustable glass shelves plus glass crisper cover and wire shelves in freezer.

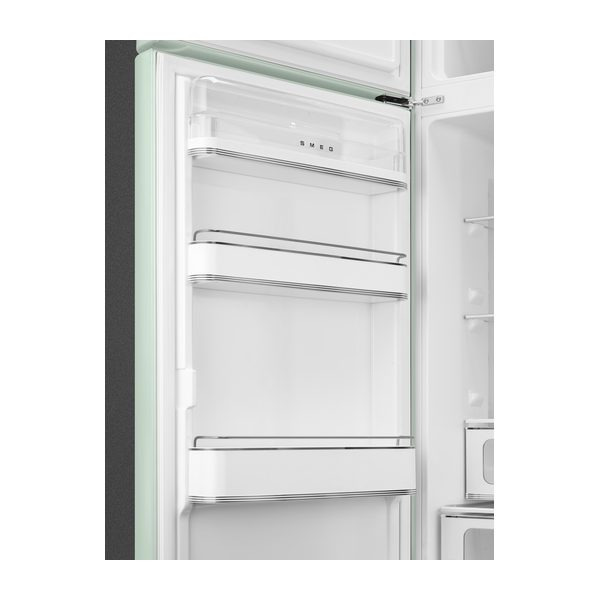

Door storage: 1 door shelf with transparent cover, 2 adjustable door shelves with wire support, and 1 bottle shelf with wire support.

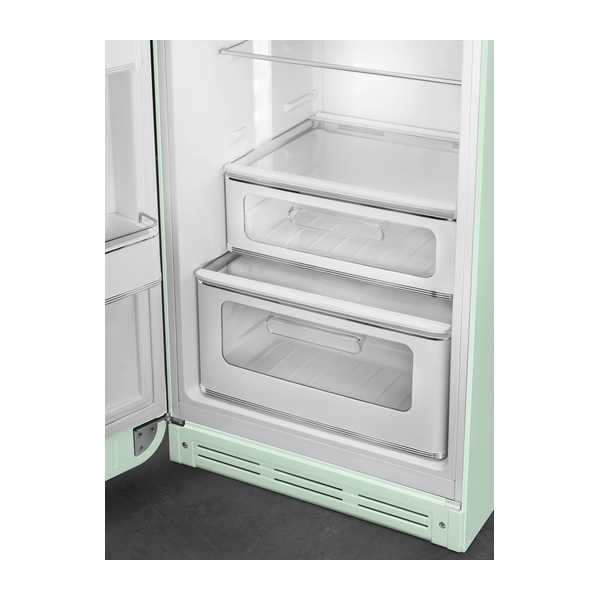

Drawers: 1 fruit and vegetables drawer with glass cover.

Convenience: Ice tray shelf in the freezer compartment.

Door configuration: Left hinge position with external fixed handle in chrome.

Alarm: Acoustic and visual door open alarm.

Dimensions: Width 600 mm, depth without handle 728 mm, height with feet 1720 mm.

Climate class: SN, N, ST, T for operating conditions.

Electrical connection: Nominal power 100 W, 220–240 V, 50/60 Hz, UK e Singapore plug (G).

Side finish: Steel sides in pastel green with chrome logo.

Available colours: Orange, pastel blue, white, blue, black, cream, pink, red, silver, pastel green, lime green.

Technical Spec

Product familyRefrigerator

InstallationFree Standing

CategoryTop Mount

Reference widthUntil 60 cm

Cooling typeFan assisted refrigerator, static freezer

DefrostManual

Hinge type / positionStandard hinge, left hinge position

Model codeFAB30LPG5UK

EAN code8017709298432

Aesthetics50’s Style, rounded design, gloss finishing

ColourPastel Green

MaterialHeat-moulded, sides in steel

HandleExternal, fixed, chrome colour

LogoApplied logo, chrome colour

Number of compartments2 (low temperature compartment, fruit and vegetable compartment)

No. of adjustable shelves (fridge)2, glass type

Number of fruit and vegetables drawers1

Crisper coverYes, glass

Low temperature compartmentYes

Internal light (fridge)Yes, LED type

Refrigerator inner door1 door shelf with transparent cover, 2 adjustable door shelves with wire support, 1 bottle shelf with wire support

Other refrigerator featuresMultiFlow, fan

Freezer – no. of shelves1, wire type

Freezer – other featuresIce tray shelf

Door open alarmAcoustic and visual

Type of temperature controlElectronic

No. of compressors1, variable speed compressor

Refrigerant gas type / quantityR600a, 70 g

Foam agentCyclopentane

Annual energy consumption168 kWh/year

Energy efficiency classD

EEI80 %

Airborne acoustical noise emission classC

Noise level37 dB(A) re 1 pW

Total volume294 l

Sum of frozen compartment volumes72 l

Sum of chill and unfrozen compartment volumes222 l

Thaw time30 h

4 star – freezing capacity4 kg/24h

Climatic classSN, N, ST, T

Nominal power100 W

Current0,8 A

Voltage220–240 V

Frequency50/60 Hz

Power supply cable length180 cm

Plug type(G) UK e Singapore

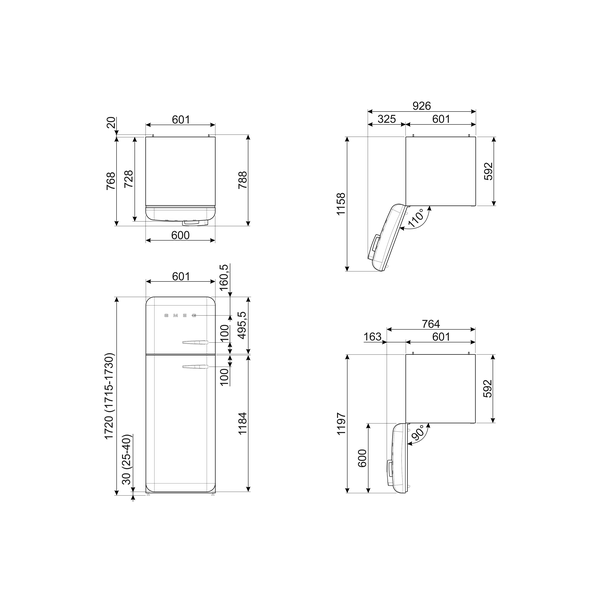

Width600 mm

Depth without handle728 mm

Product height with feet1720 mm

Product width with maximum doors opening926 mm

Product depth with handle768 mm

Product depth with doors open at 90°1197 mm

Spacer depth20 mm

Downloads

Download product documentation, manuals, and specification sheets.

FAB30LPG5UK - Bulletin.pdf

PDF

FAB30LPG5UK Spec

PDF

Frequently Asked Questions

What is the total capacity of the SMEG FAB30LPG5UK?

The total volume is 294 l, with 72 l in the frozen compartment(s) and 222 l in the chill and unfrozen compartment(s).

What type of cooling system does this fridge freezer use?

It has a fan assisted refrigerator with MultiFlow and a static freezer. The cooling type is listed as fan assisted refrigerator, static freezer.

What is the energy efficiency rating and annual energy consumption?

The energy efficiency class is D with an Energy Efficiency Index (EEI) of 80 %. Annual energy consumption is 168 kWh/year.

How noisy is the FAB30LPG5UK during operation?

The noise level is 37 dB(A) re 1 pW, and the airborne acoustical noise emission class is C.

What are the main dimensions I need to consider for installation?

The width is 600 mm and depth without handle is 728 mm. Product height with feet is 1720 mm, depth with handle is 768 mm, and depth with doors open at 90° is 1197 mm.

Which plug type and electrical requirements does it have?

It uses plug type (G) UK e Singapore, with nominal power 100 W, current 0,8 A, voltage 220–240 V and frequency 50/60 Hz.
