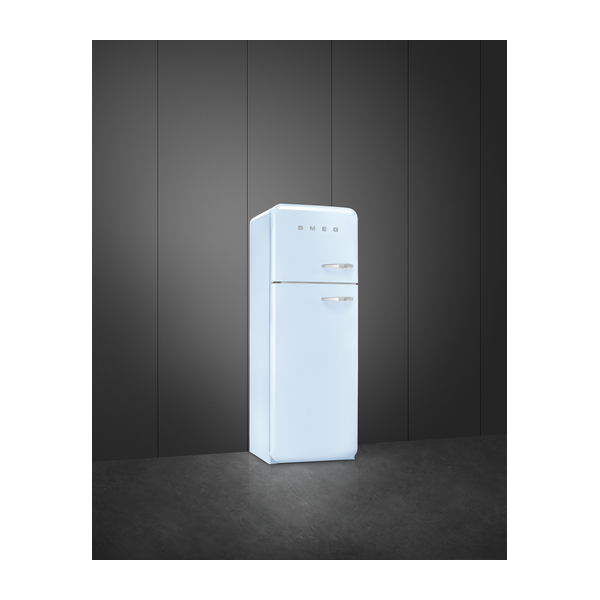

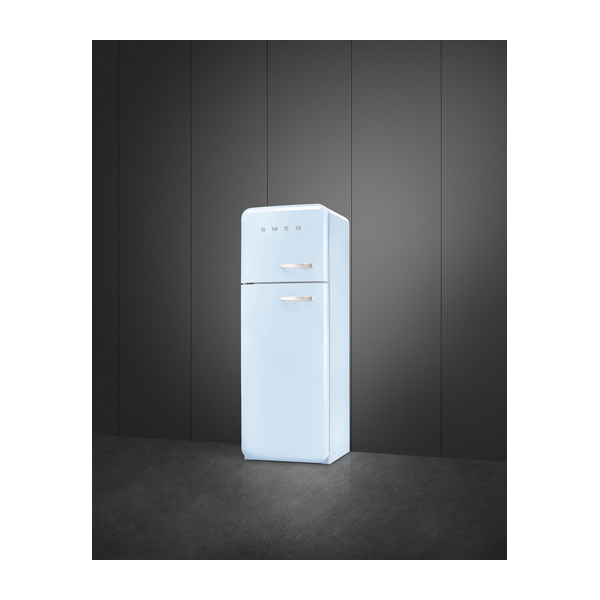

Smeg FAB30LPB5UK 50's Style Fridge Freezer

The SMEG FAB30LPB5UK is a free standing, top mount refrigerator freezer from the 50’s Style family, finished in gloss pastel blue with rounded design and chrome details. It offers a total volume of 294 l, combining a fan assisted refrigerator and static freezer. With glass adjustable shelves, a low temperature compartment, fruit and vegetable compartment, LED internal light and electronic temperature control, it is designed for practical food storage in a distinctive aesthetic.

SKU:FAB30LPB5UK

EAN:8017709298418

Category::Fridge Freezers

Quantity:

Key Features

50’s Style aesthetics – gloss pastel blue finish with rounded design, external fixed handle and chrome details.

Free standing top mount design – refrigerator and freezer with the freezer compartment positioned at the top.

Fan assisted refrigerator – MultiFlow and fan system for the refrigerator compartment.

Static freezer – manual defrost freezer compartment with 4 star – freezing capacity.

Total volume 294 l – 222 l chill and unfrozen compartments and 72 l frozen compartment.

LED internal light – LED type internal light in the fridge compartment.

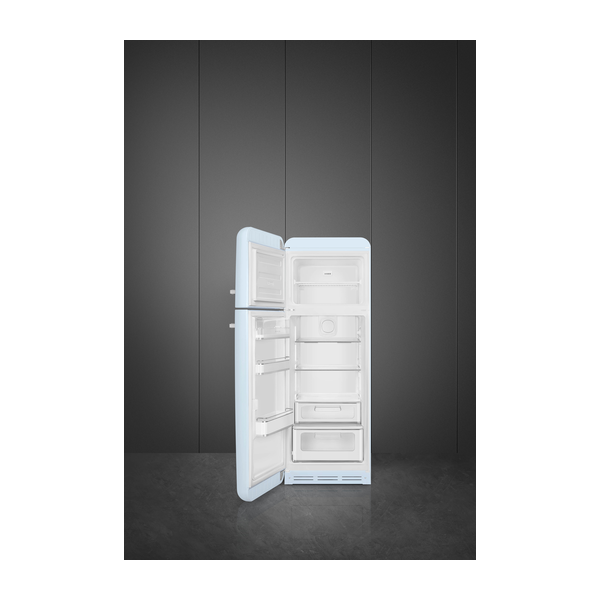

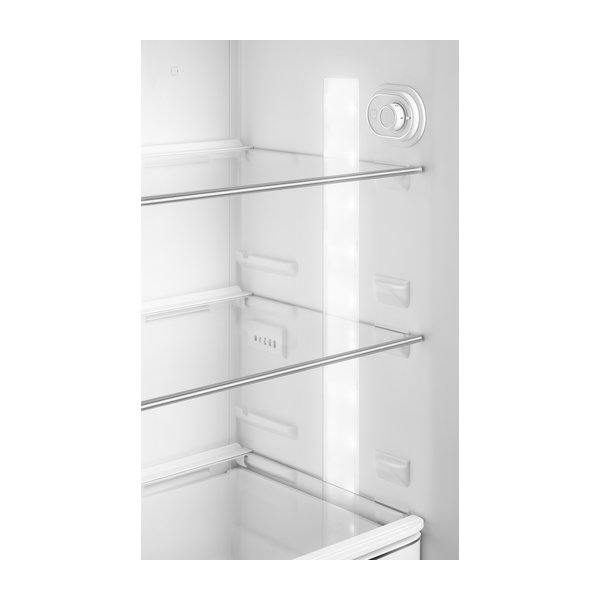

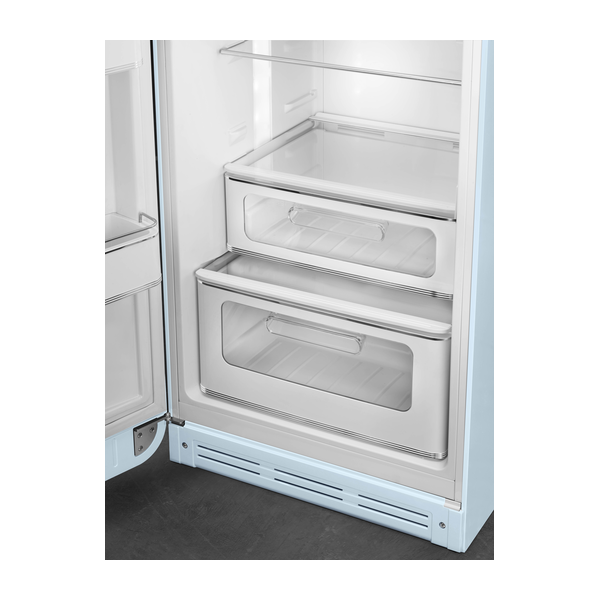

Flexible storage – 2 adjustable glass shelves, low temperature compartment and fruit and vegetable compartment with glass cover.

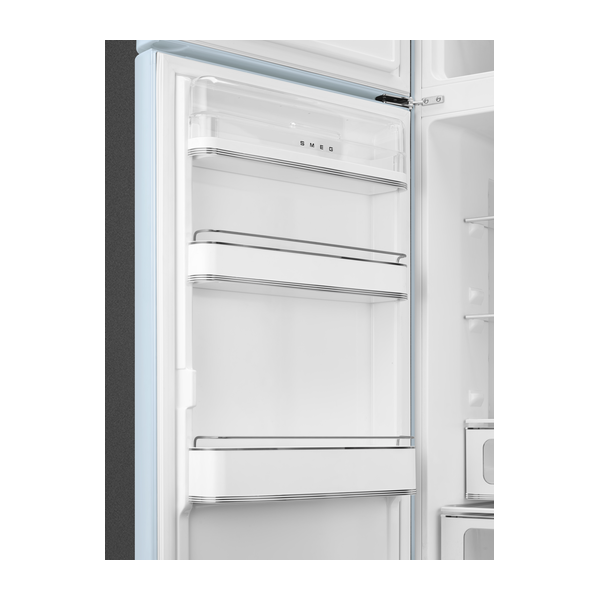

Organised door storage – 1 door shelf with transparent cover, 2 adjustable door shelves with wire support and 1 bottle shelf with wire support.

Acoustic and visual door open alarm – alerts when the door is left open.

Electronic temperature control – for precise regulation of internal temperature.

Variable Speed Compressor – with R600a refrigerant gas and 70 g refrigerant quantity.

Energy efficiency class D – annual energy consumption 168 kWh/year, EEI 80 %.

Low noise level – airborne acoustical noise emission class C and noise level 37 dB(A) re 1 pW.

Wide climatic class range – SN, N, ST, T climatic class.

UK compatible plug – plug type (G) UK e Singapore with 180 cm power supply cable.

Alternative colour options – Orange, pastel blue, white, blue, black, cream, pink, red, silver, pastel green and lime green (model dependent).

Technical Spec

Product familyRefrigerator

InstallationFree Standing

CategoryTop Mount

Reference widthUntil 60 cm

Cooling typeFan assisted refrigerator, static freezer

DefrostManual

Hinge typeStandard

Hinge positionLeft

ModelFAB30LPB5UK

EAN code8017709298418

Aesthetics line50’s Style

ColourPastel Blue

DesignRounded

FinishingGloss

MaterialHeat-moulded

HandleExternal, fixed, handle colour Chrome

Logo colourChrome, logo applied

Side materialSteel

Side colourPastel blue

Door shelves profile colourChrome

Drawers profile colourChrome

Colour of glass shelf profileChrome

Available coloursOrange, Pastel blue, White, Blue, Black, Cream, Pink, Red, Silver, Pastel green, Lime green

Number of compartments2

Compartment typesLow temperature compartment, Fruit and vegetable compartment

No. of adjustable shelves2

Type of adjustable shelvesGlass

Number of fruit and vegetables drawers1

Crisper coverYes

Type of crisper/vegetable drawers coverGlass, Standard

Low temperature compartmentYes

Internal light in fridgeYes, type of internal light (fridge) LED

No. of door shelves with transparent cover1

Number of adjustable door shelves2

Adjustable door shelves with wire supportYes

No. of bottle shelves1

Bottle shelves with wire supportYes

MultiFlowYes

FanYes

No. of shelves (freezer)1

Type of shelves (freezer)Wire

Ice tray shelfYes

Door open alarmAcoustic and visual

Type of temperature controlElectronic

No. of compressors1

Refrigerant gas typeR600a

Type of compressorVariable Speed Compressor

Refrigerant quantity70 g

Foam agentCyclopentane

Annual energy consumption168 kWh/year

Energy efficiency classD

EEI80 %

Total volume294 l

Sum of volumes of frozen compartments72 l

Sum of volumes of chill and unfrozen compartments222 l

Airborne acoustical noise emission classC

Noise level37 dB(A) re 1 pW

Thaw time30 h

4 star – Freezing capacity4 kg/24h

Climatic classSN, N, ST, T

Nominal power100 W

Current0.8 A

Voltage220–240 V

Frequency50/60 Hz

Power supply cable length180 cm

Plug(G) UK e Singapore

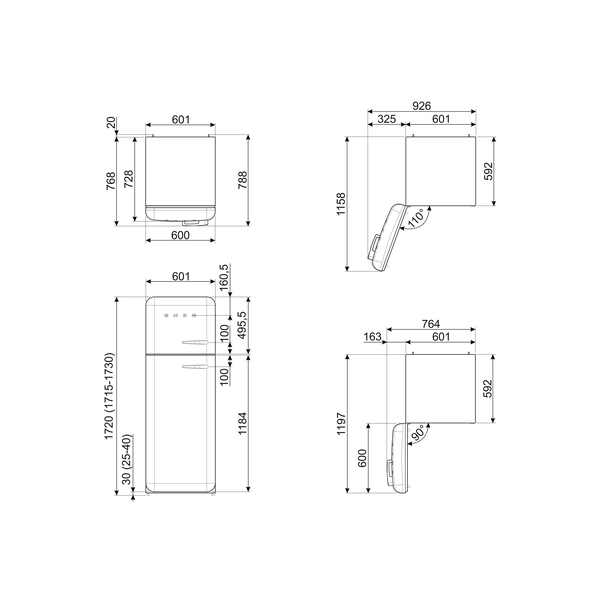

Width600 mm

Depth without handle728 mm

Product height with feet1720 mm

Product width with maximum doors opening926 mm

Product depth with handle768 mm

Product depth with doors open at 90°1197 mm

Spacer depth20 mm

Alternative product – FAB30LCR5UKHinge position: Left, Cream

Alternative product – FAB30LBL5UKHinge position: Left, Black

Alternative product – FAB30LWH5UKHinge position: Left, White

Alternative product – FAB30LPG5UKHinge position: Left, Pastel Green

Alternative product – FAB30LRD5UKHinge position: Left, Red

Downloads

Download product documentation, manuals, and specification sheets.

FAB30LPB5UK - Bulletin.pdf

PDF

FAB30LPB5UK Spec

PDF

Frequently Asked Questions

What is the total storage volume of the SMEG FAB30LPB5UK?

The total volume is 294 l, with 72 l for the frozen compartment(s) and 222 l for the chill and unfrozen compartment(s).

What type of cooling and defrost system does this fridge freezer use?

The appliance has a fan assisted refrigerator and a static freezer. Defrosting is manual. The refrigerator compartment also features MultiFlow and a fan.

What is the energy efficiency class and annual energy consumption?

The energy efficiency class is D, with an annual energy consumption of 168 kWh/year and an EEI of 80 %.

How noisy is the FAB30LPB5UK during operation?

The airborne acoustical noise emission class is C, and the noise level is 37 dB(A) re 1 pW.

What are the key internal storage features of the refrigerator compartment?

The refrigerator compartment includes 2 adjustable glass shelves, a low temperature compartment, 1 fruit and vegetable drawer with glass crisper cover, LED internal light, 1 door shelf with transparent cover, 2 adjustable door shelves with wire support and 1 bottle shelf with wire support.

What plug type and electrical requirements does it have?

It uses plug type (G) for UK and Singapore, with a nominal power of 100 W, current of 0.8 A, voltage 220–240 V, frequency 50/60 Hz and a 180 cm power supply cable.
