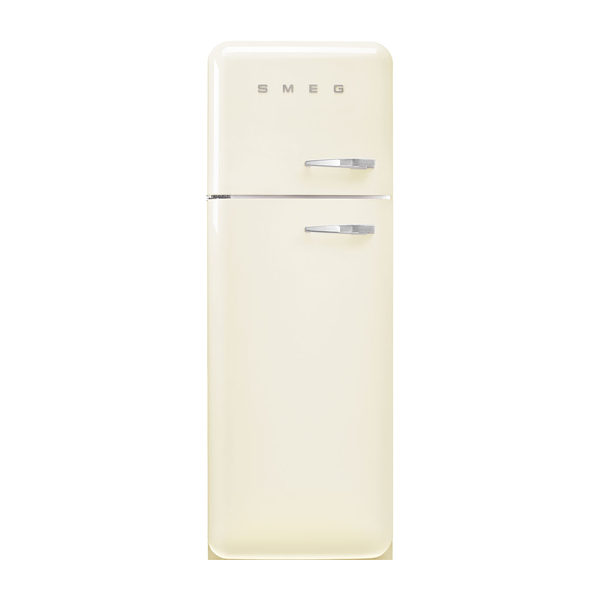

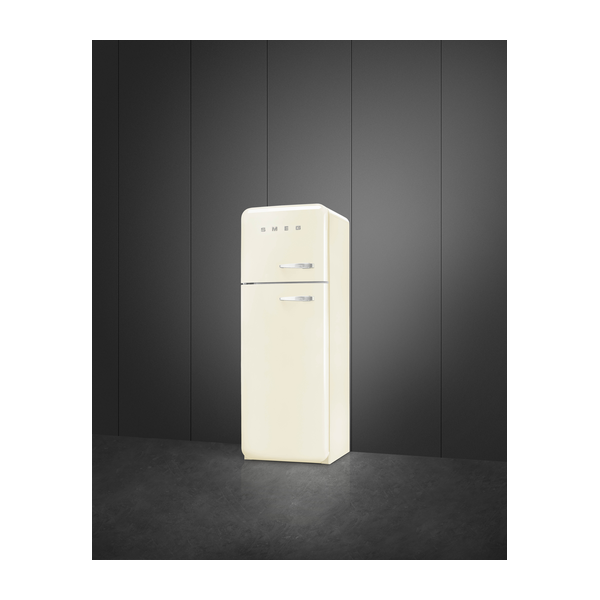

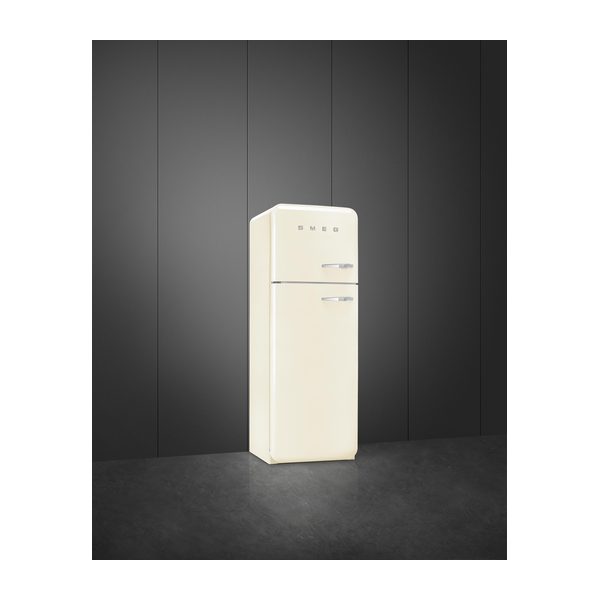

Smeg FAB30LCR5UK 50's Style Fridge Freezer

The SMEG FAB30LCR5UK is a free-standing, top mount refrigerator in a 50’s Style cream finish with rounded design and gloss heat-moulded body. It offers a fan assisted refrigerator with static freezer, manual defrost and electronic temperature control. With 294 l total volume, LED internal lighting and flexible glass shelving, it is designed for organised food storage. A variable speed compressor and D energy rating support efficient everyday performance.

SKU:FAB30LCR5UK

EAN:8017709298357

Category::Fridge Freezers

Quantity:

Key Features

Free-standing top mount design with fan assisted refrigerator and static freezer.

50’s Style aesthetics with cream colour, rounded design, gloss heat-moulded finish and chrome details.

Total volume 294 l including 222 l chill/unfrozen and 72 l frozen compartments.

Energy efficiency class D with annual energy consumption of 168 kWh/year and EEI 80 %.

LED internal lighting in the fridge for energy efficient, long lasting illumination.

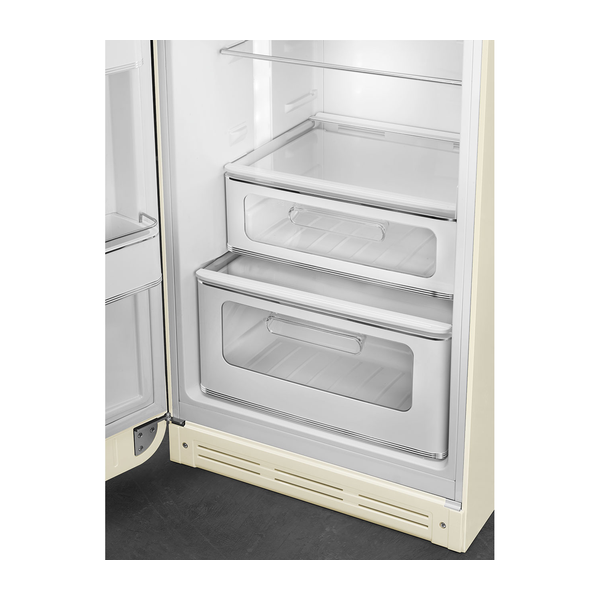

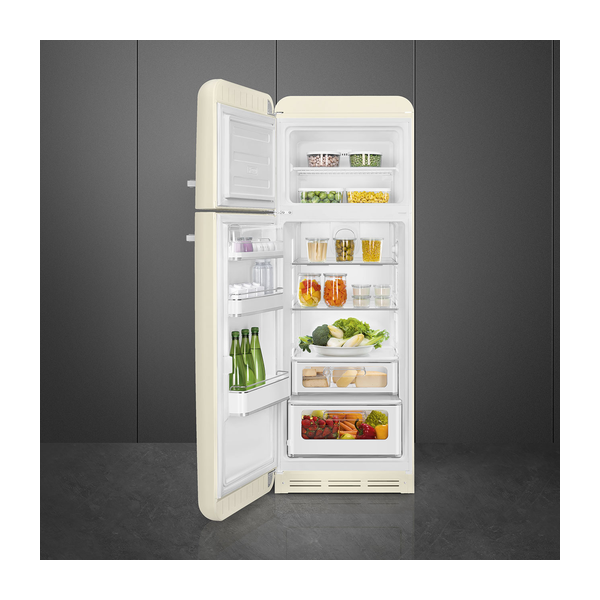

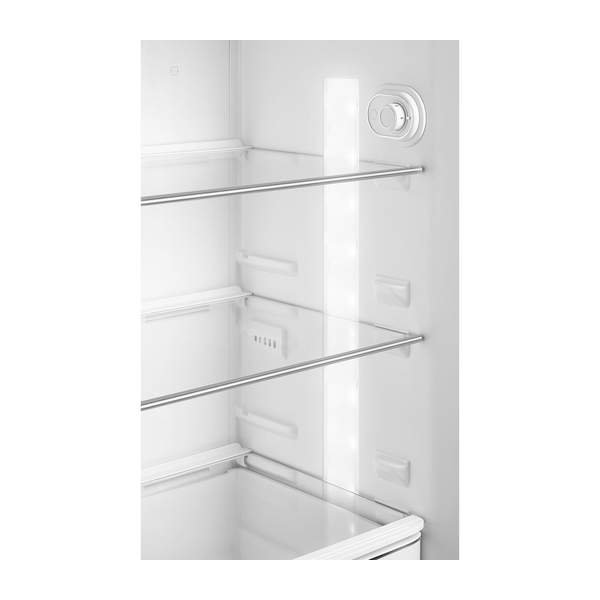

Flexible storage with 2 adjustable glass shelves, 1 fruit and vegetable drawer and glass crisper cover.

Low temperature compartment plus dedicated fruit and vegetable compartment.

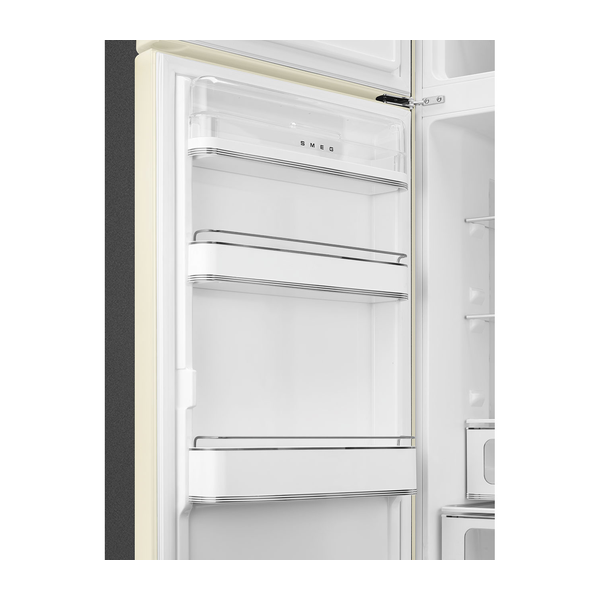

Door storage including 1 door shelf with transparent cover, 2 adjustable door shelves and 1 bottle shelf with wire support.

MultiFlow and fan for forced distribution of cold air and even temperature in the refrigerator compartment.

4-star freezer compartment with 4 kg/24h freezing capacity and 30 h thaw time for better food preservation.

Quiet operation with 37 dB(A) re 1 pW airborne acoustical noise and class C noise emission.

Electronic temperature control and acoustic and visual door open alarm.

Variable speed compressor with R600a refrigerant and cyclopentane foam agent.

Climatic class SN, N, ST, T for operation in a wide range of ambient conditions.

Standard left hinge with external fixed handle and UK & Singapore type G plug.

Compact 60 cm width with product height 1720 mm and depth without handle 728 mm.

Available colour options include Orange, Pastel blue, White, Blue, Black, Cream, Pink, Red, Silver, Pastel green and Lime green.

Technical Spec

Product familyRefrigerator

InstallationFree Standing

CategoryTop Mount

Reference widthUntil 60 cm

Cooling typeFan assisted refrigerator, static freezer

DefrostManual

Hinge type / positionStandard – Left

EAN code8017709298357

Aesthetics style50’s Style

ColourCream

DesignRounded

FinishingGloss

MaterialHeat-moulded

HandleExternal, fixed, chrome colour

Logo colour / typeChrome, applied

Side material / colourSteel, Cream

Door shelves profile colourChrome

Drawers profile colourChrome

Colour of glass shelf profileChrome

Available coloursOrange, Pastel blue, White, Blue, Black, Cream, Pink, Red, Silver, Pastel green, Lime green

Number of compartments2

Compartment typesLow temperature compartment, Fruit and vegetable compartment

No. of adjustable shelves2

Type of adjustable shelvesGlass

Number of fruit and vegetable drawers1

Crisper coverYes

Type of crisper/vegetable drawers coverGlass / Standard

Low temperature compartmentYes

Internal light in fridgeYes – LED

No. of door shelves with transparent cover1

Number of adjustable door shelves2

Adjustable door shelves with wire supportYes

No. of bottle shelves1

Bottle shelves with wire supportYes

Freezer shelvesNo. of shelves: 1 – Type: Wire

MultiFlow / FanMultiFlow: Yes – Fan: Yes

Door open alarmAcoustic and visual

Type of temperature controlElectronic

No. of compressors1

Refrigerant gas type / quantityR600a – 70 g

Type of compressorVariable Speed Compressor

Foam agentCyclopentane

Annual energy consumption168 kWh/year

Energy efficiency classD

EEI80 %

Total volume294 l

Sum of chill and unfrozen volumes222 l

Sum of frozen compartment volumes72 l

Noise level37 dB(A) re 1 pW

Airborne acoustical noise emission classC

Thaw time30 h

4-star freezing capacity4 kg/24h

Climatic classSN, N, ST, T

Nominal power100 W

Current0,8 A

Voltage220-240 V

Frequency50/60 Hz

Power supply cable length180 cm

Plug type(G) UK e Singapore

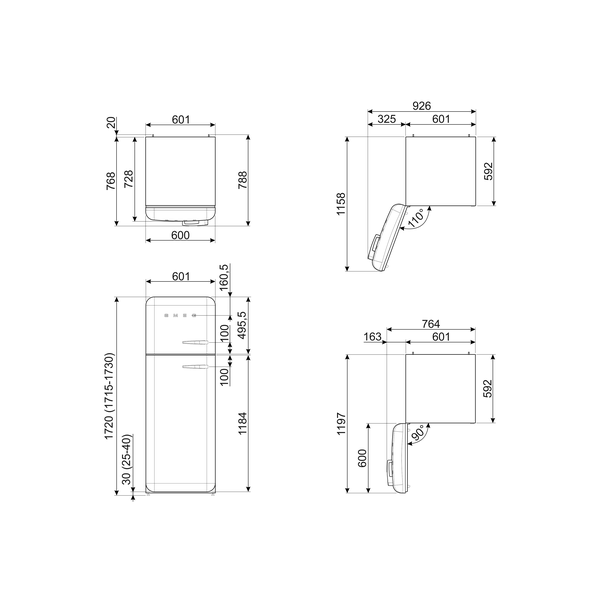

Width600 mm

Depth without handle728 mm

Product height with feet1720 mm

Product width with maximum doors opening926 mm

Product depth with handle768 mm

Product depth with doors open at 90°1197 mm

Spacer depth20 mm

Downloads

Download product documentation, manuals, and specification sheets.

FAB30LCR5UK - Bulletin.pdf

PDF

FAB30LCR5UK Spec

PDF

Frequently Asked Questions

What is the total capacity of the FAB30LCR5UK?

The total volume is 294 l, with 222 l for the chill and unfrozen compartments and 72 l for the frozen compartment(s).

What type of cooling system does this fridge freezer use?

It has a fan assisted refrigerator and a static freezer. The fridge section is ventilated with MultiFlow and a fan for forced distribution of cold air.

Is the defrost function automatic?

No. The defrost system is manual.

How noisy is the FAB30LCR5UK during operation?

The airborne acoustical noise level is 37 dB(A) re 1 pW, with an airborne acoustical noise emission class of C.

What is the energy rating and annual energy consumption?

The energy efficiency class is D, with annual energy consumption of 168 kWh/year and an EEI of 80 %.

What plug type is supplied for UK installation?

It is supplied with a type G plug suitable for UK and Singapore.
