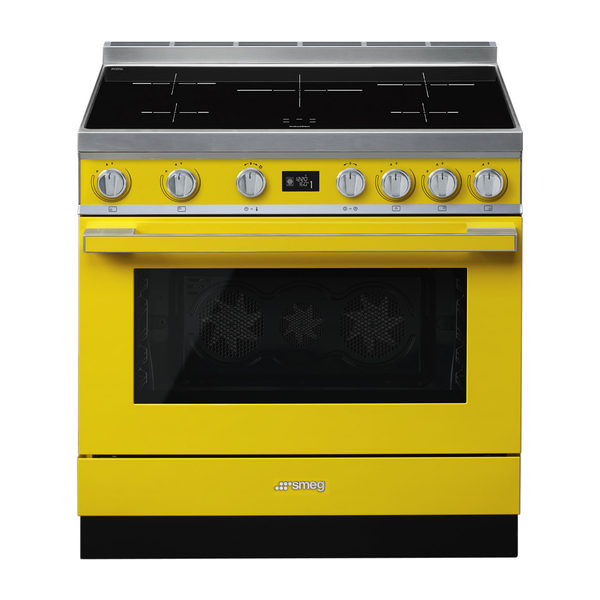

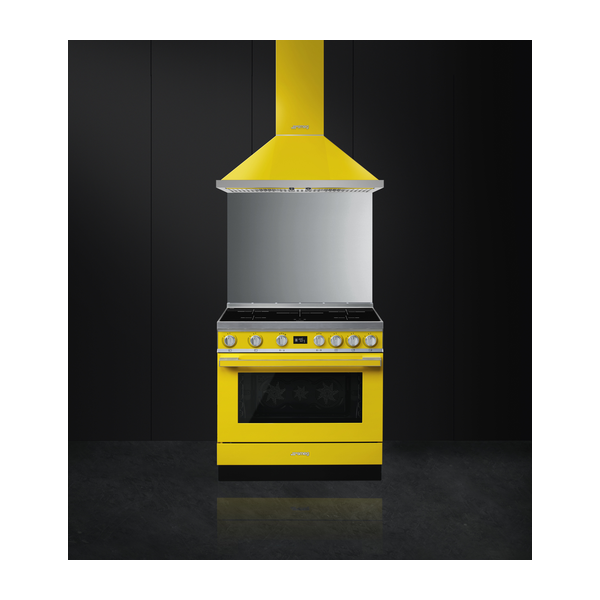

Smeg CPF9IPYW Range Cooker

The Smeg Portofino CPF9IPYW is a 90x60 cm flush fit cooker with a single A+ rated thermo-ventilated electric oven and a 5-zone induction hob. Finished in yellow with stainless steel Portofino controls, it offers 10 cooking functions, Triple Fan Technology and a large 115 litre cavity with pyrolytic cleaning. Designed for ease of use and safety, it includes soft close door, telescopic guides, TFT display and flexible electrical connection options.

SKU:CPF9IPYW

EAN:8017709240783

Category::Freestanding Cookers

Quantity:

Key Features

Cooker size 90x60 cm with flush fit Portofino design and yellow aesthetic.

Induction hob with 5 cook zones, each with booster and automatic pan detection.

Thermo-ventilated main oven with Triple Fan Technology for uniform cooking on five levels.

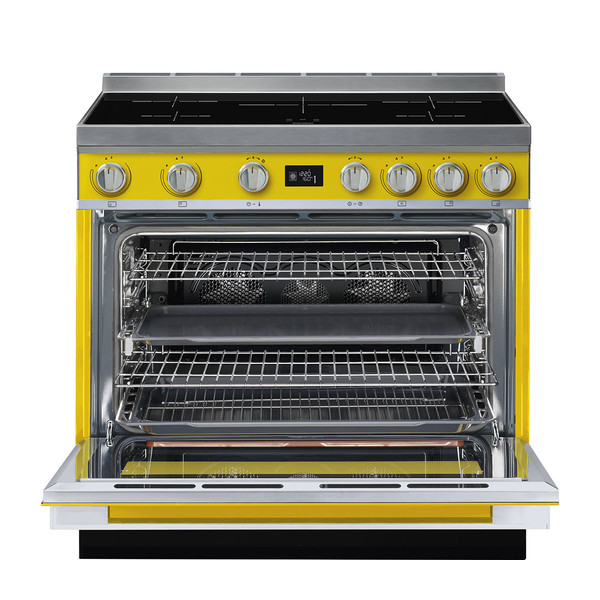

Large 115 litre net oven capacity with 5 shelf positions and easy clean enamel cavity.

Energy efficiency class A+ for maximum performance with reduced energy consumption.

Pyrolytic and Pyrolytic Eco cleaning functions for automatic oven interior cleaning.

10 traditional cooking functions including Circulaire, turbo, fan grill and ECO.

20 automatic programmes plus defrost by time, defrost by weight, proving and Sabbath functions.

TFT display and 7 stainless steel Portofino control knobs for clear, simple operation.

Quadruple glazed oven door with 3 thermo-reflective glasses and all glass inner door.

Soft Close oven door with flap-down opening, removable full glass inner door and door lock during pyrolisis.

Safety features on hob including automatic switch off when overheat, residual heat indicators and minimum pan diameter indication.

Stainless steel hob colour with enamelled metal command panel and stainless steel logo.

Storage compartment with push pull opening, black feet and black plinth.

Flexible electrical connection with single, double and three phase options and 5-pole terminal block.

Included accessories such as chrome shelf, trays, grill mesh and partial extraction telescopic guide rails.

Compatible accessories range including air fry rack, BBQ grid, enamelled trays, griddle and universal induction plates.

Technical Spec

ModelCPF9IPYW

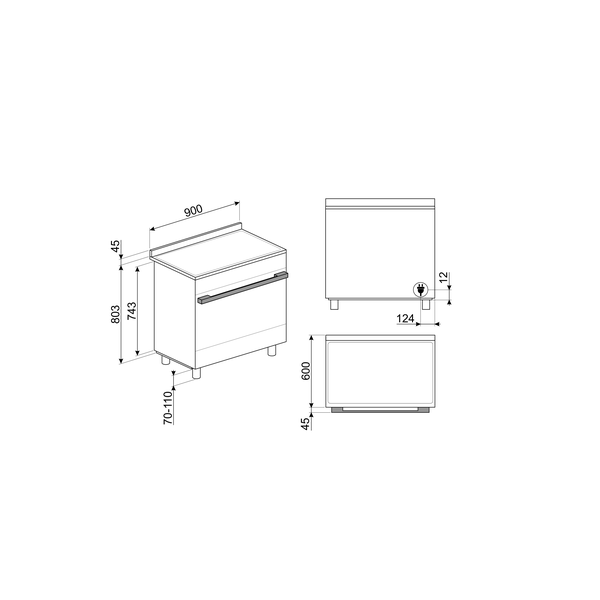

Cooker size90x60 cm

Number of cavities with energy label1

Cavity heat sourceElectric

Hob typeInduction

Type of main ovenThermo-ventilated

Cleaning system main ovenPyrolytic

EAN code8017709240783

Energy efficiency classA+

DesignFlush fit

AestheticsPortofino

ColourYellow

Command panel finishEnamelled metal

LogoAssembled st/steel, position: facia below the oven

UpstandYes

Hob colourStainless steel

Type of control settingControl knobs, Smeg Portofino

Controls colourStainless steel

No. of controls7

Serigraphy colourBlack

DisplayTFT

DoorWith frame, flap down opening

Glass typeGrey, all glass inner door

HandleSmeg Portofino, coloured

Storage compartmentPush pull

FeetBlack

PlinthBlack

No. of cooking functions10

Total no. of cook zones5

Front left zoneInduction, single, 1.40 kW, Booster 2.20 kW, Ø 14.5 cm

Rear left zoneInduction, single, 1.85 kW, Booster 3.00 kW, Ø 18.0 cm

Central zoneInduction, single, 2.60 kW, Booster 3.70 kW, Ø 27.0 cm

Rear right zoneInduction, single, 2.30 kW, Booster 3.70 kW, Ø 21.0 cm

Front right zoneInduction, single, 1.40 kW, Booster 2.20 kW, Ø 14.5 cm

No. of lights2, side lights

Fan number3 (Triple Fan Technology)

Net volume of the cavity115 litres

Gross volume, 1st cavity129 l

Cavity materialEasy clean enamel, enamel interior with antacid lining

Total no. of door glasses4 (quadruple glazed)

No. of thermo-reflective door glasses3

Shelf positions5 cooking levels

Type of shelvesMetal racks, telescopic rails available

Light typeHalogen, 40 W

Cooking time settingStart and Stop, timer, end of cooking acoustic alarm

Light when oven door is openYes

Removable door / inner doorYes, removable door and removable inner door

Heating suspended when door is openedYes

Cooling systemTangential air cooling system

Door lock during pyrolisisYes

Usable cavity space (HxWxD)371x724x418 mm

Temperature controlElectronic control, precision 2–3 °C

Lower heating element power1700 W

Upper heating element power1200 W

Grill element power1700 W

Large grill power2900 W

Circular heating element power2 x 1850 W

Grill typeElectric

Soft Close systemYes

Minimum temperature50 °C

Maximum temperature260 °C

Safety thermostatYes

Automatic switch off when overheatYes (overheat protection)

Automatic pan detectionYes (induction)

Minimum pan diameter indicationYes

Selected zone indicatorYes

Residual heat indicatorYes, indication of residual heat until below 60 °C

Max power draw11400 W

Current50 A

Voltage220–240 V

Voltage 2380–415 V

Type of electric cableYes, Single phase

Additional connection modalitiesYes, Double and Three Phase

Frequency50/60 Hz

Terminal block5 poles

Downloads

Download product documentation, manuals, and specification sheets.

CPF9IPYW Spec

PDF

Frequently Asked Questions

What is the oven capacity of the Smeg CPF9IPYW?

The main oven has a net capacity of 115 litres and a gross volume of 129 litres, with five cooking levels available.

How many cooking functions does the main oven have?

The main oven offers 10 traditional cooking functions, including static, fan assisted, Circulaire, turbo, ECO, small grill, large grill, fan grill, base and fan assisted base. It also has additional functions such as defrost, proving, Sabbath and 20 automatic programmes.

What cleaning options are available?

The cooker features pyrolytic and Pyrolytic Eco cleaning functions, an easy clean enamel cavity with antacid lining, a quadruple glazed door and an all glass inner door with removable glass to make cleaning simpler.

What safety features does the induction hob include?

The induction hob provides automatic switch off when overheat, automatic pan detection, minimum pan diameter indication, selected zone indicator and residual heat indicators that stay lit until the temperature drops below 60 °C. An air cooling system helps maintain safe surface temperatures.

Can this cooker be connected in different electrical configurations?

Yes. It is supplied with a single phase electric cable and allows additional double and three phase connection modalities. It supports 220–240 V and 380–415 V, with a maximum power draw of 11400 W and a 5-pole terminal block.

What accessories are included with the oven?

Included accessories are one chrome shelf with back and side stop, one 20 mm deep tray, one 40 mm deep tray, one grill mesh and one set of partial extraction telescopic guide rails.
