Smeg CPF9IPX Range Cooker

The SMEG CPF9IPX is a 90x60 cm Portofino cooker combining a 5-zone induction hob with a large 115 litre thermo-ventilated electric oven. Finished in brushed, fingerprint-friendly stainless steel with flush-fit design, it offers 10 cooking functions, pyrolytic cleaning and A+ energy efficiency. Triple fan technology, electronic temperature control and a TFT display support precise, even cooking on five levels, while safety features include door lock during pyrolysis and residual heat indication.

SKU:CPF9IPX

EAN:8017709240776

Category::Freestanding Cookers

Quantity:

Key Features

90x60 cm Portofino cooker with stainless steel, brushed finish and flush fit design.

5-zone induction hob with booster functions, automatic pan detection and minimum pan diameter indication.

Large 115 litre main oven capacity with 129 l gross volume and five shelf positions.

Thermo-ventilated electric oven with triple fan technology for uniform heat on all five levels.

Energy efficiency class A+ for maximum performance with reduced energy consumption.

10 cooking functions including static, fan assisted, Circulaire, turbo, ECO, grills and fan-assisted base.

Pyrolytic and Pyrolytic ECO cleaning with door lock during pyrolisis and easy clean enamel cavity.

20 automatic programmes plus defrost by time, defrost by weight, proving and Sabbath functions.

Fingerprint proof stainless steel surfaces to help keep the finish looking as good as new.

Electronic temperature control maintains oven temperature with 2–3 °C precision.

TFT display and Smeg Portofino control knobs in stainless steel with black serigraphy.

Quadruple glazed door with four glasses, including three thermo-reflective glasses and full glass inner door.

Halogen side lighting with two 40 W lights for increased visibility inside the oven.

Soft Close door system for smooth, quiet closing.

Induction safety features including automatic switch off when overheat, selected zone and residual heat indicators.

Comprehensive accessories included such as chrome shelf, trays, grill mesh and telescopic guide rails.

Flexible electrical connection with single, double and three phase modalities and 5-pole terminal block.

Technical Spec

ModelCPF9IPX

EAN code8017709240776

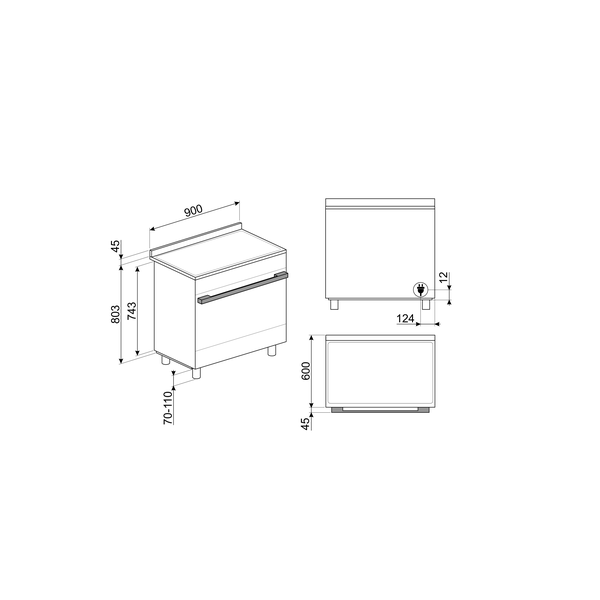

Cooker size90x60 cm

Number of cavities with energy label1

Cavity heat sourceElectric

Hob typeInduction

Type of main ovenThermo-ventilated

Cleaning system (main oven)Pyrolytic; Pyrolytic ECO

Energy efficiency classA+

DesignFlush fit

AestheticsPortofino

Colour / finishStainless steel; brushed; fingerprint friendly stainless steel command panel finish

Hob colourStainless steel

UpstandYes

Control typeControl knobs – Smeg Portofino, stainless steel, 7 controls, black serigraphy

DisplayTFT

DoorWith frame; flap down opening; removable door; full glass inner door; removable inner door

Door glazing4 glasses; 3 thermo-reflective door glasses; quadruple glazed

Glass typeGrey

HandleSmeg Portofino; brushed stainless steel handle colour

Storage compartmentPush pull

Feet / plinthFeet: Black; Plinth: Black

Total number of hob cooking zones5

Front left zoneInduction, single, 1.40 kW, Booster 2.20 kW, Ø 14.5 cm

Rear left zoneInduction, single, 1.85 kW, Booster 3.00 kW, Ø 18.0 cm

Central zoneInduction, single, 2.60 kW, Booster 3.70 kW, Ø 27.0 cm

Rear right zoneInduction, single, 2.30 kW, Booster 3.70 kW, Ø 21.0 cm

Front right zoneInduction, single, 1.40 kW, Booster 2.20 kW, Ø 14.5 cm

Net volume of cavity115 litres

Gross volume (1st cavity)129 l

Usable cavity dimensions (HxWxD)371x724x418 mm

Cavity materialEasy clean enamel; special antacid lining

Shelf positions5 cooking levels

Type of shelvesMetal racks; telescopic rails available

Number of lights2 (side lights)

Light type / powerHalogen, 40 W

Light when door is openYes

Number of fans3 (Triple Fan Technology)

Lower heating element power1700 W

Upper heating element power1200 W

Grill element power1700 W

Large grill power2900 W

Circular heating element power2 x 1850 W

Grill typeElectric

Temperature controlElectronic control (precision 2–3 °C)

Minimum temperature50 °C

Maximum temperature260 °C

Cooking time settingStart and Stop; timer; end of cooking acoustic alarm

Safety thermostatYes

Heating suspended when door is openedYes

Cooling systemTangential; air cooling system to ensure safe surface temperatures

Door lock during pyrolisisYes

Automatic switch off when overheatYes (overheat protection)

Automatic pan detectionYes

Minimum pan diameter indicationYes

Selected zone indicatorYes

Residual heat indicatorYes; indication of residual heat until below 60 °C

Max power draw11400 W

Current50 A

Voltage220–240 V; Voltage 2: 380–415 V

Type of electric cableYes, Single phase

Additional connection modalitiesYes, Double and Three Phase

Frequency50/60 Hz

Terminal block5 poles

Downloads

Download product documentation, manuals, and specification sheets.

CPF9IPX Spec

PDF

Frequently Asked Questions

What is the oven capacity of the SMEG CPF9IPX?

The main oven has a net volume of 115 litres and a gross volume of 129 litres, with five cooking levels and usable cavity dimensions of 371x724x418 mm.

How many cooking functions does the oven provide?

The oven offers 10 cooking functions, including static, fan assisted, Circulaire, turbo, ECO, small grill, large grill, fan grill (large), base and fan assisted base, plus additional functions such as defrosting, proving and Sabbath.

Does this cooker have pyrolytic self-cleaning?

Yes. The cooker features Pyrolytic and Pyrolytic ECO cleaning functions. Pyrolytic cycles automatically clean the oven interior, while the Eco pyrolytic function is suitable for lighter dirt with a maximum duration of 1.5 hours.

What safety features are included on the induction hob?

The induction hob includes automatic pan detection, minimum pan diameter indication, selected zone indicator, residual heat indicator and overheat protection that automatically turns off the hob in case of overheating of the control unit.

What is Triple Fan Technology in the oven?

Triple Fan Technology uses three fans: two large side fans distribute air around the outer perimeter of the cavity, while a smaller central fan creates a vertical vortex of heat. This provides uniform temperature and allows food to be cooked evenly on all five levels.

Which accessories come with the cooker as standard?

Included accessories are one chrome shelf with back and side stop, one 20 mm deep tray, one 40 mm deep tray, one grill mesh and one set of telescopic guide rails with partial extraction.
