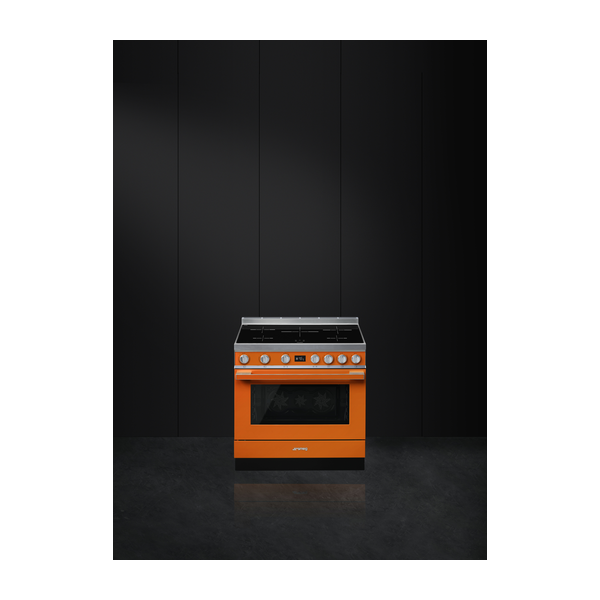

Smeg CPF9IPOR Range Cooker

This Portofino 90x60 cm cooker combines a 5–zone induction hob with a large 115 litre thermo–ventilated electric oven, finished in an orange flush–fit design. It offers 10 cooking functions, 20 automatic programmes and A+ energy efficiency, with pyrolytic self–cleaning and easy clean enamel. With stainless steel controls, TFT display and black feet and plinth, it is suited to users seeking generous capacity and advanced cooking technology.

SKU:CPF9IPOR

EAN:8017709240752

Category::Freestanding Cookers

Quantity:

Key Features

Cooker size 90x60 cm for a wide cooking surface and generous oven space.

Portofino aesthetics in orange with flush fit design, enamelled metal control panel and coloured handle.

Induction hob with 5 cooking zones including central Ø 27.0 cm zone up to 3.70 kW Booster.

Thermo–ventilated main oven with triple fan technology and electronic temperature control.

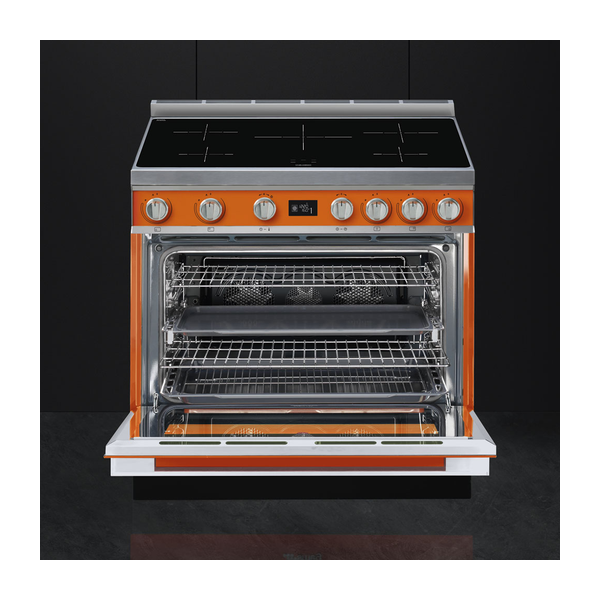

Large 115 litre net cavity (129 l gross) with 5 shelf positions and easy clean enamel interior.

A+ energy efficiency class for high performance with reduced energy consumption.

Pyrolytic and Pyrolytic Eco cleaning systems for automatic oven interior cleaning.

10 traditional cooking functions plus proving, Sabbath and defrost by time or weight.

20 automatic programmes for guided cooking performance.

Quadruple glazed door with 4 glasses, 3 thermo–reflective, soft close and door lock during pyrolysis.

TFT display and 7 control knobs in stainless steel with black serigraphy for clear setting selection.

Induction safety features including automatic switch off when overheat, pan detection and residual heat indicators.

Storage compartment with push–pull opening plus black feet and plinth for integrated appearance.

Comprehensive accessories included such as chrome shelf, trays, grill mesh and telescopic guide rails.

Technical Spec

ModelCPF9IPOR

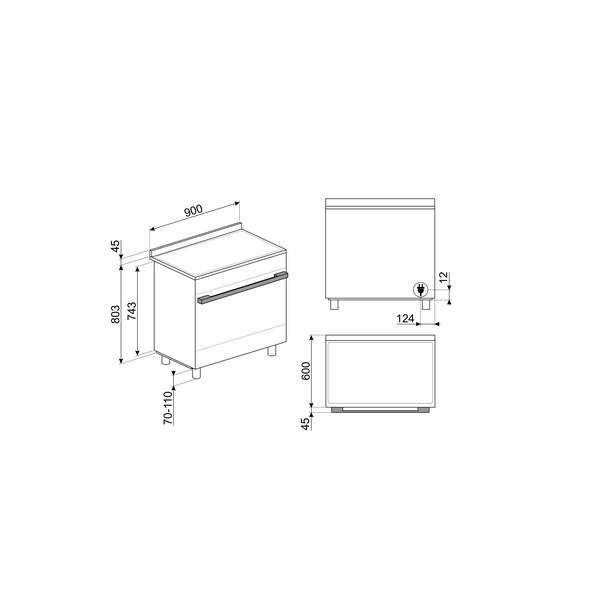

Cooker size90x60 cm

Number of cavities with energy label1

Cavity heat sourceElectric

Hob typeInduction

Type of main ovenThermo–ventilated

Cleaning system main ovenPyrolytic

Energy efficiency classA+

AestheticsPortofino

DesignFlush fit

ColourOrange

Command panel finishEnamelled metal

LogoAssembled st/steel, position: facia below the oven

UpstandYes

Hob colourStainless steel

Type of control settingControl knobs, Smeg Portofino

Controls colourStainless steel

Number of controls7

Serigraphy colourBlack

DisplayTFT

DoorWith frame, grey glass, full glass inner door, removable inner door

Storage compartmentPush pull

FeetBlack

PlinthBlack

Number of cooking functions10 traditional functions plus other and cleaning functions

Traditional functionsStatic; Fan assisted; Circulaire; Turbo (circulaire – bottom – upper – fan); ECO; Small grill; Large grill; Fan grill (large); Base; Fan assisted base

Other oven functionsDefrost by time; Defrost by weight; Proving; Sabbath

Cleaning functionsPyrolytic; Pyrolytic eco

Automatic programmes20

Hob zones – front leftInduction, single, 1.40 kW, Booster 2.20 kW, Ø 14.5 cm

Hob zones – rear leftInduction, single, 1.85 kW, Booster 3.00 kW, Ø 18.0 cm

Hob zones – centralInduction, single, 2.60 kW, Booster 3.70 kW, Ø 27.0 cm

Hob zones – rear rightInduction, single, 2.30 kW, Booster 3.70 kW, Ø 21.0 cm

Hob zones – front rightInduction, single, 1.40 kW, Booster 2.20 kW, Ø 14.5 cm

Automatic switch off when overheatYes

Automatic pan detectionYes

Minimum pan diameter indicationYes

Selected zone indicatorYes

Residual heat indicatorYes

Net volume of cavity115 litres

Gross volume, 1st cavity129 l

Cavity materialEasy clean enamel

Number of lights2, halogen, 40 W, side lights

Fan number3 (triple fan technology)

Total no. of door glasses4 (quadruple glazed)

Thermo–reflective door glasses3

Safety thermostatYes

Shelf positions5

Type of shelvesMetal racks

Cooking time settingStart and Stop, timer, end of cooking acoustic alarm

Door openingFlap down, soft close system

Light when door openYes

Removable doorYes

Heating suspended when door openedYes

Cooling systemTangential, air cooling system to ensure safe surface temperatures

Door lock during pyrolysisYes

Usable cavity space (H x W x D)371x724x418 mm

Temperature controlElectronic, precision 2–3 °C

Lower heating element power1700 W

Upper heating element power1200 W

Grill element1700 W, electric

Large grill power2900 W

Circular heating element power2 x 1850 W

Minimum temperature50 °C

Maximum temperature260 °C

Accessories included (oven)Chrome shelf with back and side stop (1); 20 mm deep tray (1); 40 mm deep tray (1); Grill mesh (1); Telescopic guide rails, partial extraction (1)

Max power draw11400 W

Current50 A

Voltage220–240 V; Voltage 2: 380–415 V

Type of electric cableYes, Single phase

Additional connection modalitiesYes, Double and Three Phase

Frequency50/60 Hz

Terminal block5 poles

Downloads

Download product documentation, manuals, and specification sheets.

CPF9IPOR Spec

PDF

Frequently Asked Questions

What is the capacity of the main oven?

The main oven has a net capacity of 115 litres and a gross capacity of 129 litres, with five cooking levels available.

How many cooking functions does this cooker offer?

It provides 10 traditional cooking functions, plus other functions such as Defrost by time, Defrost by weight, Proving and Sabbath, as well as two pyrolytic cleaning functions and 20 automatic programmes.

What safety features are included on the induction hob?

The induction hob includes automatic switch off when overheating of the control unit is detected, automatic pan detection, minimum pan diameter indication, selected zone indicator and residual heat indication until the zone cools below 60 °C.

Does the oven door stay cool to touch?

The oven door is quadruple glazed with three thermo–reflective glasses, and the air cooling system helps ensure safe surface temperatures. A safety thermostat is also included.

What cleaning options are available for the oven?

The oven cavity has easy clean enamel and offers Pyrolytic and Pyrolytic Eco cleaning cycles, which automatically clean the interior. During these cycles, the door locks for safety.

What are the electrical connection requirements?

The cooker has a maximum power draw of 11400 W and is designed for 220–240 V or 380–415 V supply. It supports single phase (with electric cable), as well as double and three phase connection modalities, at 50/60 Hz with a 5–pole terminal block and a current of 50 A.
