Smeg Smeg CPF9IPOG Portofino Induction Range Cooker

The SMEG CPF9IPOG Portofino cooker combines a 90x60 cm flush fit design with an induction hob and a large thermo–ventilated electric oven. Finished in olive green with stainless steel Portofino controls, it offers 10 cooking functions, Triple Fan Technology and a 115 litre net cavity. A pyrolytic cleaning system, A+ energy efficiency and a range of safety and convenience features make it suitable for users seeking a stylish, high–capacity cooker with versatile programmes.

SKU:CPF9IPOG

EAN:8017709240745

Category::Freestanding Cookers

Quantity:

Key Features

Cooker size 90x60 cm for a wide cooking surface and generous oven space.

Induction hob with 5 cooking zones , each with booster function and automatic pan detection.

Thermo–ventilated main oven with Triple Fan Technology for uniform heat on all five levels.

Large 115 litre net oven capacity (129 l gross) with 5 shelf positions and metal racks.

Energy efficiency class A+ helps to save up to 10% energy compared to class A.

Pyrolytic and Pyrolytic Eco cleaning functions for automatic oven interior cleaning.

10 traditional cooking functions including Static, Fan assisted, Circulaire, Turbo, ECO, grills and base functions.

20 automatic programmes plus functions such as defrost by time, defrost by weight, proving and Sabbath.

Olive green Portofino aesthetics with enamelled metal control panel and coloured Smeg Portofino handle.

TFT display and 7 stainless steel control knobs for clear, knob–based operation.

Quadruple glazed door with 3 thermo–reflective glasses and easy clean enamel cavity.

Soft Close oven door with flap down opening, full glass inner door and removable inner glass.

Comprehensive hob safety with overheat protection, residual heat indicators and selected zone indicator.

Electronic temperature control from 50 °C to 260 °C for precise cooking.

Storage compartment with push–pull opening , black feet and black plinth for a finished look.

Technical Spec

ModelCPF9IPOG

Cooker size90x60 cm

No. of cavities with energy label1

Cavity heat sourceElectric

Hob typeInduction

Type of main ovenThermo–ventilated

Cleaning system (main oven)Pyrolytic; Pyrolytic Eco

Energy efficiency classA+

EAN code8017709240745

AestheticsPortofino

DesignFlush fit

ColourOlive green

Command panel finishEnamelled metal

Hob colourStainless steel

Type of control settingControl knobs (Smeg Portofino), 7 controls, stainless steel, black serigraphy

DisplayTFT

Door typeWith frame; flap down; full glass inner door; removable inner door

Glass typeGrey; total 4 glasses; 3 thermo–reflective door glasses

HandleSmeg Portofino, coloured handle

LogoAssembled st/steel, positioned on facia below the oven

UpstandYes

Storage compartmentPush pull

Feet / PlinthFeet: Black; Plinth: Black

No. of cooking functions10 traditional functions

Net volume of cavity115 litres

Gross volume (1st cavity)129 l

Cavity materialEasy clean enamel; enamel interior with special antacid lining

Shelf positions5

Type of shelvesMetal racks

No. of lights2 (side lights, halogen, 40 W)

Fan number3 (Triple Fan Technology)

Usable cavity space (HxWxD)371x724x418 mm

Lower heating element power1700 W

Upper heating element power1200 W

Grill element power1700 W

Large grill power2900 W

Circular heating element power2 x 1850 W

Grill typeElectric

Temperature controlElectronic (precision 2–3 °C)

Minimum temperature50 °C

Maximum temperature260 °C

Total no. of cooking zones5 induction zones

Front left zoneInduction, single, 1.40 kW, Booster 2.20 kW, Ø 14.5 cm

Rear left zoneInduction, single, 1.85 kW, Booster 3.00 kW, Ø 18.0 cm

Central zoneInduction, single, 2.60 kW, Booster 3.70 kW, Ø 27.0 cm

Rear right zoneInduction, single, 2.30 kW, Booster 3.70 kW, Ø 21.0 cm

Front right zoneInduction, single, 1.40 kW, Booster 2.20 kW, Ø 14.5 cm

Automatic switch off when overheatYes (overheat protection)

Automatic pan detectionYes (induction principle: heat generated directly in bottom of pan)

Minimum pan diameter indicationYes

Selected zone indicatorYes

Residual heat indicatorYes (indicator goes out below 60 °C)

Safety thermostatYes

Cooling systemTangential; air cooling system to ensure safe surface temperatures

Door lock during pyrolysisYes

Heating suspended when door is openedYes

Cooking time settingStart and Stop

TimerYes

End of cooking acoustic alarmYes

Light when oven door is openYes

Soft Close systemYes

Max power draw11400 W

Current50 A

Voltage220–240 V

Voltage 2380–415 V

Type of electric cableYes, Single phase

Additional connection modalitiesYes, Double and Three Phase

Frequency50/60 Hz

Terminal block5 poles

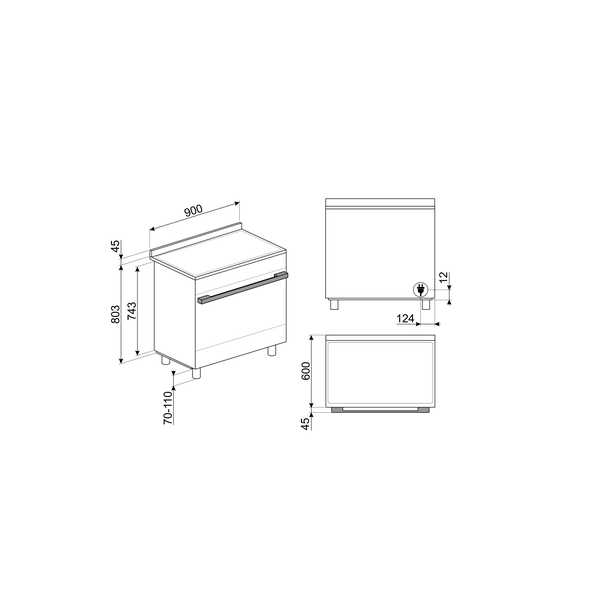

Overall width900 mm

Overall depth600 mm (not including possible protrusions; specific clearances not stated in source)

Height range (approx.)Not fully dimensioned; compatible kits listed for 850 mm and 950 mm configurations

Downloads

Download product documentation, manuals, and specification sheets.

CPF9IPOG Spec

PDF

Frequently Asked Questions

What type of hob does the SMEG CPF9IPOG have?

It is equipped with an induction hob with five single induction cooking zones. Each zone has a booster function, automatic pan detection, minimum pan diameter indication, a selected zone indicator and residual heat indicators.

What is the oven capacity and how many shelf positions are available?

The main thermo–ventilated oven has a net volume of 115 litres (129 l gross) and provides five shelf positions with metal racks, allowing cooking on multiple levels. The cavity has five different cooking levels.

Which cleaning features does the oven offer?

The oven features Pyrolytic and Pyrolytic Eco cleaning functions that automatically clean the interior. The enamel interior has a special antacid lining to reduce grease adhesion, and the all glass inner door and removable inner glass simplify cleaning.

What are the main cooking functions available?

There are 10 traditional functions: Static, Fan assisted, Circulaire, Turbo (circulaire + bottom + upper + fan), ECO, Small grill, Large grill, Fan grill (large), Base and Fan assisted base. Additional functions include defrost by time, defrost by weight, proving and Sabbath. The cooker also offers 20 automatic programmes.

What safety features are included for the hob and oven?

The hob has overheat protection that automatically turns it off if the control unit overheats, plus residual heat indicators. The oven includes a safety thermostat, tangential cooling system, heating suspended when the door is opened, door lock during pyrolysis, quadruple glazed door with thermo–reflective glass, and an air cooling system to ensure safe surface temperatures.

Which accessories are supplied with the cooker?

Supplied accessories for the main oven and hob include one chrome shelf with back and side stop, one 20 mm deep tray, one 40 mm deep tray, one grill mesh and one set of partially extractable telescopic guide rails.
