Smeg CPF9IPAN Portofino Induction Range Cooker

The SMEG CPF9IPAN is a 90x60 cm Portofino cooker in anthracite with a stainless steel induction hob and a large 115 litre thermo-ventilated electric oven. It offers 10 cooking functions, triple fan technology and an A+ energy efficiency class. With pyrolytic self-cleaning, TFT display, soft close door and five induction zones with booster, it is designed for flexible, efficient home cooking with professional-style results.

SKU:CPF9IPAN

EAN:8017709240721

Category::Freestanding Cookers

Quantity:

Key Features

90x60 cm Portofino cooker with anthracite colour and flush fit design.

5-zone induction hob with booster on all zones and automatic pan detection.

Large 115 litre main oven cavity with 5 cooking levels and easy clean enamel.

Thermo-ventilated electric oven featuring triple fan technology for uniform cooking.

10 traditional cooking functions plus proving, Sabbath and 20 automatic programmes.

Pyrolytic and Pyrolytic Eco cleaning systems for automatic oven cleaning.

Energy efficiency class A+ for reduced energy consumption compared to class A.

TFT display and control knobs with stainless steel Smeg Portofino controls and 7 knobs.

Quadruple glazed door with 4 glasses, 3 thermo-reflective, full glass inner door and soft close system.

Safety features including safety thermostat, door lock during pyrolysis and residual heat indicators.

Flexible electrical connection with single, double and three phase options and max power draw of 11400 W.

Portofino aesthetics with enamelled metal command panel, stainless steel logo and black feet and plinth.

Technical Spec

ModelCPF9IPAN

EAN code8017709240721

Cooker size90x60 cm

No. of cavities with energy label1

Cavity heat sourceElectric

Hob typeInduction

Type of main ovenThermo-ventilated

Cleaning system main ovenPyrolytic, Pyrolytic eco

Energy efficiency classA+

DesignFlush fit

AestheticsPortofino

ColourAnthracite

Command panel finishEnamelled metal

LogoAssembled st/steel, position: facia below the oven

UpstandYes

Hob colourStainless steel

Type of control settingControl knobs, Smeg Portofino, stainless steel, 7 controls, serigraphy colour silver

DisplayTFT

DoorWith frame, quadruple glazed, full glass inner door, removable inner door

Glass typeGrey, 4 glasses, 3 thermo-reflective glasses

HandleSmeg Portofino, coloured handle

Storage compartmentPush pull

Feet / plinthFeet black, plinth black

No. of cooking functions10 traditional functions + other functions and cleaning functions

Traditional cooking functionsStatic, Fan assisted, Circulaire, Turbo (circulaire + bottom + upper + fan), ECO, Small grill, Large grill, Fan grill (large), Base, Fan assisted base

Other functionsDefrost by time, Defrost by weight, Proving, Sabbath

Cleaning functionsPyrolytic, Pyrolytic eco

Automatic programmes20

Total no. of cook zones5 induction zones

Front left zoneInduction – single – 1.40 kW – Booster 2.20 kW – Ø 14.5 cm

Rear left zoneInduction – single – 1.85 kW – Booster 3.00 kW – Ø 18.0 cm

Central zoneInduction – single – 2.60 kW – Booster 3.70 kW – Ø 27.0 cm

Rear right zoneInduction – single – 2.30 kW – Booster 3.70 kW – Ø 21.0 cm

Front right zoneInduction – single – 1.40 kW – Booster 2.20 kW – Ø 14.5 cm

Automatic switch off when overheatYes (overheat protection)

Automatic pan detectionYes

Minimum pan diameter indicationYes

Selected zone indicatorYes

Residual heat indicatorYes (indication of residual heat)

No. of lights2 side lights, halogen, 40 W

Fan number3 (triple fan technology)

Net volume of the cavity115 litres

Gross volume, 1st cavity129 l

Cavity materialEasy clean enamel (enamel interior with special antacid lining)

Total no. of door glasses4 (quadruple glazed)

No. of thermo-reflective glasses3

Safety thermostatYes

Shelf positions5 cooking levels (shelf positions 5)

Type of shelvesMetal racks

Cooking time settingStart and Stop, timer with end of cooking acoustic alarm

Door openingFlap down, soft close system

Removable doorYes, removable inner door, all glass inner door

Light when oven door is openYes

Heating suspended when door is openedYes

Cooling systemTangential air cooling system

Door lock during pyrolysisYes

Usable cavity space dimensions (HxWxD)371x724x418 mm

Temperature controlElectronic control (precision 2–3 °C)

Lower heating element power1700 W

Upper heating element power1200 W

Grill elementGrill element 1700 W, large grill power 2900 W, electric grill type

Circular heating element power2 x 1850 W

Minimum temperature50 °C

Maximum temperature260 °C

Included accessories (oven)Chrome shelf with back and side stop (1), 20mm deep tray (1), 40mm deep tray (1), Grill mesh (1), Telescopic guide rails, partial extraction (1)

Max power draw11400 W

Current50 A

Voltage220–240 V; Voltage 2: 380–415 V

Type of electric cableYes, Single phase

Additional connection modalitiesYes, Double and Three Phase

Frequency50/60 Hz

Terminal block5 poles

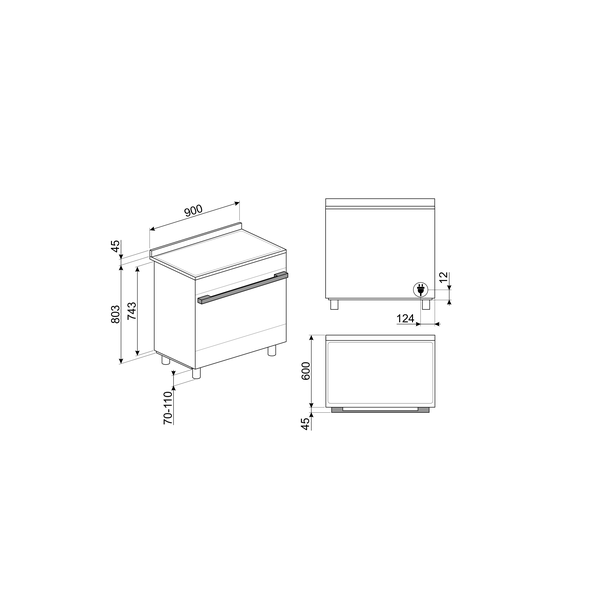

Overall width900 mm (schematic drawing dimension)

Downloads

Download product documentation, manuals, and specification sheets.

CPF9IPAN Spec

PDF

Frequently Asked Questions

What is the capacity of the main oven?

The main oven has a net cavity volume of 115 litres, with a gross volume of 129 l. It offers five cooking levels within the cavity.

How many induction zones does the hob have and what are their powers?

The hob has five induction zones: front left 1.40 kW (Booster 2.20 kW, Ø 14.5 cm), rear left 1.85 kW (Booster 3.00 kW, Ø 18.0 cm), central 2.60 kW (Booster 3.70 kW, Ø 27.0 cm), rear right 2.30 kW (Booster 3.70 kW, Ø 21.0 cm) and front right 1.40 kW (Booster 2.20 kW, Ø 14.5 cm).

What cleaning systems are available for the oven?

The main oven features Pyrolytic and Pyrolytic Eco cleaning functions. Pyrolytic cycles automatically clean the oven interior, while the Eco pyrolytic function is suitable for lighter dirt with a maximum duration of 1.5 hours. The cavity also has an easy clean enamel interior with a special antacid lining.

What is the temperature range of the oven?

The oven temperature can be set electronically from a minimum of 50 °C to a maximum of 260 °C, with electronic control maintaining temperature to within approximately 2–3 °C.

What safety features does this cooker include?

Safety features include a safety thermostat, automatic switch off when overheat on the hob, residual heat indicators, door lock during pyrolysis, heating suspended when the door is opened, an air cooling system for safe surface temperatures and an all glass inner door that can be removed for cleaning.

Which accessories are supplied with the oven?

Supplied accessories include one chrome shelf with back and side stop, one 20mm deep tray, one 40mm deep tray, one grill mesh and one set of partially extractable telescopic guide rails (1 level).
