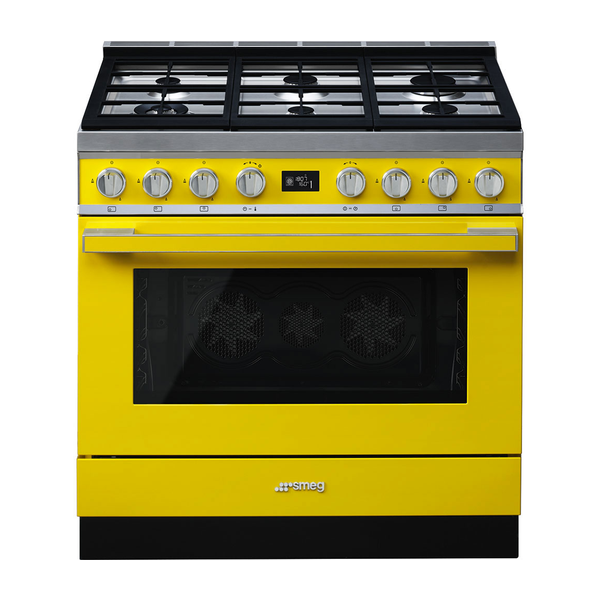

Smeg CPF9GPYW Range Cooker

The Smeg CPF9GPYW Portofino is a 90x60 cm flush fit cooker combining a gas hob with a large 115 litre thermo–ventilated electric main oven. Finished in yellow with stainless steel details, it offers 6 gas cooking zones and an A+ energy rated pyrolytic oven with triple fan technology, 10 cooking functions and 20 automatic programmes. Designed with heavy duty cast iron pan stands, soft close door and easy clean enamel cavity, it suits users seeking generous capacity and flexible cooking performance.

SKU:CPF9GPYW

EAN:8017709229375

Category::Freestanding Cookers

Quantity:

Key Features

Cooker size 90x60 cm for a generous cooking surface and large oven capacity.

Gas hob with 6 cooking zones including dual, rapid, semi rapid and auxiliary burners.

Thermo–ventilated electric main oven with triple fan technology for even heat distribution on all five levels.

Large 115 litre net oven capacity (129 l gross) with 5 shelf positions for flexible cooking.

A+ energy efficiency class for reduced energy consumption compared to class A.

Pyrolytic and Pyrolytic Eco cleaning functions for automatic oven interior cleaning.

10 traditional cooking functions plus Proving, Sabbath and 20 automatic programmes.

Heavy duty cast iron pan stands for maximum stability and strength on the hob.

Triple glazed plus extra thermo–reflective glass with 4 door glasses, 3 thermo–reflective.

Soft Close system for smooth and quiet oven door closing.

Easy clean enamel cavity with antacid lining to help reduce grease adherence.

Flush fit Portofino design in yellow with enamelled metal command panel and stainless steel controls.

TFT display and knob controls with stainless steel Smeg Portofino control knobs.

Electronic temperature control from 50°C to 260°C for accurate cooking results.

Safety features including gas safety valves, safety thermostat and door lock during pyrolysis.

Storage compartment with push–pull opening plus black feet and plinth.

Technical Spec

Product codeCPF9GPYW

EAN code8017709229375

Cooker size90x60 cm

Number of cavities with energy label1

Cavity heat sourceElectric

Hob typeGas

Type of main ovenThermo-ventilated

Cleaning system main ovenPyrolytic, Pyrolytic eco

Energy efficiency classA+

DesignFlush fit

AestheticsPortofino

ColourYellow

Command panel finishEnamelled metal

Hob colourStainless steel

Type of pan standsCast Iron (heavy duty cast iron pan stands)

Type of control settingControl knobs (Smeg Portofino)

Controls colourStainless steel

Number of controls8

DisplayTFT

DoorWith frame, flap down, removable, full glass inner door, removable inner door

Glass typeGrey

Total number of door glasses4 (3 thermo-reflective)

HandleSmeg Portofino, coloured handle

UpstandYes

Storage compartmentPush pull

Feet / PlinthFeet: Black – Plinth: Black

Number of cooking functions10 traditional functions + other functions (Defrost by time, Defrost by weight, Proving, Sabbath)

Automatic programmes20

Hob – total number of cook zones6

Front left burnerGas – 2UR (dual) – 4.20 kW

Rear left burnerGas – AUX – 1.00 kW

Front centre burnerGas – AUX – 1.00 kW

Rear centre burnerGas – Semi Rapid – 1.80 kW

Front right burnerGas – Semi Rapid – 1.80 kW

Rear right burnerGas – Rapid – 3.00 kW

Type of gas burnersStandard

Automatic electronic ignitionYes

Gas safety valvesYes

Burner capsMatte black enamelled

Net volume of the cavity115 litres

Gross volume (1st cavity)129 l

Cavity materialEasy clean enamel (enamel interior with special antacid lining)

Shelf positions5

Number of lights2 (side lights)

Fan number3 (Triple Fan Technology)

Light type / powerHalogen – 40 W

Light when oven door is openYes

Safety thermostatYes

Heating suspended when door is openedYes

Cooling systemTangential (air cooling system to ensure safe surface temperatures)

Usable cavity space dimensions (HxWxD)371x724x418 mm

Temperature controlElectronic (precision 2-3 °C)

Minimum temperature50 °C

Maximum temperature260 °C

Lower heating element power1700 W

Upper heating element power1200 W

Grill element power1700 W

Large grill power2900 W

Circular heating element power2 x 1850 W

Grill typeElectric

Cooking time settingStart and Stop

TimerYes

End of cooking acoustic alarmYes

Door lock during pyrolysisYes

Soft Close systemYes

Chrome shelf with back and side stop1 included

20mm deep tray1 included

40mm deep tray1 included

Grill mesh1 included

Telescopic guide rails1 level, partial extraction included

Max power draw4000 W

Current18 A

Voltage220-240 V

Voltage 2380-415 V

Type of electric cableYes, Single phase

Cable testingYes

Additional connection modalitiesYes, Double and Three Phase

Frequency50/60 Hz

Terminal block5 poles

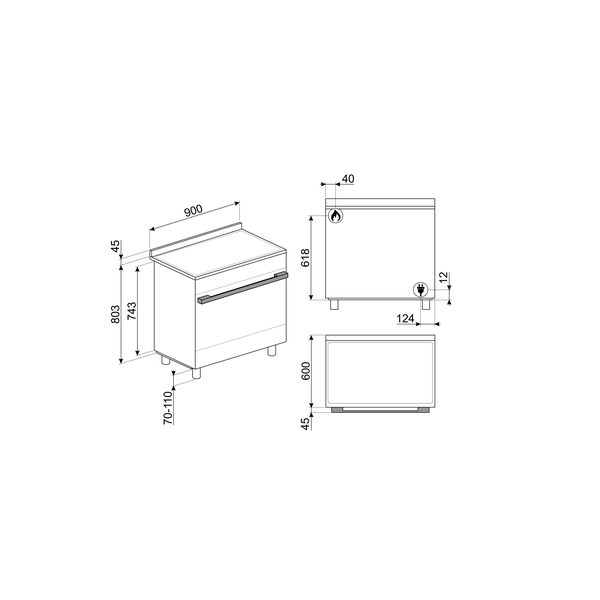

Dimensions (diagram)Overall width 900 mm; overall depth 600 mm (cooktop); height range 850-910 mm approx. as indicated in diagram (exact numeric breakdown only as shown in the image).

Downloads

Download product documentation, manuals, and specification sheets.

CPF9GPYW Spec

PDF

Frequently Asked Questions

What is the capacity of the main oven on the Smeg CPF9GPYW?

The main oven has a net volume of 115 litres and a gross volume of 129 litres, with five shelf positions for flexible use of the space.

How many burners does the gas hob have and what are their powers?

The hob has six gas cooking zones: front left dual burner 4.20 kW, rear left auxiliary 1.00 kW, front centre auxiliary 1.00 kW, rear centre semi rapid 1.80 kW, front right semi rapid 1.80 kW and rear right rapid 3.00 kW.

Which cleaning systems are available for the oven?

The main oven offers Pyrolytic and Pyrolytic Eco cleaning functions, plus an easy clean enamel interior with special antacid lining that helps reduce cooking grease adherence.

What is the energy rating of the Smeg CPF9GPYW cooker?

The cooker has an A+ energy efficiency class, which helps to save up to 10% energy compared to class A while maintaining performance.

Does the oven have safety features during high temperature cleaning?

Yes. During pyrolytic cleaning, the door locks automatically. The appliance also includes a safety thermostat and an air cooling system to maintain safe surface temperatures.

Are telescopic shelves included or optional?

One level of partially extractable telescopic guide rails is included. Additional partially or totally extractable telescopic guides (GTP, GTT) are available as compatible accessories.
