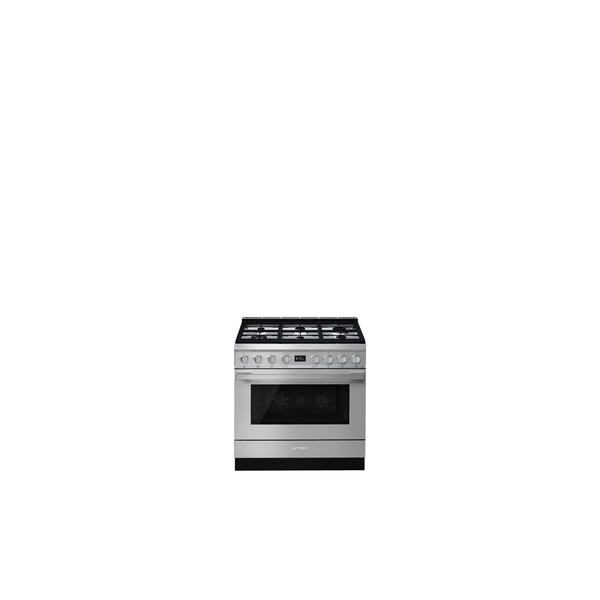

Smeg CPF9GPX Range Cooker

The Smeg CPF9GPX is a 90x60 cm Portofino cooker combining a gas hob with a large 115 litre thermo-ventilated electric oven. Designed with brushed fingerprint-friendly stainless steel and heavy duty cast iron pan stands, it offers 10 cooking functions, triple fan technology and pyrolytic cleaning. With an A+ energy efficiency class and versatile accessories, it is suited to users seeking professional-style performance and generous capacity in a flush-fit stainless steel appliance.

SKU:CPF9GPX

EAN:8017709225780

Category::Freestanding Cookers

Quantity:

Key Features

Cooker size 90x60 cm for generous hob space and a large main oven cavity.

Portofino stainless steel aesthetics with brushed, fingerprint proof stainless steel and flush fit design.

Gas hob with 6 cooking zones including dual, rapid, semi-rapid and AUX burners up to 4.20 kW.

Thermo-ventilated main oven with triple fan technology for uniform heat and even cooking on five levels.

Large 115 litre net oven capacity (129 l gross) with easy clean enamel cavity.

Energy efficiency class A+ helping to reduce energy consumption compared to class A.

10 traditional cooking functions including static, fan assisted, Circulaire, turbo, ECO and multiple grill options.

Pyrolytic and Pyrolytic ECO cleaning for automatic high-temperature oven cleaning.

TFT display and Smeg Portofino control knobs with stainless steel finish and black serigraphy.

Soft Close oven door with flap-down opening, full glass inner door and four door glasses (three thermo-reflective).

Safety features including gas safety valves, safety thermostat, heating suspended when door is opened and door lock during pyrolisis.

Wide temperature range from 50 °C to 260 °C with electronic temperature control.

Storage compartment with push-pull opening, black feet and plinth.

20 automatic programmes plus defrost by time, defrost by weight, proving and Sabbath functions.

Heavy duty cast iron pan stands for maximum stability and strength on the hob.

Halogen side lighting with two lights for increased visibility inside the oven.

Electronic control to maintain oven temperature with precision of 2–3 °C.

Flexible electrical connection options including single, double and three phase with 5-pole terminal block.

Technical Spec

ModelCPF9GPX

Cooker size90x60 cm

N. of cavities with energy label1

Cavity heat sourceElectric

Hob typeGas

Type of main ovenThermo-ventilated

Cleaning system main ovenPyrolytic

EAN code8017709225780

Energy efficiency classA+

DesignFlush fit

Command panel finishFinger friendly stainless steel / Fingerprint proof stainless steel

AestheticsPortofino

ColourStainless steel

FinishingBrushed

UpstandYes

Hob colourStainless steel

Type of pan standsCast Iron (heavy duty cast iron pan stands)

Type of control settingControl knobs, Smeg Portofino, stainless steel, black serigraphy, 8 controls

DisplayTFT

DoorWith frame, full glass inner door, removable door and removable inner door

Glass typeGrey

Total no. of door glasses4 (3 thermo-reflective)

HandleSmeg Portofino, brushed stainless steel

Storage compartmentPush pull

Feet / PlinthFeet: Black – Plinth: Black

No. of cooking functions10 (traditional cooking functions)

Total no. of cook zones6

Front left burnerGas – 2UR (dual) – 4.20 kW

Rear left burnerGas – AUX – 1.00 kW

Front centre burnerGas – AUX – 1.00 kW

Rear centre burnerGas – Semi Rapid – 1.80 kW

Front right burnerGas – Semi Rapid – 1.80 kW

Rear right burnerGas – Rapid – 3.00 kW

Type of gas burnersStandard

Automatic electronic ignitionYes

Gas safety valvesYes

Burner capsMatte black enamelled

Fan number3 (Triple fan technology)

Net volume of the cavity115 litres

Gross volume, 1st cavity129 l

Cavity materialEasy clean enamel (enamel interior with special antacid lining)

Shelf positions5

Type of shelvesMetal racks

Light type / powerHalogen, 40 W, side lights

No. of lights2

Cooking time settingStart and Stop, Timer, end of cooking acoustic alarm

Light when oven door is openYes

Door openingFlap down, Soft Close system

Safety thermostatYes

Heating suspended when door is openedYes

Cooling systemTangential (air cooling system to ensure safe surface temperatures)

Door lock during pyrolisisYes

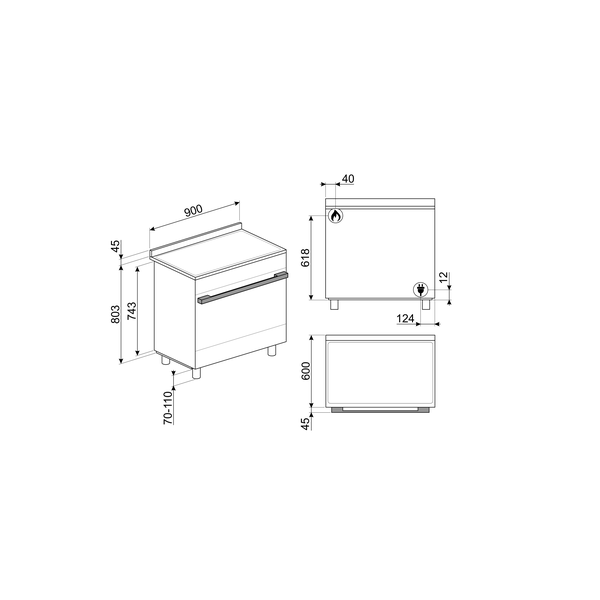

Usable cavity space dimensions (HxWxD)371x724x418 mm

Temperature controlElectronic control

Minimum / Maximum temperature50 °C – 260 °C

Lower heating element power1700 W

Upper heating element power1200 W

Grill element1700 W, electric grill type

Large grill power2900 W

Circular heating element power2 x 1850 W

Accessories included (oven)Chrome shelf with back and side stop (1), 20 mm deep tray (1), 40 mm deep tray (1), Grill mesh (1), Telescopic guide rails, partial extraction (1)

Max power draw4000 W

Current18 A

Voltage220–240 V

Voltage 2380–415 V

Type of electric cableYes, Single phase

Cable testingYes

Additional connection modalitiesYes, Double and Three Phase

Frequency50/60 Hz

Terminal block5 poles

Downloads

Download product documentation, manuals, and specification sheets.

CPF9GPX Spec

PDF

Frequently Asked Questions

What size is the Smeg CPF9GPX cooker?

The cooker size is 90x60 cm, with a single main electric oven cavity and a 6-zone gas hob.

What is the oven capacity and energy rating?

The main oven has a net volume of 115 litres (129 l gross) and is rated in energy efficiency class A+.

How many cooking functions does the oven have?

The oven offers 10 traditional cooking functions, including static, fan assisted, Circulaire, turbo, ECO, small grill, large grill, fan grill (large), base and fan assisted base. It also has defrost by time, defrost by weight, proving, Sabbath and 20 automatic programmes.

Does the Smeg CPF9GPX have pyrolytic cleaning?

Yes, it features Pyrolytic and Pyrolytic ECO cleaning functions. Pyrolitic cycles automatically clean the oven interior, and the Eco function has a maximum duration of 1.5 hours for lighter dirt.

What burners are on the gas hob?

The hob has six gas zones: front left 2UR (dual) 4.20 kW, rear left AUX 1.00 kW, front centre AUX 1.00 kW, rear centre semi rapid 1.80 kW, front right semi rapid 1.80 kW and rear right rapid 3.00 kW. It uses standard gas burners with automatic electronic ignition and gas safety valves.

What accessories are supplied with the oven?

Supplied accessories include one chrome shelf with back and side stop, one 20 mm deep tray, one 40 mm deep tray, one grill mesh and one set of partially extractable telescopic guide rails.
