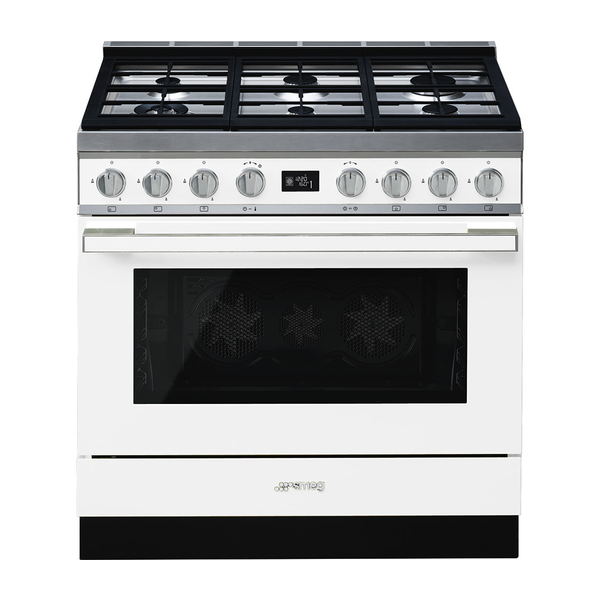

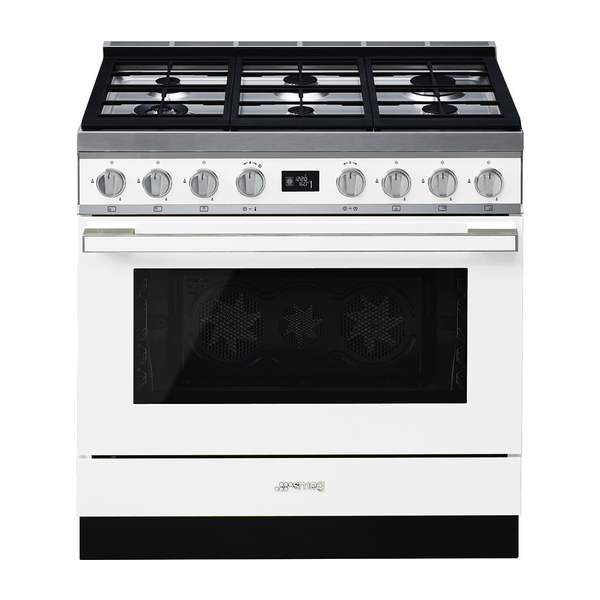

Smeg CPF9GPWH Range Cooker

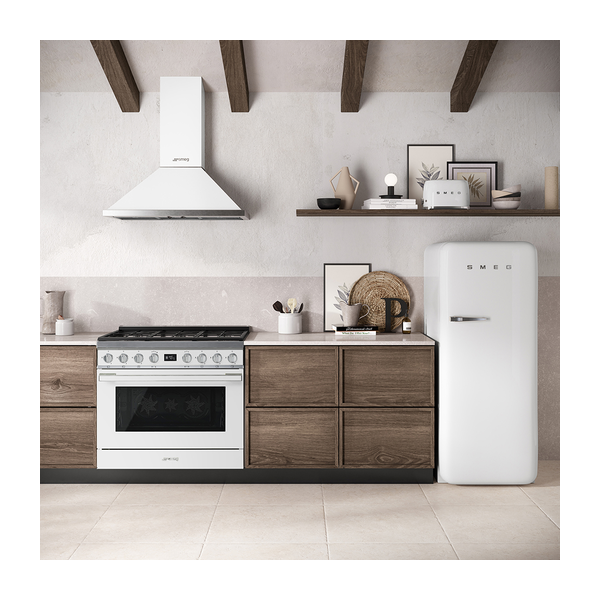

The SMEG CPF9GPWH is a 90x60 cm Portofino cooker combining a gas hob with a thermo–ventilated electric main oven. Designed with a flush fit aesthetic in white, it offers a spacious 115 litre cavity with triple fan technology and A+ energy efficiency. Featuring pyrolytic cleaning, 10 cooking functions and a durable stainless steel and cast iron hob layout, it is suited to users seeking generous capacity, flexible cooking options and easy maintenance.

SKU:CPF9GPWH

EAN:8017709229399

Category::Freestanding Cookers

Quantity:

Key Features

Cooker size 90x60 cm for a large-capacity freestanding cooking solution.

Portofino aesthetics in white with flush fit design, enamelled metal command panel and Smeg Portofino handle.

Gas hob with 6 cooking zones including a 4.20 kW dual burner and a mix of AUX, Semi Rapid and Rapid burners.

Thermo–ventilated electric main oven with electronic temperature control for precise cooking.

Very large 115 litre net oven capacity with 5 shelf positions for flexible multi-level cooking.

Pyrolytic and Pyrolytic eco cleaning functions to automatically clean the oven cavity.

A+ energy efficiency class helps to save up to 10% energy compared to class A.

Triple Fan Technology for uniform temperature and even cooking on all five levels.

10 traditional cooking functions including Static, Fan assisted, Circulaire, Turbo, ECO and various grill options.

20 automatic programmes for guided cooking performance.

Heavy duty cast iron pan stands for maximum stability and strength on the gas hob.

Easy clean enamel cavity with antacid lining to help reduce grease adhesion.

Quadruple glazed door with 3 thermo–reflective glasses to improve efficiency and safety.

TFT display and Smeg Portofino control knobs in stainless steel with black serigraphy.

Soft Close system for smooth and quiet oven door closing.

Defrost by time and Defrost by weight functions for controlled thawing.

Proving function with air at 40 °C, ideal for yeast dough mixes.

Sabbath function allowing cooking while respecting the Jewish day of rest provisions.

Child-friendly safety features including gas safety valves, safety thermostat and door lock during pyrolysis.

Tangential air cooling system to help ensure safe surface temperatures.

Storage compartment with push–pull opening plus black feet and plinth for a coordinated look.

Wide electrical connection options including single, double and three phase, with max power draw of 4000 W.

Compatible accessories available such as air fryer rack, teppanyaki plate, telescopic guides and pizza shovel.

Technical Spec

ModelCPF9GPWH

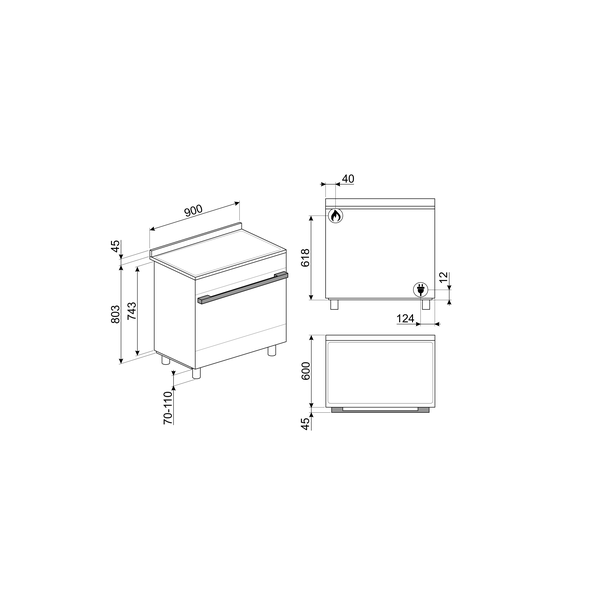

Cooker size90x60 cm

Number of cavities with energy label1

Cavity heat sourceElectric

Hob typeGas

Type of main ovenThermo-ventilated

Cleaning system main ovenPyrolytic; Pyrolytic eco

EAN code8017709229399

Energy efficiency classA+

DesignFlush fit

Command panel finishEnamelled metal

AestheticsPortofino

ColourWhite

LogoAssembled st/steel; position: facia below the oven

UpstandYes

Hob colourStainless steel

Type of pan standsCast Iron

Type of control settingControl knobs

Control knobsSmeg Portofino

Controls colourStainless steel

Number of controls8

Serigraphy colourBlack

DisplayTFT

DoorWith frame

Glass typeGrey

HandleSmeg Portofino

Handle colourColoured

Storage compartmentPush pull

FeetBlack

PlinthBlack

Number of cooking functions10 (traditional functions)

Automatic programmes20

Total number of cook zones6

Front left burnerGas – 2UR (dual) – 4.20 kW

Rear left burnerGas – AUX – 1.00 kW

Front centre burnerGas – AUX – 1.00 kW

Rear centre burnerGas – Semi Rapid – 1.80 kW

Front right burnerGas – Semi Rapid – 1.80 kW

Rear right burnerGas – Rapid – 3.00 kW

Type of gas burnersStandard

Automatic electronic ignitionYes

Gas safety valvesYes

Burner capsMatte black enamelled

Number of lights2

Fan number3

Net volume of the cavity115 litres

Gross volume, 1st cavity129 l

Cavity materialEasy clean enamel

Shelf positions5

Total number of door glasses4

Number of thermo-reflective door glasses3

Type of shelvesMetal racks

Light type / powerHalogen – 40 W

Cooking time settingStart and Stop

Light when oven door is openYes

Door openingFlap down

Removable door / inner doorYes / Yes (full glass inner door)

Door lock during pyrolysisYes

Usable cavity space dimensions (HxWxD)371x724x418 mm

Temperature controlElectronic

Lower heating element power1700 W

Upper heating element power1200 W

Grill element power1700 W

Large grill power2900 W

Circular heating element power2 x 1850 W

Grill typeElectric

Soft Close systemYes

Safety thermostatYes

Heating suspended when door is openedYes

Cooling systemTangential air cooling system

TimerYes

End of cooking acoustic alarmYes

Minimum temperature50 °C

Maximum temperature260 °C

Chrome shelf with back and side stop1

20 mm deep tray1

40 mm deep tray1

Grill mesh1

Telescopic guide rails, partial extraction1 level

Max power draw4000 W

Current18 A

Voltage220–240 V

Voltage 2380–415 V

Type of electric cableYes, Single phase

Cable testingYes

Additional connection modalitiesYes, Double and Three Phase

Frequency50/60 Hz

Terminal block5 poles

Downloads

Download product documentation, manuals, and specification sheets.

CPF9GPWH Spec

PDF

Frequently Asked Questions

What is the oven capacity of the SMEG CPF9GPWH?

The main oven has a net capacity of 115 litres, with a gross volume of 129 litres and five shelf positions.

Does this cooker have pyrolytic cleaning?

Yes. It offers Pyrolytic and Pyrolytic eco cleaning functions. The Eco pyrolytic function is designed for lighter build-up and has a maximum duration of 1.5 hours.

How many cooking functions are available?

There are 10 traditional cooking functions, including Static, Fan assisted, Circulaire, Turbo, ECO, Small grill, Large grill, Fan grill (large), Base and Fan assisted base. In addition, there are functions for defrosting, proving and Sabbath, plus 20 automatic programmes.

What safety features are included?

Safety features include gas safety valves, a safety thermostat, tangential air cooling system, heating suspension when the door is opened, and a door lock during pyrolysis. The door is quadruple glazed with three thermo-reflective glasses.

What are the hob burner powers?

The hob has six gas zones: front left dual 2UR burner 4.20 kW, rear left AUX 1.00 kW, front centre AUX 1.00 kW, rear centre Semi Rapid 1.80 kW, front right Semi Rapid 1.80 kW and rear right Rapid 3.00 kW.

What electrical supply does the cooker require?

The cooker has a maximum power draw of 4000 W and 18 A current. It supports 220–240 V and 380–415 V supplies, with a single phase electric cable included and options for double and three phase connection.
