Smeg CPF9GPOR Range Cooker

The SMEG CPF9GPOR is a 90x60 cm Portofino cooker combining a 6-zone gas hob with a large 115 litre thermo-ventilated electric main oven. Finished in orange with stainless steel details, it offers pyrolytic cleaning, A+ energy efficiency and triple fan technology for even cooking on five levels. With 10 cooking functions, 20 automatic programmes and robust cast iron pan stands, it is designed for versatile home cooking with advanced control and easy maintenance.

SKU:CPF9GPOR

EAN:8017709229405

Category::Freestanding Cookers

Quantity:

Key Features

Cooker size 90x60 cm with 1 cavity featuring an energy label.

Thermo-ventilated electric main oven with triple fan technology for uniform temperature and even cooking on all five levels.

Large 115 litre net cavity volume (129 l gross) providing generous usable cooking space.

Energy efficiency class A+ helping to save up to 10% energy compared to class A.

Gas hob with 6 cooking zones including a 4.20 kW dual burner and a range from 1.00 kW to 3.00 kW.

Heavy duty cast iron pan stands for maximum stability and strength.

Pyrolytic and Pyrolytic ECO cleaning functions for automatic oven interior cleaning, including a shorter eco cycle.

10 traditional cooking functions including Static, Fan assisted, Circulaire, Turbo, ECO and multiple grill options.

20 automatic programmes to simplify cooking settings.

Portofino aesthetics in orange with enamelled metal control panel and stainless steel Smeg Portofino handle and knobs.

TFT display with electronic temperature control for precise oven management.

Quadruple glazed oven door with 4 glasses, including 3 thermo-reflective glasses to help manage heat.

Soft Close system for smooth and quiet oven door closing.

Easy clean enamel cavity with removable full glass inner door and inner glass for simpler cleaning.

Gas safety valves and automatic electronic ignition for the hob burners.

Tangential cooling system and safety thermostat to help ensure safe surface temperatures.

Push-pull storage compartment, black feet and black plinth for an integrated appearance.

Wide temperature range from 50°C to 260°C suitable for low and high temperature cooking.

Included accessories such as chrome shelf, two trays, grill mesh and partially extractable telescopic guide rails.

Compatible accessories available including air fryer rack, BBQ grid, trays, telescopic guides, splashback, pizza shovel, child lock, silicone moulds and teppanyaki plate.

Technical Spec

ModelCPF9GPOR

EAN code8017709229405

Cooker size90x60 cm

Number of cavities with energy label1

Cavity heat sourceElectric

Hob typeGas

Type of main ovenThermo-ventilated

Cleaning system main ovenPyrolytic

Energy efficiency classA+

DesignFlush fit

AestheticsPortofino

ColourOrange

Command panel finishEnamelled metal

LogoAssembled stainless steel, positioned on facia below the oven

UpstandYes

Hob colourStainless steel

Type of pan standsCast Iron

Type of control settingControl knobs – Smeg Portofino, stainless steel, 8 controls, serigraphy colour black

DisplayTFT

DoorWith frame, flap down opening

Glass typeGrey, full glass inner door, removable inner door

Total number of door glasses4 (including 3 thermo-reflective door glasses)

HandleSmeg Portofino, handle colour coloured

Storage compartmentPush pull

Feet / PlinthFeet black, plinth black

Net volume of the cavity115 litres

Gross volume, 1st cavity129 l

Usable cavity space (HxWxD)371x724x418 mm

Cavity materialEasy clean enamel with antacid lining

Shelf positions5 levels

Number of cooking functions10 traditional cooking functions

Traditional functionsStatic, Fan assisted, Circulaire, Turbo (circulaire + bottom + upper + fan), ECO, Small grill, Large grill, Fan grill (large), Base, Fan assisted base

Other oven functionsDefrost by time, Defrost by weight, Proving, Sabbath

Cleaning functionsPyrolytic, Pyrolytic ECO

Automatic programmes20

Total number of cook zones6

Front left burnerGas – 2UR (dual) – 4.20 kW

Rear left burnerGas – AUX – 1.00 kW

Front centre burnerGas – AUX – 1.00 kW

Rear centre burnerGas – Semi Rapid – 1.80 kW

Front right burnerGas – Semi Rapid – 1.80 kW

Rear right burnerGas – Rapid – 3.00 kW

Type of gas burnersStandard, ultra rapid burners up to 5 kW (general specification)

Automatic electronic ignitionYes

Gas safety valvesYes

Burner capsMatte black enamelled

Type of shelvesMetal racks

Number of lights2 (side lights)

Light type / powerHalogen, 40 W

Fan number3 (triple fan technology)

Cooking time settingStart and Stop

Light when oven door is openYes

Door lock during pyrolysisYes

Temperature controlElectronic control (precision 2–3 °C)

Lower heating element power1700 W

Upper heating element power1200 W

Grill element power1700 W

Large grill power2900 W

Circular heating element power2 x 1850 W

Grill typeElectric

Soft Close systemYes

Safety thermostatYes

Heating suspended when door is openedYes

Cooling systemTangential air cooling system

Minimum temperature50 °C

Maximum temperature260 °C

TimerYes, with end of cooking acoustic alarm

Accessories included (main oven & hob)Chrome shelf with back and side stop (1), 20mm deep tray (1), 40mm deep tray (1), Grill mesh (1), Telescopic guide rails, partial extraction (1)

Max power draw4000 W

Current18 A

Voltage220–240 V

Voltage 2380–415 V

Type of electric cableYes, Single phase

Cable testingYes

Additional connection modalitiesYes, Double and Three Phase

Frequency50/60 Hz

Terminal block5 poles

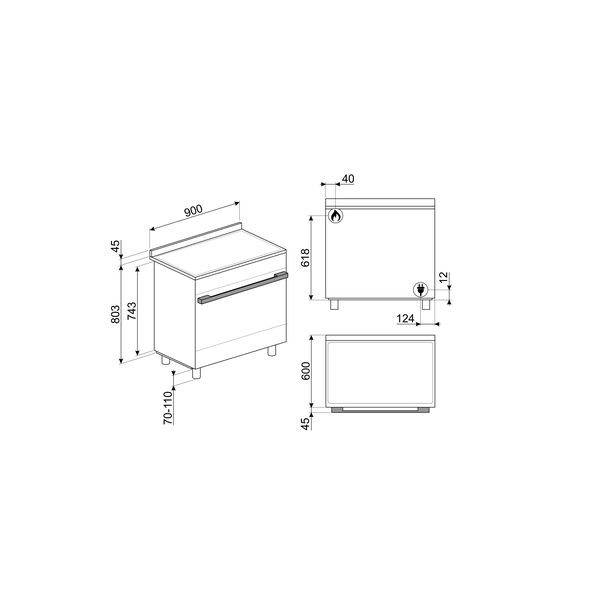

Overall external dimensions900 mm width, height and depth drawing present; exact installation dimensions beyond 900 mm width are Not stated in source.

Downloads

Download product documentation, manuals, and specification sheets.

CPF9GPOR Spec

PDF

Frequently Asked Questions

What is the capacity of the main oven?

The main oven has a net volume of 115 litres and a gross volume of 129 litres. The usable cavity space measures 371x724x418 mm (HxWxD) and offers five cooking levels.

How many cooking functions does this cooker have?

It provides 10 traditional cooking functions, including Static, Fan assisted, Circulaire, Turbo, ECO, Small grill, Large grill, Fan grill (large), Base and Fan assisted base. It also includes additional functions such as Defrost by time, Defrost by weight, Proving and Sabbath, plus 20 automatic programmes.

Is the oven easy to clean?

Yes. The oven features easy clean enamel with a special antacid lining to reduce grease build-up. It includes pyrolytic and Eco pyrolytic cleaning cycles that automatically clean the interior, and the all glass inner door and inner glass can be removed for easier cleaning.

What safety features are included?

Safety features include gas safety valves, a safety thermostat, an air cooling system to help keep surfaces at safe temperatures, heating suspended when the door is opened, and a door lock during pyrolytic cleaning. The door is quadruple glazed with thermo-reflective glass to assist with heat management.

What accessories are supplied with the cooker?

Supplied accessories include one chrome shelf with back and side stop, one 20mm deep tray, one 40mm deep tray, one grill mesh and one set of partially extractable telescopic guide rails for the oven.

What type of hob does it have and what are the burner outputs?

The cooker has a gas hob with six cooking zones: a 4.20 kW dual burner (front left), two 1.00 kW auxiliary burners (rear left and front centre), two 1.80 kW semi rapid burners (rear centre and front right) and a 3.00 kW rapid burner (rear right). The hob uses heavy duty cast iron pan stands, standard gas burners and automatic electronic ignition.
