Smeg CPF9GPAN 90cm Portofino Dual Fuel Pyrolitic Range Cooker

The SMEG CPF9GPAN is a 90x60 cm Portofino cooker combining a gas hob with a large thermo-ventilated electric main oven. Finished in anthracite with stainless steel details, it offers 10 cooking functions, 20 automatic programmes and pyrolytic cleaning. With a generous 115 litre net cavity, triple fan technology and heavy duty cast iron pan stands, it is designed for flexible home cooking with efficient A+ energy performance.

SKU:CPF9GPAN

EAN:8017709229429

Category::Freestanding Cookers

Quantity:

Key Features

Cooker size 90x60 cm with 1 cavity featuring an energy label.

Thermo-ventilated electric main oven with triple fan technology for uniform heat on all five levels.

Pyrolytic cleaning system including standard and Eco pyrolytic functions for automatic oven cleaning.

Energy efficiency class A+ helps to save up to 10% energy compared to class A.

Gas hob with 6 cooking zones including a 4.20 kW dual burner and a range of auxiliary, semi-rapid and rapid burners.

Heavy duty cast iron pan stands for maximum stability and strength.

Large 115 litre net oven capacity (129 l gross) with easy clean enamel interior.

10 cooking functions including static, fan assisted, Circulaire, turbo, ECO, small and large grill, fan grill, base and fan assisted base.

Additional functions include defrost by time, defrost by weight, proving and Sabbath.

20 automatic programmes to support a variety of recipes.

Portofino aesthetics with anthracite colour, enamelled metal control panel and Smeg Portofino handles and knobs.

Quadruple glazed oven door with 4 door glasses, 3 of them thermo-reflective, and soft close system.

TFT display with control knobs and electronic temperature control for precise cooking.

Safety features include gas safety valves, safety thermostat, heating suspended when door is opened and tangential cooling system.

Flexible electrical connection with single phase cable supplied and options for double and three phase connection.

Flush fit design with stainless steel hob, upstand, black feet and black plinth.

Storage compartment with push pull opening beneath the oven.

Included oven accessories such as chrome shelf, trays, grill mesh and partially extractable telescopic guide rails.

Compatible accessories available including air fry rack, teppanyaki plate, telescopic guides, splashback, pizza shovel and more.

Technical Spec

ModelCPF9GPAN

Cooker size90x60 cm

Number of cavities with energy label1

Cavity heat sourceElectric

Hob typeGas

Type of main ovenThermo-ventilated

Cleaning system main ovenPyrolytic, Pyrolytic eco

EAN code8017709229429

Energy efficiency classA+

DesignFlush fit

AestheticsPortofino

ColourAnthracite

Command panel finishEnamelled metal

Hob colourStainless steel

UpstandYes

Type of pan standsCast Iron (heavy duty cast iron pan stands)

Type of control settingControl knobs (Smeg Portofino)

Controls colourStainless steel

Number of controls8

Serigraphy colourSilver

DisplayTFT

DoorWith frame, flap down, full glass inner door, removable door and removable inner door

Glass typeGrey, 4 door glasses, 3 thermo-reflective (quadruple glazed)

HandleSmeg Portofino, handle colour coloured

Storage compartmentPush pull

FeetBlack

PlinthBlack

Number of cooking functions10 (traditional cooking functions)

Traditional cooking functionsStatic; Fan assisted; Circulaire; Turbo (circulaire + bottom + upper + fan); ECO; Small grill; Large grill; Fan grill (large); Base; Fan assisted base

Other functionsDefrost by time; Defrost by weight; Proving; Sabbath

Automatic programmes20

Cavity materialEasy clean enamel (enamel interior with special antacid lining)

Net volume of the cavity115 litres (usable capacity)

Gross volume, 1st cavity129 l

Usable cavity space dimensions (HxWxD)371x724x418 mm

Shelf positions5 cooking levels

Type of shelvesMetal racks

Number of lights2 (side lights)

Light type / powerHalogen, 40 W; light when oven door is open: Yes

Fan number3 (triple fan technology)

Temperature controlElectronic control (precision 2–3 °C)

Minimum temperature50 °C

Maximum temperature260 °C

Lower heating element power1700 W

Upper heating element power1200 W

Grill element power1700 W

Large grill power2900 W

Circular heating element power2 x 1850 W

Grill typeElectric (grill and half grill functions)

Soft Close systemYes (smooth and quiet closing)

Door lock during pyrolysisYes (pyrolisis safety)

Cooling systemTangential air cooling system to ensure safe surface temperatures

Safety thermostatYes

Heating suspended when door is openedYes

Total number of cook zones (hob)6 gas burners (type of gas burners: Standard)

Front left burnerGas – 2UR (dual) – 4.20 kW (powerful burner, related to ultra rapid technology description)

Rear left burnerGas – AUX – 1.00 kW

Front centre burnerGas – AUX – 1.00 kW

Rear centre burnerGas – Semi Rapid – 1.80 kW

Front right burnerGas – Semi Rapid – 1.80 kW

Rear right burnerGas – Rapid – 3.00 kW

Automatic electronic ignitionYes

Gas safety valvesYes

Burner capsMatte black enamelled

Cooking time settingStart and Stop; timer; end of cooking acoustic alarm

TimerYes

Max power draw4000 W

Current18 A

Voltage220–240 V

Voltage 2380–415 V

Type of electric cableYes, Single phase (cable testing: Yes)

Additional connection modalitiesYes, Double and Three Phase

Frequency50/60 Hz

Terminal block5 poles

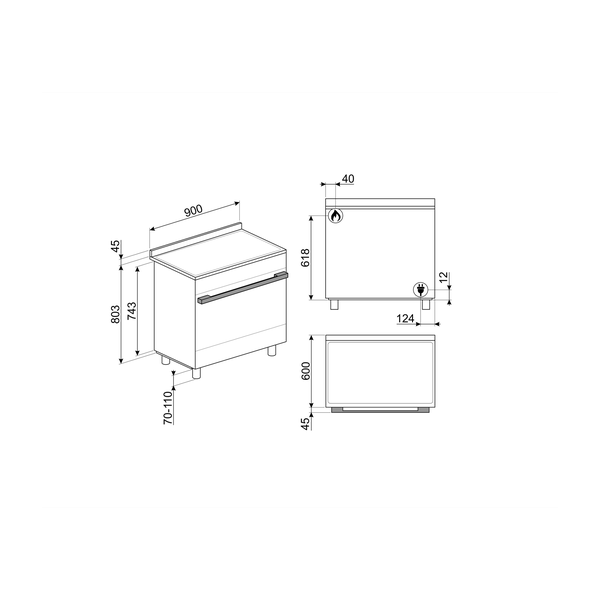

Dimensions diagramOverall width 900 mm; depth and height shown; installation in column possible (diagram present; exact all-round dimensions not fully labelled in text)

Downloads

Download product documentation, manuals, and specification sheets.

CPF9GPAN Spec

PDF

Frequently Asked Questions

What is the capacity of the main oven?

The main oven has a net capacity of 115 litres and a gross volume of 129 litres. The usable cavity space measures 371x724x418 mm and provides five cooking levels.

How many cooking functions does this cooker have?

The cooker offers 10 traditional cooking functions, plus additional functions such as defrost by time, defrost by weight, proving and Sabbath, as well as 20 automatic programmes.

Does the oven clean itself?

Yes. The main oven features pyrolytic and Eco pyrolitic cleaning cycles that automatically clean the interior. The Eco function is designed for lighter soiling and lasts up to 1.5 hours.

What safety features are included?

Safety features include gas safety valves, a safety thermostat, heating suspended when the door is opened, tangential air cooling to keep surfaces safer, and a door lock during pyrolisis.

Which accessories are supplied with the cooker?

Included accessories for the main oven and hob are one chrome shelf with back and side stop, one 20 mm deep tray, one 40 mm deep tray, one grill mesh and one set of partially extractable telescopic guide rails.

Are there optional accessories available?

Compatible accessories include the AIRFRY9 air fryer rack, BBQ9 grid, BN920 and BN940 enamelled trays, GTP and GTT telescopic guides, cover strip, height extension and reduction kits, splashback, pizza shovel, child lock, silicone mould set and TPKCPF9 teppanyaki grill plate.
